SYMETIX    Walla Walla, WA 99362
Nov 10, 2005 Vantyx(TM) performs 100%, in-line inspection of tablets, capsules, and softgels at full production speeds using Spatial Color Analysis technology. Able to verify product color, count, shape, position, and presence of print via 2-6 color cameras, it removes foreigners, color errors, shape defects, and missing doses to ensure dose conformity. It can be embedded within other packaging machinery and inspects up to 10,000 individual tablets/min or up to 360 complete blisterpacks/min.

Ircon Inc.    Niles, IL 60714
Nov 10, 2005 Utilizing infrared thermal imaging technologies, Maxline 2 inspects seals and generates control outputs with no negative effect on production time or speed. Inspection tool specifically monitors thermal seal signatures and generates pass/fail results with diagnostic codes. With image de-burring feature, system can inspect continuous motion items at up to 700/min, and for indexing applications without de-burring feature, it can perform up to 300 inspections/min.

Computer Conversions Corp.    East Northport, NY 11731
Nov 10, 2005 Measuring 2.6 x 3.1 x .82 in., Synchro to BCD Converter Modules mount on PC boards and convert Synchro or Resolver inputs of 11.8 or 90 V, 400 Hz into 3 or 4 decade BCD data representing angle with accuracy of ±6 or ±30 min of arc. Converters have isolated reference and Synchro inputs and optional zero offset adjustment. Digital outputs are DTL/TTL compatible, and bidirectional input data is accepted. Unipolar and Bipolar models are standard.

Computer Conversions Corp.    East Northport, NY 11731
Nov 10, 2005 Single-module, 2-speed Synchro to Digital devices convert Synchro or Resolver inputs of 11.8, 26, or 90 V/400 Hz or 90 V/60 Hz into 16-bit parallel binary outputs representing angle. Able to track rates up to 1,000°/sec, units have dc velocity output and built-in test digital indication of correct operation. Converters measure 2.6 x 3.1 x .82 in. and offer speed ratios of 1 x 10, 1 x 18, 1 x 36, 1 x 8, 1 x 16, 1 x 64, and 1 x 128.

Grace Engineered Products, Inc.    Davenport, IA 52807
Nov 10, 2005 Mounted inside control panel via DIN rail, VoltageVision(TM) Power Warning Alert locates every power source inside panel to maintain electrically safe work conditions. It enables those performing maintenance on open control panels to see voltage state of every power source. Hardwired into any power source, unit flashes whenever hazardous voltage is present in any single/3-phase or dc power system. System detects ac and dc voltage and operates from 40-750 Vac/30-1,000 Vdc.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 10, 2005 Agilent J7844A VoIP call trace signaling analyzer identifies complex signaling problems, end-to-end, across multiple voice technologies in seconds, minimizing VoIP service downtime. Able to automatically detect, capture, and trace call signaling across multiple points in network in real-time, product also allows users to troubleshoot signaling problems during any leg of call. Supported voice technologies include VoIP, SS7, SS7/IP, 2G, 2.5G, and 3G mobile networks.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Nov 10, 2005 Agilent N2X EPON Performance Analysis Solution validates and debugs EPON (Ethernet Passive Optical Network) implementations and brings EPON services into operation. Multiport traffic solution includes native EPON specific test capabilities, verifies fair sharing of bandwidth on EPON, and pinpoints location and causes of congestion and service disruption. Solution can generate realistic end-to-end traffic through EPON, monitor data, and simulate realistic triple-play services.

Meissner Filtration Products, Inc.    Camarillo, CA 93012 8760
Nov 10, 2005 Using pressure hold method, Accuflux® Pocket Pro(TM) can store up to 19 programs for testing various cartridge and housing combinations. Product automatically saves results in memory after each test is performed, and data can be viewed on LCD screen or downloaded to PC for saving/printing. Microprocessor-controlled unit suits bulk pharmaceutical, fine chemical, semiconductor/microelectronics and wine, beer, and bottled/mineral water industries.

ADLINK Technology Inc.    Irvine, CA 92618
Nov 10, 2005 With support for 3.3 and 5 V Universal PC bus, PCI-7260 has 8 channels, each of which switches 5 A currents at 250 Vac or 30 Vdc. It also offers 8 isolated digital input channels with debouncing circuits. Along with emergency shutdown function, product features front panel connector that can carry high currents and facilitates wiring. Trace space, trace width, and copper thickness are designed to follow EN61010-1 safety standards to carry high currents over PCB.

Krohne, Inc.    Peabody, MA 01960-3803

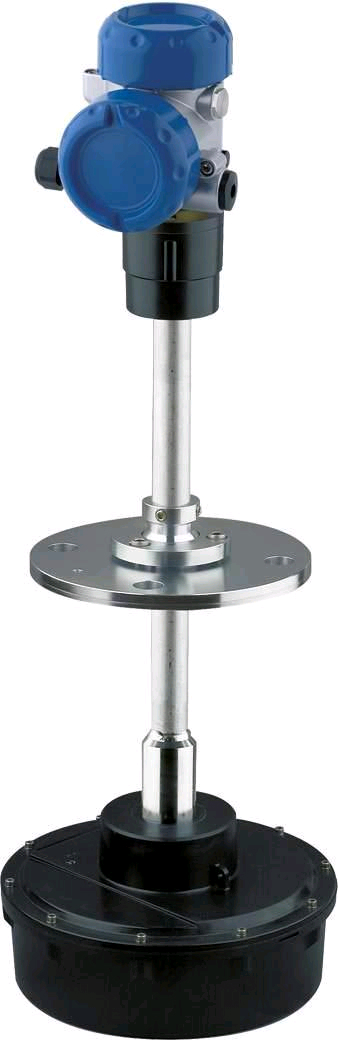

Nov 10, 2005 Providing measurement during processing and storage of liquids, OPTISOUND 3010C, 3020C, and 3030C offer ±.39 in. accuracy, even with fluctuating liquid levels, temperatures, and vapors. Short ultrasonic pulses ranging from 35-70 kHz are emitted by transducer to liquid surface. Using microcomputer technology and processing software, gauges calculate exact distance to surface. Units are suited for water and wastewater measurement in basins, sumps, and sludge containers.

austriamicrosystems AG    Premstatten   Austria
Nov 10, 2005 HIT-Kit integrates Design for Manufacturing (DFM) reference design flow for its 0.35 µm High-Voltage CMOS process (H35). It utilizes analog high-voltage DFM tools such as design and layout verification of circuit robustness, yield optimization, parasitic simulation, or safe operating area check. Complete with fully silicon qualified standard cells, periphery cells, and general-purpose analog cells, kit facilitates design starts of complex mixed-signal ICs.

Schaffner EMC, Inc.    Edison, NJ 08837

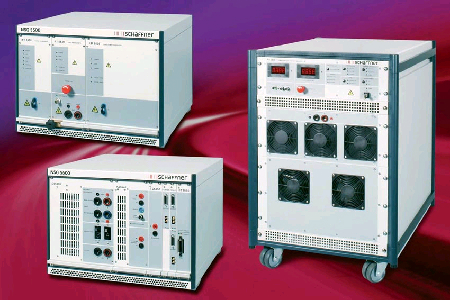

Nov 09, 2005 Automotive Component Testing System is comprised of 3 components. Model NSG 5500 is designed for testing capacitive discharge transient immunity and is suited for users requiring more than 25 A. Used for testing supply voltage variation, Model NSG 5600 controls power amplifier for generating voltage variations based on pulse 2b and 4, sine wave, and noise. Battery simulator, Model PA 5840 provides 150 kHz bandwidth and inrush current 3x continuous rating of 25, 50, and 100 A.

Z Meters, Inc.    San Jose, CA 95124
Nov 09, 2005 Utilizing time-synchronized, multipoint measurement and correlation techniques, ZM100 characterizes impedance of distribution systems. It consists of 2 or more ZM100 Distribution Analyzers, connected to salient point in facility's electrical distribution system, used to identify and localize variety of conditions that can lead to voltage anomalies and/or power loss. Features include Bluetooth wireless communications and Windows-based software.

RF Engines    Newport, Isle of Wight PO30 5WB  United Kingdom
Nov 09, 2005 Digital down-converter FPGA core, ChannelCore64 allows designers to replace up to 16 specialist DDC ASIC devices with single IP core for FPGA. Unit supports two 16-bit ADC inputs each with sample rate up to 140 mega-samples/sec. It offers independent selection of channel bandwidths, independent selection of output sample rates with resolution less than 0.01 Hz, and independent tuning of channel center frequencies with resolution less than 0.01 Hz.

Emerson Process Management    Austin, TX 78754
Nov 09, 2005 SeniorSonic(TM) flow meters utilize Daniel® Mark III(TM) Electronics with continuous monitoring feature for use in ultrasonic fiscal gas measurement applications. Diagnostics report status of meter, enabling recalibration only when necessary; Condition Based Monitoring enables proactive approach to maximizing up-time and efficiency. On-line diagnostics permit ongoing accuracy to be verified and eliminate need for periodic recalibration.

Klein Tools, Inc.    Lincolnshire, IL 60069
Nov 09, 2005 Designed with double-sided blades, Power-Return Rules are available in 16, 25, and 30 ft as well as 7.5 m/25 ft. Magnetic dual-end hook allows professionals working with ferrous metals to take one-person measurements. Hook is triple-riveted with bottom blade protector to reinforce blade tip and provide maximum pull-out length. Built-in shock absorber protects blade tip, and true zero feature ensures accurate inside and outside measuring.

Dataforth Corp.    Tucson, AZ 85706

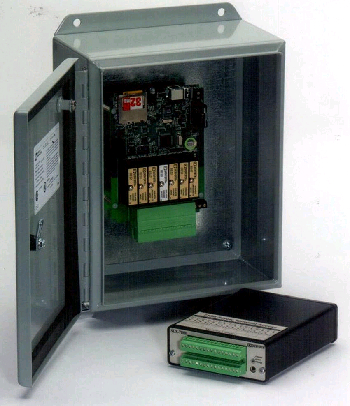

Nov 08, 2005 Comprised of SLX718 units and miniature SensorLex(TM) 8B isolated analog signal conditioners, isoLynx® SLX718 Data Logger/DAQ System includes 14-bit analog-to-digital conversion, programmable channel scan list, programmable sample rate throughput from milli-Hertz to more than 14,400 Hz, and USB or Ethernet interface. I/O can be changed on per channel basis for 8 signal conditioner locations. Stand-alone option features built-in multimedia socket that accepts SD memories.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 08, 2005 Along with 1/8 in. male NPT center back connection, Series SGC compact OEM pressure gage comes standard with 1 in., 304 SS case suitable for OEM applications using pumps, compressors, and portable cylinders. Products are available in ranges from 0-100 psig up to 0-5,000 psig.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 08, 2005 Small volume of triple wound Bourdon tube inside Series 7112B Spirahelic® gage enables diaphragm seals smaller than standard C Bourdon tube gage. Diaphragm seals are available with 316L SS wetted parts and are offered on models with pressure ranges up to 1,000 psig. Optional ¼ in. NPT flush port is available for applications such as water treatment plants that require clean-out line to maintain proper gage performance.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Nov 08, 2005 Model pH 211 features pH range of 0-14 (±0.01) and temperature range of 0-100°C (±0.5ºC). In conjunction with ISE and ORP electrodes, microprocessor-based unit can also measure mV from ±399.9 to ±1,999 mV. Automatic buffer recognition lets user select 1- or 2-point calibration, and display shows pH or mV and temperature simultaneously along with step by step operation.
