Lumetrics, Inc    Rochester, NY 14623
Oct 24, 2011 LumetriScan(TM) 360 can be used on medical tubing up to 36 in. long or balloons of almost any size. Fully automated, non-contact system allows product to be rotated 360° and can scan length of item to map thickness of entire body. In addition to OptiGauge(TM) IR interferometer with 0.1 micron accuracy, system uses Class 1 eye-safe 1,310 nm LED to obtain reflections off of every surface it encounters and measure multiple layers simultaneously.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Oct 12, 2011 Along with backlit display and 1 m sensor cable, battery-operated MiniTest 650 features one-pole sensor made of wear-resistant carbide material. Ram- and impact-protection is provided through rubber rimmed casing, and USB interface enables connection to PC. Unit comes in 3 models: with magnetic-induction sensor for measurements on steel substrates; with eddy currents sensor for measurements on non-ferrous metals; and with dual sensor for measuring on both steel or non-ferrous metals.

Ulvac Technologies, Inc.    Methuen, MA 01844
Sep 12, 2011 Equipped with automatic R-Theta stage, UNECS-3000A measures thickness and refractive index of transparent or semi-transparent thin film. Automatic mapping function can handle 300 mm dia wafer substrates, and non-contact instrument can measure 106 points on 300 mm dia wafer within 120 sec. Max measurement speed is 20 ms/point, and other features include automatic height adjustment, editable materials table file, and ability to concurrently analyze up to 6 layers of film thickness.

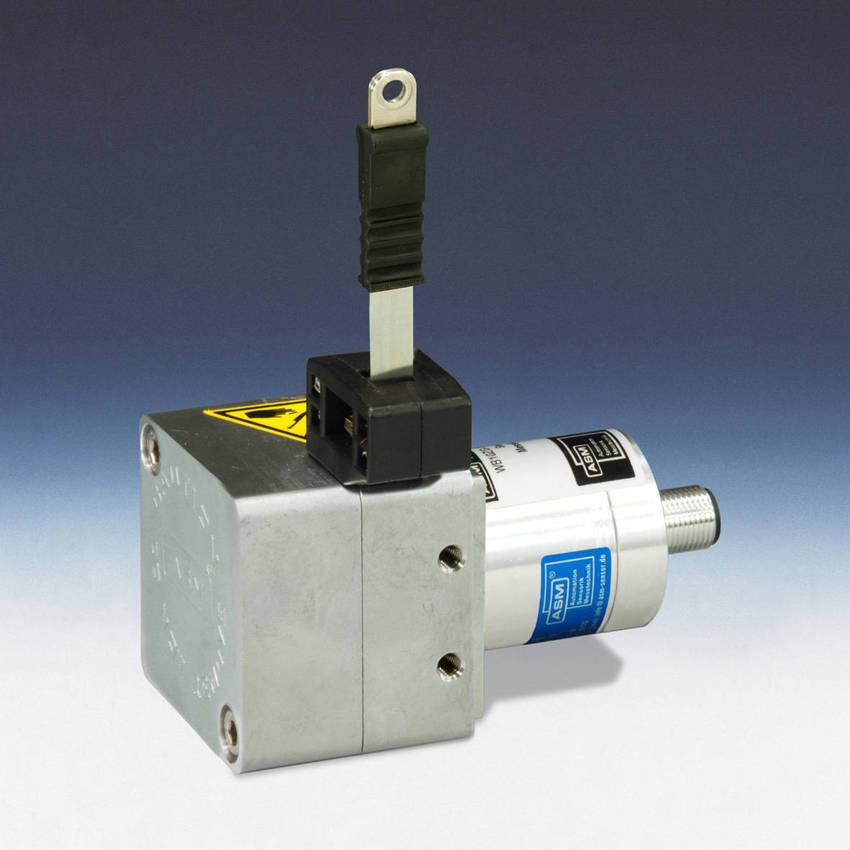

ASM Sensors, Inc.    Elmhurst, IL 60126
Jul 26, 2011 Constructed with stainless steel tape coiled on precision drum, POSITAPE® WB12 Series provides measuring range of 118 in. with linearity of ±0.05% full scale. Sensor is based on non-contact magnetic encoder, which serves as angle sensor element for tape drum. Series is available with 0.5-10, 0.5-4.5, and 4-20 mA analog outputs as well as SSI, CANopen, and CAN SAE J1939 digital outputs. Featuring IP67 rating with appropriate mating connector, WB12 Series withstands harsh environments.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jul 21, 2011 Featuring backlit display and 1 m sensor cable, MiniTest 650 is available with magnetic-induction sensor for measurements on steel substrates, eddy current sensor for measurements on non-ferrous metals, or dual sensor for measuring on both steel and non-ferrous metals. One-pole sensor is made of wear-resistant carbide material to ensure virtually unlimited life cycle under normal conditions. Via USB interface, gauge can be connected to PC for online measurements or display of statistics.

DeFelsko Corp.    Ogdensburg, NY 13669
Jun 21, 2011 Standard and Advanced PosiTector® 6000 models feature built-in memory, onscreen statistics, USB mass storage, and Fast mode. Additionally, Advanced models include reversible color LCD, scan mode, onscreen help, real-time graphing, and picture prompting. Instruments can upload stored measurements, generate customizable reports, and share results via secure internet connection. Alternatively, stored readings and graphs can be accessed using universal PC/Mac Web browsers or file explorers.

Ametek Automation & Process Technologies    Clawson, MI 48017
Jun 14, 2011 Utilizing magnetostrictive position-sensing technology, GEMCO® 955 eBrik(TM) is suited for linear potentiometers typically found in plastics, tire and rubber, web tensioning, and factory automation. IP67-rated unit is resistant to contaminants and environmental conditions. Available in stroke lengths from 1-72 in., device offers variety of analog output signals from 0-10 Vdc or 4-20 mA. Power consumption of 1.1 W allows direct connection to display and control interface modules.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jun 01, 2011 Supplied with glass calibration plate and leather pouch, Model SP1560 TQC Surface Profile and Coating Thickness Gage uses 2 different tips, one for surface roughness and another for coating thickness. Unit has 0.3 in. stem diameter and M2.5 x 0.45 thread. Precision-machined gauge provides measurement range of 0-0.13 in. with 0.04 mil resolution and 0.2 mil accuracy.

Olympus    Waltham, MA 02453
May 06, 2011 With optimized data storage capacity and transfer rate, OmniScan MX2 provides inspection capabilities for manual and automated phased array applications. Integral 10.4 in. LCD touchscreen facilitates navigation, text input, and parameter setup, while SD card and USB interfaces provide connectivity. Fully compatible with phased array modules already in field, modular instrument comes with all software options, including multigroup, time-of-flight diffraction, and weld overlay wizard.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
May 05, 2011 Ready to measure with no calibration adjustment required for most applications, POSITECTOR 6000 III Series includes versions for ferrous metals, non-ferrous metals, or for all metal substrates. Standard models feature monochrome display and can store 250 readings, while advanced models, with reversible color LCD, store 100,000 readings and enable data transfer via USB to PC or via Bluetooth to PC or printer. Scan mode lets users take continuous readings without lifting probe.

Honeywell International, Inc.    Morristown, NJ 07960
Mar 16, 2011 Providing non-contact rotary and angle position sensing, Hawk(TM) 1-Inch Series delivers ±7 arcmin accuracy for precise motion control. Fully housed configuration with bearing/shaft has 1 in. outer diameter, allowing use in size-restricted applications. Operating from -60 to 200°F, resolvers offer single speed operation for angle resolution over 360°+ range, excitation frequency of 2,000-5,000 Hz, excitation voltage of 2-15 V, and transformation ratio of 0.45 or 1.0.

Applied Measurements Limited    Aldermaston, Berkshire RG7 8PN  United Kingdom
Mar 07, 2011 Based on battery-powered, 2.4 GHz wireless telemetry data acquisition and transmission system, Model DTDR-F is intended for rotating applications up to 6,500 rpm where direct, in-line torque measurement is desired. System has pair of balanced Delrin housings, one containing telemetry module and another containing 3.6 V Li-Ion battery that is recharged in-situ. With 120 m range, T24-SA telemetry module achieves 650 hr/27 day battery life based on continuous use at transmission rate of 1/sec.

Macro Sensors    Pennsauken, NJ 08110 1334
Mar 01, 2011 Constructed of stainless steel, GPA Series Spring-Loaded Linear Position Sensors are available in ranges from ±0.050 to ±2.00 in. with maximum linearity error of ±0.25% FRO. They include ½-20 UNF 2A thread on housing, allowing OEM to install it into mating threaded part or use two hex nuts for bulkhead mounting. Electrical interface is via 3 ft long Teflon® insulated/shielded cable and units provide various analog or digital outputs when connected to any standard LVDT signal conditioner.

Macro Sensors    Pennsauken, NJ 08110 1334
Jan 14, 2011 Available in ranges of 11.8-39.4 in., MLW Series of Long Stroke Position Sensors provide absolute position measurement of displacements up to 1.2 m. Units are powered by 24 Vdc and have less than ±0.25% linearity and ±0.01% repeatability over full scale with analog voltage, current, and SSI outputs. Featuring self-contained electronics, stainless steel probe, and die cast probe head with IP66 rating, transducers are suited for hydraulic cylinder and actuator feedback applications.

GAO RFID Inc.    Toronto   Canada
Jan 12, 2011 Featuring 2 operating modes, Model 150 performs measurements on wide range of material including metals, plastic, ceramics, composites, epoxies, glass, and other materials that conduct ultrasonic waves. Unit takes 4 measurement readings in single point mode, which measures thickness at one specific point. In scan mode, which measures thickness over length, gauge takes 10 readings/sec. Model 150 includes 2-point calibration function, 20-measurement memory capacity, and auto power off.

Micro-Epsilon UK Ltd    Cheshire   United Kingdom
Dec 13, 2010 Modular thicknessCONTROL MTS 8202 features C-frame that can be extended with aid of linear axes. Featuring correction system that allows for micrometer precision, it measures thickness of strip materials such as metal, plastic, or wood, as well as materials in sheet form, up to 500 mm wide and up to 50 mm thick. Damaged sensors can be replaced, even in harsh environments, without disassembly, and integrated calibration can analyze precision of system in less than 1 sec.

ASM Sensors, Inc.    Elmhurst, IL 60126
Nov 15, 2010 Measuring 2 x 2 x 3.3 in., POSITAPE® WB10ZG series stainless steel tape position sensor has enclosure rated IP65, is shock resistant to 100 G for 11 msec, and vibration resistant to 20 G, 10 Hz to 2 kHz, for 10 cycles. Position transducer is available with 0.5-4.5 V, 0.5-10 V, and 4-20 mA analog outputs or SSI, CANopen, or CAN SAE J1939 digital outputs. In areas where icing can occur, flat, smooth surface of tape also allows for quick removal of ice accumulation.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Oct 27, 2010 Sensorex model SX9W3 is rugged, high-accuracy transducer with overall length of 26 mm and diameter of 9 mm. Featuring maximum linearity error of less than ±0.25% of full scale, with option to reduce to ±0.15%, unit operates in temperatures from -40 to +125°C. There are no wearable parts and unit offers infinite resolution, resistance to shock and vibration, and immunity to external magnetic fields. Transducer suits embedded automotive and general laboratory test bench applications.

Measurement Specialties, Inc.    Hampton, VA 23666
Oct 26, 2010 Made exclusively from inorganic materials, hermetically sealed XS-ZTR Series is suited for continuous operation over temperature range of -320 to +1,022°F and pressures to 2,500 psi. Units withstand total integrated neutron flux levels up to 3 x 1,020 NVT and total integrated radiation levels up to 1,011 RADs or 109 Gy. Joints are welded or brazed with high temperature alloys, while nickel leads are insulated with magnesium oxide and sheathed in stainless steel jackets.

Measurement Specialties, Inc.    Hampton, VA 23666
Oct 26, 2010 For monitoring and closed-loop control of hydraulic systems in off-road vehicles, LVDT (Linear Variable Differential Transformer) measures position of Electro-Hydraulic servo-valve. Analog transducer offers digital calibration of voltage output, digital linearity correction, and temperature compensation using MEAS technology. Total error band over temperature range is 1% typ, including probe interchangeability over -40 to +120°C range. Various communications options are available.
