Micro-Epsilon UK Ltd    Cheshire   United Kingdom

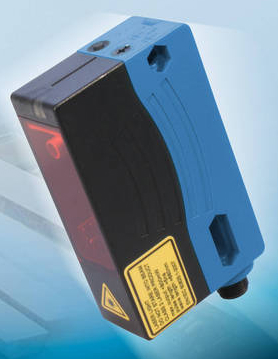

Mar 15, 2011 Operating on time-of-flight principle, optoNCDT ILR 1030 offers measuring range of 0.2-8 m on diffuse reflective surfaces and up to 50 m when using reflector plate. Measurement speed of 100 Hz also enables length measurements with different objects in measuring range as well as reliable measurements on different target materials. Sensor measures with visible, class II laser pulse, is insensitive to external light influences, and can measure under artificial lighting.

Micro-Epsilon UK Ltd    Cheshire   United Kingdom

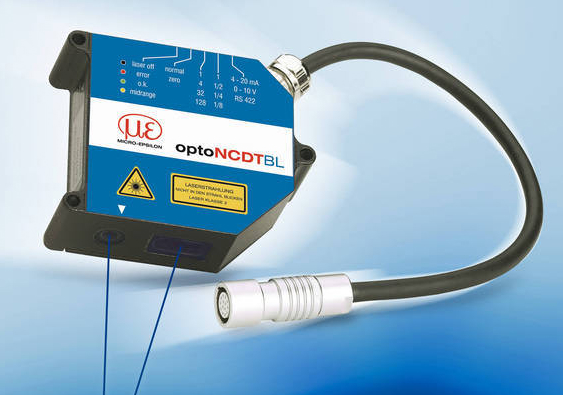

Mar 15, 2011 When measuring on metals, particularly annealing metals and organic materials such as wood, skin, foodstuffs, and veneers, Triangulation Sensors with Blue Laser technology do not penetrate measuring object. Laser generates minimal laser point on surface and therefore offers stable, precise results on measuring objects that are normally considered critical. In addition, sensors are equipped with high-end lenses, intelligent laser controls, and evaluation algorithms.

Greyline Instruments, Inc.    Massena, NY 13662
Feb 17, 2011 Equipped with 3-key calibration system, Model SLT 5.0 can be used as level transmitter for tank inventory applications with continuous display and control, or as open channel flow monitor with display and totalizer. Unit includes non-contacting PVC and Teflon® sensor rated for ranges up to 32 ft. Housed in NEMA 4X enclosure, monitor provides isolated 4-20 mA output and has 3 control relays programmable for pump control, pump alternation, level alarms, and/or flow proportionate pulse.

Eriez Magnetics    Erie, PA 16506
Feb 09, 2011 Hawk Metalarm Metal Detectors feature coil that offers sensitivity equal to approximately 5% of aperture height, while Eagle detectors have coil that detects ferrous sphere equal to 2% of aperture height. Both microprocessor-based units include self diagnostics and fault indication, as well as variable operating frequency to suit different applications. Integrated Model 3600 control is IP66-rated and supplied with either painted steel or stainless steel enclosure with anti-condensation heater.

Banner Engineering Corp.    Minneapolis, MN 55441
Jan 28, 2011 Comprised of adjustable-field and retroreflective models, R-GAGE(TM) QT50R sensors utilize Frequency Modulated Continuous Wave radar to detect moving or stationary objects such as trains, cars, trucks, and cargo. Adjustable-field model emits defined beam of high-frequency radio waves from internal antenna, which processes signal reflected back to receiving antenna. Detecting objects located in user-defined distance, retroreflective sensor ignores any objects and background beyond setpoint.

Cognex Corp.    Natick, MA 01760 2059
Jan 21, 2011 Supporting remote setup and monitoring, Checker® 4G Series supports PLC communication through EtherNet/IP and PROFINET as well as ability to save inspection images to FTP server. Unit can be configured as presence sensor or measurement sensor to inspect and error proof manufacturing process, and there is no limit to number of part features that single sensor can check in either mode. Integrating lighting, optics, and I/O, product can detect and inspect 6,000+ parts per minute.

Ophir-Spiricon Inc.    Logan, UT 84321
Jan 21, 2011 Traceable to standard laboratory calibration, Model 3A-P-THz can measure short pulse or CW lasers in 0.1-10 THz wavelength range, optical power from 60 µW to 3 W, and energy from 20 µJ to 2 J. Design of sensor's p-type absorber maximizes performance across entire spectral range. Device works with all Ophir smart displays or PC interfaces, including Orion PE, Nova, Nova II, Vega, LaserStar, USBI, Pulsar, and Quasar.

Pressure Systems, Inc.    Hampton, VA 23666
Jan 12, 2011 Featuring Teflon®-coated elastomeric diaphragm with surface area of 0.90 in. to prevent clogging, KPSI Series 705 is available in custom level ranges from 6-115 ft H2O with analog outputs of 4-20 mA or 0-5 Vdc. Non-fouling submersible hydrostatic level transducer is compensated over temperature range of 23-122°F with static accuracy of ±0.25% FSO. Housed in welded 316 SS, Series 705 is suited for highly viscous applications, including lift stations, slurry and pump control.

Micro-Epsilon UK Ltd    Cheshire   United Kingdom

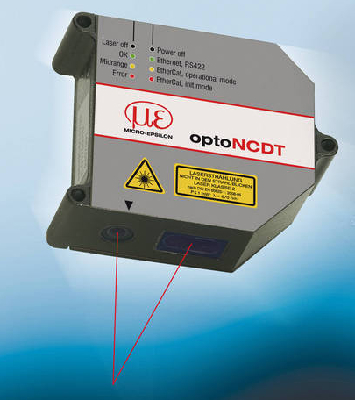

Dec 14, 2010 Available in 5 models with measuring range of 2-100 mm, optoNCDT 2300 offers resolution up to 0.1 µm and linearity up to +0.4 µm. Sensor records first and second reflection from target surface, eliminating need for second sensor during process monitoring of transparent plastics. By adjusting automatic exposure regulation to customer requirements, A-RTSC feature enables precise real-time surface compensation during measuring process. Data output is via Ethernet, RS422, or EtherCAT.

Ophir-Spiricon Inc.    Logan, UT 84321
Nov 16, 2010 Designed to measure temporal pulse shape of lasers or other light sources, FPS-1 Fast Photodetector consists of photodiode sensor that handles wavelengths from 190-1,100 nm. Unit's 50 W load measures ns high peak power pulses, while 10 KW load measures longer and lower peak power pulses. Input can be direct beam or from fiber connection. Operating off battery or wall cube power supply, detector is available with optional ND filters.

Pepperl + Fuchs, Inc.    Twinsburg,, OH 44087 2245
Sep 30, 2010 Pepperl+Fuchs GLV18 Series photoelectric background suppression sensor features mechanically adjustable sensing range cut-off that enables detection of all colors up to 120 mm away. Unit is able to detect b&w test objects to within 6% of same distance, and objects with changing print, color, or reflectivity are detected at consistent distances without need for readjustment or repositioning. Flush-mount bracket is included for toolless mounting of sensor on conveyor.

Pressure Systems, Inc.    Hampton, VA 23666
Sep 28, 2010 Powered by internal, surge-protected, 3.6 V lithium battery, TruBlue 585 CTD concurrently monitors and logs conductivity to 1% accuracy as well as temperature and pressure levels. Fully sealed design incorporates multiple interfaces as well as 8 MB memory capable of storing up to 550,000 measurements. Available FS water level ranges vary from 0-11.5 ft to 0-658 ft, and level accuracy is ±0.1% FS total error band. Conductivity range is 5-200,000 µsec/cm, with accuracy of 20 µsec/cm.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Sep 09, 2010 Without requiring any electricity, manual Series DTV provides uninterrupted liquid level indication for 30 or 55 gal storage tanks/vessels. Stem and mounting feature all-PVC construction, and only float and stem make contact with liquid to ensure indication tape remains clean and readable. Recommended for use in calm liquids and ambient temperature and pressure levels, product comes in lengths from 6 in. to 6 ft and is accurate to 1/16 in.

Carlo Gavazzi, Inc.    Buffalo Grove, IL 60089
Sep 08, 2010 Utilizing CMOS vision-based camera technology, GUARDIAN can detect both motion and presence. Presence zone can be set through teach process, and time delay for holding door open can be adjusted via potentiometer. In bi-directional mode, any detected motion causes door to open, and in uni-directional smart mode, door will only open when people are moving toward it. Additionally, GUARDIAN will adapt to changes in environment, including sunlight, shadows, snow, rain, and leaves.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Sep 03, 2010 Suited for material handling applications, ML100 Series features bright light spot that optimizes sensing distance and facilitates alignment, even to small objects or reflectors. Status indication details what sensor is doing at any given moment, and because status LEDs are visible from 360°, users can ascertain status from various positions. Operating from -22 to 140°F, ML100 Series provides automatic crosstalk protection and is immune to ambient light.

Safety Technology International    Waterford, MI 48327
Aug 19, 2010 Unaffected by people, animals, and shadows, solar-powered (STI-34100) and battery-powered (STI-34150) models detect when vehicle enters/exits home or office driveway. Magnetometer sensor system detects movement of any large metallic (iron or steel) object and sends signal using 433 MHZ wireless frequency from transmitter to indoor receiver, which will chime and flash. Solution may be placed as far as 1,000 ft (line of sight) away from receiver indoors.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Aug 19, 2010 Series DTM provides uninterrupted liquid level indication for 30 or 55 gal storage tanks or vessels. Stem and mounting fixtures are available in 316 SS or brass, and only float and stem make contact with liquid to ensure indication tape is always clean and readable. Accurate to 1/16 in. and available in lengths from 6 in. to 6 ft, manual indicator is customizable to meet specific application requirements.

Baumer Ltd.    Southington, CT 06489 1534

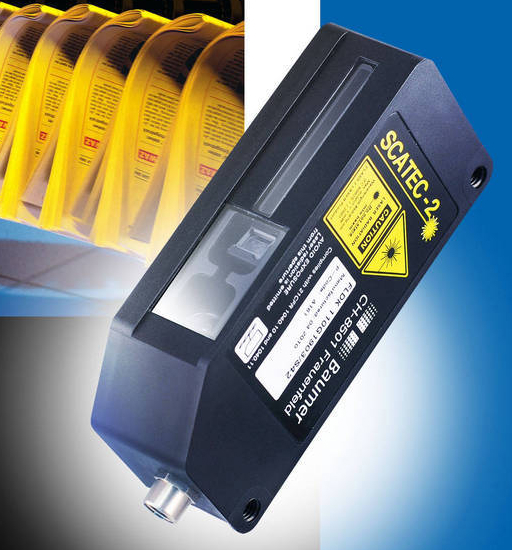

Aug 13, 2010 Insensitive to changing color or reflectivity of printed materials, SCATEC Clamp Sensor counts newspapers transported via conveyor clamps or grippers. Laser optics and internal algorithm are used to count number of documents in clamp as well as detect presence and number of copies in one gripper. Documents as thick as 0.25 mm can be measured at sensing ranges to 120 mm, and accurate detection can take place at travel speeds to 5 m/sec. Visible red laser beam facilitates alignment.

Alpha Vision Design,    Dublin 22   Ireland
Aug 06, 2010 Employing volume measurement technology to count people, Ulysses bi-directional footfall sensor automatically tracks and counts number of visitors entering or exiting building. It can distinguish adults from children, pets, shopping carts, and strollers and is suitable for measuring pedestrian traffic on streets, within malls, stores, banks, and nightclubs. Unaffected by effects of A/C units, sunlight, and light changes/conditions, sensor can operate standalone or networked together.

Gems Sensors Inc.    Plainville, CT 06062
Jul 14, 2010 Delivering 4.5-24 Vdc pulsed output that is proportional to rate of flow and can be integrated into most digital logic units, RotorFlow Series RFO uses paddlewheel to provide at-a-glance verification that fluids are moving. Units are offered in ¼-1 in. ports sizes and monitor fluids from 0.1-60 gpm with typical accuracy within ±7%. Brass and stainless steel models feature operating pressures to 200 psig at 70°F, while polypropylene versions operate to 100 psig.
