Monitor Technologies LLC    Elburn, IL 60119
May 20, 2013 When equipped with optional stainless steel interface style plumb bob, SiloPatrol® can provide level measurement for settled solids in blanket of water. Plumb bob penetrates through water, makes contact with surface of solid material, and retracts to provide measurement. Housed in split-compartment enclosure, maintenance-free system combines weight and cable techniques, Hall Effect sensor technology, sealed bi-directional optical sensing, and isolated outputs.

Pepperl+Fuchs    Twinsburg, OH 44087

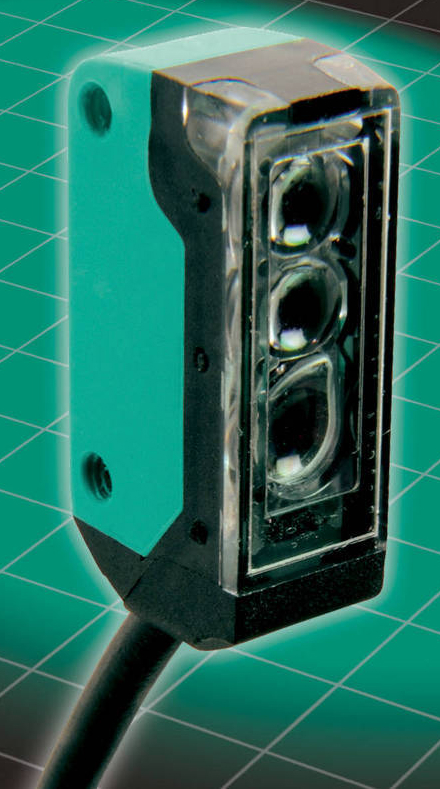

May 10, 2013 Available in 4 sensing modes – background evaluation, advanced thru-beam, polarized retroreflective, and background suppression – to suit application, R2 Series has 24 x 7.5 x 11.2 mm housing, flush and wear-resistant antistatic glass lens, and 45° cable outlet. Max sensing distances vary by detection mode; thru-beam mode sensors feature 8.2 ft max range, 600 µsec response time, and 10–30 Vdc supply. Threaded mounting holes and 15 mm mounting hole separation are standard on all versions.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
May 10, 2013 Designed specifically for secondary cameras in notebooks, tablets, smartphones, and smart TVs, OV9728 HD CameraChip™ Sensor utilizes 1.75-micron OmniBSI+™ pixel architecture to deliver HD video performance that exceeds Microsoft® Lync™ and Skype® specifications for video quality. Device captures 720 p HD video at 30 frames/second or cropped VGA video at 60 fps. Housed in 6 x 6 x 3 mm module, chip features 1/6.5 in. optical format and one-lane MIPI interface.

Wilks Enterprise, Inc.    East Norwalk, CT 06855
May 08, 2013 InfraCal Biodiesel Blend Analyzer reads out directly in percent biodiesel and can measure blend ratio on-site in 30 sec. This specific-analysis fixed-filter IR analyzer has 0%–100% measurement range and ±0.20% accuracy. Containing linear variable filter and detector array covering 5.4–10.8 μm wavelength range, InfraSpec VFA-IR Spectrometer can measure biodiesel in diesel, ethanol in gasoline, or water in ethanol. This portable spectral range analyzer has usability-optimized PC interface.

OSRAM Opto Semiconductors GmbH    Regensburg D-93049  Germany

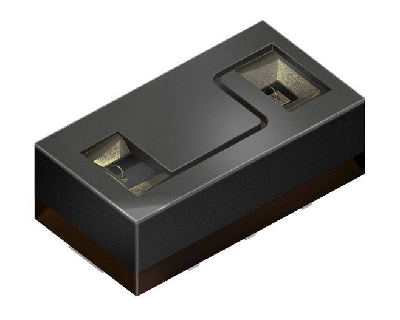

May 07, 2013 Containing infrared LED and 2 detectors, Model SFH 7776 registers ambient brightness – even behind dark smartphone covers – and prevents unintentional responses from touchscreen during telephone calls. Digital sensor features working range up to 16 cm and does not need lenses to collect emitted IR light. In standby mode, device consumes just 0.8 µA. In addition, proximity sensor eliminates crosstalk, so separate optical barriers between IRED and detector are not needed.

Toshiba America Electronic Components (TAEC)    Irvine, CA 92618-1811
Apr 24, 2013 As 1080p full HD resolution CMOS image sensor with 1.12 µm pixel, backside illumination (BSI), and integrated color noise reduction (CNR), T4K71 fosters continued development of performance-optimized, ultra-thin smartphones and tablet PCs. Frame rate of 60 fps at 1080p promotes smooth, continuous recording of HD video. Additional features include 2 MP resolution, 1/7.3 in. optical size, and 16:9 aspect ratio.

Steinbichler Optotechnik GmbH    Neubeuern   Germany
Apr 23, 2013 With 8 megapixel resolution, COMET L3D 8M is designed to deliver optimal data quality, density, and detail. Package consists of sensor and COMETplus software, offering all necessary functions for efficient work processes. Single- and multi-axis rotary tables are available as accessories, enabling fully automated measurements. Offering entry-level solution in automated optical measurement technology, system also provides high-resolution structures in large measurement fields.

EMX Industries, Inc.    Cleveland, OH 44128
Apr 23, 2013 Suitable for applications where UV pigment concentration is low, Model UVX-600 detects presence of luminescent materials such as grease, glue, labels, wood, thread, rubber, paint, and UV ink. Adjustable UV light projection and high resolution allow pin-head size detection. Equipped with numerical display that enables user to see intensity of each reading, sensor provides both analog and discrete output, auto-detect for PNP/NPN, auto-teach, and manual calibration.

Wilks Enterprise, Inc.    East Norwalk, CT 06855
Apr 16, 2013 Capable of taking onsite measurements in under 15 min, InfraCal 2 combines optimized electronics, which maximize signal-to-noise ratio, with touchscreen intuitive display that allows for multiple calibrations, internal data logging, alarm functions, security/password protection, and data transfer. Battery-powered analyzer is housed in rugged package with no moving parts, and is available for use with infrared transparent solvents, as well as hexane, for extraction process.

Keyence Corporation of America    Elmwood Park, NJ 07407

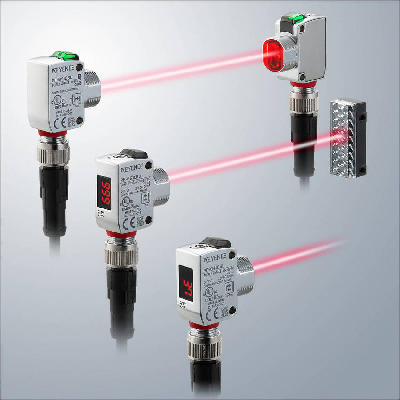

Mar 28, 2013 Resistant to oils, acids, and alkaline detergents, PR-G Series features IP68 and IP69K enclosure ratings to negate effects of harsh environments. Units provide maximum through-beam detecting distance up to 30 m. Built-in trimmer enables sensitivity adjustment, while highly visible light indicator allows for output status to be determined from distance. In addition, diffuse reflective and retro-reflective models contain 7-segment digital display for accurate calibration.

Laser Devices, Inc.    Monterey, CA 93940
Mar 14, 2013 Equipped with high-definition, aspherical, telescopic lens technology, SPIR (Special Purpose IR LED Illuminator) provides high power (<600 mW), low power (<300 mW), eye-safe IR LED illuminator that can be paired with any tactical laser to provide illumination for civilian, law enforcement, and military applications. Solution has operational range of up to 1,500 m and collimated 2° to 30° adjustable beam; it can be handheld or mounted to any MIL-STD-1913 rail using Quick Release HT Mount.

Wilks Enterprise, Inc.    East Norwalk, CT 06855
Mar 08, 2013 With rugged package weighs less than 6 lb and no moving parts, InfraCal 2 provides sensitivity and detection limits for various on-site measurements. These include sub-ppm detection levels of oil in water, cleaning efficiency of metal parts, barrier layers in flexible films, textile, and fiber finishes, and QC measurements. Touchscreen display is standard, and measurements typically take 1–10 min, depending on analysis.

STMicroelectronics    Lexington, MA 02421
Mar 05, 2013 Combining time-of-flight sensor, ambient light sensor die, and infrared emitter, FlightSense™ VL6180 uses proximity measuring technology to calculate distance between smartphone and user, minimizing incidence of dropped calls and enabling innovative interactions with smartphones. IR emitter sends out light pulses, while light detector picks up reflected pulses, and electronic circuitry accurately measures time difference between emission of pulse and detection of its reflection.

Carlo Gavazzi, Inc.    Buffalo Grove, IL 60089
Mar 04, 2013 Supplied in M18 housing, PA18CAD…WS Series features sensing distance up to 400 mm, detection angle of ±16°, and 0 mm blind zone at 400 mm sensing distance. IP69K-rated products, in addition to 10–30 Vdc power supply and up to 100 mA DC load current, offer detecting frequency up to 500 imp/sec, linear sensing distance adjustment, and ECOLAB® approval. Cable or M12 connector versions are available, and cULus and CE approvals are standard.

Electro-Chemical Devices, Inc.    Yorba Linda, CA 92887
Feb 22, 2013 Employing fluorescence quenching sensing element that eliminates need for frequent calibration or membrane replacement, Triton DO80 continuously analyzes oxygen level, water temperature, and air pressure to calculate dissolved oxygen values. Max error is less than 2%, repeatability is ±0.5%, and resolution is 0.01 ppm or 0.01% saturation. Developed for harsh municipal and industrial water treatment environments, sensor offers 0–20 ppm, 0%–200% percent saturation, or 0–6 psi outputs.

Wilks Enterprise, Inc.    East Norwalk, CT 06855
Feb 15, 2013 Via field spectroscopic check, InfraCal Soot Meter gives users approved ASTM testing method for measuring percent level of soot in diesel engine lubricating oils per ASTM Method D7686. Portable, filter-based IR analyzer is factory calibrated for measuring soot percent levels up to 12%–15% in under 30 sec without requiring sample preparation, dilution, solvents, or transmission cells. Sealed against accidental spills, analyzer has no moving parts.

Cal Sensors, Inc.    Santa Rosa, CA 95403
Feb 12, 2013 Employing non-dispersive IR technologies, Model IRCO2 meets requirements of Demand Controlled Ventilation systems. Unit utilizes 2-channel detector and pulsed emitter with burst mode that only energizes emitter 188 ms out of every 30 sec measurement cycle, minimizing power consumption. Generating signal passively by measuring absorption of IR light through gas, sensor eliminates degradation concerns. IRCO2 delivers highest sensitivity in 4.26 micron wavelength region and achieves 25 ppm accuracy.

Baumer Ltd.    Southington, CT 06489 1534
Feb 12, 2013 With qTeach procedure initiated by touching housing using any ferromagnetic tool such as screwdriver, O500 Series Photoelectric Sensors feature no mechanical buttons or moving parts that can wear out. Blue LED on sensor provides clear optical feedback during teach procedure, blinking to indicate when user has activated teach mode and when teach function has been completed. To prevent inadvertent reprogramming in field, qTeach automatically locks out after 5 minutes of operation.

ULIS S. A. S.    Veurey-Voroize 38113  France
Feb 06, 2013 Suited for building diagnostics and automation equipment used in energy efficiency management, Micro80P™ 80 x 80 small pixel pitch high-sensitivity thermal sensor array is based on amorphous silicon (a-Si) microbolometer technology. IR thermal sensor array aims at improving next-generation motion detection systems and increasing measurement accuracy of building energy diagnostic tools. In addition to detecting motion, array can also count, localize, and classify objects or human activity.

Newport Corp.    Irvine, CA 92606
Feb 01, 2013 Supplied with FC/PC adapter, or optional FC/APC and SMA connectors, universal 918D-IS Series uses 1 in. symmetrical integrating sphere to ensure most accurate calibration possible, regardless of fiber type measured. Dual detector design includes special optics to optimize temperature sensitivity while operating from 400–1,650 nm. Model 918D-IS-IG has single InGaAs detector that operates from 800–1650 nm, while Model 918-IS-SL uses single Si detector for operation in 400–1,100 nm wavelength range.
