Flaw & Leak Monitors

Test & Measuring Instruments, Sensors, Monitors & Transducers

Eddy Current Flaw Detectors feature 5.7 in. VGA display.

June 16, 2014

Available in 4 models, NORTEC 600 Series provides Application Selection menu, all-in-one display, real-time readings, and signal calibration in Freeze mode. NORTEC 600 delivers basic single frequency eddy current inspection; NORTEC 600C adds digital conductivity and coating thickness measurements; NORTEC 600S adds rotating scanner use; and NORTEC 600D adds dual frequency capabilities. Featuring IP66 rating for harsh field conditions, battery-powered units provide 10 hours of standard operation. Read More

Sensors, Monitors & Transducers

Flaw Detector supports range of applications.

October 3, 2013

To meet range of application requirements, OmniScan MX supports conventional eddy current testing (ECT), eddy current array (ECA), and bond testing (BT) C-scan technology via 2 module versions. Both modules are compatible with MXE (ECT/ECA) and MXB (BT C-scan) software, facilitating transition between technologies. In ECA mode, flaw detector can perform inspections through thin coatings on conductive material. C-scan BT technology is suited for honeycomb composite inspections. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Flaw Detector uses corrosion inspection software.

September 5, 2013

Available with portable EPOCH 600 Ultrasonic Flaw Detector, Corrosion Module includes automatic ultrasonic setups based on transducer selection, Automatic Gain Control, thickness gage measurement algorithm, V-Path correction, and transducer wear compensation using automatic zero function. Module also features corrosion-style data logger file types, color-coded Grid View, and timed B-scan view for fast data collection and consolidated reporting of areas of interest. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Acoustic Gas Leak Detector ignores background noises.

July 22, 2013

Designed to withstand harsh environments, from arctic to tropical conditions, non-contact FlexSonic™ analyzes 24 discrete ultrasonic bands while ignoring nuisance ultrasonic sources. High-fidelity microphone continuously monitors for distinct ultrasound emitted by pressurized gas leaks across widest spectrum of frequencies. Unit can be programmed to ignore background noises, discerning between gas leaks and environmental noises such as metal-on-metal contact, fans, machinery, or vehicles. Read More

Vision Systems, Software, Sensors, Monitors & Transducers

Flaw Detector Software offers simplified interface.

July 11, 2013

With single operation mode, every item of Omniscan v4.1 interface is always accessible. Title bar provides instant access to main display options, and most common functions are available through interactive menus of full-screen mode, offering tablet-like operation. For applications requiring multi-probe configuration, multi-group layouts are optimized so that scanner configuration is reflected in software interface. Position of different scans is determined by their distance to center of weld. Read More

Sensors, Monitors & Transducers

Flaw Detector offers portability and affordability.

June 25, 2013

Equipped with 8.4 in. touchscreen for displaying software interface, OmniScan® SX flaw detectors provide solution for linear zero-degree inspections, such as corrosion mapping and composite inspection, as well as weld inspection using one phased array group or one TOFD channel. Model SX PA is 16:64PR phased array unit, which is equipped with UT channel for pulse-echo, pitch-catch, or time-of-flight diffraction (TOFD) inspection techniques. Read More

Sensors, Monitors & Transducers

Flaw Detector provides numerous TOFD capabilities.

November 20, 2012

OmniScan MX2 supports 2-channel conventional ultrasound module (UT2), which can be used for TOFD (Time-of-Flight Diffraction) inspections, and onboard software featuring TOFD-specific capabilities/features. In addition to pulser voltages (340 V), PRF capabilities, and SNR, features include TOFD wizard, PCS calibration tool, multiple TOFD screen layouts, Lateral Wave straightening function, and B-scans that facilitate setups as well as improve acquisition displays and defect sizing. Read More

Software, Sensors, Monitors & Transducers

Flaw Detector utilizes phased array and ultrasound modules.

November 6, 2012

For expanded capabilities, OmniScan MX2 Flaw Detector is available with PA2 Phased Array module with UT channel, and UT2 two-channel conventional ultrasound module that can be used for Time-of-Flight Diffraction. NDT SetupBuilder software can create inspection setups based on configuration of component or part to be inspected, while OmniPC software revision provides comprehensive data analysis capabilities for inspection data acquired with flaw detector. Read More

Sensors, Monitors & Transducers

Phased Array Flaw Detector features 10.4 in. touchscreen.

May 6, 2011

With optimized data storage capacity and transfer rate, OmniScan MX2 provides inspection capabilities for manual and automated phased array applications. Integral 10.4 in. LCD touchscreen facilitates navigation, text input, and parameter setup, while SD card and USB interfaces provide connectivity. Fully compatible with phased array modules already in field, modular instrument comes with all software options, including multigroup, time-of-flight diffraction, and weld overlay wizard. Read More

Sensors, Monitors & Transducers

Gas Leak Detection Sensors enable wireless monitoring.

August 17, 2010

Wireless Gas Leak Detection Sensors enable full range of gases to be monitored, with refrigerant, ammonia, toxic, and combustible versions available immediately. Designed to compliment Wireless DATAcentre Monitoring System as well as SAMie Control and Monitoring System, sensors produce system alarm through base station as well as at actual sensor point. This minimizes risk of employee/customer entering area where gas leak is detected. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Inspection System provides semi-automated corrosion mapping.

July 13, 2010

Comprised of OmniScan MX PA flaw detector, OmniScan MXU software with corrosion mapping, and HydroFORM Phased Array Probe Carrier with Mini-Wheel encoder, HydroFORM System provides non-destructive testing of metal plates, pipes, and welded components for detection of internal corrosion, mid-wall anomalies, and environmentally damage mechanisms. Phased array probes cover area up to 2.36 in. wide at speed of 3.93 ips with data increment size of .039 x .039 in. in scan and index direction. Read More

Sensors, Monitors & Transducers

Ultrasonic Flaw Detector features rugged, portable design.

June 23, 2010

Available in 2 hardware configurations, EPOCH 600 can be adjusted with knob or navigation area on keypad. Key standard flaw detection features include 400 V PerfectSquare(TM) tunable square wave pulser, digital filtering, single shot measurements at up to 2,000 Hz PRF, dynamic DAC/TVG, onboard DGS/AVG, and Echo-to-Echo measurements with gate tracking. Built to withstand hazardous environments, battery-powered unit includes transflective VGA display and onboard memory for up to 50,000 waveform files. Read More

Sensors, Monitors & Transducers

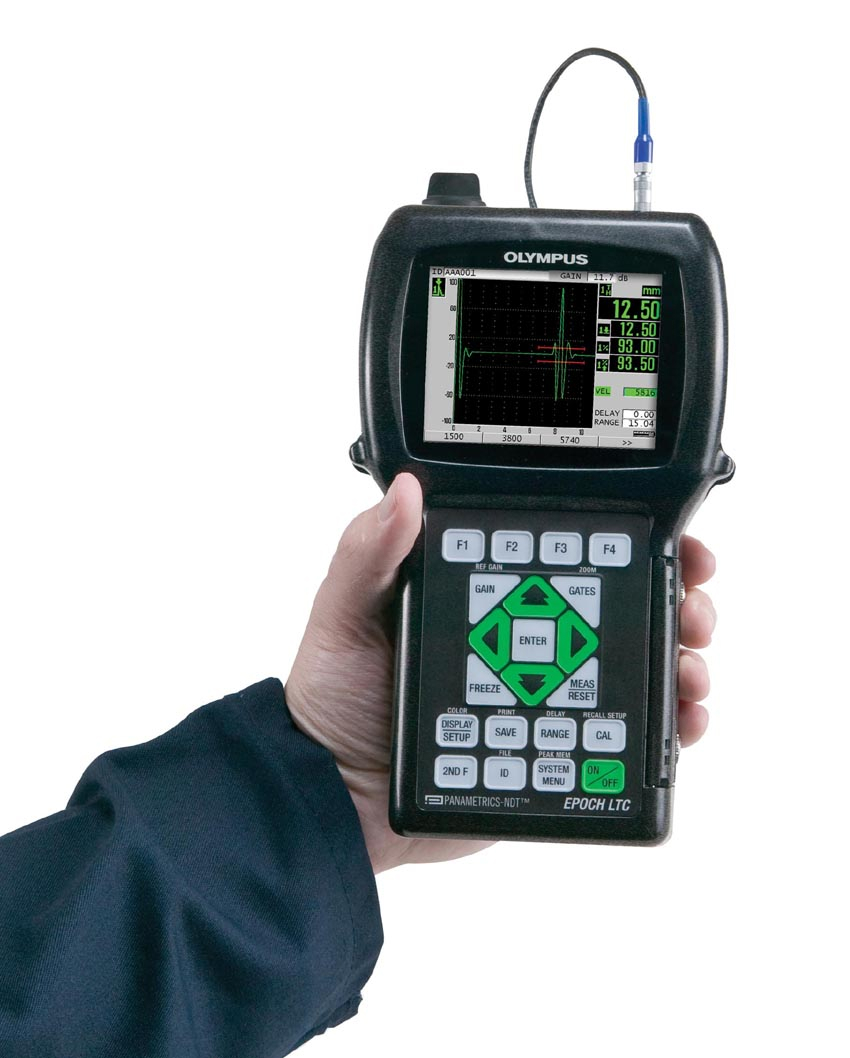

Handheld Ultrasonic Flaw Detector weighs 2.12 lb.

November 9, 2007

Capable of withstanding wide range of weather conditions and difficult inspection environments, EPOCH LTC comes in IP67-rated sealed case. EN 12668-1 compliant digital ultrasonic flaw detector features square wave pulser, selectable digital filtering, 1-110 dB gain range, peak memory, 0.001 in. measurement resolution, one gate with programmable alarm, and multicolor transflective LCD with full VGA resolution that offers readability from bright sun light to complete darkness. Read More

Sensors, Monitors & Transducers

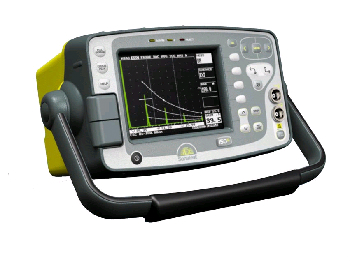

Portable Flaw Detector is sealed to IP 66 standards.

May 6, 2005

Protected against ingress of dust and strong jets of water, ultrasonic USM 35X is used for inspection tasks from flaw detection to corrosion measurement. Unit provides rotary knobs for setting gain and function values, and operator can select required dB step width, freeze displayed A-scan, or switch A-scan to full screen size by means of direct access keys. Software allows operation to meet Japanese weld inspection standard Z3060-2002. Read More

Test & Measuring Instruments, Sensors, Monitors & Transducers

Ultrasonic Inspection System examines joining technologies.

March 30, 2005

Portable, PC-based USLT 2000B is operated as conventional flaw detector, displaying A-scans as well as DAC and DGS curves. Up to 4 selectable measurement values, such as sound path, projection distance, and depth and echo amplitude can be shown in measurement line. Battery-operated unit is available with optional software to allow saving, managing, and evaluation of inspection results for planning, control, and documentation of inspection process. Read More

Sensors, Monitors & Transducers

Ultrasonic Flaw Detector handles range of inspection tasks.

March 23, 2005

Model USM 32 is available in basic USB 32B version with max range of 55.9 in. in steel for standard applications, and USB 32L version with max range of 393.7 in. in steel for inspecting large components. Two spin-and-set rotary knobs allow rapid setting of gain and function values. Measuring 4.5 x 3.4 in., color LCD offers choice of color schemes and A-scan resolution of 320 x 220 pixels. Li-Ion batteries allow 10 hours of continuous use. Read More

Software, Sensors, Monitors & Transducers

Ultrasonic Flaw Detector offers software for defect sizing.

March 23, 2005

Suited for oil and gas sector, Model USM 35, with optional software, provides defect sizing in line with API 5UI recommendations. For operation, user finds crack, adjusts gain to 80% amplitude, presses USM freeze key, and moves probe to produce envelope curve. Software measures and remembers each amplitude peak and carries out time-of-flight calculations for each measurement to provide code-compliant sizing of flaw. Read More

Sensors, Monitors & Transducers

Refrigerant Monitors come in transportable versions.

February 18, 2005

Chillgard RT detects down to 1 ppm over range of 0-1,000 ppm, and features up to 8 detection points. Photoacoustic infrared sensing enables detection of individual refrigerant with high specificity. Available in single-point diffusion and 4-point pumped models, Chillgard LS complies with ANSI/ASHRAE 15-1994 and provides low-level monitoring. Chillgard LE comes as single-point diffusion unit, single-point pumped unit for monitoring from remote location, or 4-point pumped unit. Read More

Sensors, Monitors & Transducers

Monitoring Systems detect 400 and 500 series refrigerants.

September 28, 2004

Utilizing photoacoustic IR sensing technology, Chillgard L Series Monitors comply with ANSI/ASHRAE 15-1994 requirements for refrigeration monitoring. Offered in single-point diffusion and 4-point pumped models, Chillgard LS Monitors have water-resistant plastic enclosure and can detect R11, R12, R22, R123 and R134A refrigerants, as well as 400 and 500 series. Chillgard LC Control Module works with Chillgard LS gas sensor modules to provide remote signaling and control. Read More

Sensors, Monitors & Transducers

Flaw Detection System uses volumetric grid scanning.

June 8, 2004

Featuring UT probes, CCD video camera for V-Scan grid positioning, and industrial notebook PC with software, ShafTest® portable ultrasonic system provides repeatable in-situ testing of shafts and axles. Software highlights cracks and provides tools to plot ultrasonic cross-sections through shaft at any depth chosen by operator. System requires only shaft-end access, avoiding equipment disassembly or multiple setups and scans in confined situations. Read More
