Safety Technology International    Waterford, MI 48327
Oct 26, 2011 Comprised of smart panel, door/window sensors, PIR motion sensor, and key fob remote control, Burglar Stopper® Wire-Free Home Protection System (STI-WS100SG2) supports 8 preset security zones and 4 operation modes (Alarm/Alert/Home/Standby). System offers up to 490 ft range and is controlled via smart panel that receives information from wireless sensors placed in various locations. Security breach triggers indicator lights and 120 dB+ audible alarms.

Measurement Specialties, Inc.    Hampton, VA 23666
Oct 25, 2011 Featuring 30 mm dia aluminum alloy port with O-ring seal and 4-pin integral connector, HTM2500B3C4OIL provides voltage output with max water content sensed being saturation level of liquid. Typical saturation level of lubricants and oils is between 500 and 1,000 ppm. To aid interpretation, look-up tables are provided via datasheet documentation that convert voltage output to water in oil content. Accurate to ±1°C, temperature sensor is embedded in each unit.

Bilco Company, The    New Haven, CT 06505
Oct 25, 2011 Designed to protect drinking water distribution systems against intentional contamination, CNIguard(TM) utilizes Smart Sensing Technology to detect tampering such as drilling, grinding, and cutting, while virtually eliminating false alarms. Wireless computerized system can distinguish between real threats and common occurrences such as heavy rain and hail. Radio signals, which are encrypted to prevent hacking, are used to communicate between controller and detectors mounted to access points.

Critical Environment Technologies    Delta, BC V4G1M3  Canada
Oct 25, 2011 Equipped with fixed temperature and RH sensor as standard, CE-certified YESAIR can handle up to 5 additional internal plug-and-play sensors: 3 electrochemical toxic gas or oxygen sensors; 2 high-current draw sensors, such as IR PID or catalytic; and remote particulate sensor. Three tactile push buttons facilitate operation, while relative humidity (RH) and temperature sensor shroud protects sensors from everyday use and promotes accelerated response to changes in RH and temperature.

Dwyer Instruments, Inc.    Michigan City, IN 46361

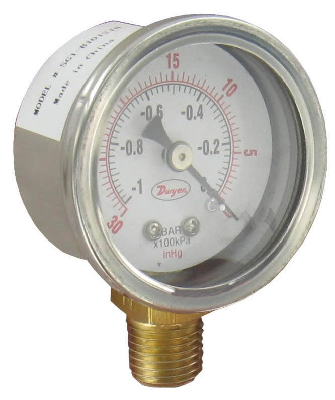

Oct 24, 2011 Available with bottom or back connections, 1.5 in. Series SG1 Industrial Pressure Gauge features dual psi and bar scales with ±2.5% FS accuracy. Units are constructed with brass connector, bronze tube, polycarbonate lens, and stainless steel case and ring, which offer protection from harsh processes. Operating from -4 to 140°F, gauges are suitable for applications where ambient corrosion and vibration are of concern.

Lumetrics, Inc    Rochester, NY 14623
Oct 24, 2011 LumetriScan(TM) 360 can be used on medical tubing up to 36 in. long or balloons of almost any size. Fully automated, non-contact system allows product to be rotated 360° and can scan length of item to map thickness of entire body. In addition to OptiGauge(TM) IR interferometer with 0.1 micron accuracy, system uses Class 1 eye-safe 1,310 nm LED to obtain reflections off of every surface it encounters and measure multiple layers simultaneously.

IDENTEC SOLUTIONS, Inc.    Addison, TX 75001
Oct 21, 2011 Accommodating every digger type and mine condition, i-GET addresses problems that arise from ground engaging tools (GET). All data from encased micro-size sensor inside digger's hollowed GET is processed by software that issues real-time alert if tooth breaks off from digger. GET sensors can be read even when buried in ore, enabling second check point where haul trucks pass through fixed reader installation. Handheld readers let personnel locate missing GET in ore.

Dytran Instruments, Inc.    Chatsworth, CA 91311

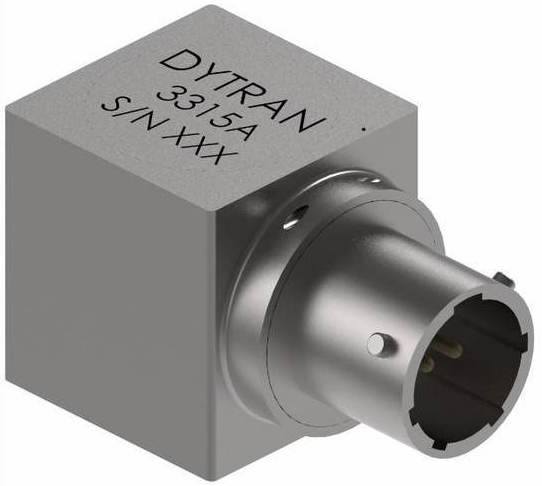

Oct 20, 2011 Providing 250 g range and 20 mV/g sensitivity, Model 3315A has upper frequency response of 10,000 Hz. Unit features built-in electronics, eliminating need for external charge amplifier and converter. Housed in stainless steel with radial 2-pin bayonet-style connector and ¼-28 mounting stud, Model 3315A includes internal case ground isolation to avoid EMI/ground loop interference, and hermetic sealing for operation in high-humidity and dirty environments.

BEI Sensors (BEI Industrial Encoders)    Goleta, CA 93117

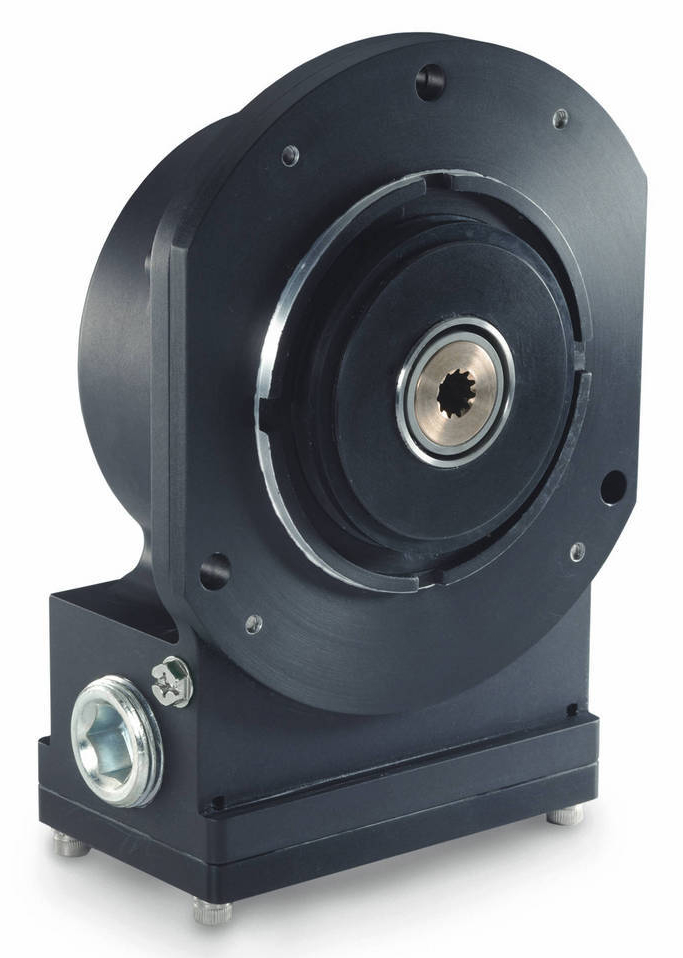

Oct 20, 2011 Hollow shaft encoder, HS52, can operate directly in Division 1 and Zone 1 environments, where ignitable concentrations of flammable gases, vapors, or liquids are likely to exist under normal operating conditions. Product does not require accompanying intrinsic safety barrier, and enclosure can withstand and contain internal explosion of most volatile gas-to-air mixtures. Fitted with flexible shaft bore design, housing can be rigidly mounted.

Orange Research, Inc.    Milford, CT 06460

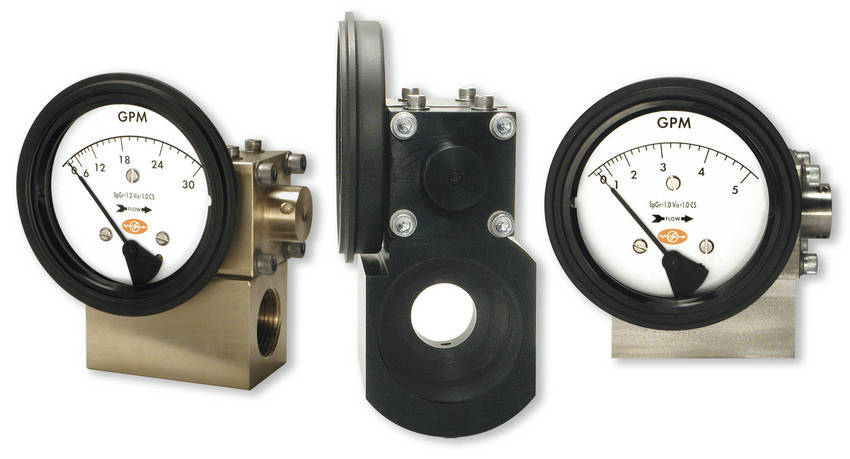

Oct 19, 2011 With respective ranges of 0-5 to 0-10 gpm, 0-15 to 0-40 gpm, and 0-50 to 0-200 gpm, models 2510FG/2520FG/2530FG feature 3.5 in. dials, ½-2 in. NPT porting, and long-life, wear-resistant design. Large-throated, non-clogging flow nozzles, manifold-mounted to gauge, have rounded leading face that reduces turbulence and backpressure, which minimizes pressure drop. All models have max line pressure of 275 psi, accuracy of 2% FS, max pressure drop of 5 psid, and turndown of 5:1.

One Plus Corporation    Northbrook, IL 60062
Oct 18, 2011 Combined with Wireless Waste Edge® Monitor, Leak Edge® option protects compactor users with fail-safe, automated real-time hydraulic fluid leak detection and sends remote alerts by text/email. System utilizes submersible level-sensing probe to identify hydraulic leaks of less than 6 oz, shuts down compactor to stop active leak, and auto-restarts when fluid level is restored. Monitors automatically send fullness, pick-up notifications, and Leak Edge alerts to hauler or other designated recipient.

E Instruments International LLC    Langhorne, PA 19047

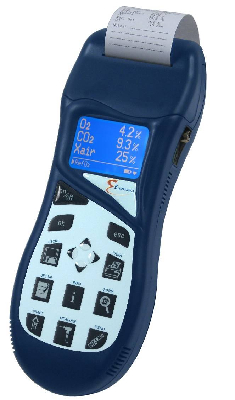

Oct 18, 2011 Equipped with built-in manometer, thermometer, and CO leak detector, BTU1100-HE High Efficiency Kit measures O₂, CO, and CO₂, as well as efficiency, excess air, and all necessary temperatures. Unit includes incoming air smart probe, field-replaceable sensors, and built-in printer. Supplied in vinyl carrying case with calibration certificate, kit meets needs of mechanical contractors, plumbers, and boiler technicians monitoring and installing condensing and high efficiency systems.

Teal Electronics Corporation    San Diego, CA 92121
Oct 17, 2011 PVobserver(TM) string monitoring and wireless communication option, available for Configurable Combiner Box, lets operator of commercial or utility scale Solar PV power plant know immediately if individual PV string is underperforming or needs maintenance. SunSpec-Compliant, embedded unit monitors current of each PV module string as well as string voltage and communicates processed data to internet via standard communications protocols and connections.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Oct 14, 2011 Featuring micro-machined MEMS capacitive sensing element in hermetically sealed titanium case, 7503A series offers 7 sensitivities and measurement ranges from 2-200 g. Devices offer low-end frequency response to DC (0 Hz) and upper frequency range is 400-2,500 Hz with differential output. Rugged to 5,000 g shock and operating from +9 to +32 Vdc power, module contains 3 variable capacitance accelerometers configured orthogonally for X, Y, Z outputs.

Skimoil, Inc.    Carrboro, NC 27510
Oct 14, 2011 Especially valuable for vessels that do not have constant filter monitoring, diesel FUEL FILTER ALERT and alarm system provides real-time indication of fuel filter status. Vacuum instrument detects fuel-filter degradation and alerts operators so they can take action before failure. System consists of stainless steel sensors and remote digital display panel with numeric pressure readout, active messages, and graduating, colored-light indicator.

Harvard Apparatus, Inc.    Holliston, MA 01746 1371
Oct 14, 2011 Providing continuous measurement of end-tidal CO2 through infrared spectroscopy sensor, Type 340 Capnograph is suitable for breathing ranges from 0-300 bpm. Data is displayed in real time; and with analog ports, data can be collected simultaneously with most commercial data acquisition systems. Optional flow heads expand Capnograph to measure Peak Inspiratory and Expiratory Flow, Peak Inspiratory Pressure, Positive End Expiratory Pressure, and Tidal Volume.

NK Technologies    Campbell, CA 95008
Oct 13, 2011 Packaged in 35 mm wide DIN rail enclosure, VTD Series offers solution for monitoring, detecting, and diagnosing voltage conditions in DC-powered installations, including industrial motors, battery chargers, photovoltaic arrays, and wind generators. Units operate on circuits from 0-15 to 0-600 Vdc and deliver fully isolated 4-20 mA loop-powered output, facilitating use with controllers, data loggers, and SCADA equipment. To maximize safety, input and output circuitry is fully isolated.

E Instruments International LLC    Langhorne, PA 19047

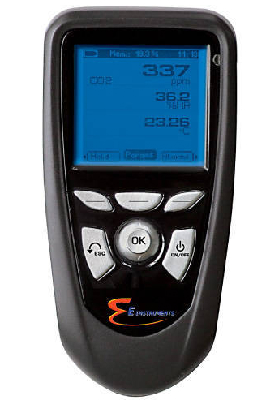

Oct 12, 2011 Featuring ABS shockproof housing with IP54 rating for dust protection, Model AQ200 measures CO2 from 0-5,000 ppm, CO from 0-1,000 ppm, and ambient temperature from -4 to 176°F as well as Delta T, atmospheric air pressure, and humidity. IAQ monitor includes Ice Blue LCD with 2-line display, Min/Max/Hold/Unit selection, and 8,000 data memory points. Memory and software are provided.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608

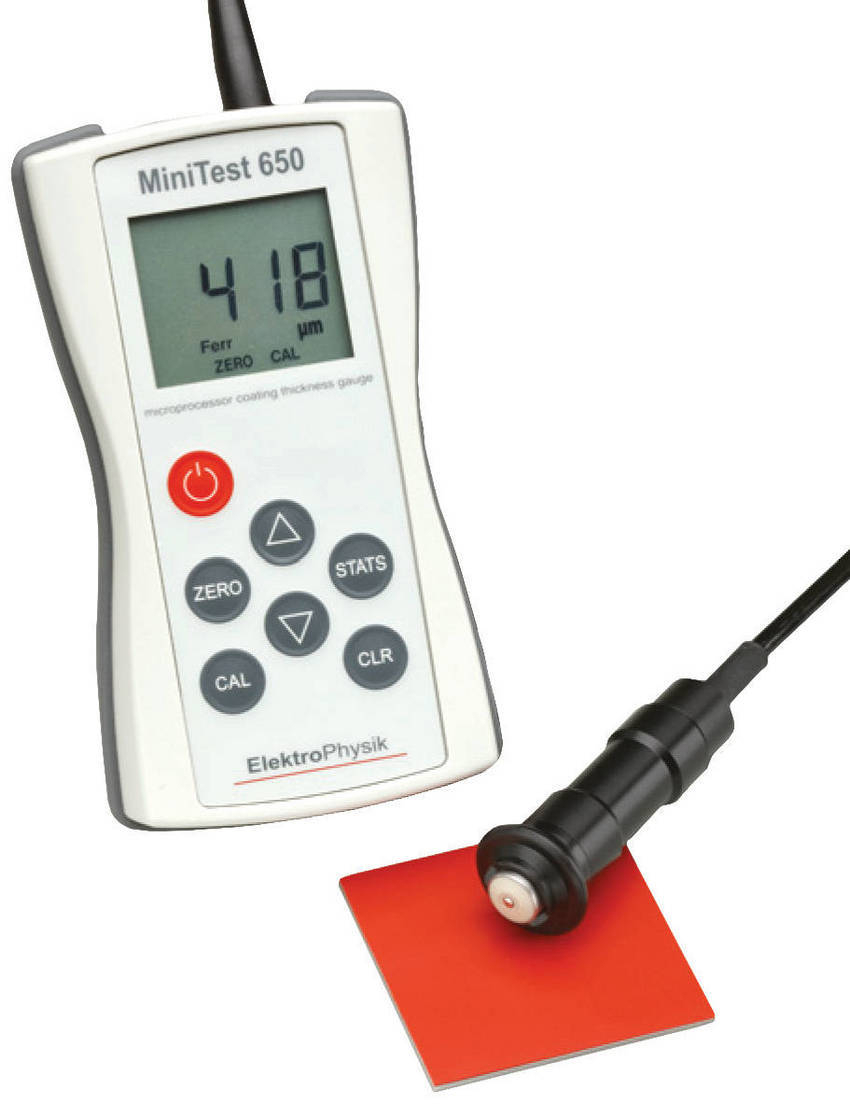

Oct 12, 2011 Along with backlit display and 1 m sensor cable, battery-operated MiniTest 650 features one-pole sensor made of wear-resistant carbide material. Ram- and impact-protection is provided through rubber rimmed casing, and USB interface enables connection to PC. Unit comes in 3 models: with magnetic-induction sensor for measurements on steel substrates; with eddy currents sensor for measurements on non-ferrous metals; and with dual sensor for measuring on both steel or non-ferrous metals.

PREMO Group    Barcelona   Spain

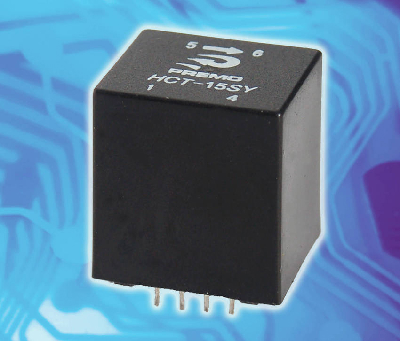

Oct 11, 2011 With double supply voltage of ±12 to ±18 Vdc, SY Series measures DC, AC, and pulse currents on PCBs. Units feature isolation voltage of 3 kV and are designed for nominal currents of 5, 10, 15, 20, 25, and 50 A. Output signal is centered at 0 V with output voltage of ±4 V, allowing detection of currents up to 3 times nominal value. In addition, sensors provide linearity less than 0.1% with ±0.7% accuracy levels, and bandwidth up to 150 kHz with response time below 1 µsec.
