Siemens AG    Munich D-80333  Germany
Apr 16, 2012 Designed to replace functionality of previous AS-i Safety monitors, Sirius Modular Safety System (MSS) ASIsafe basic and MSS ASIsafe extended safety monitors consist of central modules of safety system Sirius 3RK3 that come with diverse enabling circuits and inputs. Available inputs and outputs can be adjusted using expansion modules or AS-Interface, and interface module also enables transmission of diagnostic and status data to higher-level Profibus network.

Sensortechnics Inc.    Dublin, CA 94568
Apr 13, 2012 Available in ranges from 2.5 mbar FS, custom piezoresistive pressure sensors offer possibilities for custom specific adaptations that include calibration, signal conditioning, and signal transmission. Low noise amplifier and subsequent 24-bit ADC provide for high-resolution digital signals and high SNRs, while MCU enables flexible programming of correction algorithms for temperature compensation and linearization. Typ total error band is 0.1%, and response times are up to 250 µsec.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Apr 13, 2012 Designed for CT3 Tester, which operates in both compression and tension modes, TA-CLT Capsule Loop Tensile Test Fixture measures tensile breaking strength of hard gel capsules. Gel cap is mounted between 2 pins which pull apart, thereby measuring force required to rupture cap. Featuring guillotine type design, TA-BLS Bilayer Shear Jig measures force required to separate layers of multi-layer tablet. Tablet is placed in jig and cutting plate slices into tablet until adhesion fails.

Measurement Specialties, Inc.    Hampton, VA 23666
Apr 12, 2012 Featuring micro-g resolution, Model 4807A provides amplified, signal conditioned output in ranges from ±2 to ±200 g with dynamic range of 98 dB. Sensor incorporates gas damped silicon MEMS sensing element with integral mechanical overload stops for shock protection up to 5,000 g as well as bandwidth from DC to 1,500 Hz. Designed for low level vibration monitoring, product comes in stainless steel housing and offers ±2 Vdc bias output compatible with industry-standard instrumentation.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Apr 12, 2012 Equipped with USB interface and software, CG204 uses magnetic induction for ferrous substrates and eddy current measurement for non-ferrous substrates. Available measuring modes include Single and Continuous, while working modes include Direct and Group. Able to store 80 Direct and 320 Group readings in memory, tester provides Min/Max/Average functions, single- or 2-point calibration, and user-programmable high/low alarms. Menu system facilitates operation.

Fluid Components International    San Marcos, CA 92069
Apr 11, 2012 Thermal Mass Air/Gas Flow Meter, ST100 Series, suits equipment-crowded plants or hazardous factory areas where combustible or toxic gases may be present. Using interconnecting cable, transmitter with optional digital display can be mounted up to 1,000 ft away from flow sensor. Product continuously measures, displays, and transmits array of parameters and is available with 4-20 mA analog, frequency/pulse, alarm relays, or digital bus communications: HART, Fieldbus, Profibus or Modbus.

Opto Diode Corp.    Newbury Park, CA 91320
Apr 11, 2012 Designed especially for military imaging applications, Model OD-110W features total output power of 140 mW, with peak emission wavelength at 850 nm. Power dissipation is 1,000 mW at absolute max ratings of 25°C (case) with continuous forward current of 500 mA. Housed in hermetically sealed, 3-lead, TO-39 package with gold-plated surfaces, emitter has 4 wire bonds on die corners. Device operates from -40 to 100°C with peak forward current of 1.5 A and reverse voltage of 5 V.

TRW Automotive    Livonia, MI 48150
Apr 11, 2012 Incorporating handwriting recognition software, Capacitive Touchpad Sensor helps drivers and passengers coordinate and operate variety of functions within car. User writes characters with single finger on touch sensor area and input is interpreted by software and acknowledged by audible feedback. Designed to recognize handwritten numbers, letters, and symbols, touch sensor enables driver to operate mobile phones, navigation systems, and radio as well as send messages, from single point.

Clark Solutions    Hudson, MA 01749
Apr 11, 2012 Designed for 3 and 4 in. pipe systems, FSI-S00 is constructed with 4-bladed, HDPE impeller; Type 1 PVC sensor housing; tungsten carbide impeller shaft; and BUNA-N O-ring. Sensor is rated to 150 psi and outputs square wave digital signal proportional to flow. Also, pulse signal output will travel up to 2,000 ft without amplification. Installation requires end user to drill pipe and mount saddle, and sensor insert mounts in housing that controls depth and alignment of impeller.

Clark Solutions    Hudson, MA 01749
Apr 11, 2012 Designed for 1, 1½, and 2 in. pipe systems, FSI-T00 Series is constructed with 4-bladed HDPE impeller, Type 1 PVC sensor housing, tungsten carbide impeller shaft, and Buna-N O-ring. Units deliver square wave digital signal output proportional to flow that will travel up to 2,000 ft without amplification. Equipped with threaded retaining nut for servicing, sensors are suited for water treatment systems, water dispensing, cooling loops, irrigation systems, and large scale aquariums.

Husky Injection Molding Systems    Bolton, ON L7E5S5  Canada
Apr 11, 2012 Enabling energy monitoring capabilities throughout entire injection molding facility, Shotscope NX® energy module provides systematic approach to identifying and reducing sources of variation throughout entire workcell. This integrated process and production monitoring system can individually monitor all sources of energy consumption. Molders may collect, manage, and analyze production information, enabling real-time adjustment while satisfying regulatory document management requirements.

Allegro MicroSystems Inc.    Worcester, MA 01615
Apr 10, 2012 Supplied in SMT package and optimized for 3.3 V supply operation, open-loop ACS716 has 120 kHz Bandwidth and consists of precision linear Hall sensor IC with copper conduction path near surface of silicon die. Integrated shield technology promotes immunity to current conductor dV/dt and stray electric fields, while voltage on overcurrent input (VOC pin) lets users define overcurrent fault threshold. Internal resistance of copper path used for current sensing is 1 mohm typ.

Nuvation Research Corp, USA    San Jose, CA 95134

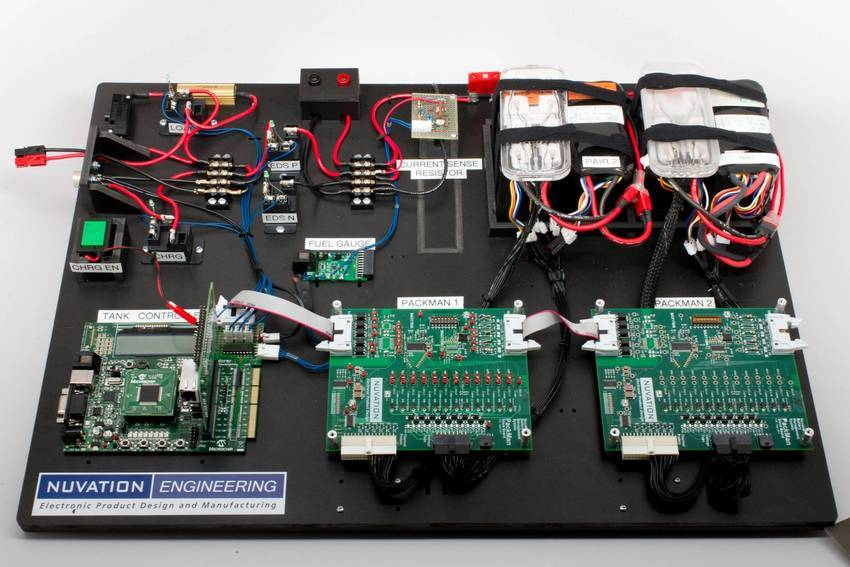

Apr 09, 2012 Addressing safety, accuracy, noise immunity, and industry standards compliance needs associated with complex battery systems, 3rd generation Battery Management System (BMS) monitors, balances, and protects large-scale lithium battery stacks. Other battery chemistries, including nickel, are also supported. System can be used to improve battery life, safety, scalability, and fuel gauging of electric vehicles (EVs), all while decreasing charge times.

Libelium Comunicaciones Distribuidas S.L.    Zaragoza   Spain
Apr 09, 2012 Available in both 125 KHz and 13.56 MHz bands, RFID/NFC Module extends Waspmote features allowing sensor data to be used in Location Based Services, such as asset tracking, supply chain monitoring, intelligent shopping, or access management. Information given by passive tags such as cards and keyrings is read by RFID/NFC interface and then transmitted using ZigBee radio to Internet Gateway, which will upload it to Cloud server for accessibility everywhere.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Apr 06, 2012 At 0.119 in. high and 0.3 g, model 3224M5 is designed to adhesively mount in otherwise inaccessible spaces. Accelerometer operates in temperatures to +300°F and features shear sensing element in lightweight laser welded titanium housing. Available with 10 mV/g sensitivity, product is case isolated to avoid EMI/ground loop interference and has 3 ft integral cable that terminates to 10-32 jack. Uses include ESS, product response testing, and PCB vibration measurements.

Ametek Automation & Process Technologies    Clawson, MI 48017
Apr 06, 2012 With no moving parts to wear out, AMETEK/Gemco 955 eBrik provides continuous position feedback when installed on automated factory machinery. Unit is available in stroke lengths from 1-72 in. with analog output of 0-10 Vdc or 4-20 mA. Sensor offers field programmable zero and span settings, electronic diagnostic feedback, and accuracy to ±0.03% of stroke. With IP67-rated aluminum enclosure, transducer is shock-resistant and operates in damp, dirty, and extreme temperature applications.

Future Fibre Technologies (US) Inc.    Mountain View, CA 94040
Apr 05, 2012 Able to detect intrusions on fences, be buried in ground across open areas to detect footsteps, or both, fiber optic FFT Aura(TM) provides multiple event detection, advanced signal processing, and pinpoint (within 20 ft or better) location accuracy. Resiliancy caters to critical sites requiring continuous operation in event of damaged or cut sensor cable, while signal processing and event analysis minimize nuisance alarms. System can interface with security management via FFT CAMS(TM) GUI.

Measurement Specialties, Inc.    Hampton, VA 23666
Apr 04, 2012 Featuring 300-5,000 psi range, CE-compliant and MEMS-based EB100 operates from -40 to +125°C with ±1% TEB and is intended for space-constricted designs. Unit is suited for measurement of liquid or gas pressure, including difficult media such as contaminated water, steam, and mildly corrosive fluids. Promoting stability over temperature range, UltraStable(TM) technology employs silicon-based strain gage isolated from media via oil-filled capsule and stainless steel diaphragm.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Apr 04, 2012 Supplied pre-calibrated for horizontal, inline mounting, Series DTFW is available with brass or 316 stainless steel body to withstand system pressures up to 3,000 psig. Ranges are offered up to 30 gpm, and products measure water flow rates with ±2% FS accuracy. Available with ¼, ½, and 1 in. connections, series features 2.5 in. dia dial face. Other elements of construction include 302 SS spring and range spring, PTFE-coated magnet, acetal or PTFE metering cone, and Buna seals.

MEDER electronic, Inc.    West Wareham, MA 02576
Apr 03, 2012 Measuring 5 x 1.8 x 2.2 mm, MK24 series has rugged over-molded package containing hermetically sealed reed switch. Products do not require any external power to operate and achieve min life expectancy of 50 million operations at 5 V, 5 mA, 100 Hz. Suited for applications with low power and space limitations, series is available in NO and NC versions, 5 contact sensitivity ranges, and 3 SMT lead designs: flat straight cut axial lead; flat, bent SMD gull-wing lead; and J-lead.
