Dresser Instrument    Stratford, CT 06614-5145

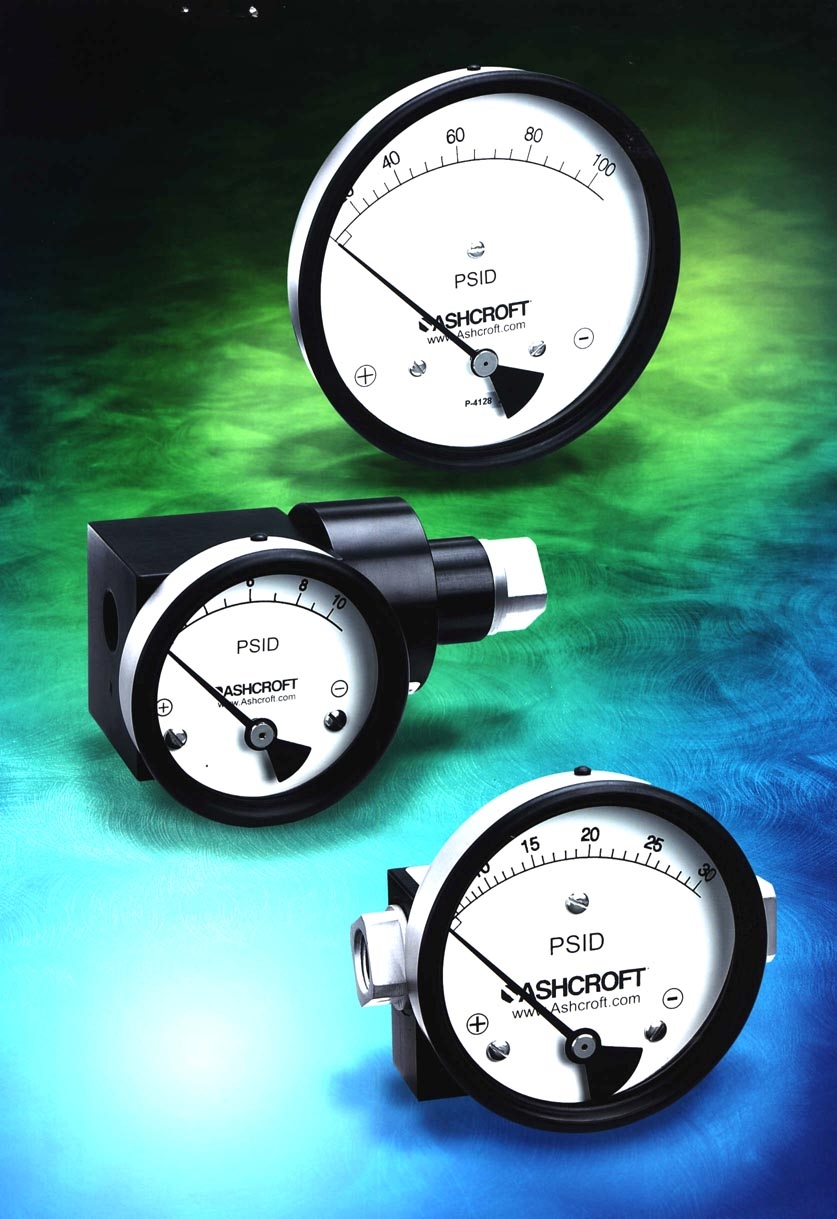

Feb 12, 2002 Ashcroft(R) Type 1130 Series has weather-resistant stainless steel case, making it suitable for many processes and environments. Gauges include close-coupled magnetic rack-and-pinion with 4 pole magnets for stability and 4 wrench flats for easy installation. They can be ordered with or without field-adjustable switch. Options include dial sizes from 2 to 6 in., ranges from 2 IWD to 100 psid, and metric ranges such as KPA, Bar and KG/CM squared.

RLE Technologies    Fort Collins, CO 80524

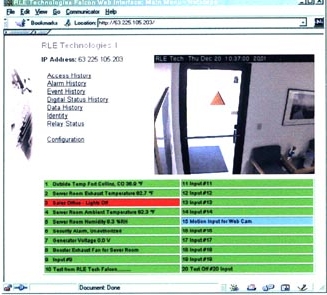

Feb 12, 2002 Falcon Monitoring Device accepts image from any IP addressable web camera and displays it on main menu of web interface, providing live view of site. It notifies users of alarm conditions through e-mail messages, SNMP traps, phone paging, and e-mail paging. Falcon interfaces with temperature, pressure, flow, current and humidity sensors, or any other dry contact, 0-5V, 0-10V, or 4-20mA inputs. It can control site equipment via alarm relay outputs.

Shockwatch    Dallas, TX 75247
Feb 12, 2002 Shockswitch RFID transmits data on 15 discrete criteria via radio link between forklift and PC running ShockMate RF Server software. It can be programmed to instantly transmit information as it is generated or delay sending until requested. Impacts are always instantly transmitted. All data is retained in database for later use in reports analyzing equipment utilization and operator efficiency. Users can monitor unlimited number of lift trucks.

Custom Sensors & Technologies (CST)    Moorpark, CA 93021

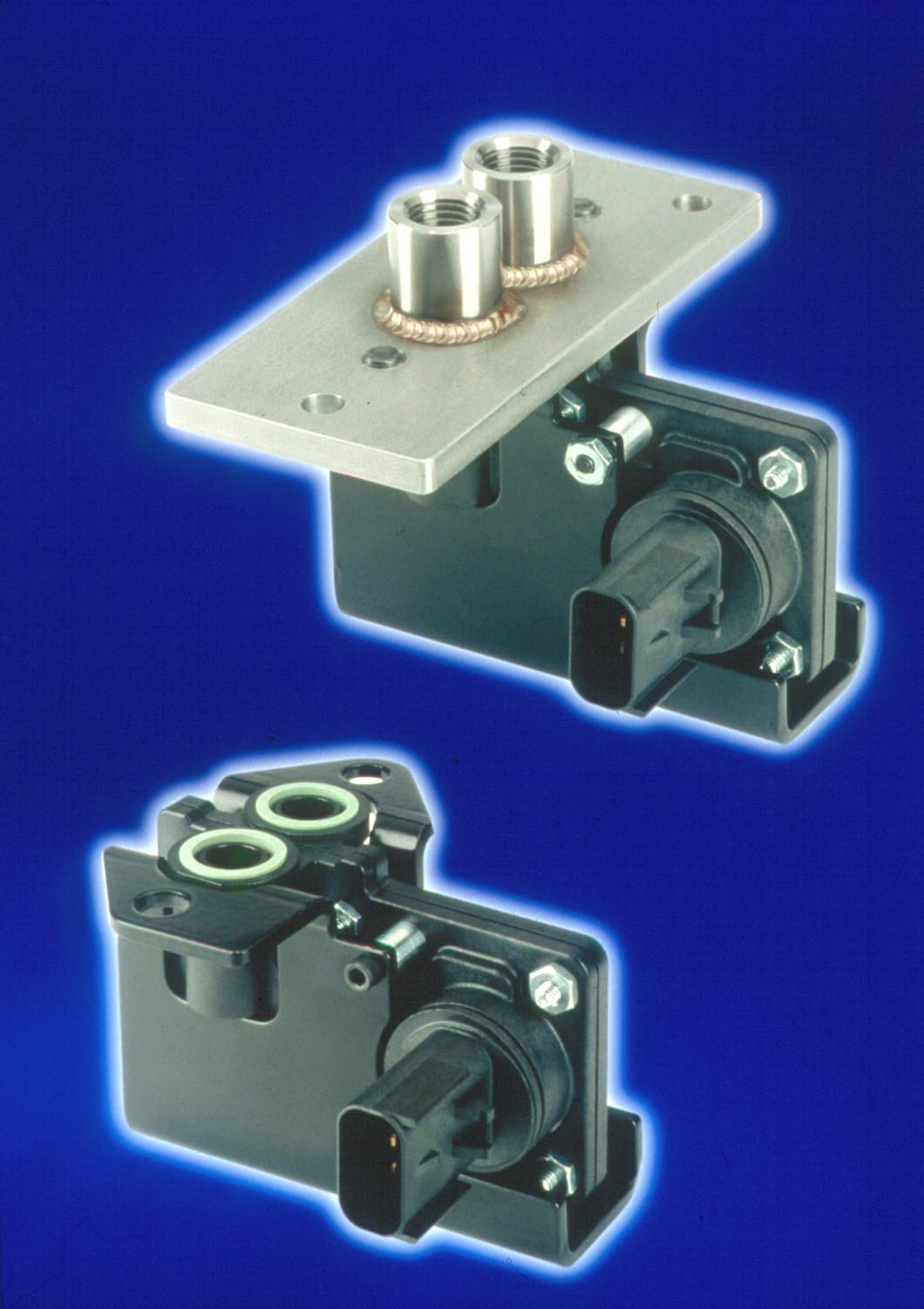

Feb 12, 2002 P321 OEM differential pressure transducers, available with pressure ranges from 0-5 PSI to 0-50 PSI (with 60 PSI operating line pressure), operate on 5 Vdc power supply, and provide 0.5 to 4.5 Vdc output. Housings are compatible with various liquids and gases, and may be specified with or without bracket assembly. Sensing technologies are repeatable, stable, and accurate, and are designed to withstand hostile, high temperature, shock, and vibration.

Leuze electronic, Inc.    New Hudson, MI 48165

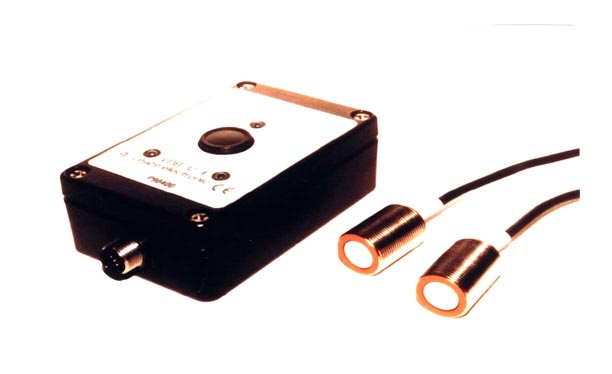

Feb 12, 2002 Model DB 12 ultrasonic transmitter, matching receiver, and evaluation unit detect when printing and paper processing machines pull in more than 1 sheet of paper, carton, or plastic. Transmitter and receiver come with M18-housing, and are 25 mm long, making them suitable for mounting even when space is limited.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338

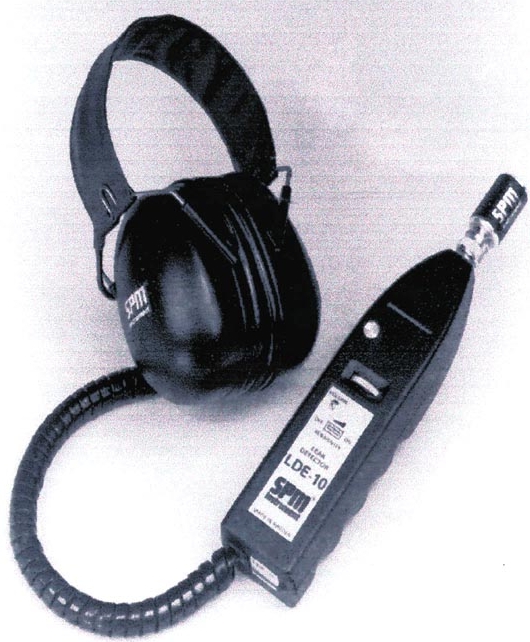

Feb 12, 2002 Model LDE-10 ultrasonic leak detector features minimum detectable sound pressure of 1 nbar in 25-40 KHz range with 50dB sensitivity. It can be used to detect leaks in pressure and vacuum systems, electrical discharge, control of tightness with ultrasonic transmitter, and internal leaks in hydraulic systems. LDE-10 comes with ultrasonic microphone, ultrasonic probe, earphone headset, extension tubes and tips, 9V battery, carrying case, and manual.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338

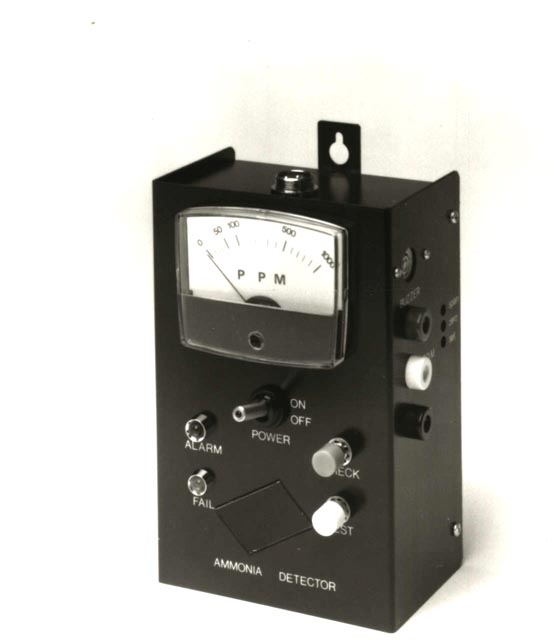

Feb 07, 2002 Detectors measure carbon monoxide, ammonia, LP/gasoline vapors, hydrogen and combustible gas continuously. Sensor elements are explosion proof and rated for Class 1 Division 1, Group A, B, C, and D hazardous atmospheres. Detectors have audible and visual alarms, meter read-out, failure and pilot signals, circuit-test buttons and alarm-set check buttons. Models are available for 115 Vac or with 3.6 V NiCad rechargeable battery.

APEM Components    Haverhill, MA 01835

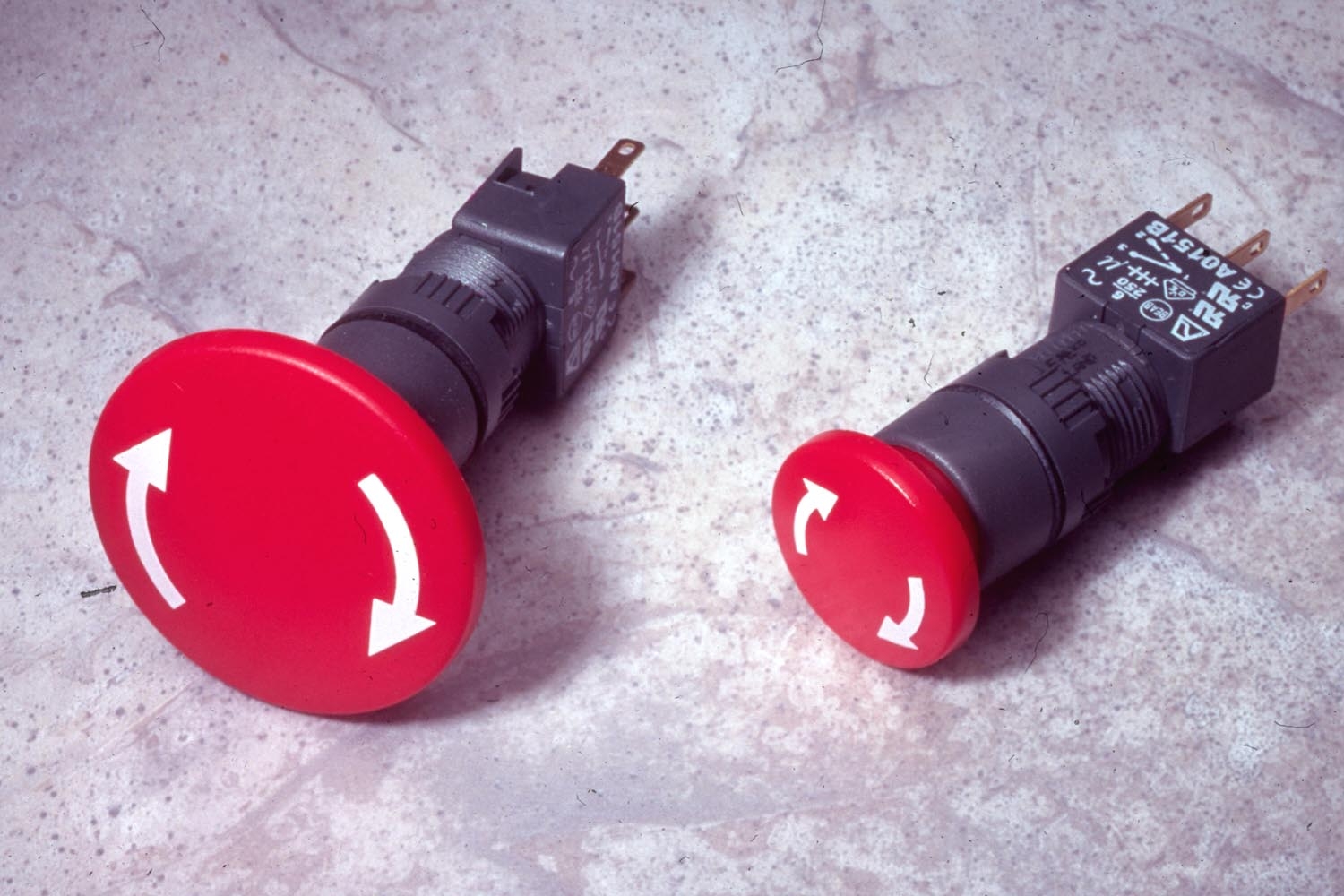

Feb 07, 2002 A01 Series is available with 1.575 or 0.945 in. dia red actuator button with white engraved arrows. If problem occurs, operator pushes button and power shuts down instantly, breaking 2 pairs of switch contacts. Double break opens both sides of power line for safety. To re-establish power to machine, switch button is rotated in direction of engraved arrows, which reconnects switch contacts and returns actuator button to its higher ON position.

Industrial Scientific Corp.    Oakdale, PA 15071 1500

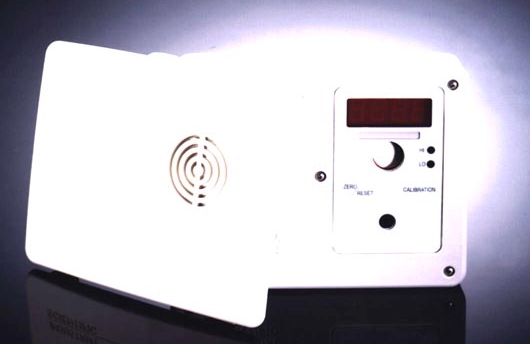

Feb 05, 2002 AirWare(TM) wall-mounted detector is capable of monitoring 1 of 6 gases including carbon monoxide, chlorine, hydrogen sulfide, nitrogen dioxide, oxygen or sulfur dioxide. Enclosure is made of ABS plastic and provides protection from water and RFI. Unit features on-board relay activation and/or 4-20mA output to central controller. It includes LED display and 2 adjustable alarm levels with SPDT relay contacts. AirWare is for use in non-classified areas.

Transducer Techniques    Temecula, CA 92590

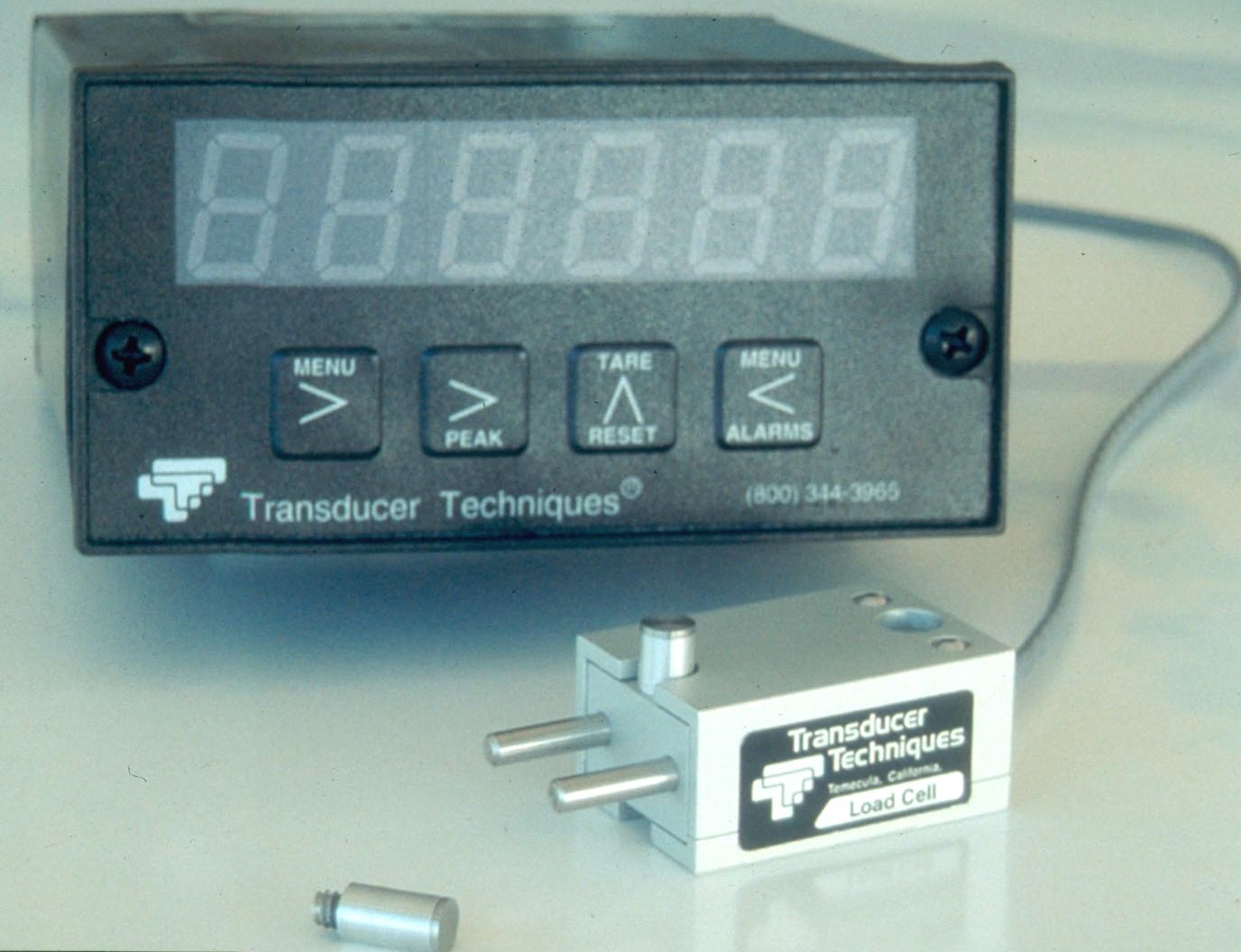

Feb 05, 2002 GS0/DPM-3 System is comprised of GS0 precision gram sensor and DPM-3 panel mount meter. It is suitable for variety of industrial and OEM force measurement and weighing applications. DPM-3 can be scaled to full 5 digits, samples 60 readings per second, provides analog output and features true peak reading capability. GS0 tension and compression sensor is offered in variety of ranges from 10 to 1,000 grams.

General Monitors    Lake Forest, CA 92630
Feb 05, 2002 S4000C Intelligent Gas Detector offers remote mounting up to 7,600 ft, dual redundant MODBUS communications, 8 amp relays, 3-digit display, 4-20mA output, and indication of remaining sensor life. Electronics are contained in explosion-proof housing. Microprocessor-based transmitter is designed for use with catalytic bead sensors. It monitors combustible gases and vapors within lower explosive limit (LEL) and provides status indication and alarm outputs.

Fluid Components Intl.    San Marcos, CA 92069 5115
Feb 05, 2002 With 2-wire 4-20mA loop power electronics, NuTec(TM) LS2000 insertion level switch is designed for service in nearly all fluid wet/dry applications. Level accuracy is 1/8 in. from flow element centerline. Unit can be top or side-mounted. FS2000L in-line flow switch/monitor is designed for high purity and sanitary environments. It features setpoint range of 0 to 300 SFPS in air and 0 to 10 FPS in water. Both switches have stainless steel wetted surfaces and operate at temperatures from 40 to 250 deg F.

Fluid Components Intl.    San Marcos, CA 92069 5115
Feb 05, 2002 FlexMASSter(R) ST98 Flow Meter has thermal mass sensing element that provides accuracy of ±1% of reading plus ±0.5% of full scale. Element is comprised of 2 all-welded 316 stainless steel thermowells that protect RTDs. With flow range starting at 0.75 SFPS for insertion unit and 0.006 SCFM for inline unit, ST98 operates over 100:1 turndown and can read velocities to 600 SFPS. It includes RS-232C serial port and provides 4-20mA output.

Kernco Instruments Co., Inc.    El Paso, TX 79927 7338

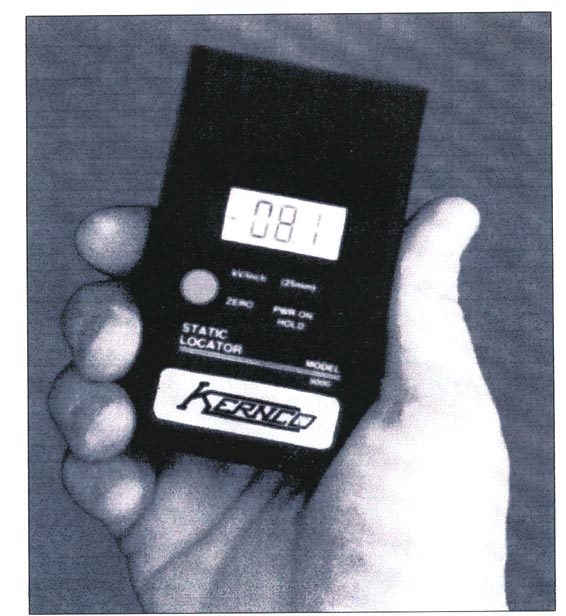

Feb 05, 2002 Portable Model 7905 detects static charges and finds point where static is generated. Non-contacting meter indicates surface voltage and polarity on objects up to ±20kV, at spacing of 1 in., with full-scale accuracy of 10%. Pushbutton holds readings and automatic power down conserves battery. Black meter measures 4.14 in. x 2.4 in. x 1 in. and weighs 1.4 lb. Battery lasts 200 hours.

Ulvac Technologies, Inc.    Methuen, MA 01844
Feb 04, 2002 Vacuum gauge offers Bessel-Box type energy filter and axially symmetric transmission (AxTRAN) gauge head. Its measurable pressure range is 7.5 x 10E-4 torr to 3.5 x 10E-13 torr. AxTRAN is resistant to interfering noise effects caused by light, radiation, and electrostatic discharge ions. Control unit is world-voltage compatible (85V - 240VAC 50/60Hz), and offers bright LED display and 0-10V analog signal output.

Elobau Sensor Technology, Inc.    Lake Bluff, IL 60044

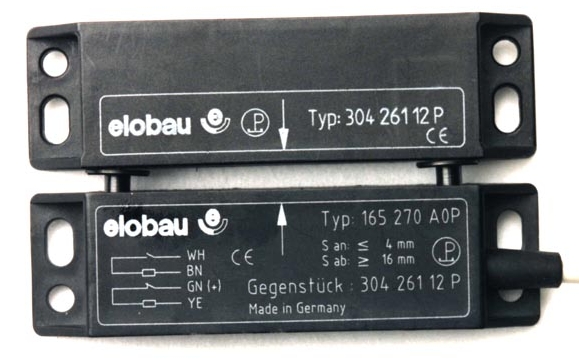

Feb 04, 2002 Machine Safety Sensor, with magnetic latch between sensor and coded actuating magnet, offers mounting accessibility and good misalignment tolerance of non-contact sensors. Positive latching capability and compact size of switch magnet assembly makes it suitable for use in limited space applications, movable machine guards, and articulated robot arms. Sensor and corresponding magnet are sealed to protection class IP 67 (IEC 529).

Sensotec, Inc.    Columbus, OH 43228

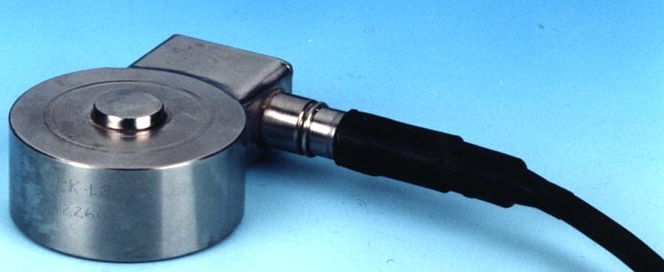

Jan 31, 2002 Model 53a provides either +/-5Vdc or 4-20mA (2-wire) output, and has welded, stainless-steel construction with integral load button for stability under severe conditions. Load cell is offered in ranges from 3,000 to 50,000 lbs and has overload rating of 50%. It delivers 0.25% full-scale non-linearity with operating temperature range of -40 to 200 deg F.

Monitor Technologies, L.L.C.    Elburn, IL 60119-8048

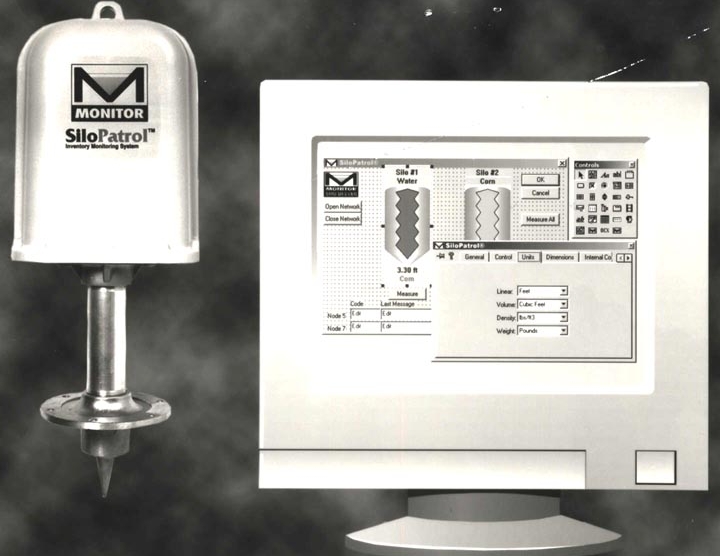

Jan 31, 2002 Unaffected by dust, vapor, or noise, SiloPatrol(R) monitors provide continuous level measurement. When using ActiveX(R) software package, they can integrate into PLC/PC control system without use of analog signals. Basic and full-featured software packages request and read measurements as well as to read status and error messages. Full-featured software converts and calculates units of measure, constructs bin icons, and sets up alarms.

Thermo Gas Tech    Franklin, MA 02038

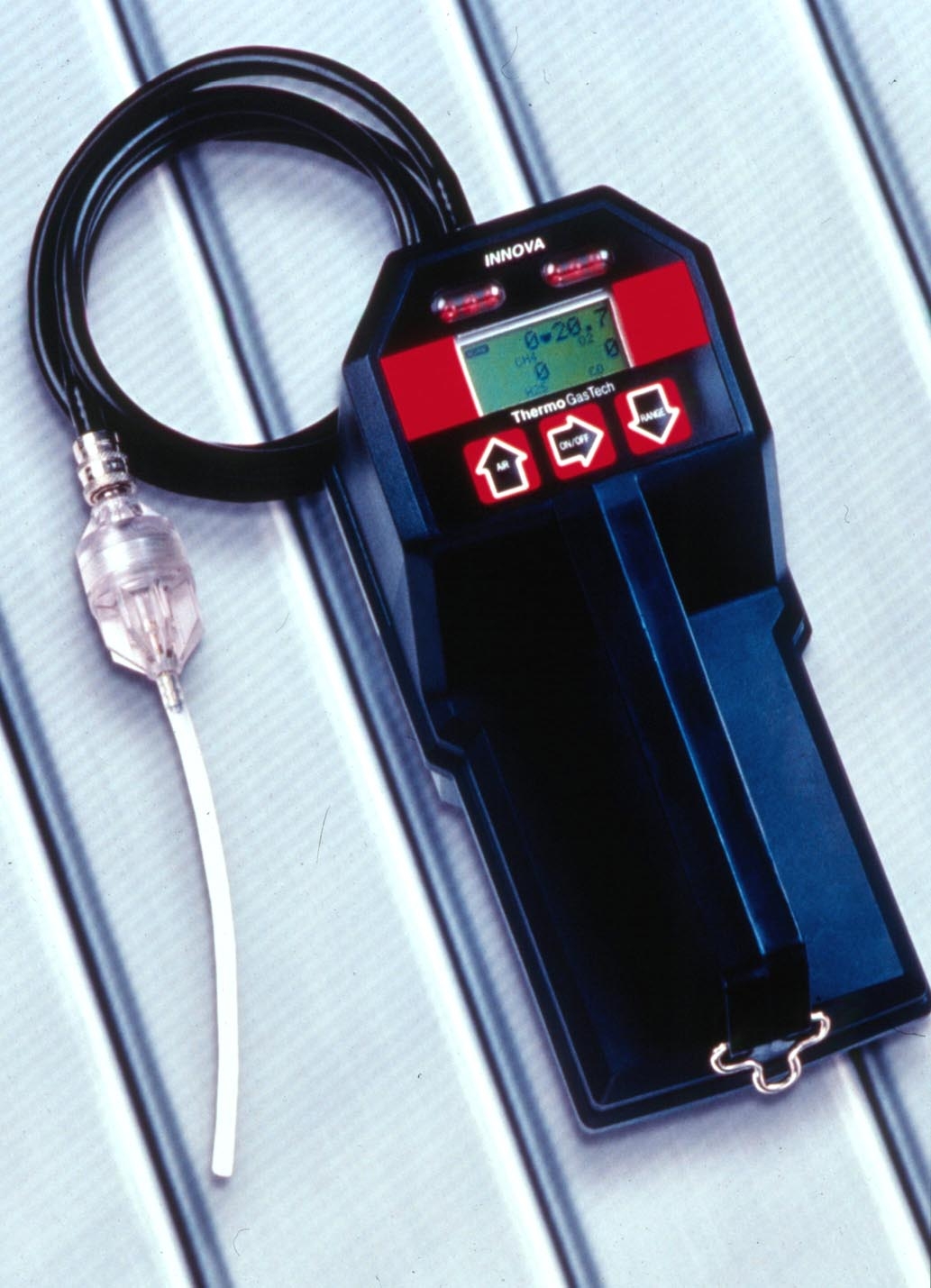

Jan 30, 2002 GT-Innova monitors detect combustible gases, oxygen, and up to 2 toxic gases (carbon monoxide, hydrogen sulfide, chlorine, hydrogen cyanide, ammonia, nitric oxide, nitrogen dioxide, sulfur dioxide or phosphine). Units provide on-demand display of PEAK, STEL, and TWA readings. Features include sample draw pump, datalogger, Innova View(TM) datalog and configuration package, gas ranges of 0-1000 ppm to 0-100% by volume, and auto-calibration.

Pressure Systems, Inc.    Hampton, VA 23666

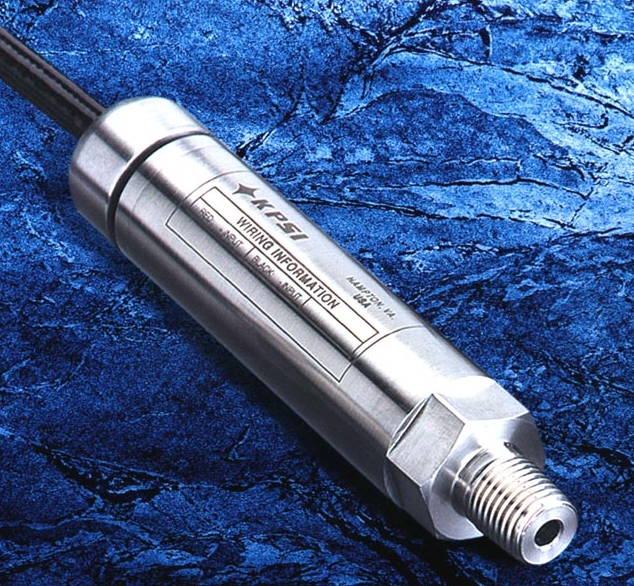

Jan 30, 2002 Series 35 KPSI(TM) transducers are available in titanium or stainless steel with fluorocarbon wetted surfaces. They offer user-specified pressure ranges from 0-2 psig to 0-300 psig with static accuracy of +/-0.05% FSO. Units include isolated diaphragm sensors designed for use with hostile fluids and gases. They provide standard voltage and current loop outputs and are 100% computer tested, calibrated and serialized.
