Devar, Inc.    Bridgeport, CT 06605
Feb 22, 2011 Featuring 0.4 in. high, 7-segment, red, LED display, Models d-RTT and d-RTTI can sense ambient room temperature across operating range of -40 to 180°F with display resolution of 0.1 degrees. Units have operating voltage range from 10-28 Vdc and provide 4-20 mA output signal, linear to measured temperature to within ±0.1°F. High precision 1,000 W RTD sensor, attached to backside of black anodized aluminum heat sink visible on front of instrument, conforms to DIN Standard EN 60751, Class A.

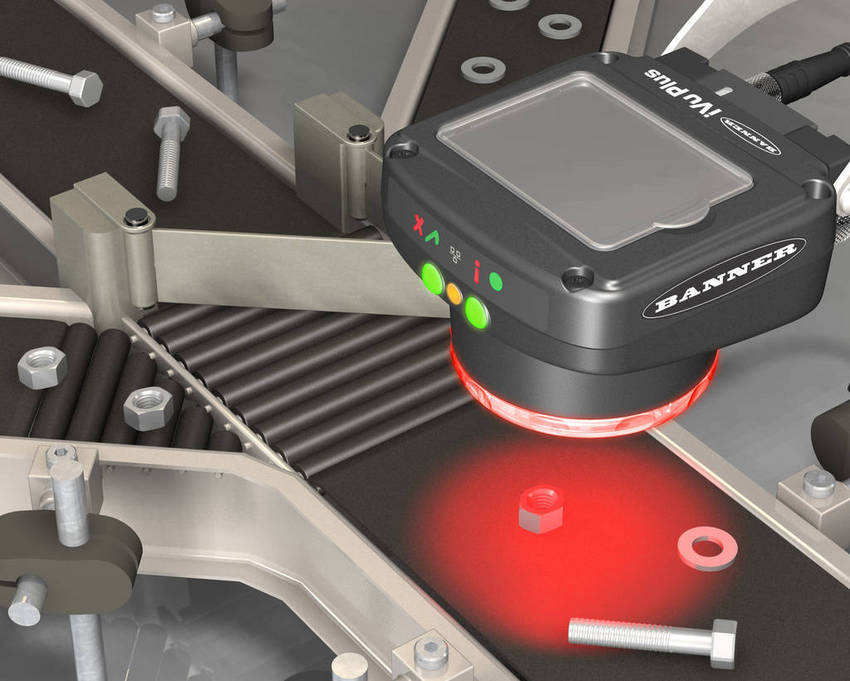

Banner Engineering Corp.    Minneapolis, MN 55441
Feb 22, 2011 iVu Plus can store up to 30 inspections, while Sort sensor function facilitates sorting of as many as 10 patterns in single inspection. Featuring 3 discrete communication channels over Ethernet or serial interfaces, both integrated touch screen TG and BCR (bar code reader) models can transmit data, such as inspection and image results, to HMIs and PCs. A 2.7 in. LCD color built-in display comes standard on integrated models, while remote versions feature 3.5 in. display.

Ekahau, West Coast    Saratoga, CA 95070
Feb 22, 2011 Respectively, tags TS1 and TS2 feature 1 and 2 extended cable probes that can be installed inside environment where temperature is being measured and have -328 to +302°F range. HS1 tag measures RH up to 100% and temperature ranges from -40 to +185°F. While battery power lasts up to 3 years at 15 min reporting interval, tags can sample temperature/humidity as often as 15 sec or as required. On-board heuristics enable immediate reporting of anomalies that occur between reporting intervals.

Emerson Process Management    Austin, TX 78754
Feb 22, 2011 Rosemount® 3107 and 3108 work with Rosemount 3490 Series universal controllers to provide combined measurement and control of level, volume, or open channel flow (using flumes or weirs) in industrial and water utilities applications. Along with 12 m measurement range, both 24 V loop-powered devices offer 4-20 mA and HART communications. Transmitters come in factory-sealed, IP68-rated UPVC housing, and Rosemount 3108 also features remote temperature probe.

Giga-tronics, Inc.    San Ramon, CA 94583
Feb 22, 2011 With frequency range of 100 MHz to 20 GHz, Model GT-8555A provides fully calibrated, peak and average RF and microwave power measurements, making it suited for wireless communications and defense electronics systems. Unit supports power versus time, time gating, and automatic pulse parameter measurements. Delivering 2,000 readings/sec, sensor has wide dynamic range of -40 to +20 dBm and low VSWR of 1.2:1. It includes PC-based user interface and MeasurementXpress software.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
Feb 22, 2011 Based on 1.4 micron OmniBSI pixel architecture, 3 megapixel Model OV3660 supports 720p HD video recording at 30 fps with cropping and scaling, as well as 4:3 image capture for snapshots. Backside illumination sensor offers automatic image control functions including exposure control, white balance, auto 50/60 Hz flicker detection, and black-level calibration. Featuring 1/5 in. optical format, sensor can be directly inserted into industry-standard 6.5 x 6.5 mm module.

OmniVision Technologies, Inc.    Sunnyvale, CA 94089
Feb 22, 2011 Based on OmniBSI-2(TM) pixel architecture, 8 megapixel Model OV8830 supports 1080p or 720p HD video recording. Unit's 2 x 2 binning functionality with post-binning re-sampling filter minimizes spatial artifacts and removes image artifacts around edges, while integrated scaler enables electronic image stabilization while maintaining full field of view in 1080p/30 HD video mode. Designed to fit into industry standard module size of 8.5 x 8.5 x 6 mm, sensor targets smartphone market.

Envivio, Inc.    South San Francisco, CA 94080
Feb 18, 2011 Intended for Mobile TV, Internet TV, and IPTV services, 4Caster(TM) C4 Gen III can ingest sources and deliver up to 15 outputs per channel. Live encoder/transcoder can deliver traditional broadcast television services and TV to other platforms from single platform and single headend. In addition to Intel® Xeon® Processor 5600 Series and Envivio multi-core compression engine, solution leverages capabilities of v2.4 firmware, which provides support for Envivio Genesis(TM) output format.

Integrated Sensing Systems    Ypsilanti, MI 48198
Feb 18, 2011 Featuring UL, cUL, and ATEX certification, FuelSense(TM) provides density range of 0.6-1.3 g/cc with ±0.001 g/cc accuracy and temperature range of 5-60°C. By adding meter to existing volumetric flow meters, mass flow can be tracked in critical custody transfer operations. IP67/NEMA 4X-rated meter is also suitable for hydrogen and methane applications for density and concentration of gas mixtures. With remote data logging option, 2 GB of data can be logged and stored internally.

Paine Electronics, LLC    East Wenatchee, WA 98802
Feb 17, 2011 Designed to meet API 17F/ISO 13626-6 and CIA 443 requirements, Digital SubSea CANopen® Series provides intelligent CANopen® networking solution for pressure/temperature measurement. Series measures pressure from 0-10,000 psia with better than 0.04 psi resolution and temperature from +20 to +150°F with 0.5°F resolution. Constructed of all-welded titanium, transducers include micro Subconn® MCBH4F subsea connector. Alternate pressure ranges and port fittings are available to meet requirements.

Omron Scientific Technologies Inc.    Fremont, CA 94555
Feb 17, 2011 Offering ISO 13849-1 (Safety Category 4/PLe) compliance for use higher-risk applications, non-contact D40Z measures 48 x 25 mm and has operating distance of 15 mm. Up to 15 switches may be combined with programmable G9SP Safety Controller for use in high-risk, multi-door access applications, and as many as 30 units can be connected to one G9SX-NS Controller. Additional features of this IP67-rated switch include non-magnetic actuator and 2-color diagnostic LED display.

Greyline Instruments, Inc.    Massena, NY 13662
Feb 17, 2011 Equipped with 3-key calibration system, Model SLT 5.0 can be used as level transmitter for tank inventory applications with continuous display and control, or as open channel flow monitor with display and totalizer. Unit includes non-contacting PVC and Teflon® sensor rated for ranges up to 32 ft. Housed in NEMA 4X enclosure, monitor provides isolated 4-20 mA output and has 3 control relays programmable for pump control, pump alternation, level alarms, and/or flow proportionate pulse.

Continental AG    Auburn Hills, MI 48326
Feb 17, 2011 Intended for electric and plug-in hybrid vehicles, evSAT sensor employs algorithm to detect frontal, rear, or side collision. Accident information is passed onto battery management system, which then shuts off high-voltage battery to eliminate risk of electric shock faced by emergency service personnel responding to accident victims. Comprised of independent triaxial sensor with CAN interface, sensor enables battery shut-off within 0.5 sec of accident of 4 sec max during rollover.

Fluid Components International    San Marcos, CA 92069
Feb 16, 2011 Allowing technicians to confirm flow measurement accuracy for gas and flare flow meters within minutes, VeriCal(TM) in-situ system is designed for applications aboard offshore platforms as well as land-based oil/gas and chemical plants. Verification of flow meter calibration is performed without removing meter from pipe or process. System combines air/gas flow element with additional electronics that feed and measure precise flow of gas from nitrogen source.

Opto Diode Corp.    Newbury Park, CA 91320
Feb 16, 2011 Featuring 10 x 10 mm active area, IRD AXUV 100GX Absolute X-ray Photodiode possesses known active silicon thicknesses and 100% internal quantum efficiency, allowing absolute measurement of X-ray flux with energies of 100 keV and beyond. Unit requires no external voltage for operation, operates at room temperature, and provides up to 1 Gigarad of radiation hardness. Photodiodes with directly-deposited, thin-metallic filters are available for reducing response to visible light.

Paine Electronics, LLC    East Wenatchee, WA 98802
Feb 16, 2011 Operating in temperatures from -40 to +260°F, 220-10-020 Series digital pressure and temperature combination transducer is offered in pressure ranges from 0-100 to 0-10,000 psis and provides temperature measurement from -40 to +300°F. Accuracy of digital pressure output is 0.075% FS, with resolution of 16 bits, while temperature resolution is 10 bits minimum and better than 0.5°F. Product requires input current of 25 mA at 5 Vdc, and includes RS485 interface for digital output.

HBM, Inc.    Marlborough, MA 01752 3014
Feb 15, 2011 Series T40 torque flanges are available with sturdy ROBA-DS shaft coupling to securely and accurately record torque. Shaft coupling, which compensates for any existing radial, axial, or angle offset that may arise when torque flange is installed, is characterized by high torsional stiffness and low mass moment of inertia. As ROBA-DS shaft coupling is ideal match for HBM torque flange, users can be sure torque is correctly applied in torque flange.

Lion Precision Inc.    St. Paul, MN 55126 7014
Feb 14, 2011 Offering 15 kHz (-3 dB) bandwidth, CPA100 Capacitive Sensor has setpoint (switched) output to indicate presence/absence, but nonlinear analog output is capable of resolutions as low as 15 nm RMS. Other features include panel range indicator and user adjustments for Offset (Zero) and Gain. Probe selection enables measurement from 0.05-6 mm, and offset/gain can be controlled with remote potentiometers. Also, sync connectors allow interference-free use of multiple sensors with same target.

Baumer Ltd.    Southington, CT 06489 1534
Feb 14, 2011 Available in IP67 version, HS35 Hollow Shaft Incremental Encoders withstand shocks up to 200 g, high-pressure cleaning, and ambient temperatures from -40 to +212°F. Units are available in programmable square wave, square wave, and sine wave versions for shaft diameters from 0.5-1.0 in., and can be further customized via shaft insert adapters, which provide electrical isolation against voltages up to 2.5 kV. Resolution is PC-programmable from 1-8,192 ppr in increments of 1.

Columbia Research Labs., Inc.    Woodlyn, PA 19094
Feb 11, 2011 Customized to measure circumferential strain around diameter of surface to which it is mounted, Series DT3747 is self-temperature compensating and offers choice of cylindrical mounting radius. Specified mounting radius is custom molded into body, providing method of controlling operator alignment during sensor mounting. Applications include aircraft structural fabrication, pipe expansion measurements, explosive body applications, and engine monitoring.
