Renishaw, Inc.    Hoffman Estates, IL 60192
Jan 27, 2003 Laser Model RLE interferometer-based encoder uses fiber optic links to transport laser beam directly to axis measuring position. Optical beam-steerer reduces laser alignment to simple bolt-down and dial-in process. Using retroreflectors or plane mirrors, system can be applied to axis lengths up to 4 m. It allows outputs in digital RS422 format quadrature, with resolutions from 10-633 nm, or 1 Vpp Sin/Cos signals.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Jan 27, 2003 Model 7268C miniature piezoresistive accelerometer employs micro-machined sensors with integral mechanical stops. Three-axis unit has minimum damping, thereby producing no phase shift over useful frequency range. Two active arms and two internal precision fixed resistors provide shunt calibration, while internal diodes furnish electrostatic discharge protection. Acceleration ranges are 500 and 2000 g full scale, and operating temperature is 0-150°F.

Mikron Instrument Co., Inc.    Oakland, NJ 07436
Jan 27, 2003 Model MI-500N non-contact, infrared sensor measures temperatures between -40 and 1292°F. It can be equipped with 2 different sensor heads with field of view of 10:1 or 2:1. Unit includes relay contact and alarm, switchable analog output, digital RS232 or RS485 UPP® output, built-in digital peak/valley storage, and adjustable emissivity. Additional model, MI-500 provides built-in illuminated temperature display and 3 pushbuttons for adjustment of parameters.

Tri-Tronics Co., Inc.    Tampa, FL 33622-5135

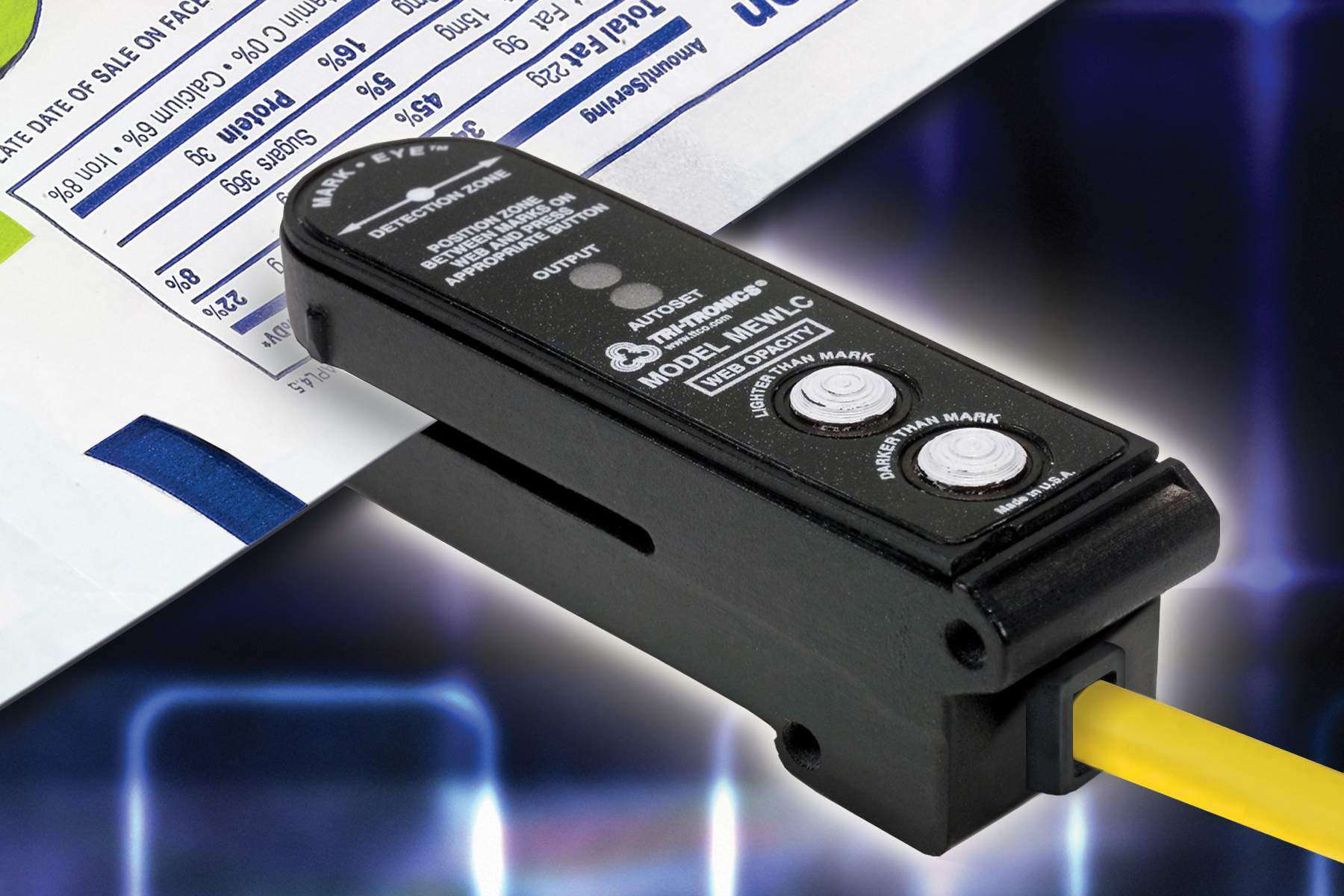

Jan 27, 2003 MarkoEye photoelectric registration mark sensor detects marks as small as 1/32 in. wide by 1/4 in. long on packaging materials. Opacity sensing mode is provided for detecting any color. Unit is pulse modulated to prevent any problems from ambient light. Setup and adjustment is made with single push of button. Unit operates on 10-30 Vdc and is suitable for use on form, fill, and seal machines.

Berkeley Varitronics Systems    Metuchen, NJ 08840-1217
Jan 24, 2003 Mantisâ„¢ wireless BLUETOOTH measurement tool identifies, installs, and optimizes BLUETOOTH wireless devices and connections. Instrument follows frequency-hopping signature to allow Packet Error Rate breakdowns and RSSI measurement in true dBm. Unit houses receiver for service sweeps and can be installed for instant acquisition of device status. Offerings include backlit display and keypad menu navigation.

KOA Speer Electronics Inc.    Bradford, PA 16701

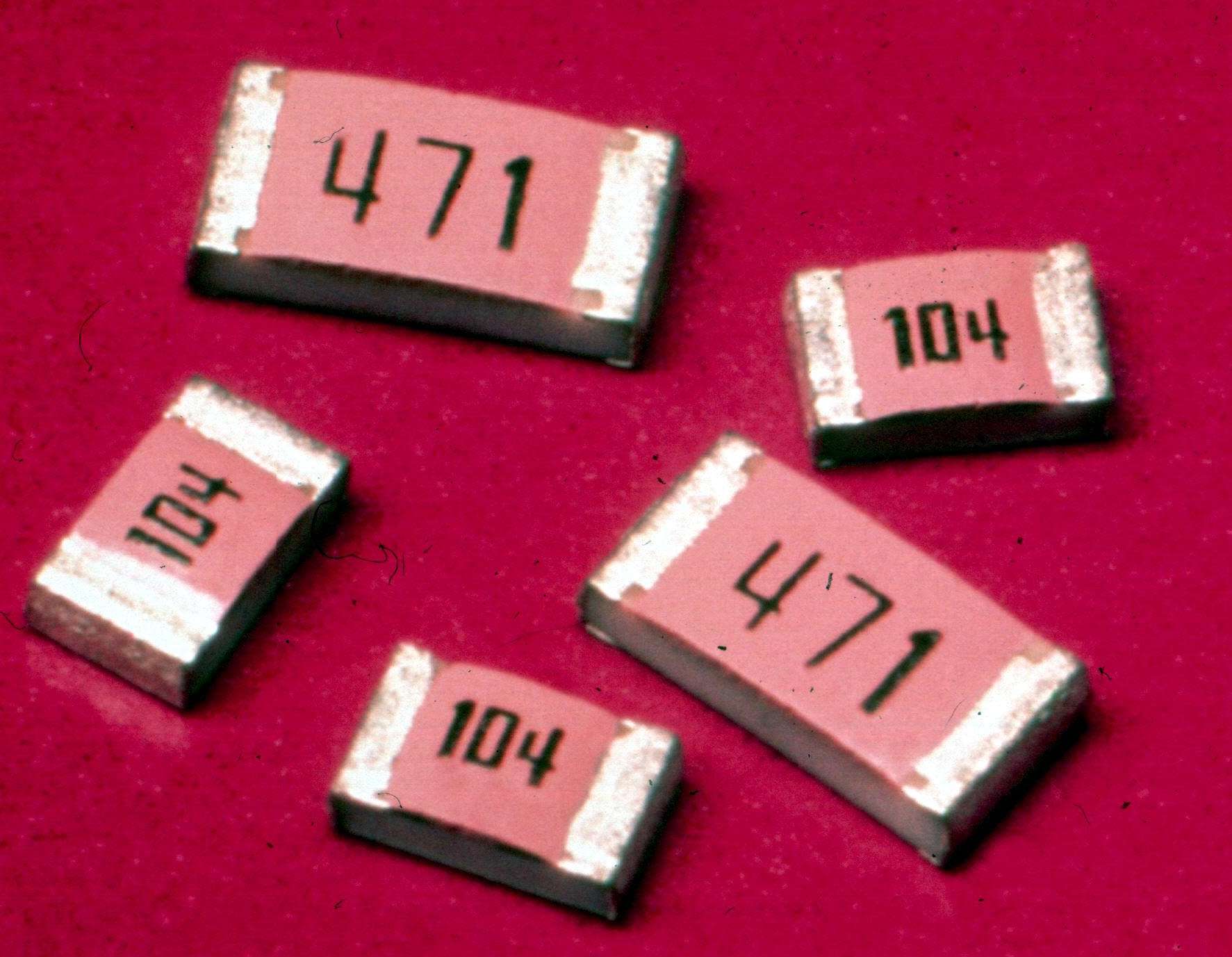

Jan 24, 2003 Negative-tempco Model NT73 features anti-leaching nickel barrier terminations and 12 standard resistance values from 1.0–150 kohm. Sizes 0603, 0805, and 1206 are available. Dependent upon size selected, resistance tolerances of ±3%, ±5%, ±10%, and ±15% are offered. Power rating of 5 mW is standard with beta constants of 3200 K, 3500 K, 3700 K, 3800 K, and 4100 K. Thermistor has operating temperature of -55 to +125°C and is suitable for reflow and wave soldering.

Monitor Technologies, L.L.C.    Elburn, IL 60119-8048

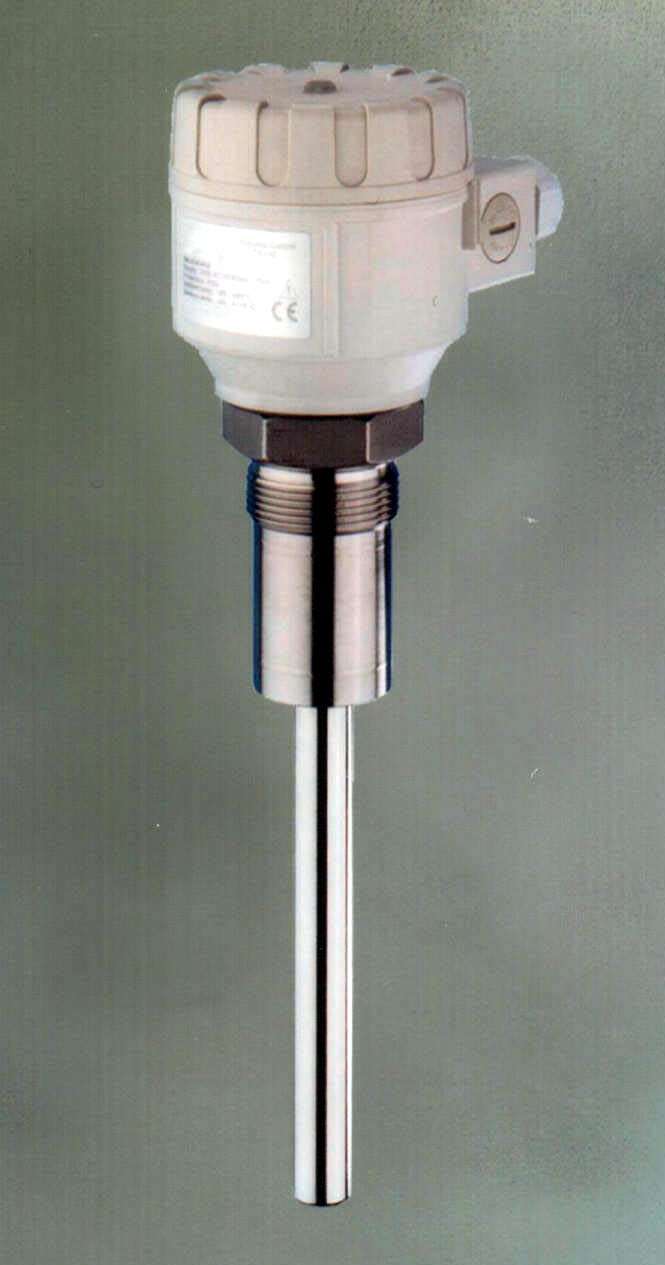

Jan 24, 2003 VibraRodâ„¢ sensors, with single-probe vibrating rod design, overcome difficulties associated with changes in material, electrical dielectric constant, temperature, or humidity. Single-prong probe eliminates material build-up and false signaling. Standard length version extends into vessel 9 in. Pipe extended version extends measuring rod up to 118 in., and cable extended unit can extend probe up to 65 ft. All have bi-color LED and relay output.

Monitor Technologies, L.L.C.    Elburn, IL 60119-8048

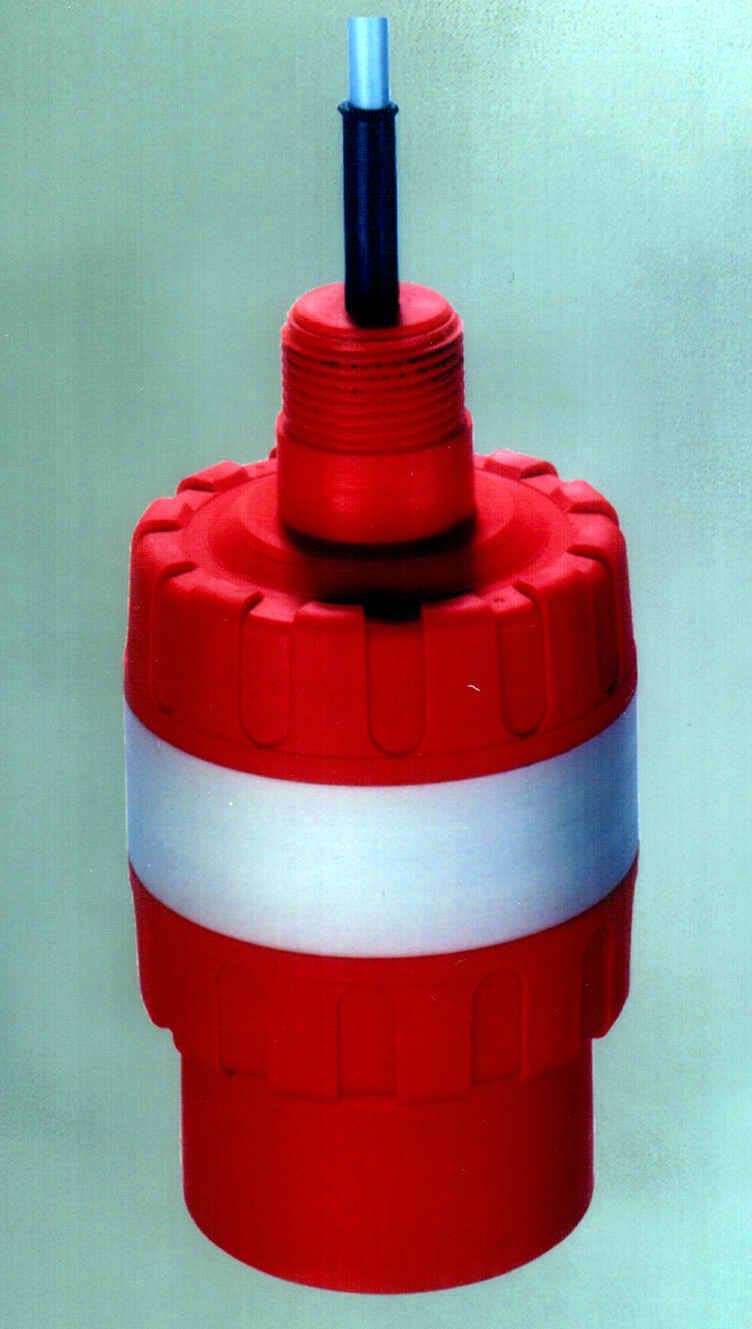

Jan 24, 2003 BulkSonics® Liquid Smart Transmitter Model LST60e offers measuring range of 33 ft, while Model LST80e has range of 20 ft. Each is provided with scalable 4–20 mA output and relay. Programming and setup is accomplished via touch-magnet system. HART communications can be provided. Non-contact feature makes transmitters suitable for corrosive or sticky materials.

Ametek, Inc. / EDAX    Mahwah, NJ 07430
Jan 24, 2003 CoatMaster 550, with 23.6 x 13.8 in. chamber, incorporates X-Y motorized stage and supports movement in Z direction via moveable head. Offered with choice of EZ-Load stage that automatically moves in/out of chamber or non EZ-Load heavy-duty stage that accommodates up to 44 lbs, unit has automated multi-collimator changer that holds up to 4 collimators of various sizes. Software is provided for coating thickness determination, element ID, and compositional analysis.

Sierra Instruments, Inc.    Monterey, CA 93940
Jan 23, 2003 Innova-Mass SCT multivariable-vortex meter provides direct reading of steam mass flow rate in lb/hr or kg/sec. Built-in flow computer incorporates peak demand software to calculate max demand at 5 min intervals, and integrated modem stores and permits access to week’s worth of data. Flow, temperature, pressure, and date/time information can be accessed via client’s computer. Flow meter can be configured from control panel or workstation via RS485 or HART protocol.

Veeco Metrology    Tucson, AZ 85706

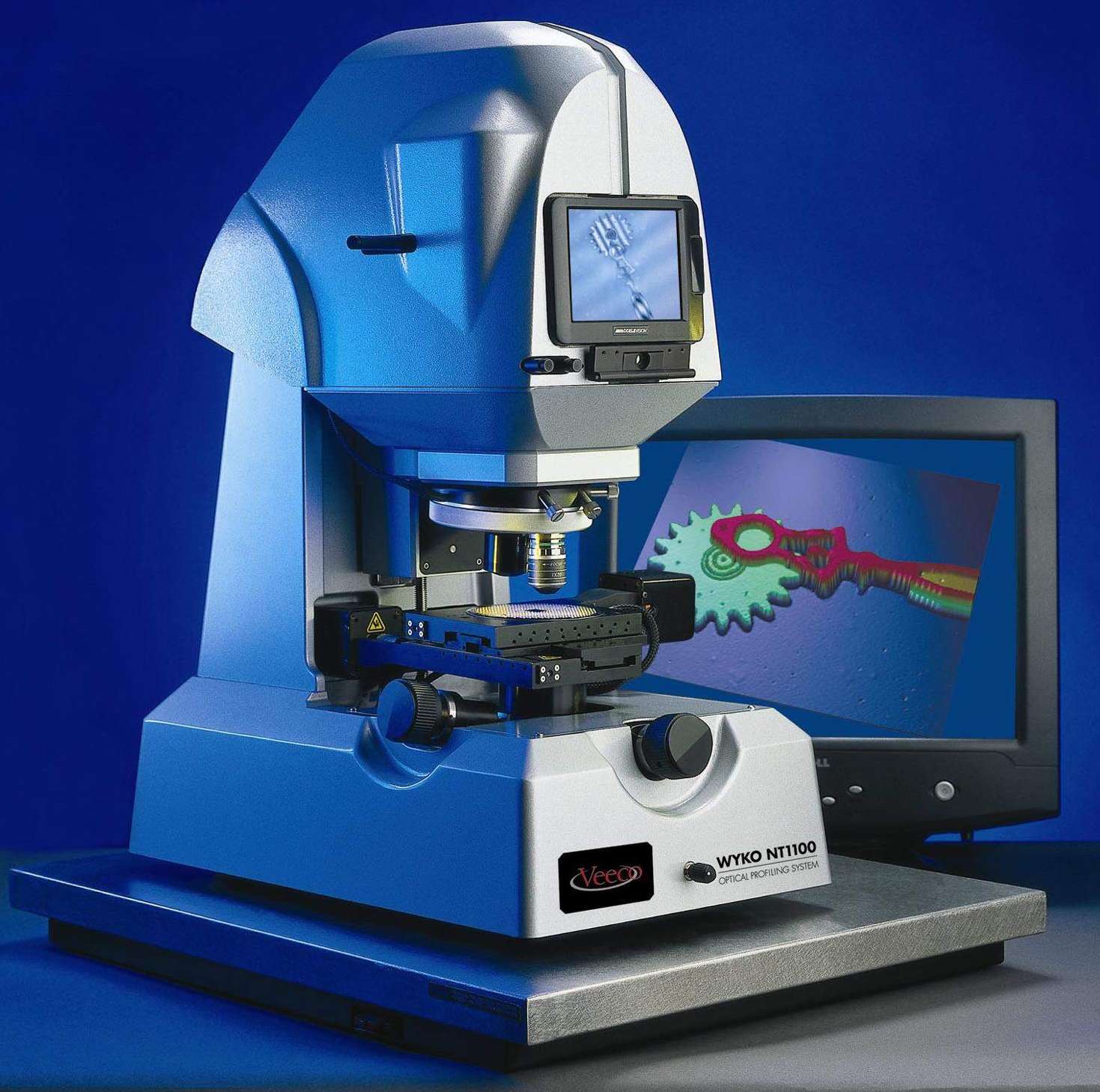

Jan 23, 2003 Wyko® NT1100 characterizes micro-devices in 3D as they actuate for assessment of true device functionality and measurement of in- and out-of-plane dimensions. System offers dynamic and static measurement of rough surfaces on one platform. Non-contact, white light interferometry provides Angstrom-resolution measurement of features from 0.1–2 mm in height. System includes custom illumination source, electronics, and template-driven SureVisionâ„¢ software.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675

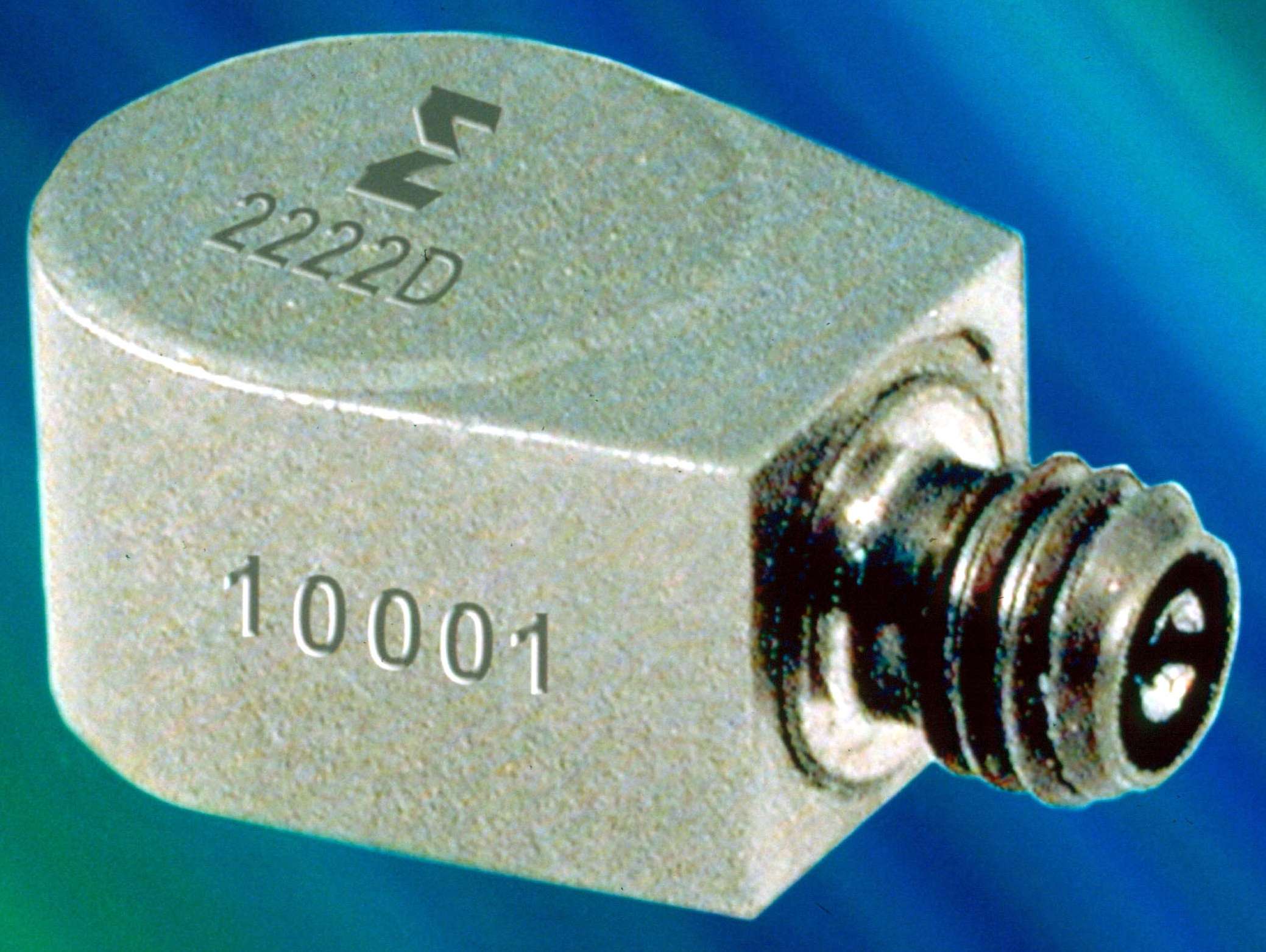

Jan 23, 2003 Suited for vibration and shock measurement of lightweight objects, miniature model 2222D withstands shock to 10,000 g's. Its hermetic construction, with no solvent/atmospheric contamination, offers temperature range of -55 to +175°C and amplitude linearity of less than 1%. Signal ground is isolated from mounting surface of unit with hard-anodized mounting adapter. Coaxial cable is supplied for error-free operation.

TE Connectivity Ltd.    Berwyn, PA 19312
Jan 23, 2003 Permanent Magnet Linear Displacement sensors use electromagnetic induction principle, which has primary winding around soft magnetic core. Units operate without being mechanically connected to driving mechanism and can be actuated through walls made from non-magnetic materials. Contactless sensors have measurement range of 15-400 mm with sensor magnet gap range of 1-20 mm. Environmental sealing is rated at IP67.

Druck, Inc.    New Fairfield, CT 06812
Jan 23, 2003 Series PTX 400 enables temperature/pressure measurements to be made directly on subsea wellheads and production manifolds by utilizing micromachined piezo resistive silicon pressure measuring technology. Able to handle external pressure to 9,500 ftH₂O, pressure ranges are available to 10,000 psi with proof pressure at 1.5 x FS range and secondary pressure containment in excess of 15,000 psi. Temperature measurement range is from -40 to 150°C.

Shimpo Instruments    Itasca, IL 60143

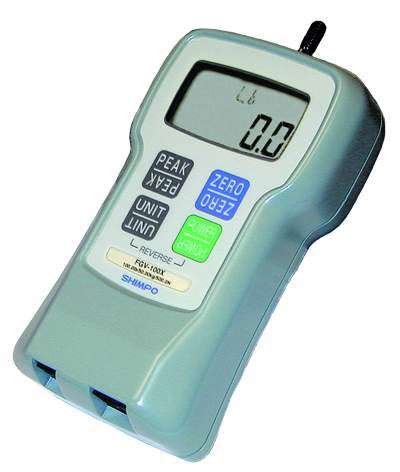

Jan 22, 2003 FGE-X and FGV-X DART Series 1000 gauges feature 180° flip displays, permitting user to read display right-side up. They include dual direction keypad, variable baud rate for SPC applications, variable display update rate, selectable force indication, and selectable power on/off settings. Designed to fit in palm, all metal units permit accurate measurement and display of compression and tension forces up to 100 lb.

MTS Sensors Group    Cary, NC 27513

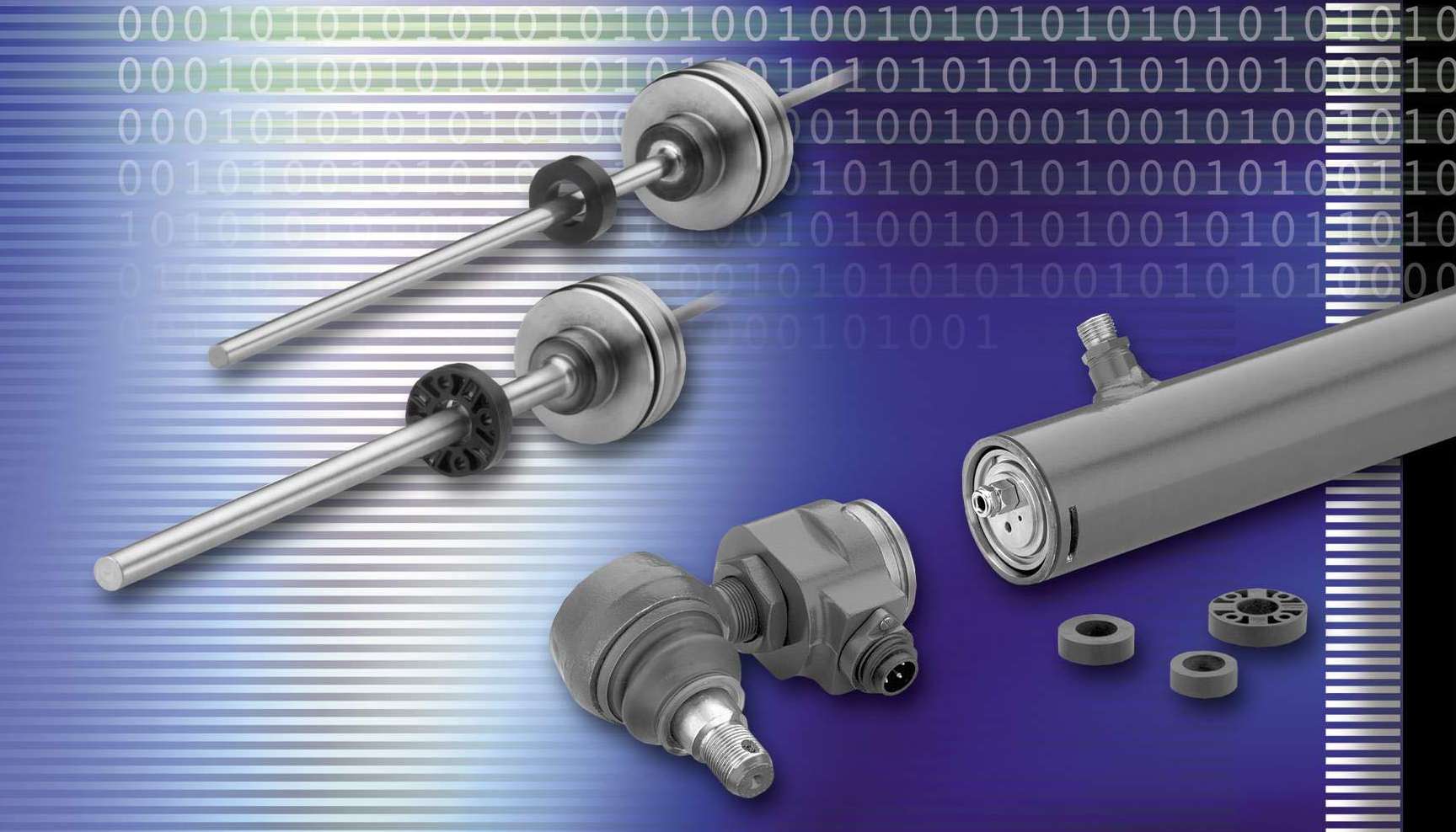

Jan 22, 2003 Temposonics® Mobile Hydraulic sensor provides non-contact measurement inside hydraulic cylinders. It is constructed of 3 primary components: magnetostrictive sensing element, sensing electronics, and application housing that protects internal components from environmental conditions. Pressure housing comes in 7 and 10 mm dia, with static pressure rating of 4,300 and 5,000 psi, respectively. Measuring range is 50–1,000 mm with 0.005% accuracy.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jan 22, 2003 In-Line TEDS Adaptor features interface chip that allows identification, location, and sensitivity relative to attached piezoelectric sensor to be stored. Device allows ICP® accelerometers that do not have TEDS functionality to be used in typical TEDS applications such as large channel count modal analysis and structural testing. Use of adaptor eliminates cable connection errors and reduces set-up time.

InterTest Corp.    San Jose, CA 95125
Jan 22, 2003 Model 1014-CBL Bubble Detection System exceeds MIL-STD requirements for Gross Leak Testing of Microelectronic Components per MIL-STD-883, Method 1014, Test Condition C. Thermo-Barrier chill ring with extended free-board eliminates indicator fluid loss. Internal auto/manual filtration system achieves 0.45 micron results. Magnifying lens provides 1.5x magnification using bezel mounted lens. Unit is 12 x 22 x 17 in. and is circuit breaker protected.

PCB Piezotronics Inc.    Depew, NY 14043 2495

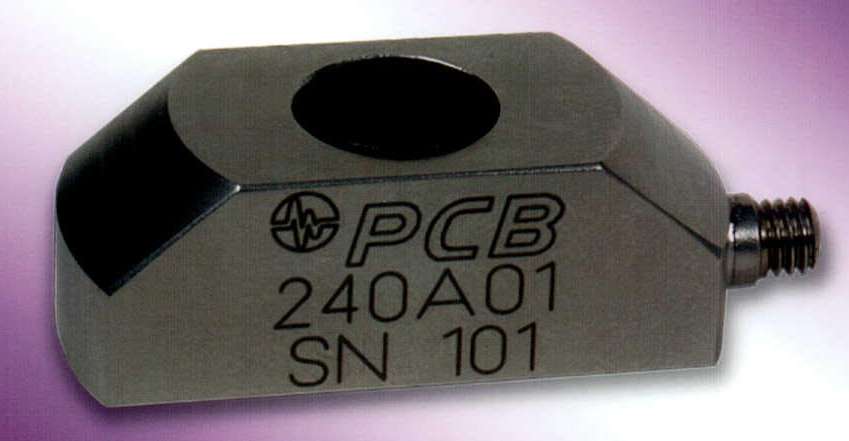

Jan 21, 2003 Model 240A01 Dynamic ICP® Strain Sensor measures dynamic and quasi-static stress on stationary and moving machinery. With piezoelectric sensing elements, and integrated microelectronic signal conditioning, unit interfaces with monitoring and data acquisition systems to detect inconsistencies or upsets. Positioning device in direction of maximum strain permits indirect measurement of forces on mechanical devices and machines.

MSA    Pittsburgh, PA 15230 0426
Jan 21, 2003 Microprocessor-based Ultima XIR Gas Monitor has 316 stainless steel enclosure for harsh environments. Gas detector for continuous monitoring of combustible gases and vapors utilizes dual-wavelength heated optics technology, providing compensation for temperature, humidity, and aging effects. Features include field-selectable algorithms, LCD display, 4–20 mA output, and field-programmable relays with three alarm levels and one fault.
