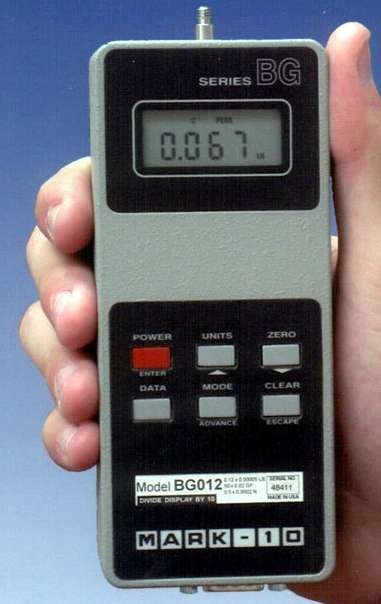

Mark-10 Corp.    Copiague, NY 11726
Aug 27, 2004 With resolution of 0.00005 lb and ±0.2% accuracy, BG012 features RS-232, Mitutoyo, and analog data outputs; peak data recall; and high and low set points. It is supplied in cushioned carrying case with ac adapter, rechargeable battery, implements, and certificate of calibration traceable to NIST standards. Applications include compression and tension testing of medical devices, membrane switches, springs, and electronic and mechanical components.

Siemens Building Technologies, Inc.    Buffalo Grove, IL 60089
Aug 26, 2004 Suited for HVAC building control applications, Q-Series uses embedded microprocessor that converts digital signal to continuous 0-10 Vdc signal, which corresponds to 0-100% RH. Standard humidity range is 3% accuracy over comfort range of 30-70% RH and 5% accuracy over full range of 0-100% non-condensing. Digital sensing technology requires no calibration or adjustment. Replaceable sensing tips can be removed without disrupting installation or wiring.

Norgren    Littleton, CO 80120

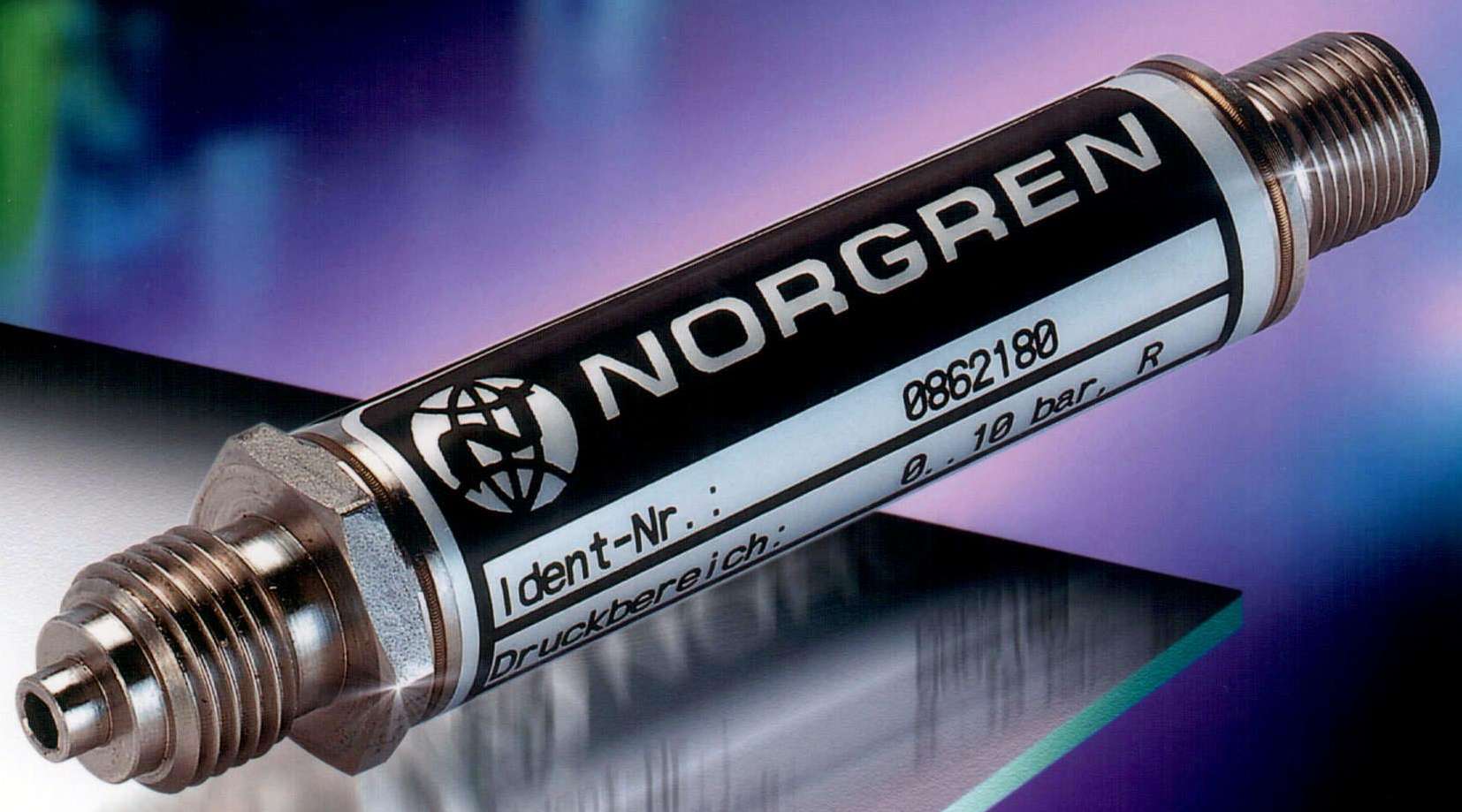

Aug 25, 2004 Herion 18S Allfluid series sensors, suited for harsh operating environments, features long-term stability combined with temperature compensation. Analog units are available with pressure range from 0–11,600 psi and are suited for neutral and aggressive gases/fluid mediums. Offered in 3-wire version with 0–10 V output signal range and 2-wire variant with 4–20 mA output signal range, series features -4 to +185°F ambient and fluid temperature range.

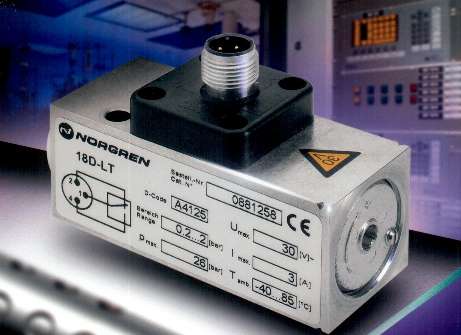

Norgren    Littleton, CO 80120
Aug 25, 2004 In addition to indoor and outdoor fluid applications that require wide operating temperature range, Series 18D LT is suited for pneumatic applications with operating pressures from 14–232 psi. Various fluid connections such as G, NPT, and flange are available. Switches can be used with neutral, gaseous, and liquid fluids that are non-combustible such as those used in mobile applications including trains, trams, and other rail vehicles.

Norbar Torque Tools, Inc.    Willoughby, OH 44094
Aug 25, 2004 Model USM-2 offers precise measurement of elongation and load in threaded fasteners. Tension Control Module interrupts incoming air flow to power tool to stop torque or tension, automatically shutting off power-driven tools once bolt has achieved user-defined preload or elongation. Suited for metal fasteners from 1 in. to over 20 ft long, meter includes data recorder that stores bolt information and makes it available for download through RS 232 port.

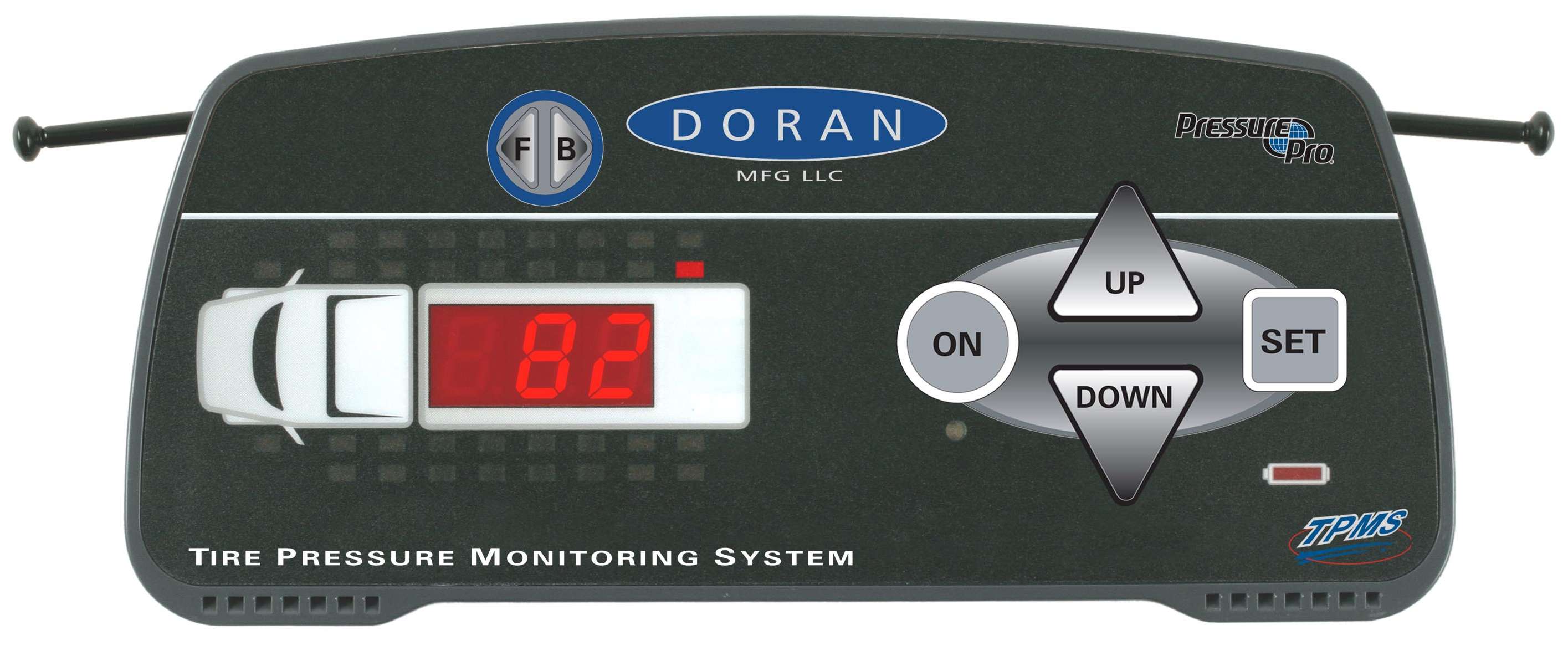

Doran Mfg. Co.    Cincinnati, OH 45225-2218
Aug 24, 2004 PressurePro continuously monitors pressure of all vehicle tires and displays it in digital readout in vehicle's cab. Able to display pressure of up to 34 tires, product delivers audible and visual alerts to notify driver of low-pressure conditions. This enables driver to monitor leaks and schedule repairs or replacement without breakdowns or downtime. Duplicate signals minimize effects of electronic interference, weather, and other trucks.

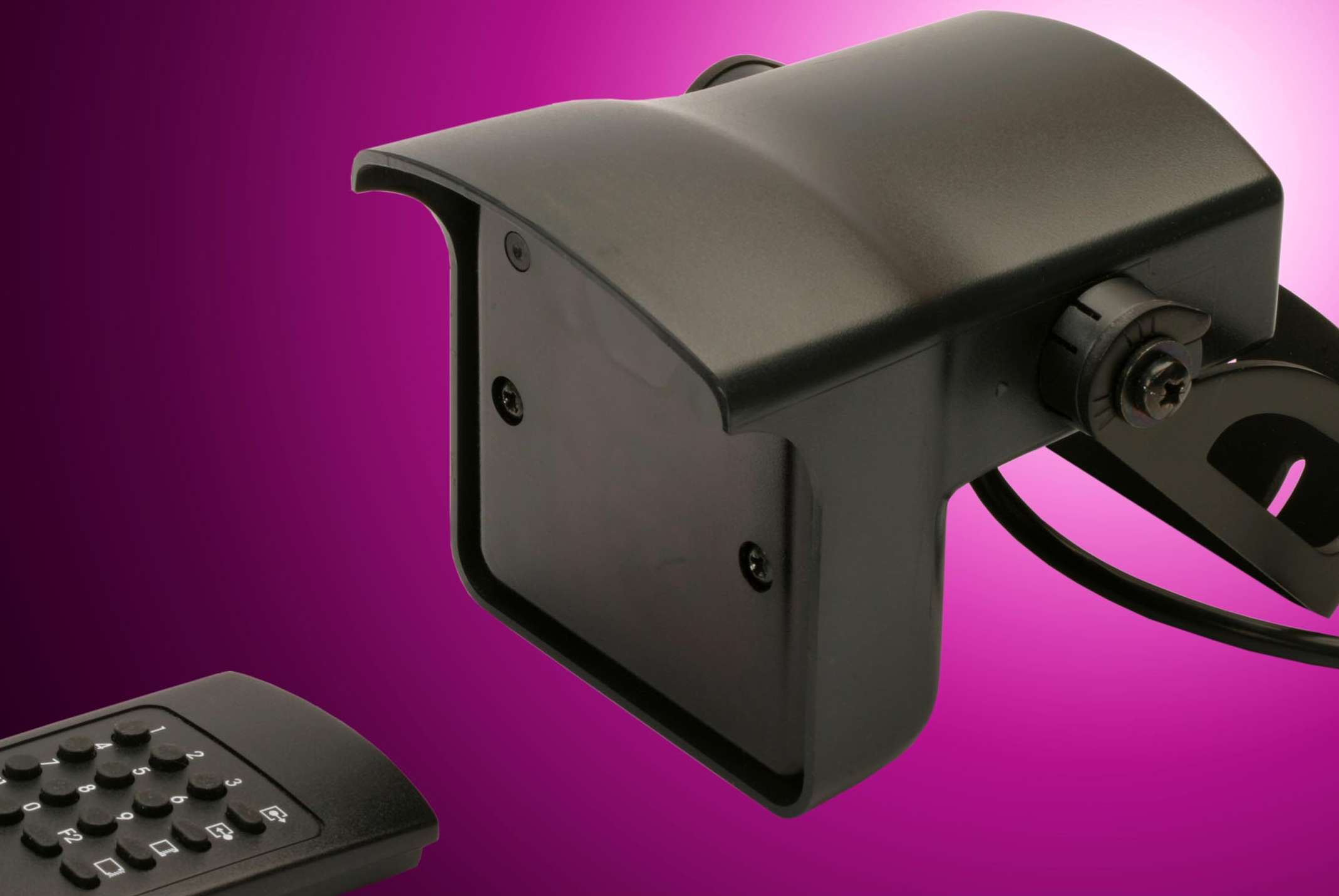

BEA Inc.    Pittsburgh, PA 15215
Aug 24, 2004 Falcon uses microprocessor and planar antenna to generate stable sensing field that activates door only when needed, eliminating unwarranted door openings. Unit can be set to detect approaching vehicular traffic while disregarding pedestrian traffic and parallel vehicular traffic. It can also be customized for uni-directional approach or bi-directional sensing, as well as uni-directional depart. Parameters are adjusted via remote control or waterproof push buttons on sensor.

Balluff, Inc.    Florence, KY 41042-0937

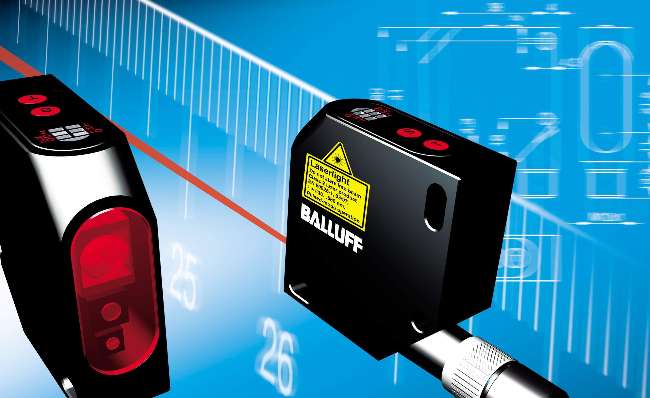

Aug 24, 2004 Series BOD 24K LB analog laser distance sensors feature 2 discrete outputs that detect presence of objects, as well as indicate position and size. Microprocessor provides embedded functions including signal averaging, min/max hold, and signal hold, which are accessed on sensor by built-in push buttons or remotely via teaching input. Models are available with extended sensing ranges of 30–100 mm and 80–300 mm with resolution better than 0.1% full scale.

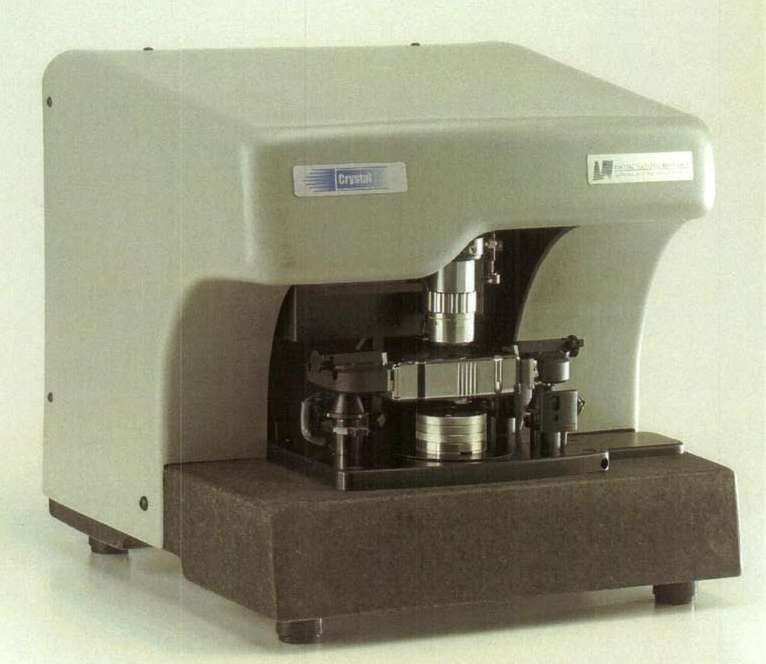

Pacific Nanotechnology    Santa Clara, CA 95054
Aug 23, 2004 Negating complexity/difficulty issues associated with atomic force microscopes, Crystal Scanner(TM) minimizes operator interaction, reducing potential for errors in measurement. Force sensor consists of crystal oscillator with sharp probe mounted at end of crystal to scan surface of sample. Compatible with proprietary scanning probe microscopes, option uses Point and Scan(TM) Technology with on-screen video tutorials and standard sample menus.

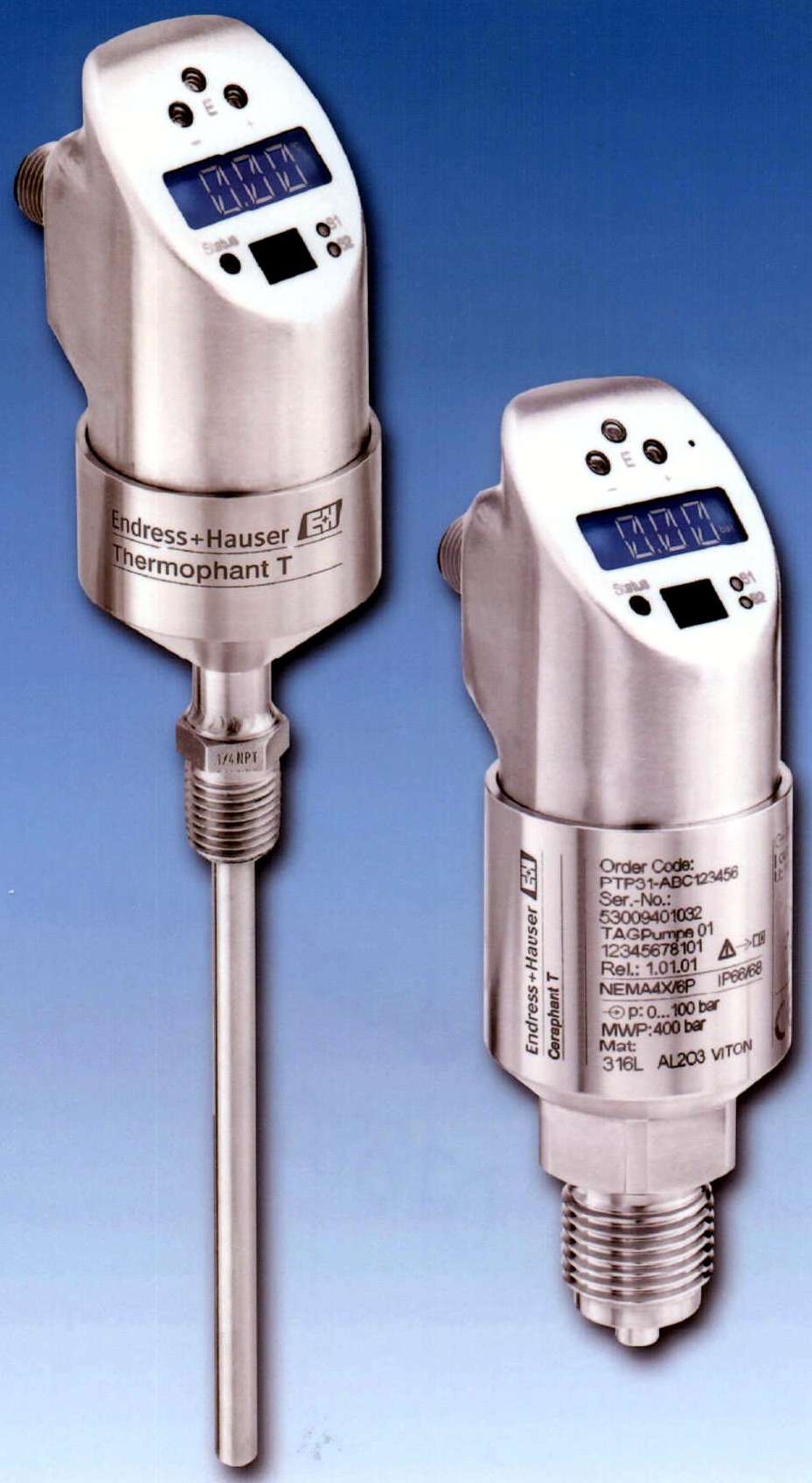

Endress + Hauser Inc.    Greenwood, IN 46143
Aug 23, 2004 Ceraphant T and Thermophant T twin electronic switches feature menu-guided operation and backlit, 14-segment, digital display that shows readings in bar, psi, MPa, kPa, °C, or °F. Ceraphant T is designed for absolute and gauge pressure measurement, while Thermophant T suits temperature measurement in gases, vapors, and liquids. Both are available in versions that meet 3-A sanitary standards. Ceraphant T version PTC31 includes Ceraphire® pure ceramic sensor diaphragm.

Ohmic Instruments Co., Instrumentation Div.    Easton, MD 21601-3902

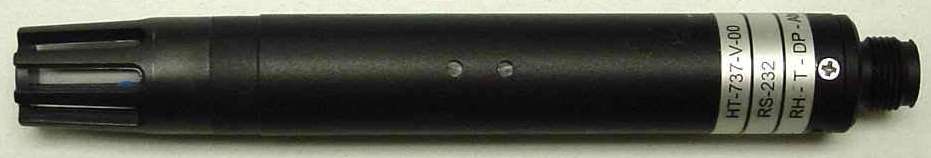

Aug 23, 2004 Multi-functional, digital HT-737 measures RH, temperature, dew point, and absolute humidity. With RS-232 or RS-485 output capability, product also features programmable micro controller and digital zero and span adjustment. Multi-functional, analog HT-761 analog provides linear 0-1 Vdc or 0-10 Vdc output of ambient RH and temperature. With operating temperature range of 32-176°F, unit is digitally adjustable with no potentiometers.

Edwards Signaling & Security Systems    Plainville, CT 06062
Aug 23, 2004 MEDI-Lite consists of Millennium Event Driver Interface Software system and uses PC's sound card as audio source to sound speakers from desktop or laptop computer. It sounds Adaptatone® signaling system wav files, custom wav files, or real-time voice (using PC microphone) over 25 or 70 V speakers or speaker/amplifiers. Windows-based package can be programmed to automatically signal work start and stop times, break times, or any other desired timed event.

Siemens AG    Munich D-80333  Germany
Aug 20, 2004 Two-conductor, Sitrans Probes LU and LR continually measure fill level of storage tanks and process vessels, as well as flow rate in open flumes. Interference echoes are automatically filtered out to ensure reliable analysis of echo signals. Ultransonic transceiver, Model LU offers 12 m measuring range in liquids and slurries, while radar level transmitter, Model LR operates at 5.8 GHz or in North America at 6.3 GHz with measuring range of 0.3-20 m.

Weigh-Tronix, Inc.    Fairmont, MN 56031
Aug 20, 2004 Accommodating sample sizes from 0.4–6.3 in., Orbis self-contained, digital torque testing system offers repeatable accuracy to 0.5% full scale. It is capable of capturing dual peak readings, first reporting torque levels at seal break and than at actual opening. System also reports slip torque of seal as well as bridge torque of cap. It includes backlit display and data output function that allows torque data to be ported to PC for collection and anaysis.

Scientific Technologies Inc.    Fremont, CA 94555
Aug 19, 2004 Series CM magnetically-coded, non-contact safety interlock switch and control unit features NEMA 6 encapsulated design and is tamper-resistant. Model CM-S4 control provides external device monitoring and has automatic reset button, which allows it to replace safety relay in most applications. Unit will monitor up to 4 switches to Category 3 in accordance with EN954-1. Switch and actuator come in 3 shapes and sizes to accommodate variety of applications.

RAE Systems    San Jose, CA 95134
Aug 19, 2004 AreaConnect 500 data consolidator and communications bridge aggregates data from multiple sensor networks in remote locations. It displays data over standard network connection and provides alarm processing and remote alerting. Able to deliver critical information in seconds, product enables real-time decision making, trend analysis, safety monitoring, and incident scaling. Each unit controls, aggregates, and monitors data from up to 4 video streams and 17 sensor streams.

PreCon National Sales Co.    Memphis, TN 38184
Aug 18, 2004 Series PM features 300 series stainless steel housing measuring 0.188 x 0.500 in. with OD tolerance of ±0.005 in. It is available with choice of NTC thermistor or RTD elements with variety of resistance curves and accuracies. Applications include medical equipment, analytical instruments, food equipment, surface transportation, consumer goods, and building controls.

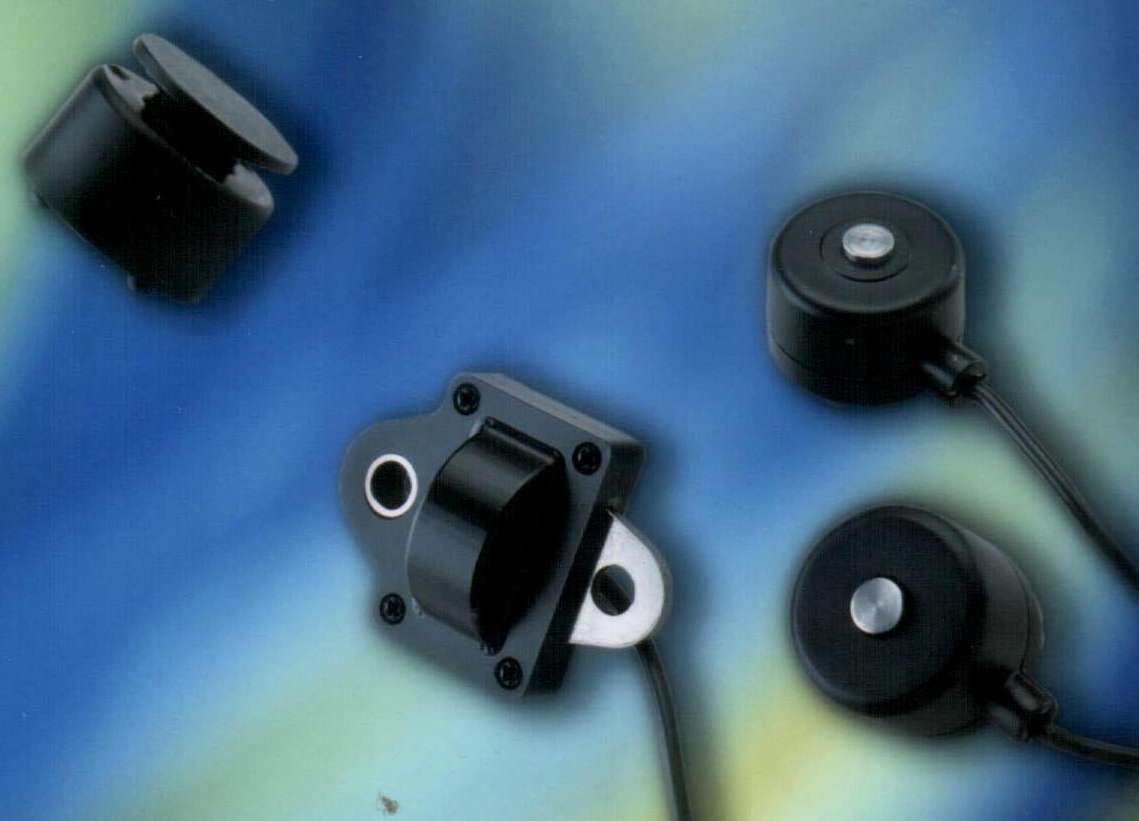

Measurement Specialties, Inc.    Hampton, VA 23666
Aug 18, 2004 Utilizing Microfused(TM) force technology (glass-bonded piezo-resistive silicon strain gage technology), service develops industrial load cells for customized OEM applications. Sensors feature one-piece stainless steel construction with glass fused (bonded) silicon to one side of metal diaphragm. This enables direct contact with environmentally harsh media on other side of sensor.

Grayhill, Inc.    La Grange, IL 60525 5914
Aug 17, 2004 Using optically coupled circuitry, Series 62P consists of PCB-mounted switch with minimum life expectancy of 500,000 rotational cycles, 16 detent positions, and choice of pushbutton actuation force. It does not exhibit contact bounce normally produced by mechanical contacts, eliminating need for de-bounce circuitry or software. Switch terminations, shaft and bushing configurations, and resolutions are customizable to meet user requirements.

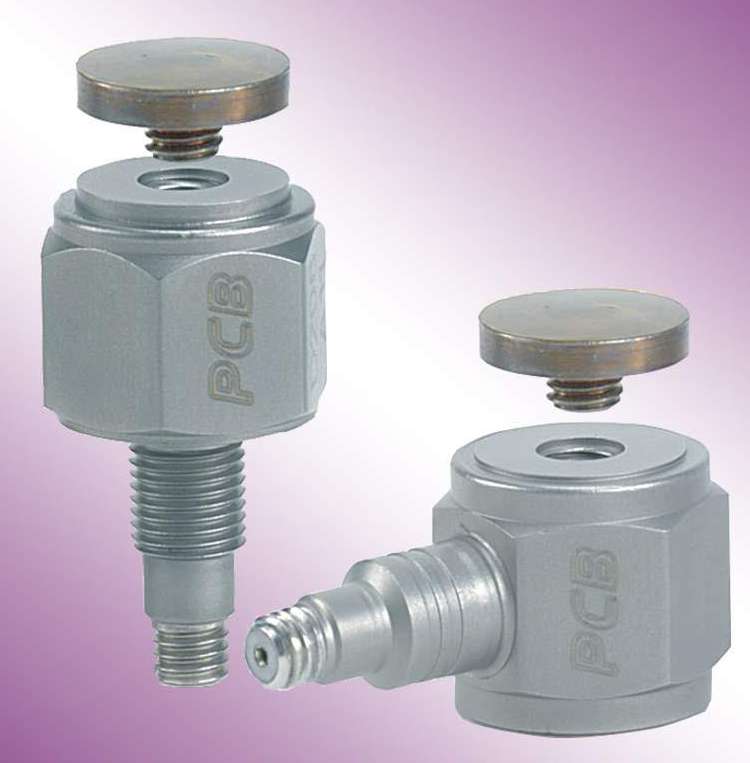

PCB Piezotronics Inc.    Depew, NY 14043 2495
Aug 17, 2004 General Purpose Piezoelectric Force Sensors measure dynamic compression, tensile, and impact forces in various applications. Offered in ICP® and charge output types, sensors measure full-scale compression forces from 10–5,000 lb and full-scale tensile forces from 10–500 lb. ICP force sensors contain built-in microelectronics to convert high-impedance charge to low-impedance voltage. Charge output versions are available for higher temperature applications.
