Electro Standards Laboratories    Cranston, RI 02921 3403
Oct 01, 2004 Featuring plug-and-play operation, Model 4215-LVDT measures and controls dual channel LVDT measurement fixtures. It combines 2 LVDT channels, print capabilities, and RS232/485 serial communication. Unit is electrically compatible with TEDS and can be programmed for full TEDS implementation. Offering 2-line VFD display, sample rate of 60/s, and core accuracy of 0.005%, indicator interfaces with dataView software for intuitive graphing, exporting, and archiving.

Network Physics    Mountain View,, CA 94043
Oct 01, 2004 NetSensory Enterprise Architecture delivers distributed intelligence for global application infrastructure visibility, troubleshooting, and reporting. Product is based on operating system, NetSensoryT OS v4.0, which runs company's NP-2000 appliance and NP-DirectorT. Each appliance collects, baselines, correlates, and stores detailed application service flow knowledge then reports high-level summary, along with automatic or user-programmed alerts.

Intonix Corporation    Roseville, MN 55113

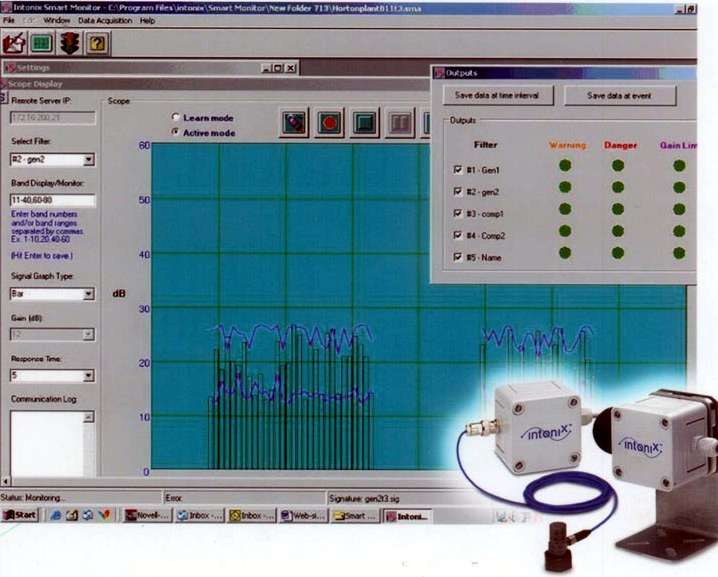

Sep 30, 2004 Smart Filter Monitoring System features smart filter acoustic and vibration modules plus software for multi-point monitoring of rotating and non-rotating equipment and plant processes. Programmable, Windows-based software can learn upper and lower digital signal boundaries, within 96 1/12 octave bands, from as many as 30 modules. System alerts operators when deviations are outside adjustable warning and danger limits.

U E Systems, Inc.    Elmsford, NY 10523
Sep 30, 2004 Ultraprobe 201 Grease Caddy can be mounted directly on grease gun or put in holster and worn on belt. Magnetic mount enables placement of probe on bearing housings, and sensing element detects ultrasound while filtering out low-frequency signals. Monitoring changes in ultrasound levels as bearings are lubricated enables users to know when enough lubricant has been added. Product also has mini-spot light that helps users see their lube connections in low-light conditions.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Sep 30, 2004 Constructed with proprietary PCB Mold Technology, TEMT6000 miniature silicon NPN planar phototransistor is used in backlit displays that respond automatically to changes in ambient light. Surface-mount sensor features peak sensitivity of 570 nm and wide angle of half-sensitivity of ±60°. Lead-free device suppresses IR spectrum to offer human eye responsiveness to visible light spectrum and is rated for operating temperatures from -40 to +85°C.

GE Energy    Atlanta, GA 30339
Sep 30, 2004 High-Temperature Velocity and Acceleration Sensor (HTVAS) 350900 keeps sensing element separate from signal conditioning electronics, allowing it to be used in applications with surface temperatures to 900°F. Casing-mounted vibration transducer uses mineral-insulated hardline cable between sensor and signal conditioner to eliminate intermittent connector failures. Sensor returns acceleration and velocity measurements simultaneously.

K-Tek    Prairieville, LA 70769

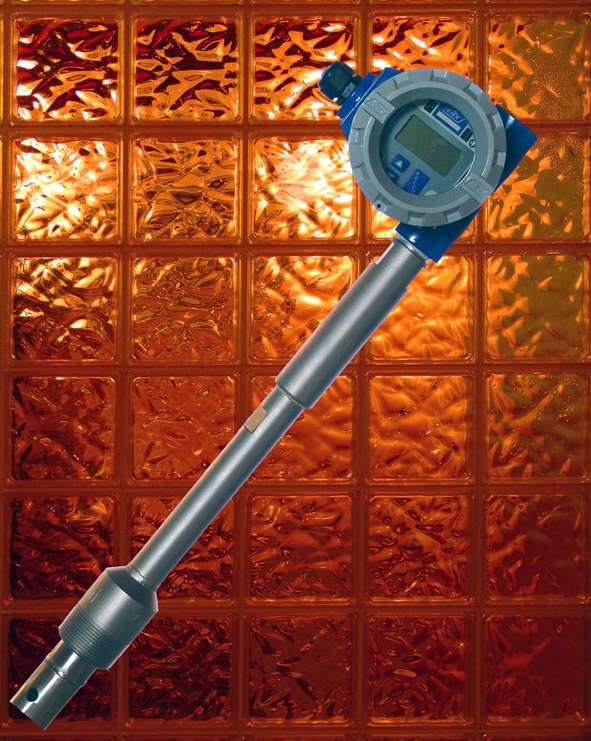

Sep 29, 2004 Coupled with Model C8P71 Waveguide, Model MT2000 can withstand 1,500 psi at 800°F and 5,000 psi at 100°F. Model C8P71 directs radar beam through concentric waveguide, alleviating divergence problems and echoes from tank walls. Incorporating borosilicate glass insulator/seal and 316 stainless steel body, transmitter provides ±0.20 in. accuracy. Output is via 4-20 mA, HART, or Honeywell DE. Results are displayed locally with built-in, scrolling LCD panel.

Thermo Electron Corp.    Waltham, MA 02454

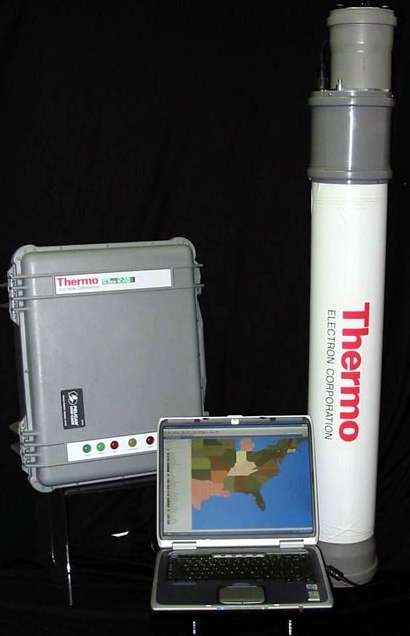

Sep 29, 2004 Matrix MRDSâ„¢ (Mobile Radiation Detection System) provides real-time detection, location, and analysis of radiation threats across predetermined area. Incorporating wireless interconnect, radiation threat detection network promotes error-free data transmission whether used in fixed or mobile command centers. It uses ViewPointâ„¢ data engine, and provides visual representation through ArcViewâ„¢ client, leveraging fully-integrated GPS capabilities.

Optek Technology, Inc.    Carrollton, TX 75006-6905

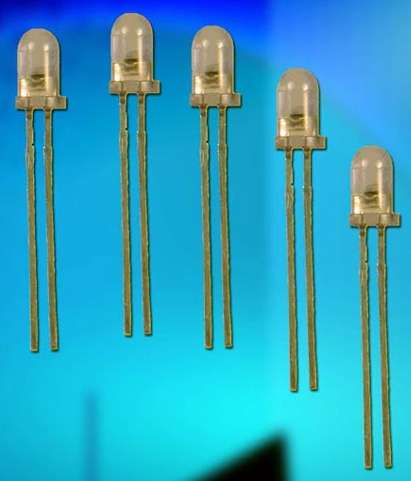

Sep 29, 2004 Model OPV232 low drive current vertical cavity surface emitting laser (VCSEL) is available in plastic, 3 mm high T-1 package with dome lens that creates 3° beam angle. This 850 nm VCSEL offers max forward peak current of 30 mA and reverse voltage of 5 V. With -40 to +85ºC operating temperature, product is optically and spectrally compatible with OPTEK phototransistors, photodarlingtons, and photodiodes.

GE Energy    Atlanta, GA 30339
Sep 29, 2004 Targeting balance-of-plant equipment, General Purpose Equipment Monitor, Model 1900/65, offers stand-alone, multi-channel monitoring. It provides 8 input channels, 6 configurable alarm relays, four 4–20 mA outputs, buffered output facilities for connection to portable diagnostic instruments, and optional display that can be mounted locally or up to 75 m away. Monitor can accept up to 4 vibration transducers and 4 thermocouple inputs.

Balluff, Inc.    Florence, KY 41042-0937

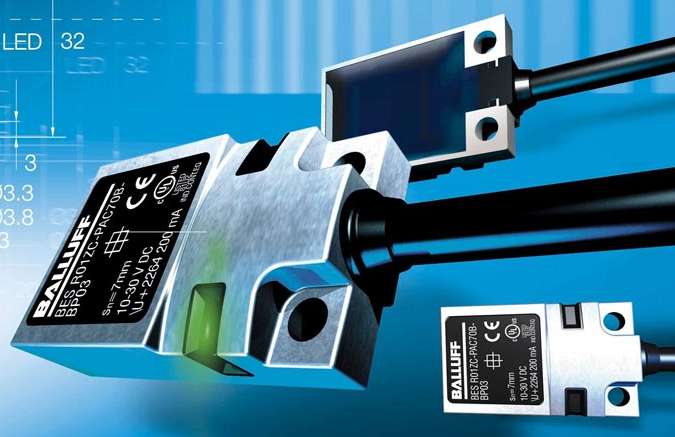

Sep 28, 2004 Model RO1 mini block-style, inductive sensor combines 20 x 32 x 8 mm size with 7 mm sensing range. Cast zinc housing makes unit suited for environments found in stamping or welding applications. IP67-rated sensor is also available in weld field-immune version, with 5 mm sensing range, that is designed to weather dc and ac magnetic fields up to 100 kA/m. It comes with irradiated PVC cable.

Texas Instruments, Inc., Sensors & Controls    Attleboro, MA 02703 0964
Sep 28, 2004 Dry Hermetic Transducer features all stainless steel casing that is environmentally sealed to protect from contaminants. It offers EMC protection at levels to 100 V/m. Accuracy is to 0.25 BFSL, with repeatability level of 0.1%. Device operates in -40° to +135°C temperature and tolerates vibration up to 1 kHz. Available in 4-20 mA or voltage outputs, unit offers pressure ranges from 50–750 psi.

Mine Safety Appliances Company / Instrument Division    Pittsburgh, PA 15230

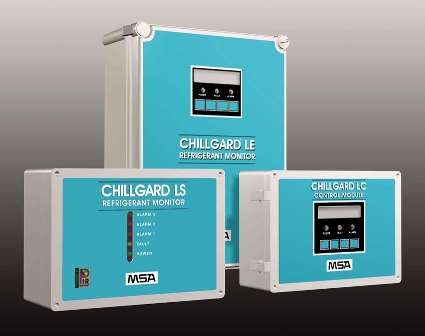

Sep 28, 2004 Utilizing photoacoustic IR sensing technology, Chillgard L Series Monitors comply with ANSI/ASHRAE 15-1994 requirements for refrigeration monitoring. Offered in single-point diffusion and 4-point pumped models, Chillgard LS Monitors have water-resistant plastic enclosure and can detect R11, R12, R22, R123 and R134A refrigerants, as well as 400 and 500 series. Chillgard LC Control Module works with Chillgard LS gas sensor modules to provide remote signaling and control.

Scientific Technologies Inc.    Fremont, CA 94555
Sep 28, 2004 Explosionproof Perimeter Access Guarding Device PA4600-EP features 16 ms response time and 2 PNP safety outputs designed to directly switch machine primary control elements. Selection of scan codes allows installer to choose scan frequencies, avoiding cross-talk with adjacent systems or other IR emitting devices. Offering torso detection, multiple-beam system is suitable for safeguarding perimeter of areas where hazardous or explosive materials are present.

Sensicast Systems    Needham, MA 02494
Sep 28, 2004 Environmental Monitoring Solution combines proprietary sensor networking platform and SensiNet networking software. It also includes support for multiple gateways for network scalability and support of mesh network installations that span multiple buildings. Sensors conduct real-time environmental monitoring and have remote sensing probes for hard-to-reach, environmentally challenging, or otherwise radio impregnable locations.

Bosch Rexroth Corporation    Hoffman Estates, IL 60192-3707

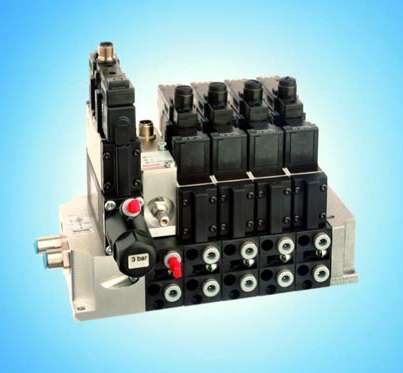

Sep 24, 2004 Pneumatic Sensing System, Model MS01, controls presence, position, shape, and dimensions of test objects. Object is scanned using air jet from sensor nozzle. Simultaneous evaluation of previoulsy defined pressure sends output to user in form of electrical signals, which are processed by machine control and displayed on module. Integrated air blowing function prevents measured results from being incorrectly influenced by contaminants.

Honeywell Sensotec Test & Measure    Columbus, OH 43228
Sep 24, 2004 While offering strain gauge, high-level, and LVDT transducer input options, microprocessor-based Model SC500 also provides 5 output options, including RS-232 and RS-485. It has 4 virtual channels to support custom applications and offers Plug and Play technology, eliminating cabling and labeling problems. Equipped with vacuum-fluorescent display, unit is compatible with various Honeywell Sensotec sensors and comes with ac adapter.

PCB Piezotronics Inc.    Depew, NY 14043 2495

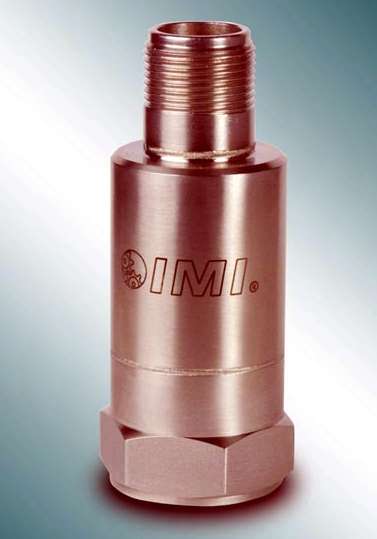

Sep 24, 2004 Model TO640B 2-wire, loop-powered, 4–20 mA sensor is available with top-exit or 360° swivel-mount, side-exit connections. Unit can interface with existing alarm, control, and monitoring systems such as PLCs, DCSs, and SCADA systems. Temperature output is -40 to +185°F, with vibration signal offered in peak velocity, rms velocity, and rms acceleration versions. Sensor is suited for monitoring rotating machinery, gears, bearings, and motors.

SICK, Inc.    Minneapolis, MN 55438

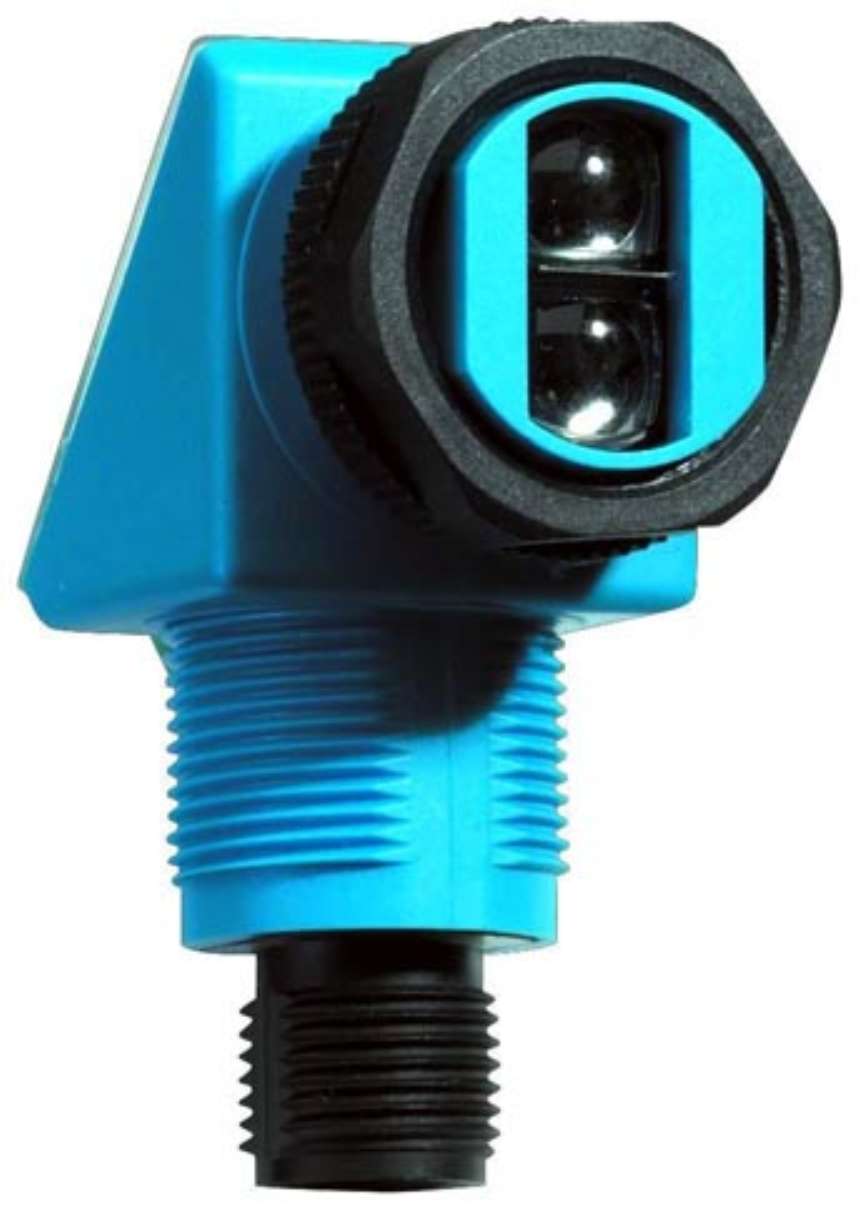

Sep 24, 2004 Rated at IP67, ELF Wash Down series photoelectric sensors offer presence/absence detection on bottles, cans, or cartons. Available in two types, reflex/retro-reflective version offers sensing range of .2-10 ft., while proximity diffuse version offers background suppression sensing range of 0-2 in. and energetic sensing range of 0.04-3.9 in. Watertight seal withstands environments such as immersion, cleaning agents, and cutting fluids.

Videojet Technologies, Inc.    Wood Dale, IL 60191-1073
Sep 23, 2004 Videojet Broadcast Systemâ„¢ encodes and applies RFID tags utilizing label applicator, RFID reader, and reject identification and recovery system, which catches bad tags before they make it to product and into supply chain. System supports Class 0 or Class 1 tags, and is EPC Global Standard upgradable.
