OmniVision Technologies, Inc.    Sunnyvale, CA 94089
Jun 07, 2012 OV16820 and OV16825 are 16 megapixel, 1/2.3 in. CameraChip sensors that support 16 megapixel burst photography and can capture 4K2K video or quad full high definition at 60 fps. Units are capable of operating in full resolution (4,608 x 3,456) video at 30 fps, 4K2K (3,840 x 2,160) video at 60 fps, and 1080p HD video at 60 FPS with extra pixels for electronic image stabilization. All required image processing functions are programmable with serial camera control bus interface.

FasTest, Inc.    Roseville, MN 55113-1317
Jun 07, 2012 Intended for non-threaded openings, NuJaws® JNL2 Series seals straight bore, step bore, smooth, or cast surfaces and accommodates internal pipe diameters from 1.000-1.625 in. Lever action makes grip-and-seal connections from vacuum to 750 psi, delivering solution for bubble pressure decay and mass spectrometer testing. Leak-tight to 10^-7 cc/sec, connectors include pressure-assisted gripping collets to prevent accidental disconnect under pressure.

Supercritical Fluid Technologies, Inc.    Newark, DE 19711
Jun 06, 2012 Designed to determine solubility of various compounds and mixtures in supercritical and high-pressure fluids, SFT Phase Monitor II provides direct, visual observation of dissolution, precipitation, and crystallization of materials under conditions precisely controlled by researcher. Effect of co-solvents on solubility of compounds of interest may be investigated as well. Monitor can perform experiments at pressures up to 10,000 psi and from ambient temperature to 150°C.

Larson Electronics, LLC    Kemp, TX 75143
Jun 05, 2012 Providing automatic night/day and motion sensing operation, Model LED250-1227-OS offers light output comparable to 250 W halogen fixtures. Unit is constructed of aluminum with powder coat finish, and LED assembly is protected by shatterproof polycarbonate lens with watertight seal. Weatherproof, vaporproof, and resistant to shocks and impacts, Model LED250-1227-OS can serve as security light for parking areas, walkways, entryways, and building exteriors.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Jun 05, 2012 Designed for CT3 Texture Analyzer, TA-CSF Circular Support Fixture supports irregular items like fresh fruit while texture tests are performed. Tester can calculate, through compression and tensile data, variety of physical properties that have proven to be correlated to human sensory evaluation of food and other consumer products. System provides 6 built-in test modes, 5 load ranges up to 50 kg, and 10 memory slots for operator-protected tests with administrator rights.

POSIFA Microsystems Inc    San Jose, CA 95112
Jun 05, 2012 Replacing membrane-cavity structure with solid-state thermal isolation structure on sensor die, PMF2000 Series eliminates field failures associated with pressure shock, humidity, and contamination. Using internal microcontroller, sensors cover ranges from 10-2,000 sccm for both unidirectional and bidirectional flow, and provide 1-5 Vdc linear output with better than 2% FS accuracy. Units are fully calibrated and compensated over temperature range of 0-50°C.

Saelig Co., Inc.    Pittsford, NY 14534
Jun 04, 2012 With electrode design that eliminates use of titanium dioxide electrodes in medical applications, PS25451 EPIC (Electric Potential Integrated Circuit) sensor measures electric field changes without physical or resistive contact. Solid-state sensor, supplied in 10 x 10 x 2 mm 3D package with exposed pins, detects changes in magnetic field even through clothing and can be tuned for detection at distance as required by adjusting gain and bandwidth of associated amplification circuitry.

Webscan, Inc.    Longmont, CO 80501
Jun 04, 2012 Delivering even illumination over 2 x 1 ½ in. (standard) or 2 ¾ x 2 1/16 in. (+Plus) field of view, TruCheck Optima can verify any number of linear (1D) and two dimensional (2D) barcodes in same scan. Fully integrated and portable TruMatrix(TM) imaging head connects to PC via USB port, and unit complies with ISO/IEC and GS1 standards for barcode verification. Along with software interface and solid-state LEDs, verifier offers automatic generation and storage of detailed reports.

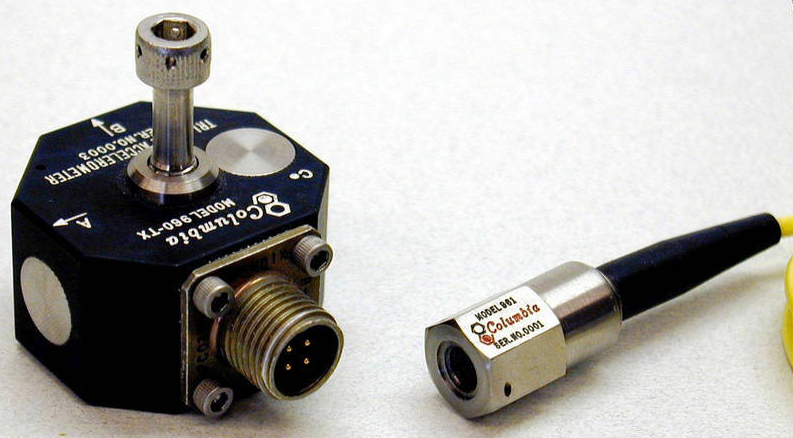

Columbia Research Labs., Inc.    Woodlyn, PA 19094
Jun 01, 2012 Series 961/960-TX sensors monitor vibration generated by military and commercial helicopter engines, transmissions, and airframes. Single-axis 961 incorporates integral 2-conductor shielded cable and is available with optional top mount 10-32 connector, and triaxial 960-TX has 3 miniature, mutually perpendicular vibration sensors mounted in ruggedized, machined housing. Both models integrate thick film electronic signal conditioning circuitry.

Sierra Monitor Corp.    Milpitas, CA 95035 6825
Jun 01, 2012 Featuring triple spectrum design, Model 3600-I IR3 detects fuel and gas fires with maximum immunity to false alarms. Unit can detect 1 ft² gasoline pan fire at 215 ft in less than 5 seconds. Offering automatic and manual built-in-test, detector is equipped with heated window to eliminate condensation and icing in harsh weather conditions. Output options include 3 relays for alarm, fault, and auxiliary; 0-20 mA; HART protocol; and Modbus compatible RS-485.

Omega Engineering, Inc.    Stamford, CT 06907
Jun 01, 2012 Designed to stay in service, PHETX-600/ORETX-600 Probes provide accurate measurements under conditions that render conventional probes inoperable. Units feature integral 2-wire 4-20 mA transmitter, 15 ft long cable, and built-in pre-amp that supports up to 3,000 ft sensor-to-analyzer distance. Automatic temperature compensation is provided on pH versions. Applications include process control, water treatment, food and beverage, chemical processing, mining, and power generation.

Rohrback Cosasco Systems    Santa Fe Springs, CA 90670
May 31, 2012 Comprised of continuous insulated braid corrosion fuse wire (Type 1), inserted corrosion fuse probe array (Type 2), and CUI Corrosometer® probe (Type 3), Cosasco CUI Corrosion Sensors are used for detection of corrosion under insulation. Design facilitates installation and may be customized to meet individual requirements and applications. Types 2 and 3 do not require removal of insulation while still providing reliable detection.

Berkeley Nucleonics Corp.    San Rafael, CA 94901
May 31, 2012 Supplied in Pelican-Style hard wheeled case, Model 971 Food-SSAFE Kit utilizes NaI detector and software algorithm to measure and report nuclear radiation found in fish and meat products, liquids, and soil samples. Food products are placed in Marinelli beaker then insulated with lead shield. Data is collected in Model 970 Multi-Channel Analyzer and then processed with NOMAD micro-PC. In addition to displaying results in real-time, kit can store results for future analysis.

Banner Engineering Corp.    Minneapolis, MN 55441
May 31, 2012 Featuring EZ-LIGHT(TM) logic, Illuminated Emergency Stop Pushbutton provides illuminated yellow base when button is armed and machine is enabled to RUN or is running. When button is pushed, yellow illumination turns to flashing red indication to alert operators of emergency stop condition. Safe Break Action ensures safety contacts will open if contact block is separated from actuator. Offering IP65-rated design and 30 mm mounting base, E-Stop pushbuttons can be interfaced and series connected.

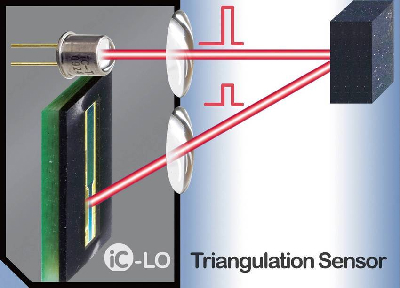

IC-Haus GmbH      Germany
May 30, 2012 Designed as SoC for diffuse reflective photoelectric sensors, Model iC-LO measures and classifies distances via 2 antivalent switching outputs. Optical array has 1 near diode, 127 middle diodes, and 1 far diode. Two AC amplifiers enable ambient light suppression and dynamic range up to 100 dB. Number of averaged measurements can be set to digitally filter signals with measurement rates up to 13.9 kHz. Housed in 15-pin optoBGA package, iC-LO operates from 4.5-5.5 V at -40 to +85°C.

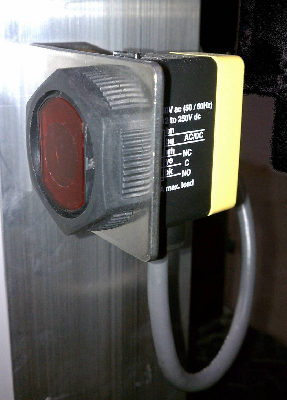

Goff's Enterprises, Inc.    Pewaukee, WI 53072
May 30, 2012 Available for G2 HarshGuard Doors, Photo Eye System uses opposed high power emitter-receiver pair, avoiding false trips due to water spray, mist, and localized fogging. Unit is waterproof with IP67 and NEMA 6 environmental rating, as well as rustproof and corrosionproof due to ABS/polycarbonate blend housings. Through use of 875 nm infrared beam and advanced optics, photo eye is immune to interference from sunlight and incandescent or fluorescent lighting.

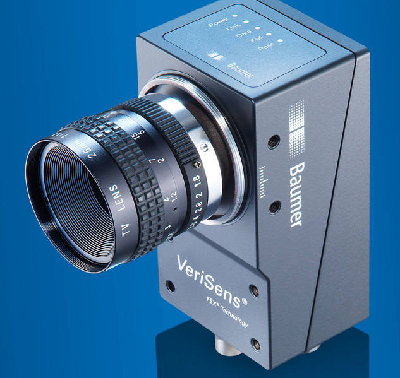

Baumer Ltd.    Southington, CT 06489 1534
May 30, 2012 Available with CCD sensors in 3 resolutions from VGA to 2 megapixels, VeriSens® XC Series featurs fully-integrated flash controller, which helps reduce time involved in external light source installation. Units control flashing at up to 48 V and 4 A under management of intuitive software, which also provides statistical assessment, integrated test environment for listed jobs, integrated FTP function that facilitates image storage on external media, and tools for distance determination.

Lion Precision Inc.    St. Paul, MN 55126 7014
May 30, 2012 Available in diameters of 3, 5, and 8 mm as well as 3/8 in. with axial and radial cable exits, Capacitive Displacement Sensor Probes are useful in any application requiring measurement or monitoring of position of conductive target. Units are not sensitive to material changes and respond equally to all conductors. Designed to work with several models of electronic drivers, probes are suited for semiconductor, disk-drive, precision bearing, and micromachining industries.

Porter Instrument Div., Parker Hannifin Corp.    Hatfield, PA 19440
May 30, 2012 For severe industrial environments, Porter Instrument 3600 Series includes models that meet IP66, NEMA 4X, Class I, Div 2, ATEX Zone 2, and IECEx requirements. Digital control electronics promote accuracy, repeatability, and stability, while TURCK(TM) electrical connectors simplify wiring and replacement. Along with multi-gas capability, series features stainless steel body and internals; 0-5 Vdc, 0-10 Vdc, or 4-20 mA analog I/O; and Modbus, Profibus, or DeviceNet digital communications.

Micronas GmbH    Frieburg D-79108  Germany
May 30, 2012 Supplied in TO92UT package and rated from -40 to +160°C, AECQ100-qualified HAL 24xy delivers optimized linearization through flexible output compensation function with 16 programmable set points. Product can measure angles up to 180° and provides non-volatile memory to store sensor parameters. Accuracy is based on 16-bit signal path with integrated DSP core delivering ratiometric 12-bit analog output signal. Operating from 5 V, sensor incorporates diagnostics and bidirectional output pin.
