Shockwatch    Dallas, TX 75247

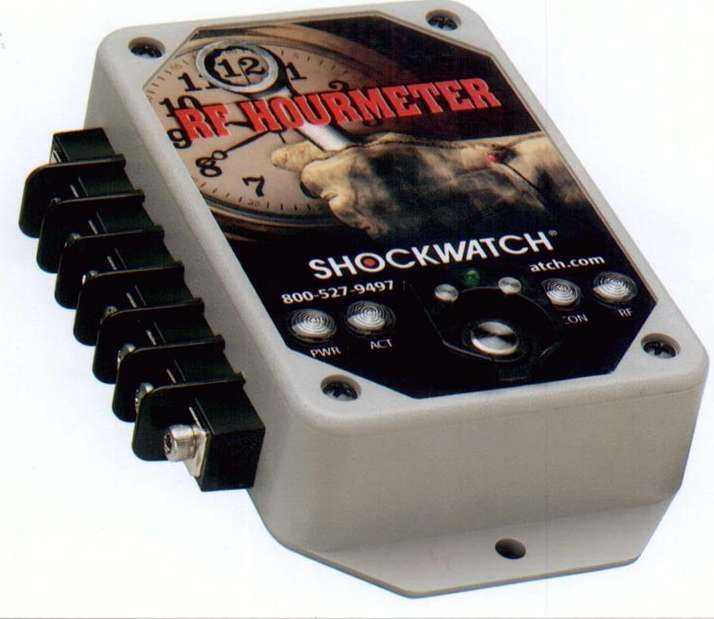

May 04, 2005 To assist with scheduling maintenance based on actual operating hours, Shockswitch® RF Hourmeter measures running hours of various types of equipment by monitoring up to 3 independent inputs such as keyswitch, drive motor, and hydraulic motor. Runtime information is transmitted via 802.11/b/g wireless network to either local or remote computer running Java-based companion software. Device is also equipped with LED operating status indicators.

Air Logic, Div. Fred Knapp Engraving Co., Inc.    Racine, WI 53402
May 03, 2005 Snap-acting Switches Series interface from pressure or vacuum signals to electric control systems. SPDT switches are available with 0.1–25 A and max supply pressure of 100 psi with adjustment ranges from 0.5–100 psi. Various mountings are available.

DataCard Group    Minnetonka, MN 55343
May 03, 2005 Available in 5 languages, Datacard® ID Works® v5.1 grants administrators control over security of card programs by enabling them to grant users varying levels of access to settings and projects, monitor activity, and set login timeouts. Software supports biometrics and smart cards as well as Lightweight Directory Access Protocol, which lets security professionals in enterprise organizations automatically manage and update ID information in directory service.

KD Scientific Inc.    Holliston, MA 01746
Apr 29, 2005 Able to detect spills and leaks down to as little as 3 drops of liquid, OS 250 consists of moisture sensing mat, connection between mat and controller, and switched power outlet. When moisture is detected, system sounds audible alarm, flashes LED, and turns off power of any device plugged into single outlet, solid-state power controller. Reusable mats measure 30 x 30 cm and can be cut to any size.

Scientific Technologies Inc. - Automation Sensors    Logan, UT 84321
Apr 29, 2005 Manufactured with minimal moving parts, NLS sensors are suited for use in process industry applications where electrical power is not available or hazardous locations exist. Products install with ½ in. pipe and G1 connection at top of tank, offering lifespan of more than 50,000 switch operations. Sensors may be used in conjunction with intrinsic safety barrier to meet hazardous location requirements for level control devices.

eSafeLine    Novosibirsk   Russian Federation
Apr 29, 2005 GateWall v3.0 proxy server Internet-management tool is designed to connect local network users to Internet. Application provides centralized control over Internet connections, bandwidth, and time online, while automating daily routines such as calculation of consumed traffic, client reporting, and billing. It can restrict Internet access based on user's time online, traffic limits, IP addresses, URL strings, or specified traffic speed limits.

HBM, Inc.    Marlborough, MA 01752 3014

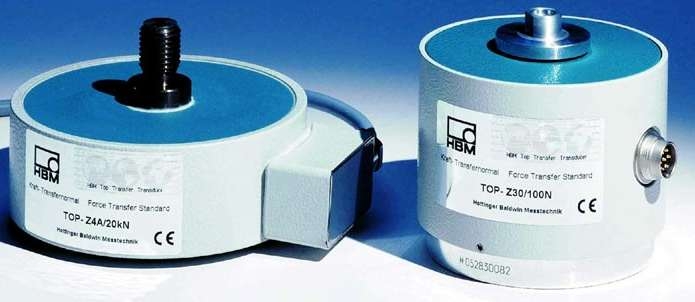

Apr 28, 2005 TOP transfer transducers are used for checking calibration equipment with repeatability that exceeds ISO 376 force calibration standard requirements. Models TOP-Z30 and TOP-Z4A cover range of nominal (rated) forces from 100 N to 500 kN. Both can be used for compressive and tensile loading, and force application parts are available for either model. During calibration tests, it is important that transducers are connected to high-precision amplifier.

Universal Flow Monitors, Inc.    Hazel Park, MI 48030
Apr 28, 2005 Employing laminar flow element, FlowStream® Meters measure mass flow of air and clean, dry industrial gases including nitrogen, argon, helium, hydrogen, natural gas, and carbon dioxide. Units read full-scale flow rates up to 2,100 scfh and 1,000 slpm with user-selectable response times from 5–500 ms. Accuracy is ±1% of FS for 2–566 slpm capacities and ±2% of accuracy for other capacities. NEMA 4 rated units are EMI immune, electrically shielded, and intrinsically safe.

Texas Instruments, Inc., Semiconductors    Dallas, TX 75243
Apr 28, 2005 With common mode input of -16 to +80 V, Series InA19x measures high-side current in automotive, motor control, power management, and battery charging applications. Units feature single supply voltage of +2.7 to +18 V, with 400 kHz bandwidth, quiescent current of 700 µA max per channel, and temperature range of -40 to +125°C. Three output voltage transfer functions of 20, 50, and 100 V/V are offered.

Measurement Computing Corp.    Norton, MA 02766

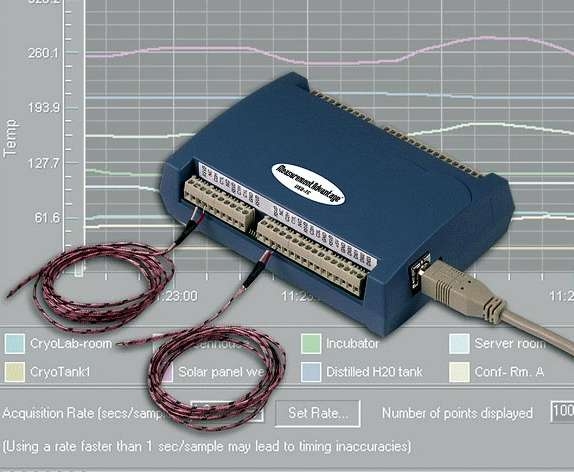

Apr 27, 2005 USB-based Model USB-TC provides 8 temperature inputs, 500 V isolation, and built-in ambient temperature sensing. Unit supports all common thermocouples and performs all linearization and cold-junction compensation. Internal measurement electronics accuracy exceeds temperature sensor accuracy, minimizing system error. Device includes TracerDAQ stripchart recorder/data logger software as well as SoftWIRE graphical programming interface for Visual Studio .NET.

Allegro MicroSystems Inc.    Worcester, MA 01615

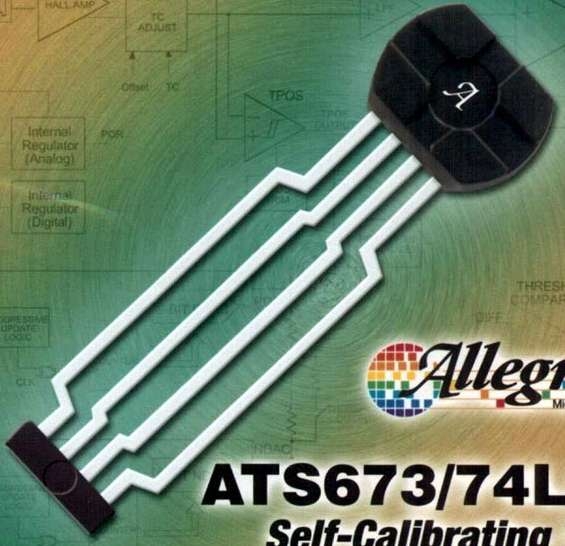

Apr 27, 2005 Supplied in SE package, ATS673/4LSE Gear-Tooth Sensor is designed to operate with True Power-On State (TPOS) recognition. It incorporates single-element Hall-effect sensor as well as signal-processing circuitry that switches in response to changing magnetic signals created by rotating ferrous targets. Digital tracking of analog signal is used to set switching threshold of device. Sensor is targeted for industrial and automotive markets.

Kistler Instrument Corp.    Amherst, NY 14228 2119

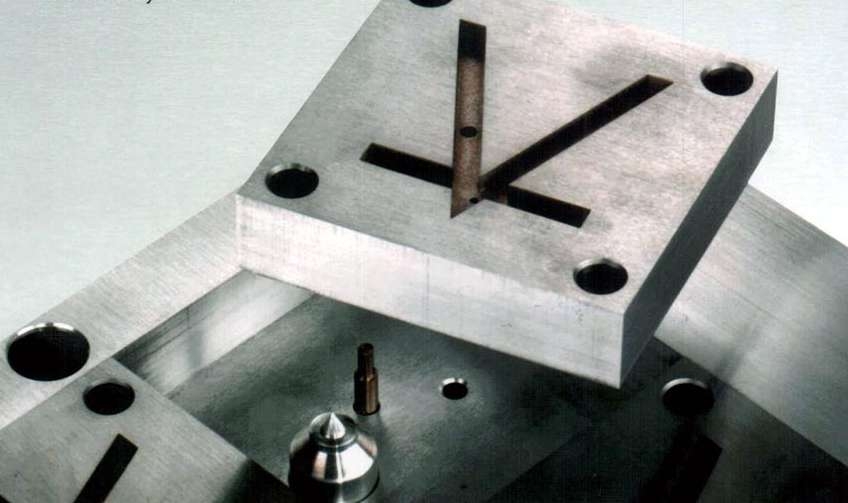

Apr 27, 2005 With features that simplify between-run inspections and protect wiring, 6155AE cavity pressure sensor may be mounted by adapter on baseplate to permit separation of mold insert without disassembly of sensor. Alignment guide holes permit precise positioning. Secondary approach for alternate mold configurations makes use of sleeve to retain sensor. Sensor uses single conductor wire that maybe dressed and routed into mold.

BEI Systron Donner Inertial Div.    Concord, CA 94518
Apr 27, 2005 Single-axis, GyroChip Sensor, Model LCG50 employs doubled-ended quartz tuning fork technology and requires only dc voltage input for accurate angular rate measurements. Packaged on 1.16 square x 0.42 in. PC board module, unit includes all required electronics and is available in ranges of +100, +250, and +500°/sec. It features input voltage of +5.0 Vdc, input current of less than 8 mA, operating temperature of -40 to +85°C, and operating vibration of 5 gms.

Kistler Instrument Corp.    Amherst, NY 14228 2119

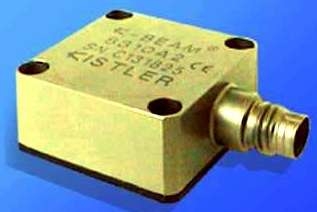

Apr 27, 2005 Supplied in integral and unattached cable versions, K-Beam® 8310A25 and 8310A50 measure to 25 and 50 g respectively in slow-moving applications from 0–300 Hz. Products, used to measure tilt and other static or dynamic conditions, have micro-machined capacitive sensing element that provides stability over -40 to +185°F range. Hermetically sealed and ground isolated, they require dc voltage supply of 6–16 V and affix via adhesive and/or screw mounting.

Baumer Ltd.    Southington, CT 06489 1534
Apr 27, 2005 Measuring 2.5 in. long with 0.5 in. dia, IWRM 12Z8704/S14C analog inductive proximity sensor features reversible digital output with 2 programmable trigger points. Supply voltage range is 10-30 Vdc and response time is less than 2.5 ms. With IP 67 rating, operating range of 0-4 mm, and resolution of 0.005 mm with deviation of 0.05 V, sensor may be used for sorting metal objects, assessing wear measurement and circularity, and thickness measurement.

General Monitors    Lake Forest, CA 92630
Apr 27, 2005 Single-channel Model 480S and dual-channel Model 580S provide continuous, fixed-point monitoring of combustible gas concentrations in 0-100% Lower Explosive Limit, and are factory-calibrated to particular gas or vapor. Utilizing continuous diffusion, electro-catalytic bead sensing technology, units operate on 117 Vac or 24 Vdc input power with 24 Vdc battery back-up capability. They include digital LED display along with LED indicators for alarm, fault, and status.

Xtralis Inc.    Norwell, MA 02061
Apr 27, 2005 Compliant with BS8418 standard, ADPRO FastTrace multi-site video security system features zone isolation capability, PTZ presets, arming/disarming function, secure video transmission, and alarm verification. SitePulse feature works over existing IP lines to continuously watch alarm status. VESDA LaserFOCUS 500 provides smoke detection for business-critical spaces of less than 5,000 ft². Both products include 10MAX voice evacuation system controller.

Det-Tronics    Minneapolis, MN 55438

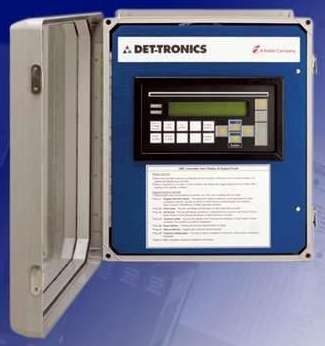

Apr 25, 2005 DMC Series gas and flame controller is available in 4 versions for continuous indication and alarm control of 4, 12, 24, or 36 channels. Each channel has selectable high and low level alarm setpoint, and all alarm or fault events are time and date-stamped. Supporting up to 4 I/O modules in one singular I/O module design, product accepts 4-20 mA inputs and can monitor contact input devices. Wall-mounted enclosure is weatherproof and corrosion resistant.

Hart Scientific, Inc.    American Fork, UT 84003 9775
Apr 22, 2005 Able to be entirely enclosed in dry or wet environments with temperatures up to 156°C, Model 5623A Freezer Probe features sealed construction that prevents ingress of moisture when exposed to extremely low temperatures. NIST-traceable unit, available in 0.25 in. dia x 6 in. long Inconelâ„¢ sheath, is designed as calibration standard and has accuracy of ±0.05°C over full temperature range.

BYK Gardner USA    Columbia, MD 21046 2729
Apr 22, 2005 Utilizing dual sensor with magnetic-inductive Fe and NFe probe, byko-test MPOR automatically recognizes substrate and is not influenced by premagnetized substrates. Results are displayed on 2 illuminated LCD displays. Integrated radio transmitter transfers readings wirelessly to computer with radio receiver. With memory space for 999 measured values, byko-test MPOR displays status and indicates if measured value is within specification.
