Pepperl + Fuchs, Inc.    Twinsburg,, OH 44087 2245
May 18, 2011 Supplied in metal housing immune to acids and alkalis, MLV41-8-HV delivers web-break detection for colored papers, reflective/glossy materials, adhesive films, and packaging media. Optics identify paper dust build-up, mounting tolerances accommodate imperfect sensor and paper alignment, and foreground and background suppression ensure optimal detection of web breaks. Also, 4-in-1 output, allows sensor to automatically detect connected load and select appropriate output type.

BlueLevel Technologies, Inc.    Rock Falls, IL 61071
May 18, 2011 Used in inventory measurement applications of powder, granular, and liquid materials, Model WC incorporates Hall-effect sensing techniques and provides reliable operation through intelligent control of weight/cable system and self-validation of sensing function. Functionality enables flexible adaptation to application, and multiple outputs, universal AC power supply, flange options, and various sensing weights promote application versatility.

Texas Instruments, Inc. (TI)    Dallas, TX 75243-4136
May 18, 2011 Measuring 0.76 x 0.76 mm, Model TMP103 draws max of 1 µA in shutdown mode and 3 µA in active mode to extend battery life in portable electronics such as smartphones, tablets, and laptops. Unit is capable of reading temperatures to 1°C resolution and provides ±1°C accuracy from -10 to +100°C. Global read/write functionality minimizes software development and processor loading. Using single command, 8 sensor devices mounted on board can simultaneously identify and monitor hotspots.

IMLCORP    Marietta, GA 30062
May 18, 2011 SOUNDCOMMANDER® SC5600 Acoustic Hailing Device and loudspeaker system has 6-speaker array with sound-dampening materials to protect hearing of personnel standing near it. Weighing 44 lb, unit has 500 W amplifier that can project 145 dB RMS output. Product's 6-speaker arrays can be configured into 2 horizontal 3-speaker arrays, which deploy side-by-side or separately for bi-directional wide-area coverage. System is powered by internal 12 Vdc battery or external 12 Vdc or 110/230 Vac power.

AMETEK U.S. Gauge PMT Products    Feasterville, PA 19053
May 18, 2011 Level Mate III consists of stainless steel submersible hydrostatic sensor with cable and fully calibrated, microprocessor-controlled digital meter within NEMA 4X enclosure. With all programming done at factory, users only need to supply AC power to unit and place sensor in water. In addition to 2-line LED display meter with configurable function keys, standard features include programmable 3A Form C relays, analog output, alternating pump control, and 32-point linearization programs.

Banner Engineering Corp.    Minneapolis, MN 55441

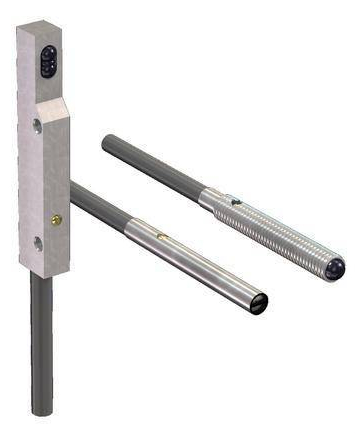

May 17, 2011 Miniature photoelectric sensors of VSM Series provide alternative to proximity sensors and optical fibers in high-flex environments. Products have sapphire lens, resist chemicals and cutting fluids, and function in heavy washdown environments. Supplied in threaded or smooth, 4 mm barrel with 300 series stainless steel or in flat-pack side-looking housing, sensors have convergent optical design and offer repeatable sensing range of 10, 20, 50, or 90 mm and up to 250 mm as through beam.

Dwyer Instruments, Inc.    Michigan City, IN 46361
May 16, 2011 With programming facilitated via 4-digit LCD screen and menu format, Series ULF offers maintenance-free, non-contact measurement of open channels. Ultrasonic continuous flow measurement transmitter, suited for direct installation over weirs and flumes, compensates for virtually all environmental conditions, such as vapors, gases, temperature variations, and wind. Weatherproof, IP65-rated body makes unit suited for any flow measurement situation.

Baseline Industries Inc.    Lyons, CO 80540
May 16, 2011 Used in portable and stationary gas monitors for detecting VOCs, piD-TECH® plus offers T90 response time of 3 sec typ and built-in RF immunity. Extended Range version is capable of seeing concentrations up to 10,000 ppm, and spectrum purity promotes repeatability. As UL-recognized component, product is intrinsically safe without need of external mechanisms. Available lamp energy values include 10.6 eV and 9.6 eV; latter suits more selective benzene measurement.

American Sensor Technologies, Inc.    Mt. Olive, NJ 07828
May 16, 2011 AST 4000 Series, constructed with all-316L stainless steel wetted parts, survives sub-sea environments. Even where oxygen levels are low and water movement continuous, one-piece construction with diaphragm membrane free of welds and O-rings minimizes pitting and crevices of sensor. Wet, pluggable connector completely seals electronics. Sensors provide gauge, sealed gauge, or compound gauge pressure measurement in ranges to 10,000 psi and offer accuracy of less than +0.5% BFSL at 77°.

SecurityMetrics, Inc.    Orem, UT 84097
May 13, 2011 SecurityMetrics Vision(TM) helps small merchants secure business networks and comply with Payment Card Industry Data Security Standard. Device features internal vulnerability scanning, which searches merchant network for internal security weaknesses, and provides email/text notification when suspicious activity is observed. Log analysis, wireless detection of network access points, and firewall/router are also included. Unit plugs into Ethernet port on merchant's LAN.

Palmer Wahl    Asheville, NC 28804
May 12, 2011 Available to meet variety of application requirements, RTD and Thermocouple Sensor Assemblies offer sensor heads in aluminum, stainless steel, cast iron, polypropylene, and explosionproof models. Users can select from terminal blocks or transmitters for data transfer; grounded or ungrounded elements in Types J, K, or T; and thin film or wire wound type RTDs in Class A or Class B when higher accuracy is necessary.

Novotechnik U.S., Inc.    Southborough, MA 01772
May 12, 2011 Without any direct mechanical linkage between shaft and measuring system, Vert-X 22 Series employs permanent magnet secured to rotating object. These touchless, magnetic angle sensors have 0° to 360° measurement range and up to 14-bit resolution. With 8 output options, IP68-rated absolute sensors measure less than 1 in. dia and feature repeatability of 0.1° or better and max hysteresis of 0.1°. Redundant output versions are also available.

Bourns, Inc.    Riverside, CA 92507 2129
May 12, 2011 Designed for column or rack mounted Electric Power Assisted Steering applications and other automotive systems, Combined Sensor provides torque and steering angle measurement in single package. Based on Hall-effect non-clockspring torque sensor technology, device uses driver input to measure steering torque while simultaneously converting rotation speed and direction of steering wheel. Sensor provides CAN steering sensor output in addition to analog torque signal.

Integrated Sensing Systems    Ypsilanti, MI 48198
May 12, 2011 Dual-component wireless system (US Patent No. 7,483,805) has sensor and circuit that enables USB or Bluetooth communication with portal device, such as cell phone/laptop, which provides power, communication, display, keypad, memory, and data processing. Any MEMS sensing element can be integrated, and platform would allow MEMS community to develop and commercially deploy wireless products with modular approach. Uses include medical, security, analytical, and industrial applications.

STMicroelectronics    Lexington, MA 02421
May 11, 2011 Comprising LSM303DLHC geo-magnetic module, L3G4200D 3-axis digital gyroscope, and pressure sensor, 10 DoF Sensor System provides accurate information on linear, angular, and magnetic motion together with altitude readings. With this information, mobile users can identify their direction and precise location in all 3 dimensions everywhere they go, including in places with no or low GPS signal, such as inside buildings in urban canyons or in mountainous and forested terrain.

Floyd Bell, Inc.    Columbus, OH 43085
May 11, 2011 Measuring approximately 1 x 1 in., Twin Turbo(TM) Lighted Alarm consists of panel-mount piezoelectric audio alert that also emits daylight-viewable red light when activated. Sound output, available in 7 tone types, measures up to 103 dB at 2 ft, and illuminated enclosure creates halo design that results in 180º dispersion. Supplied in polycarbonate plastic casing, tamper-proof multisensory device is rated IP68 and operates from 9-30 Vdc while drawing 50-110 mA.

Omega Engineering, Inc.    Stamford, CT 06907
May 11, 2011 Supplied in stainless steel enclosure designed for wash-down, sanitary, and marine applications, DPG409 series offers ranges from vacuum to 5,000 psi and is tested to Industrial CE specifications. Backlit display makes it possible to read digits from over 35 ft away, while included setup software allows for accelerated installation and calibration via USB connection. Wireless transmitter option sends readings to remote locations and allows for PC-based chart recording and data logging.

Safety Technology International    Waterford, MI 48327
May 11, 2011 Designed to work with conventional mailboxes with doors that open downward, Model STI-34200 beeps and flashes when mail is delivered. Mailbox sensor is triggered when postal carrier opens mailbox door, sending wireless radio signal to indoor receiver up to 1,000 ft away. If supervised sensor is removed from mailbox, stolen, loses signal, or battery is low, receiver will beep once/minute. Magnetic contact with 18 in. lead is included for mail boxes that do not open downward.

Spirax Sarco, Inc.    Blythewood, SC 29016
May 11, 2011 Available in DN50, DN80, and DN100 sizes, TVA Target Variable Area Flowmeter features wide flow range turndown of 50:1, making it suited for applications where there are large variations in flow rates. Integral electronics unit removes need for differential pressure transmitter, impulse lines, and additional equipment, while built-in temperature sensor provides full density compensation. Communication with host systems is possible with choice of Digital ModBus, 4-20 mA, and pulse outputs.

TrendPoint Systems    San Ramon, CA 94583
May 11, 2011 Designed to measure room air conditioning and air handling cooling units' air flow and temperature rise, as well as voltage, amperage, power factor, and wattage of each phase of power feeding unit, EnviroCube indicates cooling inefficiencies before they cause heat-related downtime. Metrics also allow cooling units to be tuned to best possible performance for extended equipment life and max efficiency. Graphs of all key metrics can be viewed on iPad/iPod and PCs.
