EnOcean GmbH    Oberhaching D-82041  Germany
Nov 07, 2005 Solar-powered Model STM250 requires only ambient indoor or outdoor light to operate continuously and to store energy for up to 6 days use in total darkness. Embedded RF transmitter sends signal across 300 m outdoors and 30 m indoors through walls. Entire transmission is initiated, undertaken, and completed in 1/1000 of a second. Sensor serves as ready-to-install switch for security system contractors, or as OEM product for integration into doors and windows.

Wenglor Sensoric GmbH      Germany
Nov 07, 2005 With dimensions of 30 x 35 x 36 mm, miniature Model BS30 unites camera, optics, illumination, and analysis module in one housing with IP67 protection. Four operating modes include checking for presence of objects, surface supervision, pixel comparison, and shape analysis. Since sensor is capable of recognizing objects down to 0.6 mm, small deviations can be detected at high conveyor speeds. Unit offers working distance of 100-200 mm with resolution of 126 x 98.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 07, 2005 Featuring English/metric scales with 1% full scale accuracy, Series SSL comprises 4 in. glycerin-filled gages with 304 stainless steel housing and 316L stainless steel wetted parts for chemical compatibility. Units come standard with 1.5 in. tri-clover process connection for installation with tri-clamp fitting. Wide selection of ranges are available from full vacuum, compound to 300 psi.

Enmet Corp.    Ann Arbor, MI 48106
Nov 04, 2005 Direct-reading Formaldemeter htV incorporates humidity compensation to improve performance at low concentrations and in different environments. In under 10 sec, unit produces readings on 4-digit LCD and can also display temperature and relative humidity. Formaldehyde concentrations can be displayed in ppm or mg/m³, and field calibration can be accomplished with supplied gas standard. Data logging accessories are available.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 04, 2005 Featuring English/Metric scales, 4.5 in. Series SGL is designed with 304 stainless steel housings and 316L stainless steel wetted parts for chemical compatibility. Units withstand ambient temperatures up to 149°F and process temperatures up to 572°F. Wide selection of ranges are available from full vacuum, compound to 20,000 psi.

Videor Technical    D-63322 Roedermark   Germany
Nov 03, 2005 With 64 inputs and 25 outputs, eneo Zelaris_IP enables management, control, and recording of different systems on one screen. Each input can be assigned to IP-based video source and configured for resolution, quality, and frame rate. Functions such as pan/tilt control and digital I/O are also supported. Inputs are equipped with motion detectors, and each channel has crash-resistant image memory. Events are stored in internal alarm list or on external database servers.

STM Sensors Inc.    Toledo, OH 43617

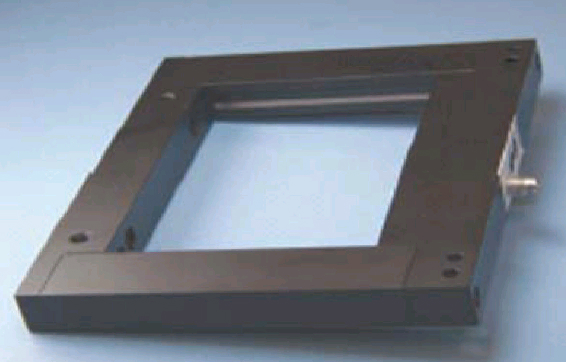

Nov 03, 2005 Featuring heavy-duty anodized aluminum housing, Optical Frame Sensor is resistant to mineral oils. Optical lens cover is mechanically protected by design of housing. Utilizing dynamic working principle, unit provides PNP and NPN output and potentiometer adjusted sensitivity and pulse stretch. It includes reverse polarity, short circuit, and EMC protection. Sizes include 80 x 40, 80 x 80, 80 x 120, 80 x 160, 160 x 40, 160 x 80, 160 x 120, and 160 x 160 mm.

BRUKER AXS Inc    Madison, WI 53711-5373
Nov 02, 2005 Suited for minerals and mining applications, GEO-QUANT trace element analysis solution performs quantitative analysis of geological materials. Data for 22 key trace elements is provided in less than 30 min of analysis time. Sample preparation method is provided and includes all necessary accessories. Utilizing performance of S4 PIONEER x-ray fluorescence (XRF) spectrometer, GEO-QUANT allows for seamless integration into any process or quality control environment.

Dwyer Instruments, Inc.    Michigan City, IN 46361 0373
Nov 01, 2005 Designed with 304 stainless steel housings and 316/316L stainless steel wetted materials, 2.5 in. Series SGF withstands ambient temperatures up to 149°F and process temperatures to 212°F. Gages feature dual English/metric scales in inches and millimeters of water column. Ranges are available in vacuum, compound, and positive pressures up to 235 in. wc.

K-Tek    Prairieville, LA 70769
Nov 01, 2005 Designed for harsh environments, MT5000 Series is unaffected by variations in specific gravity due to temperature or pressure changes to 800°F and 5,000 psi. Concentric waveguide directs radar beam, alleviating divergence problems and echoes from tank walls and surrounding structures. Integrated graphic display is provided for viewing waveform screens. Model MT5100 Level and Interface Transmitter also features interface weak signal detector that can detect presence of emulsion layer.

Ono Sokki Technology Inc.    Addison, IL 60101 5600
Oct 31, 2005 Utilizing linear glass scale technology, Model GS-1613 measures dimensions, thickness, curvature, eccentricity, displacement, height, and flatness, as well as variation, run out, roundness, distortion, deflection, and position. It offers measuring range of 13 mm, and includes waterproof seal and dust bellow, enabling use in harsh environments. Attached 6 ft signal cable can be directly connected to remote displays with various outputs.

Rockwell Automation    Milwaukee, WI 53204
Oct 28, 2005 Using hand-held PC with Pocket DriveExplorer software, users can wirelessly program, troubleshoot, and monitor Allen-Bradley PowerFlex AC drives as well as legacy SCANport-enabled Allen-Bradley drives. Software, run from Wireless Interface Modules (WIM), permits access to drives through Bluetooth or Wi-Fi networks, eliminating need for direct, wired connection. Built-in security features help limit access to drives, and alarms notify users abnormal drive operation.

Balluff, Inc.    Florence, KY 41042-0937

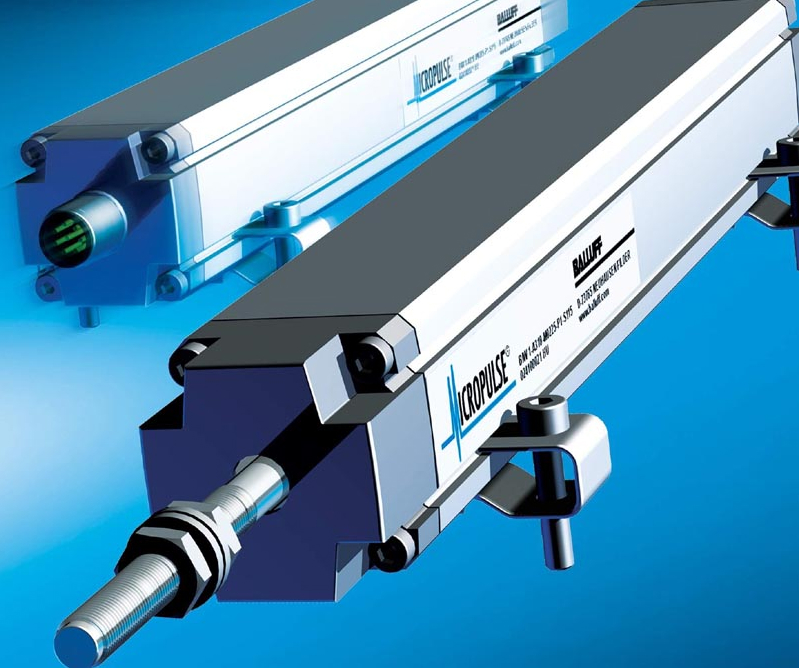

Oct 28, 2005 Offered as drop-in replacement for linear potentiometers, Micropulse(TM) BIW transducer uses pulsed-inductive technology in wear-free design that eliminates performance degradation over time. Suited for use anywhere linear motion must be monitored/controlled, product is immune to external EMI and available in stroke lengths from 75-750 mm with analog 0-10 V or -10 to +10 V output. Update rate is greater than 20 kHz, non-linearity is ±0.02%, and max resolution is 5 microns.

Load Cell Central    Monroeton, PA 18832
Oct 28, 2005 SCWM shear web pancake-type load cell is designed for material testing, force calibration of presses, and other technical and industrial compressive force measurement applications. Precision sensor, constructed of nickel-plated alloy tool steel, is fully potted to IP65 to protect from water damage and features 4 bolt slots for mounting. Standard output is 2 mV/V, making it compatible with signal conditioners and standard strain gage digital displays.

Renishaw, Inc.    Hoffman Estates, IL 60192

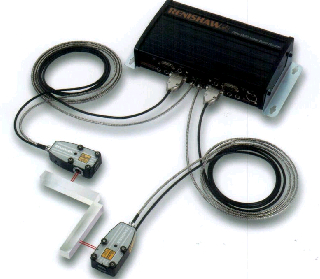

Oct 26, 2005 Providing part-per-billion laser frequency stability, Model RLE20 uses fiber optics to deliver laser light directly to measurement axis, eliminating need for remote beam splitters, benders, and adjustable mounts. System provides positional output signals in differential digital RS422 and 1 Vpp sine/cosine formats. Digital output signals provide resolutions up to 10 nm, while analog signals can be used with RPI20 parallel interface to provide resolution of 40 picometers.

QuadraScan Technologies, LLC    Brentwood, TN 37027

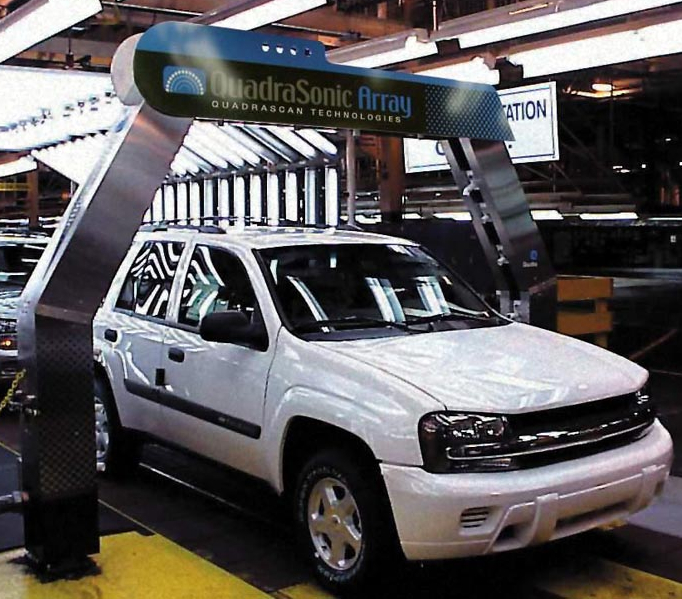

Oct 25, 2005 Suited for automotive industry, QuadraSonic Array technology system uses ultrasound to detect water and wind noise intrusion in sealed compartments. If leak is detected, ultrasonic receivers send data back to computer through software that graphically displays results. Unit also scans vehicle barcodes and permanently archives data, producing ultrasound fingerprint that may be accessed for future identification of product failures.

HBM, Inc.    Marlborough, MA 01752 3014
Oct 24, 2005 Designed to analyze positional accuracy during assembly, Model DT85 allows user to view press fitting process results and measurement curves independently on up to 32 MP85 or MP85DP amplifiers by using CANbus. Measurement mode is used to gain global statistical information on complete process run. Parameter control mode allows transducer and amplifier parameters to be zeroed, checked, and adjusted, and can only be accessed using password-activated function key.

Heidenhain Corp.    Schaumburg, IL 60173-5337

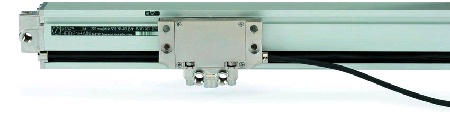

Oct 24, 2005 Featuring integrated roller guide, Model LS 1679 offers resolution of 5 µm or 1 µm after 4-fold evaluation. Left or right cable exit ensures mechanical compatibility with press brakes. Four ball bearings of carriage are guided along 2 steel rails, which are integrated in aluminum housing. Position of guide in encoder protects bearing surfaces from dust or contamination. Standard measuring lengths up to 470 mm are available.

Canfield Connector    Youngstown, OH 44514

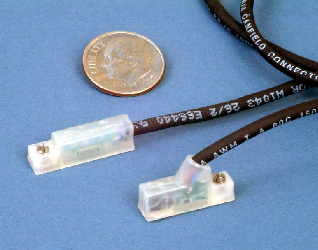

Oct 21, 2005 Available in both solid state electronic and reed styles, Series 9D and 9E require no special mounting using standard .250 in. dovetail slot. Both have standard on-board indicator lights viewable from wide angles and are compatible with intrinsically safe barriers. Molded construction meets NEMA6/IP67 specifications and is corrosion and wash-down resistant. Sensors include 9 ft cable or optional 6 in. cable with 8 mm circular connector.

Allegro MicroSystems Inc.    Worcester, MA 01615

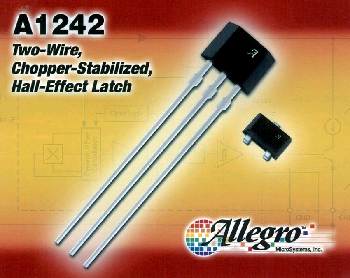

Oct 21, 2005 Suited for motor-speed and direction-sensing applications, current-output, Hall-effect Model A1242 features 2-wire design that provides inherent short/open detection. Unit employs high-frequency chopper-stabilization technique on digital analog BiCMOS process to achieve magnetic stability over temperature. It provides on-chip transient protection, while zener clamp on power supply protects against over-voltage conditions on supply line.
