GfG Instrumentation, Inc.    Ann Arbor, MI 48108

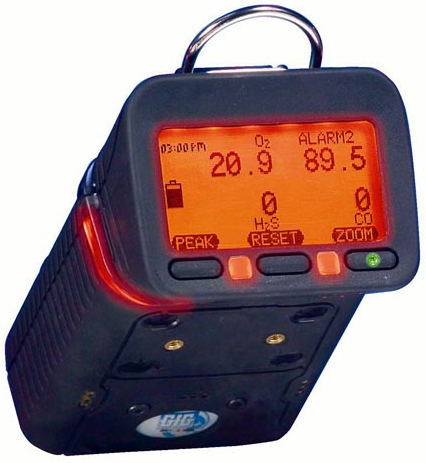

Jul 06, 2006 Suited for use in confined spaces or open areas, G450 measures O₂, H₂S, CO, and combustible gases in ambient air. It incorporates invertible, heterochromatic display; rotating, 360° flashing alarms; and 103 dB buzzer in IP67 watertight design. Operating continuously for up to 24 hr, depending on frequency and duration of alarms, monitor also features AutoCal® automatic calibration and impact-proof, rubberized housing that meets harsh environment requirements.

PerkinElmer, Inc., Optoelectronics Headquarters    Fremont, CA 94538-3180
Jul 06, 2006 Implemented in various industrial and residential settings, IR Natural Gas Sensor combines IR source with pyroelectric dual-channel detector. This natural gas alarm product utilizes non-dispersive infrared radiation (NDIR) technology and requires no service, maintenance, or re-calibration. In addition to being RoHS-compliant, unit is 100% compliant with European EN 50 194 standard, due to its lowest explosion level of 12%.

JNJ Industries Inc.    Franklin, MA 02038
Jul 05, 2006 Lead Detector Kit offers 2 test methods that instantly reveal presence of lead, even when it exists as invisible residue on work surfaces, enabling manufacturers to help maintain healthy, safe work environment. Lead Detector wipes and swabs indicate presence of lead by displaying pink to red color, showing that further hand washing or surface cleaning is necessary. Color intensity denotes degree of lead concentration.

Heidenhain Corp.    Schaumburg, IL 60173-5337
Jun 29, 2006 Equipped with movable faceplate, ERA 4000 series is offered with ODs from 52.65-331.31 mm and grating periods of 20, 40, or 80 microns. Low-profile ERA 4x80 version, mounted using centering collar method, offers accuracies from ±6.1 to ±2.8 arc sec. Weight reduced T profile version, ERA 4x81, is mounted using 3-point centering method and offers accuracies from ±8.6 to ±2.8 arc sec. Also available, ERA 4x82 uses 3-point centering method and offers accuracies from ±5.1 to ±2 arc sec.

Kittiwake Developments Ltd    West Sussex BN17 7LU  United Kingdom
Jun 28, 2006 ANALEX® FDM detects and measures ferrous wear debris in lubricating oils, hydraulic oils, and greases with resolution of 1 ppm in range of 0-2,000 ppm. Test data can be time stamped and stored in internal memory, then transferred to database on host PC using RS232 interface. Data entry via touch pad screen can include equipment identification, sample number, and lubricant hours. Self-contained, rugged, bench or portable unit is supplied protective portable carrying case.

Georg Fischer Piping Systems    Tustin, CA 92780
Jun 27, 2006 Suited for fluids ranging from ultrapure water to harsh reagents, Signet 2537 Series blind flow sensors are available with polypropylene or natural PVDF body materials and install in pipe sizes from 0.5-0.8 in. Units offer flow range of 0.3-20 fps, repeatable output of ±0.5% of max range at 77°F, and input frequency of 1-1,000 Hz. Output options include digital S3L data link or 4-20 mA, dry contact or solid state pulse divider, or dry contact or solid state flow switch.

Baumer Ltd.    Southington, CT 06489 1534
Jun 27, 2006 Digital optical line sensor, ParCon ZADM 034P, projects continuous 24 mm wide parallel beam to reflector, permitting detection of moving parts as small as 0.5 mm. Able to detect and count metallic and non-metallic objects at processing rates in excess of 0.25 ms, mini light curtain sensor has minimum output pulse length of 10 ms and max scanning rate of 4 kHz. Users can program minimum object size using pushbutton teach-in process.

Millennial Net, Inc.    Burlington, MA 01803
Jun 27, 2006 Designed for chemical, oil, gas, and environmental industries, Tank Level Monitoring Solution helps increase Asset Health or Asset Optimization by monitoring remote tanks to improve operational efficiency. Critical end-to-end optimized application can be scaled to integrate tank level and other application data from as few as 2-3 tanks to over 100 tanks. System is based on MeshScape(TM) 5424 series 2.4 GHz wireless mesh and enterprise software, modules, and gateways.

Sensor System Solutions Inc.    Irvine, CA 92618
Jun 27, 2006 Designed around Foil Gauge technology, Models 5400 and 5410 are suitable for sensitive environments, such as those in pharmaceutical and food processing industries, where potential contamination when using oil-filled silicon sensors must be avoided. Units operate from -40 to +176°F and are available with max pressures of 100, 300, 500, 1,000, 3,000, and 5,000 psi. Equipped with ¼-18 NPTM thread, sensors can be customized to suit OEM requirements.

Micronas GmbH    Frieburg D-79108  Germany
Jun 26, 2006 Providing contactless detection of position and speed, HAL® 2xy Sensors are immune to mechanical abrasion and are not prone to environmental contaminants such as vibration, shock, dirt, humidity, and high temperatures. Units can function with unstable voltage supplies and are resistant to high-frequency EMF. Available in TO 92UA and SOT 89B packages, sensors operate from -40 to +125°C and feature chopper-offset compensation to avoid offset errors in measurement signal.

SICK, Inc.    Minneapolis, MN 55438
Jun 23, 2006 Suited for assembly and picking applications, Pick2Light bin control system offers hand detection and 360°-viewable job LED. Single-sided, retro-reflective light grid features t-slot frame mounting feature. Without restricting bin size, external mounting configuration minimizes damage caused by workers when removing parts or inserting bins. Features include metal housing, 2 m max range, and 5 available sensor heights from 120-420 mm.

DeFelsko Corp.    Ogdensburg, NY 13669
Jun 23, 2006 Designed for measuring coatings on all metals, PosiTector® 6000 features impact-resistant Lexan® display, IP5X ingress protection, and protective rubber holster. Resilience of its probes and housing make hand-held unit suited for powder coaters and inspectors. Range of probes are available for variety of applications.

Honeywell, Inc., Industrial Automation & Control    Phoenix, AZ 85023
Jun 23, 2006 Suited for newsprint, fine paper producers, and printing houses, ProWeb provides insight into cause of paper breaks to help mills optimize machine uptime, process stability, and product quality. It records moving paper web, processing and analyzing images in real-time. Equipped with DSP technology and CPU, integrated Video Recording and Analyzing Board supports 2 cameras per card. System supports high frame rate, color, pinhole, and GigE cameras.

Promess Inc.    Brighton, MI 48116 0748
Jun 22, 2006 Pc-PRO provides complete monitoring and test system for assembly operations. Along with multi-channel non-synchronous monitoring and integral data acquisition, system offers range of sensors, data point storage, software, ability to monitor multiple windows, and multiple data analysis capabilities. Standard configuration includes shop floor rated industrial enclosure, mini-keyboard with trackball, and 12.1 in. color TFT-LCD touchscreen.

Promess Inc.    Brighton, MI 48116 0748
Jun 22, 2006 Single-station, 2-channel Promess PRO tests assemblies produced by press-fitting, staking, crimping, riveting, threaded fasteners, and other technologies. Equipped with proper sensors, stand-alone system can measure force, torque, angle, pressure, position, and any combination of above. Built around PC using Intel Pentium® processor, it monitors assembly operations, identifies non-conforming assemblies, and sorts production into range of tolerance classes.

AltaSens, Inc.    Mountain View, CA 94040
Jun 22, 2006 Utilizing CMOS imaging iSoC integration to enable noise-free megapixel video and rapid snapshots, 1/3 in. ProCamHD(TM) 2460 and 2462 generate crystal-clear progressive 12-bit digital video at 1,280 x 720 resolution and 75 MHz rate, resulting in 720/60 p HDV or 50 Hz SXGA. Model 2462 delivers minimum SNR of 47 dB at 500 lux and f2.8 aperture while recording at 60 Hz, while monochrome Model 2460 features microlens array for low-power 3-CMOS cameras.

Omega Engineering, Inc.    Stamford, CT 06907
Jun 21, 2006 Designed for measurement of conductive liquids with virtually no pressure loss, FMG600 Series has PTFE lining and no moving parts. Units can handle applications involving wastewater, pulp, food, and slurries. Standard outputs include analog, frequency, and RS485 communications. Available with optional sanitary tri-clamp mounting, flow meters come in local- and remote-display models and include NIST 3-point calibration.

Omega Engineering, Inc.    Stamford, CT 06907

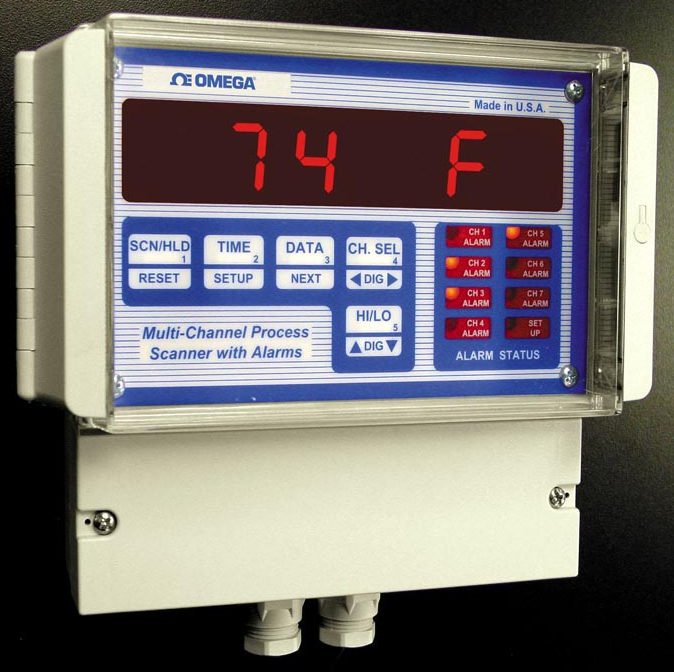

Jun 20, 2006 Housed in wall-mount, watertight, plastic enclosure, DPS3300 series offers multichannel scanning. Signals from thermocouples, RTDs, and thermistors are linearized and can be displayed in °C or °F. Current, voltage, and millivolt signals are scaled for indicating process in specified engineering units, and up to 7 different processes can be displayed on signal scanner; each channel can be assigned 3-digit, alphanumeric engineering unit.

AeroAstro, Inc.    Ashburn, VA 20147
Jun 20, 2006 Integrated Voice Messaging Service (IVMS) enables Sensor Enabled Notification System (SENS) users to manage remote sensing alert messages from any phone. Synthesized voice technology allows incoming and outgoing alert calls from SENS Data Portal, enabling users operating in field to receive voice alert of alarm activation, acknowledge alert, and discontinue alert transmission. Voice alert messages, determined by user, are sent via user defined phone lists.

MagnaChip Semiconductor    Cheongju-si,Chungbuk   Korea (south)
Jun 20, 2006 Models MC501CA and MC501CB include image signal processor with features such as lens correction, noise reduction, and image scaling. Optical formats of 1/7 or 1/7.4 in. enable modules as small as 5 x 5 x 3.4 mm. Operating at 30 fps at full-resolution, products have 8-bit YUV output that interfaces to all standard processors and base-band solutions. Output interface operates at 2.8 V, while digital and analog circuits operate at 1.8 and 2.8 V, respectively.
