Fluid Components Intl.    San Marcos, CA 92069 5115
Aug 31, 2006 Suited for wastewater aeration treatment applications in line sizes from 2-24 in., ST50 has built-in wireless IR technology for obtaining measurements, making setting changes, and reading trouble shooting codes from PDA. It comes with interface software for download into any Palm-OS based PDA and utilizes temperature-compensated, thermal dispersion flow sensing element. Along with various I/O features, solid-state meter has single-tap point inserted design.

Extech Instruments Corp.    Nashua, NH 03063
Aug 31, 2006 Delivering non-contact surface temperature measurements from -58 to 1,100°F, EZ20 InfraRed Thermometer features 16 in. flexible probe, backlit LCD display, and laser pointer. Designed to measure air velocity in air ducts and other HVAC applications, EZ30 Thermo-Anemometer includes 16 in. gooseneck, dual 9,999 count backlit display, and selectable air velocity units. EZ40 Combustible Gas Detector identifies leaks of natural gas, methane, ethane, propane, butane, and LPG.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Aug 31, 2006 Available in 2 or 2.5 in. models, Series UNOG Use No Oil Gages possess psi scales with variety of ranges from 30-4,000 psi and 2.5% FS accuracy. Units feature polished brass housings and copper alloy wetted parts. Able to withstand ambient temperatures of -4 to 140°F, gauges come with ¼ in. male NPT bottom connection and are suited for indicating compressed gas cylinder pressures of non-corrosive gases, which will oxidize with oil-based compounds.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Aug 31, 2006 Designed with black steel housings and chrome bezels, 2.5 in. UGF Series provides dual psi and bar scales with 3-2-3% ANSI B40.1 Grade B accuracy. Wetted parts include brass socket and phosphor bronze bourdon tube. Able to withstand temperatures of -50 to 160°F, units come in variety of ranges from full vacuum to 1,000 psi.

RAE Systems    San Jose, CA 95134
Aug 31, 2006 GammaRAE II Responder radiation detector and dosimeter features Cesium Iodide sensor for detecting low level gamma radiation. It is rated IP67 for decontamination in water and concussion-proof case provides shock protection. Intrinsically safe Class 1, Division 1, Groups A, B, C, and D device delivers 2 sec response time, and features multiple alarm modes with flashing LEDs and loud audible and vibration alerts. Alarm information is recorded in 30,000-point datalog.

TamoSoft Ltd.    Christchurch 8053  New Zealand
Aug 31, 2006 Functioning as network monitors, analyzers, and protocol decoders, CommView® v5.3 for wired networks and CommView® for WiFi v5.3 for 802.11 a/b/g networks help network professionals maintain efficient data transmission, test firewalls and intrusion detection systems, and identify problems with network-based applications. Geolocation technology provides real-time IP-to-location mapping for analyzing application connections and security incidents.

Fluid Components Intl.    San Marcos, CA 92069 5115
Aug 30, 2006 Designed for use in wastewater lines from 2-24 in., ST50 offers wireless IR option that allows technicians with PDA to obtain measurements, make setting changes, and read troubleshooting codes without opening instrument. Housed in epoxy-coated enclosure, it withstands operational pressures up to 500 psig and media temperatures up to 250°F. Unit measures air flow from 1-125 SFPS, nitrogen from 1-150 SFPS, and compressed air from 4-400 SFPS.

Rockwell Automation    Milwaukee, WI 53204
Aug 30, 2006 Available in 5 models, Powermonitor 1000 profiles plant's energy consumption and utilization data and can be applied independently for collecting and charting energy information or integrated into existing energy monitoring systems. Transducer models TR1 and TR2 provide power factor monitoring and measure voltage, current, and power-related tags. Energy-monitor models EM1, EM2, and EM3 measure consumption related tags such as real, reactive, and apparent energy.

Koyo Encoder, Inc.    Hoffman Estates, IL 60195
Aug 30, 2006 Featuring 0.002 in., 50 micron, 0.001 in., or 0.0005 in. resolution, Linear Encoders are available as modules and strips, or fully enclosed versions with NEMA 12/IP-56 construction. Stroke is available up to 34 in. for Strips and up to 2 in. for fully-enclosed versions.

Colasoft Co., Ltd.    Chengdu 610041  China
Aug 30, 2006 Capable of real-time packet capture and data analysis, Capsa v6.1 network monitor, sniffer, and protocol analyzer is designed for packet decoding and network diagnosis. Along with ability to identify multiple protocols, Professional edition meets basic needs in traffic monitoring. Enterprise edition provides statistic graphs and reports, and supports dial-up adapters, loopback packets on local host, advanced packets filters, and simultaneous monitoring of multiple adapters.

Castrol Industrial North America Inc.    Downers Grove, IL 60515
Aug 29, 2006 Suited for large industrial environments, Castrol SystemRT is capable of monitoring fluid concentration, pH, conductivity, temperature, and real-time biologic activity in water-based metalworking fluids. Data generated from unit is charted automatically, permitting user to monitor fluid trends and tighten control of fluid parameters. Unit self-calibrates, verifies with internal diagnostics, reports errors, and has Internet capabilities.

SICK, Inc.    Minneapolis, MN 55438
Aug 29, 2006 CVS color-based vision sensors are usable for measuring area of learned color, presence/absence detection, and color matching. CVS1 Easy distinguishes between up to 8 colors, while CVS2 detects and sorts between 15 and features RS232 interface and 2 switching output connections. Designed for shape checking applications, CVS3 searches field of view for shape or contour. CVS4 OCR sensor can read 60 characters on 6 lines, and provides detection and verification of date and lot codes.

Amptronix, Inc.    Walnut, CA 91789
Aug 28, 2006 Linux-embedded Mobile DVR-354 Series supports up to 4 channels with multiple recording modes and includes triggered detected alarm system, motion detected alarm system, and video loss detection. Video can be stored either on HHD or Compact Flash Card and backed up with CF or USB. Each alarm system has selectable Pre/Post Alarm, GPRS, GPRMC, and SMS functions in response to alarm detections to prevent unlawful interference and provide offline tracking.

Scientific Technologies Inc.    Fremont, CA 94555

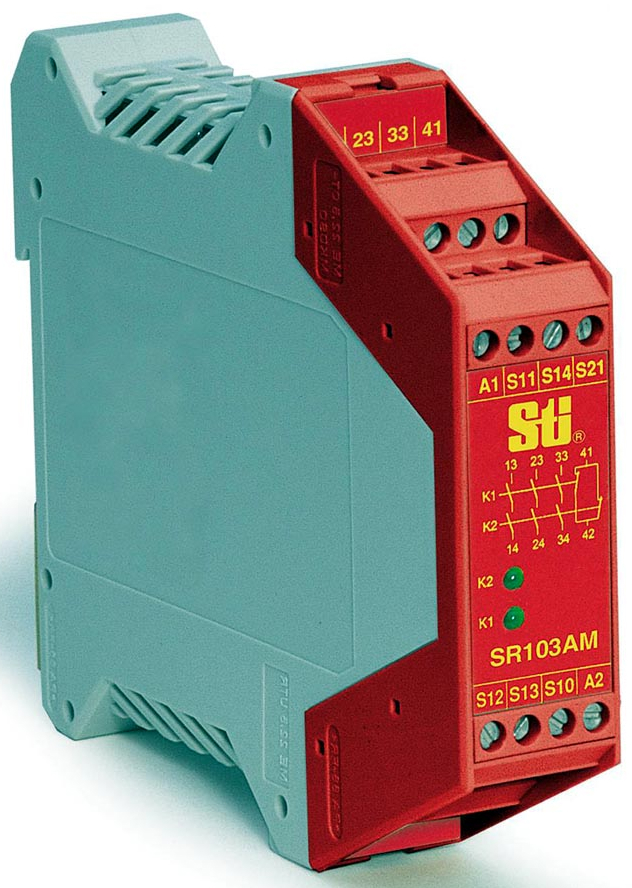

Aug 25, 2006 Able to be applied with various protective devices, SR103AM dual-channel fixed terminal relay provides control reliability. It is designed for single or dual NC inputs or dual solid-state inputs from safety light curtain and provides 3 NO outputs to route power to coils of power contactors. For signaling purposes, 1 NC auxiliary output is also included. External Device Monitoring comes standard, and monitored manual or automatic/manual reset modes are available.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Aug 25, 2006 Provided in 177-275 Vac and 323-550 Vac ranges, DIN rail mount Series DPB71 monitors for overvoltage, undervoltage, phase sequence, and phase loss situations on 3 phase and 3 phase+ neutral systems. Capable of monitoring 50-60 Hz, Series DPC01 is available in ranges from 115 Vac delta voltage through 690 Vac delta or star voltage. Units provide True RMS monitoring for over and under voltage, phase sequence, phase loss, and symmetry on 3 phase and 3 phase+ neutral systems.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 24, 2006 Providing 2-pin connections, Ambient Light Sensors can be used to minimize power consumption in consumer electronics by controlling keypad backlights and adjusting brightness of LCDs. Models TEMT6200F, TEPT5700, and TEPT4400 give designers choice of surface-mount 0805, leaded 5 mm flat-top, or 3 mm packages, respectively. Angle of half intensity is ±60° for TEMT6200F, ±50° for TEPT5700 and ±30° for TEPT4400. All are Pb-free and RoHS-compliant.

American Sensor Technologies, Inc.    Mt. Olive, NJ 07828

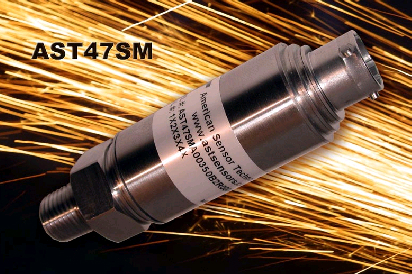

Aug 23, 2006 Available in pressure ranges up to 10,000 psi, Series AST47SM features 1-piece sensing element, and has no silicone oil, welds, or O-rings, eliminating chance of contamination. Stainless steel housing welded to sensing element and cable connection withstands system washdowns. Stress-reduced diaphragm withstands high-pressure spikes, while internal restrictor maintains frequency response of 1 kHz. Operating over -40 to 185ºF, sensors provide accuracy of less than ±0.25% BFSL.

Balluff, Inc.    Florence, KY 41042-0937
Aug 23, 2006 Able to withstand repeated or excessive physical contact with heavy or fast moving metal objects, Steelface(TM) sensors include one series that combines single-piece stainless steel housing with 12, 18, and 30 mm sensing ranges. Products, available in shielded and unshielded versions, come in normally open (NO) PNP and NPN configurations with 4-pin micro connector.

Vaisala, Inc.    Woburn, MA 01801 1008
Aug 23, 2006 Suitable for field use, SPECTRACAP® Oxygen Transmitter OMT355 determines oxygen concentration optically by measuring absorption of light from tunable diode laser. Unit can be flange-mounted directly into process without sampling or sample conditioning equipment, providing real-time measurement. Stainless steel probe tolerates aggressive chemicals and excessive amounts of moisture, while stainless steel mesh filter protects probe optics from dust and dirt.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Aug 23, 2006 Suited for automotive safety testing applications, piezoresistive 7264D provides extended flat frequency range and resonant frequency over 40,000 Hz. It obtains true picture of input signal without inducing signal phase shifts that can interfere with data and result in hidden inaccuracies. Along with undamped, J211-compliant design, product features true ratiometric operation over excitation voltage range, optional connectors, multiple ID chip configurations.
