Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 16, 2006 Featuring stainless steel housings and brass wetted parts, 4.5 in. Series CONG withstands temperatures of -40 to 160°F. Wide offering of ranges is available from full vacuum, compound to 500 psi. Units are suitable for wholesalers, since each gage is delivered in plastic clamshell package that can be stocked on shelf.

Baumer Ltd.    Southington, CT 06489 1534
Nov 16, 2006 Suited for use in static and dynamic applications, OBDM 12 laser sensors detect targets that match pre-programmed differential value within operating range of 16-120 mm regardless of any uncontrolled wobbling, movement, or elevation changes. Data output feeds directly to PLC, and response time is 1 ms. Teachable sensors come in 5 versions for step sensing, min/max analysis, tolerance analysis, window analysis, and comparing in automated production environments.

BI Technologies Corp.    Fullerton, CA 92835-1051
Nov 16, 2006 Developed for automotive steering applications, digital angular position sensor offers analog, PWM, and CAN Bus outputs. With ±0.40% accuracy and 0.1° resolution, device features 12-bit resolution over 360° of rotation and life cycle of 25 million rotations, minimum, and operates at 5 V and between -40 to 125°C. Device also can be integrated with Magnetorque sensing technology for shaft applications.

Keltron Corp.    Waltham, MA 02154
Nov 16, 2006 Through Windows-based alarm management system, Model LS 7000 delivers alarm monitoring, response, and dispatch services. Version 3.0 offers Programmable Event Segregation, which enables events to be directed to different operators at different workstations. It supports Ethernet transceiver, which transmits signals using 10/100 Mbps Ethernet communications. When system encounters problems with connections to event receivers, it reports, logs, and records information as supervisory alarms.

Alcatel Vacuum Products, Inc.    Hingham, MA 02043
Nov 16, 2006 Designed to test small components in production environment, Model ASM 1002 features pumping package that evacuates test chamber and allows unit to quickly perform leak tests. At end of test, system displays Pass/Fail response to operator. With sealed package leak test software, system can achieve 1.10^-9 mbar l/s leak testing in less than 4 sec. For testing open packages, software will keep unit in test mode as long as needed to allow operator to perform test.

Westlock Controls Corp.    Saddle Brook, NJ 07662
Nov 16, 2006 Offering alternative to positioners for Safety Instrumented System (SIS) applications, D-EPIC Control Transmitter features integrated solenoid to control and monitor discrete valves as well as PST functionality. It senses valve position without linkages, levers, or rotary and linear seals. This 4-20 mA, HART-enabled transmitter, suitable for SIL3 service, eliminates position blind spots during valve stroke by supplying continuous feedback of either rotary or linear valve position.

Eaton Corp., Cutler-Hammer Group    Moon Township, PA 15108

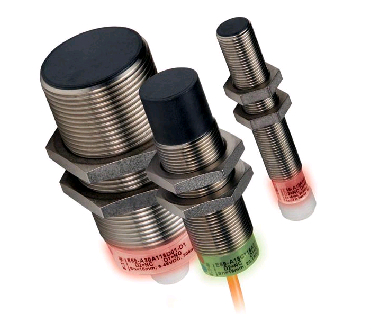

Nov 15, 2006 Able to sense ferrous and non-ferrous metals, AccuProx(TM) Sensors output electrical signal that varies proportionately to position of metal target within sensing range. Available with both current and voltage outputs on same unit, sensors come in shielded and unshielded models in 12, 18, and 30 mm tubular barrels with variety of connection options. Applications include error-proofing, material blemish detection, absolute angle detection, and part positioning.

Fluid Components Intl.    San Marcos, CA 92069 5115
Nov 15, 2006 FlexSwitch® Flow/Level/Temperature (FLT) Pump Protection Flow Switch helps prevent overheating caused by sudden, unexpected reductions in media flow rates. Capable of monitoring substances such as liquids, gases, and slurries, solid-state product offers dual alarm capability for low-flow (0.01-3 fps) and dry running conditions. Dual-function instrument, specified in insertion or in-line styles, features two 6 A relay outputs assignable to flow, level, or temperature.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245

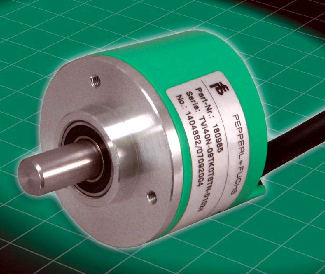

Nov 15, 2006 With 40 mm outer diameter, IP54-protected Series TVI40N provides pulse outputs up to 1,024 ppr, and includes tangential cable outlet that ensures buckle-free connection. Utilizing Opto-ASIC technology, incremental rotary encoders operate from 4.75-30 Vdc with short-circuit proof, push-pull output, or 5 Vdc with RS-422 functionality. Loadable metal disk enables encoders to accept heavy loads without compromising performance.

Haydon Switch & Instrument, Inc.    Waterbury, CT 06705 3910
Nov 14, 2006 Delivering thrusts up to 25 lb, Size 11 Actuators are available in resolutions from 0.000125-0.002 in./step. Optical incremental encoder incorporates lensed LED light source and monolithic photodetector array with signal shaping electronics to produce 2 channel bounceless TTL outputs. Operating from -40 to +100°C, encoder offers resolutions from 200-1,024 cycles/rev or 800-4,096 pulses/rev. Actuators are suited for applications requiring precise positioning and rapid motion.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 14, 2006 Designed for identifying various pressure applications, Series CC features polyutylene terephthalate housings in red, blue, yellow, and green. Red and yellow cases identify safety conditions, while blue and green gauges identify specific process media. Offering 1% ANSI/ASME B40.1 Grade 1A accuracy, gauges are available with various pressure ranges for applications such as pumps, compressors, hydraulic presses and machinery, pipelines, and oil refineries.

Dwyer Instruments, Inc.    Michigan City, IN 46361

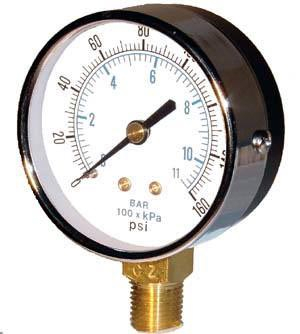

Nov 14, 2006 Designed with black steel housings and chrome bezels, 3.5 in. Series UGD features dual psi and bar (100 x kPa) scales with 3-2-3% ANSI B40.1 Grade B accuracy. Wetted parts include brass socket and phosphor bronze Bourdon tube. Able to withstand temperatures from -50 to +160°F, gauges are offered with ranges from full vacuum, compound to 5,000 psi. Each unit comes with male ¼ in. NPT bottom connection.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Nov 14, 2006 Comprised of 5 models, Series MHS Miniature High Sensitivity Pressure Switch features field-adjustable pressure set point options from 3-1,664 in. wc. All models use 1/8 in. NPT port and have mechanical life of over 10 million cycles. Used with air or compatible fluids, series offers electrical ratings from 3-15 A @ 125/250 Vac. Products can be used for controlling pumps and compressors by turning motors on and off as pressure changes.

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Nov 14, 2006 With supply voltage of 10-30 Vdc and sensing distance of 10-200 mm, AF fiber optic sensors feature sensitivity adjustment along with keyboard to ensure that adjustments cannot be changed. Connection to sensors is made using standard sensor cables equipped with M8 connectors. Compact units can be din-rail mounted and are suited for detecting small parts, sensing marks and contrasts on packages, and presence control on automated equipment.

MTS Systems Corp. - Sensor Div.    Cary, NC 27513
Nov 14, 2006 With 3 discrete wires that allow sealing against wire insulation, C-Series Core Sensor operates using 5 V power supply and provides 0-5 Vdc or PWM output. Modular architecture enables addition of second electronics board for sensor operation at 12 V and provides additional protection circuitry for EMI immunity. Product is used in liquid or vapor laden environments such as small cutting, fastening, and forming tools, medical devices, and various outdoor-use products.

JASCO, Inc.    Easton, MD 21601

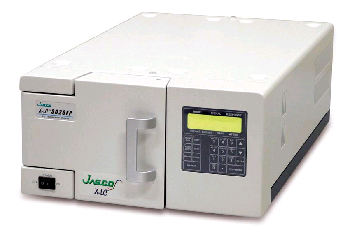

Nov 13, 2006 Incorporating advanced optics, holographic concave diffraction gratings, and non-spherical mirrors, Model XLC-3020FP is intended for ultra high pressure liquid chromatography applications. It is capable of data acquisitions at frequencies up to 50 data points/sec to allow for proper detection and integration of narrow peaks associated with UHPLC. Low dispersion micro flow cell provides optimal peak symmetry by eliminating band-broadening effects.

SICK, Inc.    Minneapolis, MN 55438

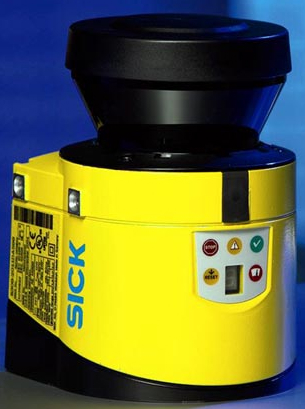

Nov 13, 2006 Targeted for applications in manufacturing and warehouse distribution environments where area to be monitored is less than 2 m, Model S300 Safety Laser Scanner provides oncoming fork detection on AGVs while also safeguarding workers in path of manned fork lifts and transfer cars. Compact device features 270° scanning angle that helps eliminate gaps in area being safeguarded and offers selectable resolution of 30, 40, 50, and 70 mm.

Laurel Electronics, Inc.    Costa Mesa, CA 92626
Nov 13, 2006 Designed for pulse rates from 0.05 Hz-1 MHz, UL-rated Laureate Model FRR counter can add, subtract, divide, and multiply 2 independently scalable pulse or AC input channels. Universal dual-channel signal conditioner accepts magnetic signals from 12 mV-250 Vac as well as signals from proximity switches with PNP or NPN output, TTL or CMOS logic, and contact closures. Built-in isolated 5, 10, or 24 Vdc excitation supply for powering proximity switches and other sensors is included.

Berkeley Nucleonics Corp.    San Rafael, CA 94901
Nov 13, 2006 Model 1703GNB Spectral-Gathering Personal Radiation Detector enables wireless transmission of critical spectral data files from product to any Windows® mobile compatible PDA. This stand-off detection functionality promotes personnel safety at incident scene by allowing user to place device at area of interest and move off to monitor safely. Network of 1703GNBs can be monitored from remote location by management personnel, allowing timely response to developing events.

SenGenuity, a division of Vectron International    Hudson, NH 03051
Nov 10, 2006 Designed to measure samples of low- to mid-range viscosity fluids, ViSmart(TM) provides continuous, real-time viscosity measurements for in-line process control systems. Measuring 1.3 x 1.1 x 0.4 in., acoustic sensor uses semiconductor technology, has no moving parts, and is sealed so it can be completely immersed in process stream. Sensor simultaneously measures fluid viscosity from 1-500 cp and temperatures to 125°C, with no field calibration.
