Carlo Gavazzi, Inc.    Buffalo Grove, IL 60089

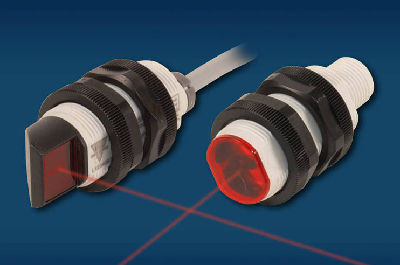

Jun 29, 2011 Featuring M18 housing that meets standards of IP67, IP69K, and ECOLAB certification, PA18 Series can withstand temperatures to 176°F and pressures to 1,450 psi when being cleaned. Sensing ranges are 1 m in diffuse mode, 6.5 m in retro-reflective mode, 5 m in polarized retro-reflective mode, and 20 m in through-beam. Available in cable and plug versions, sensors feature laser markings instead of labels and mounting adapter that allows for smooth flush mounting with 1 jam nut.

Sierra Monitor Corp.    Milpitas, CA 95035 6825

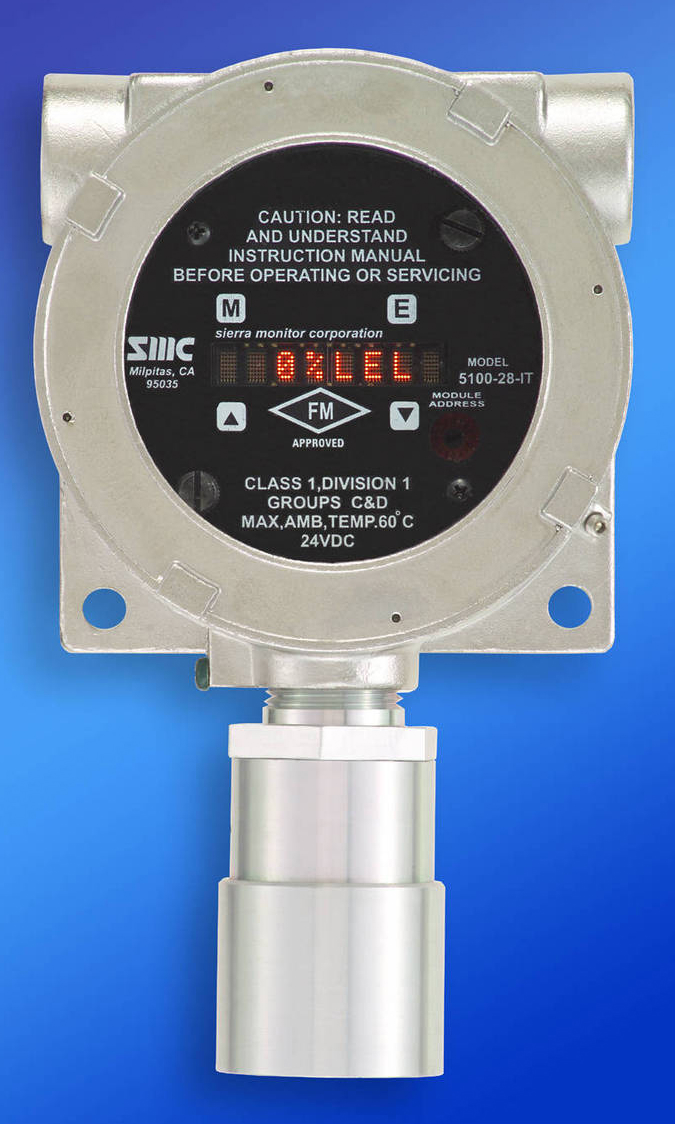

Jun 29, 2011 Available with HART, 4-20 mA, Modbus RS-485, or Sentry bus interface options, Model 5100-28-IT is network enabled in order to communicate with any plant-wide control and monitoring system. Standalone module, FM approved for performance and area safety requirements, including Group B, integrates scrolling LED with magnet operated menu for display of gas status and non-intrusive calibration. Alarm relays may be supplemented by higher amperage control relays in same enclosure.

CAS DataLoggers, Inc    Chesterland, OH 44026
Jun 29, 2011 Used to measure temperature in medical refrigerators, freezers, incubators, and cryogenic storage, A2-05 consists of Ethernet Wired Temperature Measurement Pod with connections for 2 external -148 to +212°F RTDs and one -328 to -148°F thermocouple sensor. Pod will store up to 256 data points, and it can also be used to access live and historic data as well as set local and remote alarms. Alarm levels and contacts can also be sent by phone, email, and text message.

Melexis Inc.    Concord, NH 03301
Jun 29, 2011 Suited for automotive, medical, industrial, and consumer applications, MLX90614 series incorporates compensation technology that minimizes error induced by fast temperature variations and/or thermal gradients. Models MLX90614ESF-DCH/-DCI integrate refractive silicon lens to achieve fields of view down to 5°, enabling measurement of small objects. Able to measure human body temperature with accuracy of 0.2°C, plug-and-play sensors are factory calibrated and occupy TO-39 footprint.

KVH Industries, Inc.    Middletown, RI 02842
Jun 29, 2011 Utilizing 170 micron E *Core® ThinFiber technology, Model DSP-1750 is available in single- and dual-axis configurations with optional magnetic shielding. Unit features flexible design in which 1.7 in. diameter optical sensor is connected to power and processing electronics via interlocking tether. Gyro is suited for integration into variety of mobile applications, including gimbals, optical/antenna stabilization, long-range optical and sensor systems, and payloads for UAVs.

Dytran Instruments, Inc.    Chatsworth, CA 91311

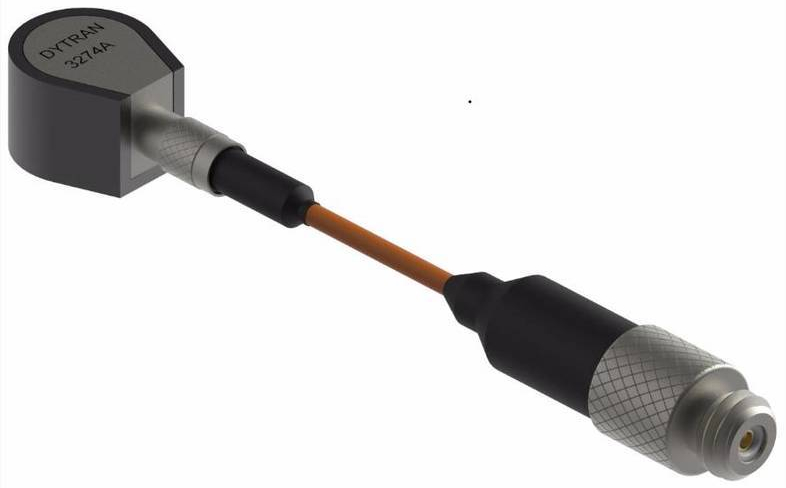

Jun 28, 2011 With 10,000 Hz upper frequency response and 0.24 in. overall height, 3274A series can mount in typically inaccessible spaces. Models offer sensitivities of 5, 10, and 25 mV/g and feature shear sensing element in teardrop titanium housing. Used to measure shock and vibration of small, lightweight objects such as PCBs and board-mounted components, hermetically sealed series is designed for adhesive mount, utilizes IEEE 1451.4 TEDS, and has resonant frequency of greater than 40 kHz.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317
Jun 28, 2011 Suited for applications such as tall vessels and distillation towers, Rosemount® 3051S Electronic Remote Sensor (ERS(TM)) System replaces mechanical impulse piping with two 3051S pressure sensors linked together electronically. Differential pressure (DP) is calculated in one of 2 sensors and transmitted via 2-wire, 4-20 mA HART signal. In addition to DP calculation, system provides real-time access to readings from each pressure sensor and scaled output for tank level or volume measurement.

Crystek Corp.    Fort Myers, FL 33907
Jun 27, 2011 Supplied in rugged SMA housing, CPDETLS-4000 is designed for RF power monitoring in general lab environments. This zero-bias Schottky diode, intended for use as large-signal (greater than -10 dBm) power detector has frequency range of 10 MHz to 4 GHz. Input signal is rated at +30 dBm max, and video capacitance is 100 pF. Respectively, operating and storage temperature ranges are -20 to +70°C and -40 to +85°C.

Melexis Inc.    Concord, NH 03301
Jun 27, 2011 Providing 1,024 x 512 pixel resolution, Avocet MLX75412 features extended high dynamic range (HDR) up to 154 dB in every frame with full resolution frame rate up to 60 fps. Sensitivity in terms of SNR10 is 25 nW/cm² at 25°C and 535 nm. To facilitate camera design, sensor includes Autobrite® fully automatic extended HDR and exposure control function as well as Autoview(TM) adaptive histogram remapping function. Model MLX75412 is available in monochrome, RCCC, color RGBG, and color RGBi versions.

Wilks Enterprise, Inc.    East Norwalk, CT 06855
Jun 27, 2011 With 2.7 micron filter specific for OH absorbance band and 0.2 mm path length sealed cell, InfraCal Filtometer can accurately measure antioxidant inhibitor on site from 5% down to 0.05% in less than 1 minute. Internal calibration table and operator interface allows for analysis by non-technical personnel. Unlike FT-IR spectrometers, fixed filter infrared analyzer has no moving parts and insignificant optical air path, making it portable and suitable for field environments.

Servomex Company, Inc.    Sugar Land, TX 77478
Jun 24, 2011 Featuring Tuneable Diode Laser (TDL) technology, SERVOTOUGH Laser series measures gases present in extreme or harsh process conditions. TDL technology minimizes response time and sample conditioning requirements while promoting stable performance without any moving parts or consumables. Series consists of Standard monitor for cross stack (in-situ) applications; compact variant for extractive and in-situ use; and MultiPass version for extractive trace analysis applications.

Continental Disc Corporation    Liberty, MO 64068
Jun 24, 2011 Designed for European pharmaceutical, food and beverage, and biotech industries, SANITRX® LPX features instantaneous full-open relief area for protecting equipment, vessels, systems, and people from overpressure conditions. This stainless steel differential pressure relief device meets ASME BPE and USP Class VI criteria and has rated burst pressure of 0.3 min to 0.5 max barg @ 20°C. Solid metal construction provides cleanability for CIP/SIP applications.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jun 24, 2011 Sized as 0.8 in. cube, Series 3713B DC MEMS Response Accelerometers measure low-frequency vibration and motion and are available in full-scale ranges from ±2 to ±200 g. Units feature gas-damped, silicon MEMS sensing elements and offer frequency overload protection to accommodate variety of automotive testing requirements. Hermetically sealed in titanium housing, devices withstand severe operating environments. Supply voltage regulation permits operation from +6 to +30 Vdc.

Sensortechnics Inc.    Dublin, CA 94568
Jun 23, 2011 Based on thermal mass flow measurement of air or gas through micro-flow channel integrated within silicon sensor chip, LBA sensors feature full analog on-chip CMOS signal conditioning that allows for linear and temperature-compensated outputs. Measuring principle sensitivity lends to resolution and offset stability, while flow rate ensures immunity to dust and condensation. Also, connecting tubes and input filters can be used without recalibrating or correcting output signal.

Sensortechnics Inc.    Dublin, CA 94568

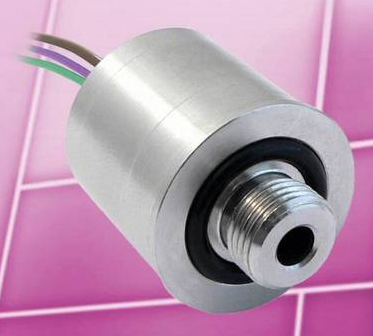

Jun 23, 2011 Based on ceramic pressure cells with optimal media compatibility, KMA Series measures gage pressures of corrosive and aggressive gases and liquids from 7-1,450 psi. Sensors utilize internal digital signal conditioning to deliver calibrated and temperature compensated 0.5-4.5 V output signals. Stainless steel housing is suited for space-saving integration into demanding OEM devices and machines. Custom pressure ranges and wide selection of pressure fittings are available.

Omega Engineering, Inc.    Stamford, CT 06907

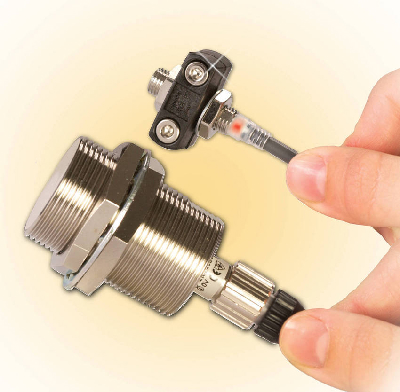

Jun 23, 2011 Offered in shielded and unshielded models with short or standard length barrel, E2E-2DC Series features solid potted internal circuitry to withstand shock and vibration as well as exposure to cutting oils and washdown locations. Two-wire DC sensors are made of stainless steel or nickel-plated brass, and operate from 10-30 Vdc at temperatures from 13-158°F. Suitable for metal detection in food/pharmaceutical industries, units include prewired 6.6 ft PVC cable with stripped leads or M12 connector.

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jun 23, 2011 With operating temperature range of -65 to +325°F and temperature coefficient of less than 0.010%/°F, Series 339A Triaxial ICP® Accelerometers are suited for powertrain testing, NVH, road load data acquisition, and durability testing in climatic chambers. Sensors have measurement range to 8,000 Hz and built-in low pass filter to alleviate effects of high frequency overloads caused by metal-to-metal inputs. Both stud and adhesive mounting configurations are available.

Sensor Electronics Corp.    Minneapolis, MN 55436
Jun 23, 2011 Combining SEC 3000 stainless steel sensor with SEC 3100 explosion-proof transmitter, Gas Detection System identifies traces of toxic gas concentrations and reacts instantly to dangerous gas levels. Transmitter shows actual gas levels in ppm or % LEL. At setpoint, integral relays can trigger alarms, turn on supply/exhaust fans, and shut down lines. Plug-in memory stick, which logs permanent record of actual gas levels, can be pulled from transmitter to download data to computer.

Crouzet North America    Vista, CA 92081-8430
Jun 23, 2011 Complying with DIN 41 636-6 Form F, PBX Secure Safety Switches guarantee forced opening of NC contacts even in event of short circuit and/or welding due to overcurrent. Long overtravel actuator allows any tolerance deviations of sub-assembly in which switch is incorporated to be absorbed. Available in IP40 and IP67 rated versions, switches serve as auxiliary safety contacts for medium-voltage circuit breakers, motorized disconnect switches, and ground disconnect switches.

Dynapar    Gurnee, IL 60031
Jun 23, 2011 RIM Tach 8500 is ruggedly designed with stainless steel sensor modules and ductile cast iron housing. Sensor module uses magnetic technology that delivers 70 thousandths air gap, promoting product reliability and application forgiveness, while axial play of up to 0.50 in. facilitates installation. Wheel design has metal edge guard that protects magnetic wheel material from accidental strikes and allows wheel to lock to shaft without shaft damage.
