Novotechnik U.S., Inc.    Southborough, MA 01772
Jul 28, 2011 Comprised of 0.866 in. dia touchless rotary sensors, programmable Vert-X 22E Series uses magnetic pick up secured to rotating object. Lack of any direct mechanical linkage between shaft and measuring system eliminates wear. Offered in 5 and 24 V supply versions, sensors have 0° to 360° measurement range, up to 2 switch outputs, and 14-bit max resolution. Repeatability and hysteresis are less than or equal to 0.1°, and output options include voltage of 10%-90% of power supply, SPI, and PWM.

Sensor Electronics Corp.    Minneapolis, MN 55436
Jul 27, 2011 Designed to help users meet EPA/OSHA mandates, Series SEC 3000 detects carbon monoxide, hydrogen fluoride, nitric oxide, and ozone - given off during welding. Detectors are part of protection package, which includes transmitters that show actual gas readings on digital panels and LEDs that indicate if concentrations are approaching danger levels. Linked to printer, SEC 3000 system can make running record of gas levels to meet regulations.

Sensonics    Berkhamsted Hertfor HP1 1EF  United Kingdom
Jul 26, 2011 With 10 mm dia tip probe and measurement range of 0.2-1.7 mm, PRSVBeam offers fully protected rear and side view through complete metallic encapsulation of probe sensor assembly. Tip design, able to withstand pressures to 300 bar, provides beam effect towards target, resulting in linearity within 1% even if fitted with tip flush to machine case or mounting assembly. Probe offers micrometer resolution for both critical fluid film bearing vibration and shaft position applications.

ASM Sensors, Inc.    Elmhurst, IL 60126
Jul 26, 2011 Constructed with stainless steel tape coiled on precision drum, POSITAPE® WB12 Series provides measuring range of 118 in. with linearity of ±0.05% full scale. Sensor is based on non-contact magnetic encoder, which serves as angle sensor element for tape drum. Series is available with 0.5-10, 0.5-4.5, and 4-20 mA analog outputs as well as SSI, CANopen, and CAN SAE J1939 digital outputs. Featuring IP67 rating with appropriate mating connector, WB12 Series withstands harsh environments.

Sporian Microsystems, Inc.    Lafayette, CO 80026
Jul 25, 2011 Based on BioOverseer® sensor architecture, which provides specific pathogen detection in portable package, In-Line Biosensor System can work in concert with water purification and testing systems. Unit runs autonomously and has LEDs to indicate pathogen concentration. USB interface allows for system configuration, and, by attaching PC or netbook, logging of sensor data for trend analysis. With modular architecture, sensor can utilize other assays to detect additional pathogens.

Digitexx Data Systems, Inc    Pasadena, CA 91101
Jul 22, 2011 When event occurs and sensor thresholds are exceeded, REFLEXX Smart System for Buildings combines real-time data with structural algorithms to rapidly provide detailed, actionable damage probability report. System enables engineer to understand key building parameters such as accelerations, displacements, velocities, and interstory drift ratios. Within 15 minutes of event, REFLEXX sends detailed report describing structural health of building at global, floor-by-floor, and component level.

Winland Electronics, Inc.    Mankato, MN 56001
Jul 22, 2011 Featuring Ethernet connectivity, EnviroAlert EA800-ip provides 2-way access to remotely monitor and collect data on up to 8 sensors for changes in temperature, humidity, water, gases, pressure, and dry contacts. Sensor settings may also be modified via network connection, and email and text message support is provided for trend and alarm notification. Able to monitor multiple sites from any location, system provides complete audit trail and is compliant with 21 CFR Part 11.

Brooks Instrument    Hatfield, PA 19440
Jul 22, 2011 Constructed of 1-piece clear acrylic, Series 2500 features flow ranges of 4 ccm to 20 gpm for water and 40 ccm to 4,000 lpm for air. Rod-guided float provides stable, accurate flow measurement, while hex head connections enable installation without damaging meter. Offering accuracy ranges from 2-5% with 2-5 in. scale, depending on model, flow meters provide direct reading air or water scales in English or Metric and can be configured with various control valve, fitting, and O-ring options.

Quest Controls, Inc.    Palmetto, FL 34221-4802
Jul 21, 2011 Designed to eliminate downtime by acting as early warning system, TELSEC MINI(TM) PLUS provides alarm monitoring in cabinets, OTNs, shelters, small remote sites, and computer centers. Unit is powered from 24-48 Vdc and can monitor up to 6 universal inputs, including temperature, humidity, commercial power fail, DC Plant alarms, HVAC failures, fire/smoke, and intrusion. Featuring embedded Web Server, TELSEC MINI PLUS provides SNMP traps and informs over Ethernet back to alarm center.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Jul 21, 2011 Featuring backlit display and 1 m sensor cable, MiniTest 650 is available with magnetic-induction sensor for measurements on steel substrates, eddy current sensor for measurements on non-ferrous metals, or dual sensor for measuring on both steel and non-ferrous metals. One-pole sensor is made of wear-resistant carbide material to ensure virtually unlimited life cycle under normal conditions. Via USB interface, gauge can be connected to PC for online measurements or display of statistics.

G Instruments    San Diego, CA 92128
Jul 20, 2011 Offering 10 point curve for compensation throughout -20 to +120°C range, GCT20K and GCT20K-MB are fully programmable and have probe head constructed of Kynar PVDF. Curve is fully programmable at any time in field; GCT20K-MB also accommodates curve changes at any time over RS485 MODBUS RTU network. Platinum RTD promotes accurate temperature measurement and isolation, and proprietary circuits and algorithms make sure liquid is not polarized or changed.

Brooks Instrument    Hatfield, PA 19440
Jul 20, 2011 Equipped with rotating lens that allows 180° magnified view, Sho-Rate(TM) 1250/1255 are suitable for displaying on panels and cabinets. Model 1250 is available in 65 mm scale lengths and provides 10% accuracy for liquids and gases, while Model 1255 comes in 150 mm scale lengths with 5% accuracy. Rotameters can be configured with standard or precision control valve on inlet or outlet. Model 1250's valves can be specified in brass or stainless steel with aluminum or stainless steel fittings.

L.S. Starrett Company    Athol,, MA 01331
Jul 19, 2011 Used freestanding or bench-mounted with fixturing for batch measurement and laboratory applications, battery-powered Model SR200 can calculate and display results before traverse unit returns. Stylus lift mechanism allows vertical adjustment of 2 in. and rotation of pickup to different measuring positions, including right angle or inverted measurements. In addition to 100-reading memory capacity, tester includes RS232 port for export of measurement results.

Baumer Ltd.    Southington, CT 06489 1534

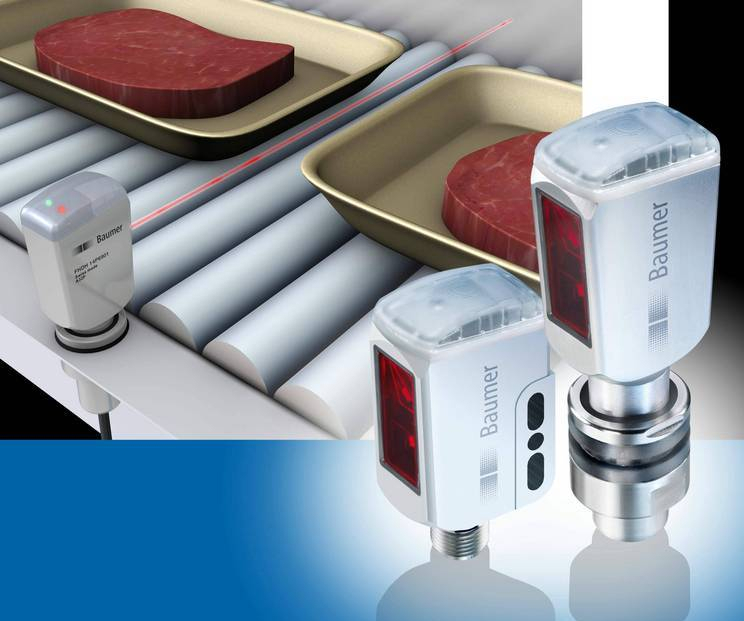

Jul 19, 2011 Able to detect and recognize objects of any kind, FNDH and FNDR 14 SmartReflect light barriers create closed light beam between sensor and machine part and eliminate need for separate reflector. Hygienic and washdown design, optimized for stainless steel surfaces, includes EHEDG-certified sensors in stainless steel housing. Sensors have 800 mm range with reflection on stainless steel, and functionality is not impaired by contamination or process-related changes of machine part.

Detroit Precision Hommel    Rochester Hills, MI 48309
Jul 18, 2011 Using array of probes and accessories, ergonomically designed Hommel-Etamic W5 can track 5 separate measurement programs, up to 100 separate profiles, with total storage capacity of up to 10,000 completed measurements. Integrated click wheel and color display with GUI facilitate operation, while support prism centers workpieces reliably on correct measuring position and protects probe for measurements in bores from 12 mm dia. All necessary connection are made via USB interface.

Brookfield Engineering Laboratories, Inc.    Middleboro, MA 02346
Jul 18, 2011 Gelatin Bloom Strength Test system includes CT3 Texture Analyzer for measuring bloom strength, 2 baths, and one refrigeration unit for gelatin preparation. Texture analyzer combines operation that accommodates users of all experience levels and test method capability in compression and tension modes of operation. Variety of standard probes - cones, cylinder, blades, balls, punches - and fixtures -extrusion, cell, shear cell, grips, etc. - are available.

Monroe Electronics, Inc.    Lyndonville, NY 14098
Jul 18, 2011 Capable of receiving Common Alerting Protocol (CAP) messaging, DASDEC-II(TM) model DASEOC-R6-CAP FCC-certified EAS (Emergency Alert Systems) encoder/decoder completed FEMA's Integrated Public Alert and Warning System (IPAWS) conformance testing under consumer and producer designation. Unified emergency messaging platform, used for communicating via EAS and CAP EAS, lets emergency management and public safety professionals monitor and originate emergency alert communications.

Maxon - A Honeywell Company    Muncie, IN 47307
Jul 18, 2011 Meeting API 6FA Fire Safe standards, Series 8000 provides sure closing at temperatures down to -58°F and has large open/closed indicator that shows valve position in high-contrast colors. Meeting Class VI leakage standards and carrying global endorsements - FM, CSA, EN, ATEX, Hazardous Locations, and safety assessment to IEC 61508, this SIL-3 capable series also features metal-to-metal seats and PSTrend partial stroke testing technology that tests and trends valve performance.

Piher International Corp.    Libertyville, IL 60048
Jul 15, 2011 Combining through-shaft design with 360° absolute position feedback, PST-360 Through-Hole Position Sensor incorporates ring magnet with fully sealed Hall ASIC as sensor element. Design is truly non-contacting and does not rely on gears or other interfacing parts. Measuring 9.8 mm thick with body diameter of 37 mm and 50.0 mm mounting hole spacing, standard model features rotor with 14.05 mm ID shaft design. Sensor can be programmed with full scale output with angles as narrow as 20°.

E Instruments International LLC    Langhorne, PA 19047
Jul 13, 2011 Featuring ice blue LCD, HM100 Pin Moisture Meter detects moisture levels of materials and displays min/max values. Specific compatible materials include softwood, such as birch, beech, spruce, walnut, cherry tree, and larch; hardwood, such as oak, pine, ash, and maple; concrete; plaster; and bricks. Provided with protection cap and extra set of pins, unit can be used in diverse markets and applications, including IAQ, HVAC, Home Inspections, Commercial Building Inspections, and others.
