Amptronix, Inc.    Walnut, CA 91789
Aug 28, 2006 Linux-embedded Mobile DVR-354 Series supports up to 4 channels with multiple recording modes and includes triggered detected alarm system, motion detected alarm system, and video loss detection. Video can be stored either on HHD or Compact Flash Card and backed up with CF or USB. Each alarm system has selectable Pre/Post Alarm, GPRS, GPRMC, and SMS functions in response to alarm detections to prevent unlawful interference and provide offline tracking.

Scientific Technologies Inc.    Fremont, CA 94555
Aug 25, 2006 Able to be applied with various protective devices, SR103AM dual-channel fixed terminal relay provides control reliability. It is designed for single or dual NC inputs or dual solid-state inputs from safety light curtain and provides 3 NO outputs to route power to coils of power contactors. For signaling purposes, 1 NC auxiliary output is also included. External Device Monitoring comes standard, and monitored manual or automatic/manual reset modes are available.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089
Aug 25, 2006 Provided in 177-275 Vac and 323-550 Vac ranges, DIN rail mount Series DPB71 monitors for overvoltage, undervoltage, phase sequence, and phase loss situations on 3 phase and 3 phase+ neutral systems. Capable of monitoring 50-60 Hz, Series DPC01 is available in ranges from 115 Vac delta voltage through 690 Vac delta or star voltage. Units provide True RMS monitoring for over and under voltage, phase sequence, phase loss, and symmetry on 3 phase and 3 phase+ neutral systems.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Aug 24, 2006 Providing 2-pin connections, Ambient Light Sensors can be used to minimize power consumption in consumer electronics by controlling keypad backlights and adjusting brightness of LCDs. Models TEMT6200F, TEPT5700, and TEPT4400 give designers choice of surface-mount 0805, leaded 5 mm flat-top, or 3 mm packages, respectively. Angle of half intensity is ±60° for TEMT6200F, ±50° for TEPT5700 and ±30° for TEPT4400. All are Pb-free and RoHS-compliant.

American Sensor Technologies, Inc.    Mt. Olive, NJ 07828
Aug 23, 2006 Available in pressure ranges up to 10,000 psi, Series AST47SM features 1-piece sensing element, and has no silicone oil, welds, or O-rings, eliminating chance of contamination. Stainless steel housing welded to sensing element and cable connection withstands system washdowns. Stress-reduced diaphragm withstands high-pressure spikes, while internal restrictor maintains frequency response of 1 kHz. Operating over -40 to 185ºF, sensors provide accuracy of less than ±0.25% BFSL.

Balluff, Inc.    Florence, KY 41042-0937
Aug 23, 2006 Able to withstand repeated or excessive physical contact with heavy or fast moving metal objects, Steelface(TM) sensors include one series that combines single-piece stainless steel housing with 12, 18, and 30 mm sensing ranges. Products, available in shielded and unshielded versions, come in normally open (NO) PNP and NPN configurations with 4-pin micro connector.

Vaisala, Inc.    Woburn, MA 01801 1008
Aug 23, 2006 Suitable for field use, SPECTRACAP® Oxygen Transmitter OMT355 determines oxygen concentration optically by measuring absorption of light from tunable diode laser. Unit can be flange-mounted directly into process without sampling or sample conditioning equipment, providing real-time measurement. Stainless steel probe tolerates aggressive chemicals and excessive amounts of moisture, while stainless steel mesh filter protects probe optics from dust and dirt.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Aug 23, 2006 Suited for automotive safety testing applications, piezoresistive 7264D provides extended flat frequency range and resonant frequency over 40,000 Hz. It obtains true picture of input signal without inducing signal phase shifts that can interfere with data and result in hidden inaccuracies. Along with undamped, J211-compliant design, product features true ratiometric operation over excitation voltage range, optional connectors, multiple ID chip configurations.

Metrology Resource Company    Ortonville, MI 48462

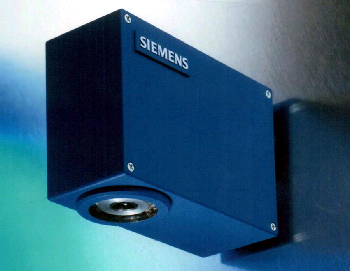

Aug 23, 2006 Siemens Class II SISCAN Model MC64 confocal displacement sensor uses vertically oscillating turning fork for 3D surface scanning. Able to scans surface at speeds to 80 mm/sec, it has lateral resolution of 10 microns and vertical resolution of 0.5 microns. System takes up to 512,000 measurements/sec, and throughput can be raised by using multiple sensors in parallel. Sensor has flexible measurement range up to 1.6 mm and working distance of 8.0 mm.

Heidenhain Corp.    Schaumburg, IL 60173-5337
Aug 23, 2006 Exposed linear encoders of LIDA 200 series can be mounted via scale tape then secured directly on mounting surface via its adhesive film. Alternatively, series can be mounted by means of scale tape carrier extrusion, along with supplied adhesive and clamping mechanism for thermal effects. Encoders have 200 µm grating period for analog systems and are available with 0.5, 1, and 5 µm signal periods for digital systems. Operating speeds reach 10 m/sec.

MicroE Systems    Bedford, MA 01730
Aug 23, 2006 Rated to 10^-8 Torr, Mercury(TM) 1,500 V Encoder features vented construction with vacuum compatible materials, rated for 48 hr bake out at 150°C. Designed to work with both linear and rotary glass scales, unit offers resolutions from 5-50 µm linear or 6,600-655,000 CPR rotary. Sensor produces A-Quad-B and bi-directional index window digital outputs. With alignment tolerance of ±2°, unit can be aligned in 30 sec without instrumentation.

Omega Engineering, Inc.    Stamford, CT 06907
Aug 22, 2006 Model HHVB82 monitors machinery vibration caused by poor balance, worn bearings, misalignments, and loose fittings in structure to determine maintenance needs. Able to measure acceleration to 200 m/sec and velocity to 200 mm/sec, unit has 1 sec sampling time and takes RMS or peak vibration readings from 10 Hz to 1 kHz. It stores Min and Max readings with push-button recall. Built-in tilt stand, reading hold function, and vibration sensor with magnetic mount are included.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Aug 22, 2006 Programmed via potentiometer setting at sensor or by remote teach signal from PLC, Dura-Vue(TM) DF12 series can be taught to recognize 3 independent colors with single sensor. Each of these 3 channels can be taught to detect minute color variations, with varying degrees of tolerance as selected by user. Harsh-duty, metal-framed housing with swivel connector is suited for sorting, positioning, and quality control in packaging and converting applications.

Columbus Instruments    Columbus, OH 43204
Aug 21, 2006 Room Environment Monitor allows user to keep track of room temperature, barometric pressure, and relative humidity in 4 locations. It can also be used to monitor humidity and temperature in sample gas streams. Audible alarms alerts user about undesirable changes in environment. Monitor interfaces to PC by way of RS232, and supports direct Ethernet connection via built-in web server hardware, making it suitable for experiments where room conditions may impact results.

IC-Haus GmbH      Germany
Aug 18, 2006 Supplied in 6.6 x 6.4 x 1.1 mm TSSOP20 package, single-chip iC-ML contains 4 Hall sensors for providing analog sine/cosine signals at pole pitch of 2.56 mm. This non-contact integrated magnetic linear position sensor/encoder also has signal conditioning unit with ADC and output interfaces. Three configuration inputs allow 26 different modes of operation to be selected for position evaluation of magnetic tape placed above chip; operating distances of 1-2 mm can be achieved.

Nextest Systems Corporation    San Jose, CA 95112
Aug 18, 2006 Magnum Grande, integrated with TechWing TW-380 handler, is capable of testing 720 NAND Flash devices at one time. Providing IC manufacturers with up to 7,680 I/O pins and 960 sites in single test head, 12-chassis system is built from set of Site Assemblies, that contain data generation, error processing, timing, and dc resources needed to test devices including NAND and NOR Flash memories. Each Site Assembly also includes embedded 1.2 GHz PC for local control of test process.

Macro Sensors    Pennsauken, NJ 08110 1334
Aug 17, 2006 Enclosed in hermetically sealed stainless steel housing, HSE/HSER 750 Series ¾ in. dia dc-operated LVDTs are available in 0.100-20.00 in. sizes. Coil windings are sealed against hostile environments to IP68. Sensors operate from 24 Vdc (nominal) or 15-24 Vdc ±10%, 30 mA (nominal), and offer FS output 0-10 Vdc in operating temperature range of 0-160°F. Qualified at pressures up to 1,000 psi, units are suitable for high-pressure applications.

Metrology Resource Company    Ortonville, MI 48462
Aug 16, 2006 Offering flexible measurement range up to 1.6 mm, Siemens SISCAN Model SC provides 8,000 scans/sec with resolution of 0.1-0.4 microns, regardless of surface conditions. Typical applications include high profiles, distance measurement, hole depth, flatness, waviness, roughness, and thickness of transparent layers in variety of industries.

All Sensors Corp.    Morgan Hill, CA 95037
Aug 16, 2006 Offered as drop-in replacement, ASCX Series Compatible pressure sensor is designed to reduce package-induced parasitic stress and strain. Pressure ports, mounting holes, and pin geometry are mechanically compatible to Honeywell ASCX Series pressure sensor, allowing substitution without mechanical restraints. Featuring 4-pin out design, product is available in pressure ranges from 1-100 psi and has ratiometric output span of 4.5 V at 5 V supply.

Kittiwake Developments Ltd    West Sussex BN17 7LU  United Kingdom
Aug 15, 2006 Constructed from stainless steel and protected to IP65 or IP67, ANALEXrs Online Moisture Sensors screw directly into oil flow to detect moisture content of water up to oil's saturation point. With self-diagnosing digital and analog outputs, sensors can be integrated into existing condition monitoring and operating control systems. They communicate with existing systems using industry standard 4-20 mA, RS232, RS485, CAN, and 802.11b WLAN outputs.
