Dytran Instruments, Inc.    Chatsworth, CA 91311
Feb 11, 2009 Piezoelectric biaxial Model 3232A2 is designed for use in Health and Usage Monitoring Systems (HUMS), as well as Active Vibration Control (AVC) applications. Accelerometer elements are orthogonally mounted within bracket and are case isolated internally from mounting surface to avoid ground loops. Device features radial 3-pin Mighty Mouse connector with 5/16-28 thread, and 100 mV/g sensitivity, and is hermetically sealed to suit moist and dirty environments.

FUTEK Advanced Sensor Technology, Inc    Irvine, CA 92618
Feb 10, 2009 Eliminating need for analog amplifier, power supply, and display equipment, LTH300 Donut/Thru hole Load Cell integrates USB with software enabling users to monitor output of sensor in real-time. Unit measures 0.98 in. OD and 0.28 in. high and is constructed of 17-4 SS, with 10 ft long 29 AWG 4-conductor shielded Teflon® cable. It has nonlinearity of ±0.5%, deflection of 0.002 in. nominal, and operating temperature of -60 to +200°F and can output up to 1,000 lb.

TE Connectivity Ltd.    Berwyn, PA 19312
Feb 10, 2009 Developed for use in electronic control units for dual clutch transmissions, dual PLCD (permanent-magnetic linear contact-less displacement) sensor package is designed for measuring clutch actuator position. These magneto-inductive sensors are compact, wear-free, resist vibration, and operate in temperatures up to 150°.

Process Technologies Group, Inc. (Production Monitoring Division)    Addison, IL 60101
Feb 10, 2009 Available with 4, 6, or 8 in. touchscreen interface, IMPAX Time Saver System tracks downtime and production for all discrete machinery and process equipment, including metal forming, stamping, and cutting machines. Model with 8 in. screen can display PDF and document files, which is useful for publishing schematics or setup instructions. With remote control ability, users can directly view and control remote touchsceen from any networked PC.

NOSHOK, Inc.    Berea, OH 44017
Feb 10, 2009 Suitable for dynamic or static measurement, 300 Series is available in pressure ranges from 0-15 psig and 0-10,000 psig, as well as standard absolute ranges from 15-200 psia. Constructed of stainless steel, units are compatible with chemically aggressive media and resistant to shock and vibration. Sensor is welded directly to process connection, eliminating need for gaskets or seals, and all electrical components feature EMC protection compliant with EN 61 326.

Mid-West Instrument    Sterling Heights, MI 48314
Feb 09, 2009 Available in aluminum or 316 stainless steel, model 120 gauge and switch contains components with various Elastomers to suit any media (liquid or gas). It is CSA-certified for service in areas rated Class I, Division II, Group A/B/C/D as well as Class II, Division II Groups F/G. Suited for applications with one or two switches in SPST and SPDT configurations, product has 6,000 PSIG SWP and is available with 2 ½, 3 ½, or 4 ½ in. dials with aluminum or engineered plastic dial chambers.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089

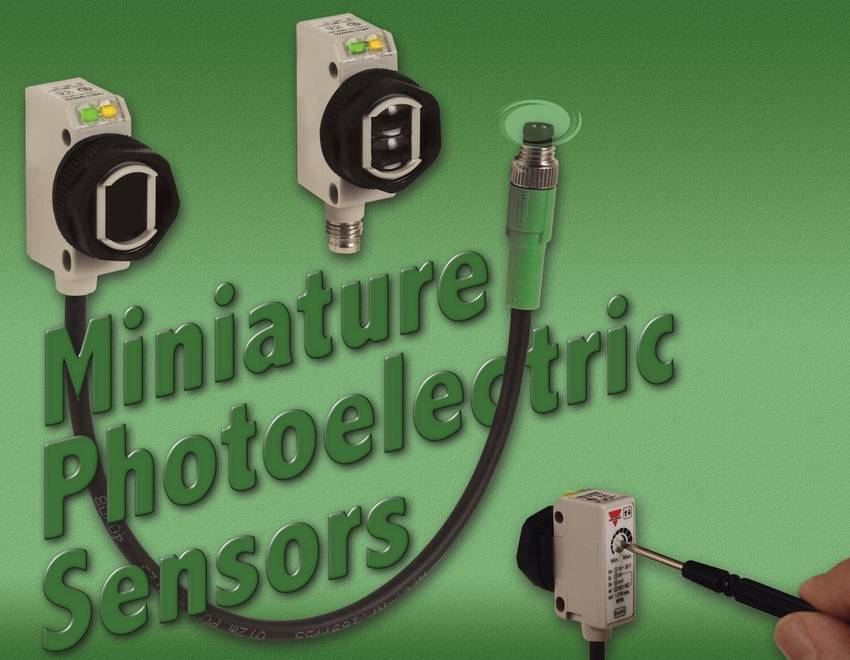

Feb 09, 2009 Built in 13.5 x 29 x 35 mm housing with 10-30 Vdc supply range, CGPS Series is available in 3 sensing technologies: diffuse reflective in 100 and 300 mm ranges, retro-reflective with a 6 m range, and through-beam models in 6 and 20 m ranges. They come with 150 mA complementary transistor outputs, and have both normally open and normally closed outputs. UL and CE approved units also feature potentiometer for sensitivity adjustment, hard-wired cable, and M8 quick-disconnect plug.

Electromatic Equipment Co., Inc.    Cedarhurst, NY 11516

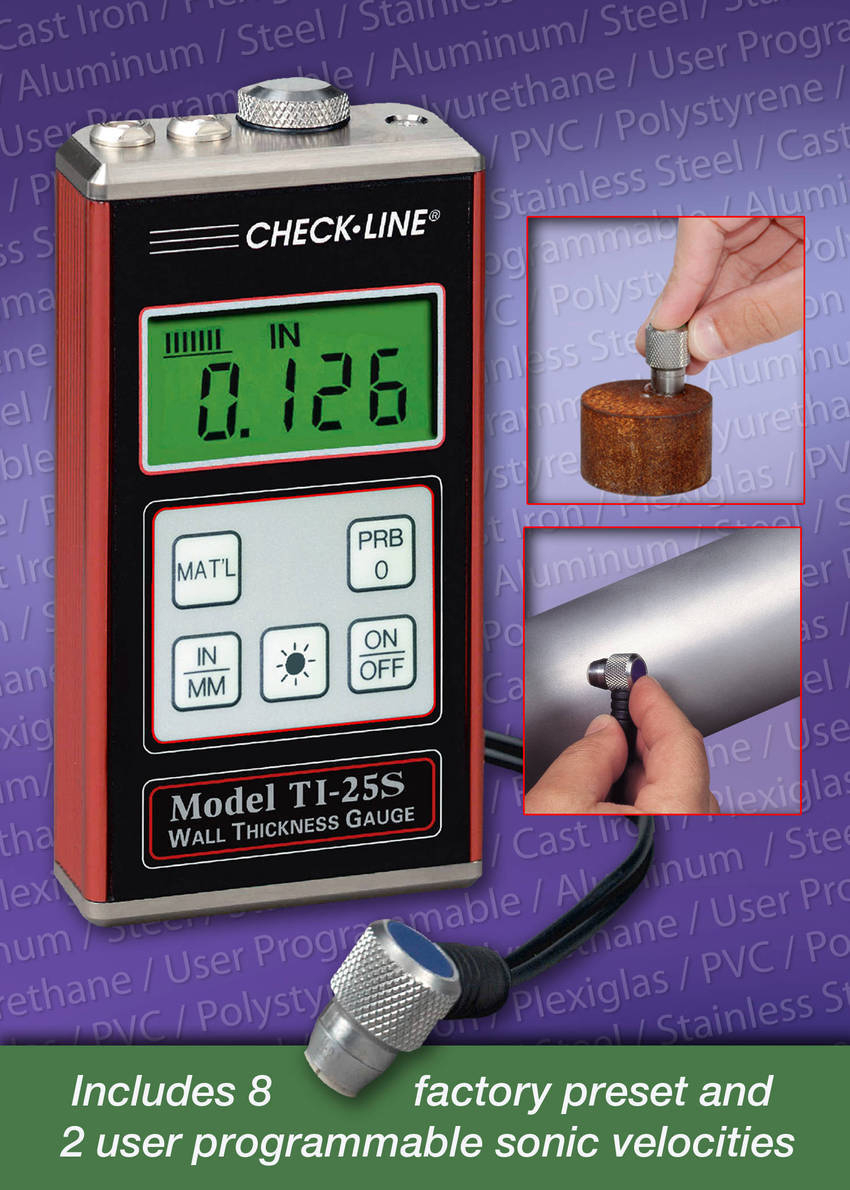

Feb 09, 2009 With measuring range of 0.025-19.999 in. and resolution of .001 in., TI-25S ultrasonic wall thickness gauge comes pre-programmed with sonic velocities for aluminum 2024, stainless steel 303, steel 4340, cast iron, Plexiglass, PVC, polystyrene and polyurethane. It is switch selectable between English or metric units and displays results in inches, inches/microsecond, millimeters and meters/second. Alkaline or NiCad battery in unit provide power for up to 200 hr of use.

Danaher Motion    Wood Dale, IL 60191-1073
Feb 06, 2009 Designed for indoor as well as outdoor environments and cold storage, LS5 Navigator is capable of handling wide variations in temperature from -30 to +50°C and relative humidity less than 95%, as well as mechanical stress such as vibrations and shocks. It features direct drive motor with few moving parts, and is adaptable to different types of communication. Unit also works with AutoSurveyor software tool for automatic and accurate determination of reflector coordinates.

JDS Products, Inc.    El Dorado Hills, CA 95762 4072
Feb 06, 2009 SENSING-SAF-START® replaces power cord on small machines, such as table saws and drill presses, so they will conform to O.S.H.A. safety standards. Switch disconnects machine's power during power loss and prevents it from resetting until after machine switch has been turned off. Available in three 120-volt styles and one 240-volt single phase style, all SENSING-SAF-STARTS® are Underwriters Laboratories, Inc.® component recognized.

Onset Computer Corp.    Bourne, MA 02532
Feb 06, 2009 With ability to transmit temperature and soil moisture data to PC several miles away without cables, HOBOnode(TM) sensors suit applications in agricultural research, crop management, and ecology studies. Accompanying software displays real-time graphs of environmental conditions and provides alarm notifications via cell phone and email when conditions exceed set thresholds. Transmission range is up to 6 miles.

Tridium, Inc.    Richmond, VA 23233
Feb 06, 2009 Niagara Video integrates environmental control, intrusion detection, access control, lighting and energy management with video. It can be used with other security and video products or as stand alone system providing video window that identifies incident and notifies proper personnel who can manage response from anywhere. It also works with local and remote buildings, and can be combined with other NiagaraAX building applications to deliver facility-wide management system.

Dwyer Instruments, Inc.    Michigan City, IN 46361

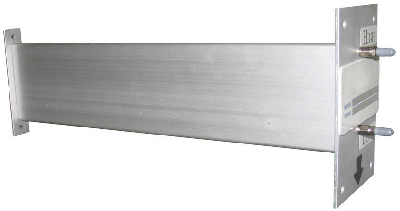

Feb 05, 2009 Exhibiting overall accuracy of ±2%, Series DAFM probes use evenly distributed total and static pressure measuring points to determine air flow in ducts. They are constructed with wetted materials of aluminum, featuring clear anodized finish, and intended for installation from completely outside of fan, promoting use in HVAC industry. Available to fit ducts with diameters from 6-96 in., probes have respective max temperature and flow ratings of 400°F and 12,000 fpm.

Casella USA    Amherst, NH 03031
Feb 04, 2009 Microdust(TM) Pro airborne particulate monitor features 1 µgm -3 to 2,500 mgm -3 range for assessing suspended matter concentration. Monitoring various microscopic particles using near-forward light scattering technology and 12-20° scatter range, it presents data with scrolling graph on LCD screen. Internal logger stores up to 15,700 data points over 32 separate runs and data is downloaded to PC/printer via RS-232 interface cable. Device is battery powered.

NOSHOK, Inc.    Berea, OH 44017

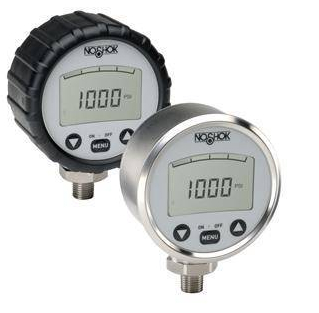

Feb 04, 2009 Featuring pressure ranges from 0-30 psig to 0-10,000 psig, Series 1000 uses LCD with bar graph and trailing indicating pointer to show trends in working pressure system. Additional 4½ digit display provides direct readout of peak value, tare, and other functions. For pressure ranges above 750 psig, wetted parts are stainless steel to resist chemically aggressive media. Designed to meet EMC requirements to EN 61326, gauge also includes internal light, min/max memory, and 300° rotatable base.

FRABA Inc.    Hamilton, NJ 08609-2020
Feb 04, 2009 Equipped with Ertec200-based platform, OPTOCODE models support RT (real-time) and NRT (non-real-time) data transfer according to PROFIDrive profile - with cycle times as short as 10 ms. Users can assign IP addresses via control system according to ARP during start-up, and products are parameterized via control system. Using opto-electronic scanning method to record position values, single- and multi-turn sensors provide resolution of 16 and 30 bits per revolution, respectively.

AMETEK Drexelbrook    Horsham, PA 19044
Feb 04, 2009 Safety IntelliPoint RF(TM) Switch, used in above-ground bulk storage tanks, meets American Petroleum Institute's 2350 Recommended Practice for overfill/spill protection. Specifically, it comes standard with SIL1 certification; SIL2 is optional, and SIL3 is possible with redundant switch. Integral software continuously monitors application for changes and maintains repeatable trip point on probe. Switch detects presence or absence of material without calibration, and MTTF is 110 years.

GAO Tek Inc.    Toronto M1B2K4  Canada
Feb 04, 2009 Designed for engineers and technicians, GAO 820 helps identify dark or live fiber and identify excessive losses due to misalignment of mechanical splices or poor connections. Product can avoid disruption of network communications on account of need to discount or cut fiber optic cable for identification and testing. It features 5-stage display of signal intensity, detachable detector, sensitivity of -38 dBm at 1550 nm bare fiber, and operates in wavelength range of 800-1,700 nm.

MICRO-EPSILON AMERICA    Raleigh, NC 27617

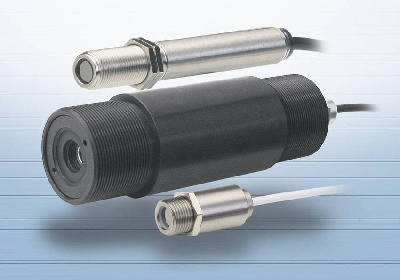

Feb 03, 2009 Suited for demanding mechanical applications, CX thermoMETER Series provides signal using single twin-wire cable, which also powers unit, whereby signal-dependent current flows at same time. Units feature -30 to +900°C temperature range and 0.025°C resolution. With all electronics located in sensor housing or cable, thermoMETER CS and CS micro offer temperature range of -20 to +350°C and are intended for non-contact temperature measurement with restricted installation space.

Applied Measurements Limited    Aldermaston, Berkshire RG7 8PN  United Kingdom
Feb 03, 2009 Useful for measuring displacement of soft, pliable materials, AML/SGD Series strain gauge displacement transducers offer stroke lengths from 0-5 to 0-100 mm. Internal construction ensures smooth, frictionless movement of inner core, resulting in minimal resistance and providing accuracy of ±0.1%. Design is based on 4-arm active Wheatstone Bridge, with nominal impedance of 350 ohms, which ensures low current consumption and temperature stability.
