Qualitest International Inc    Fort Lauderdale, FL 33308
Jun 05, 2009 Based on Beer-Lambert law to inspect ozone concentration without use of chemicals, QT-0500 ozone tester provides automatically controlled ozone concentration environment for evaluating resistance of rubber products to cracking during service life. Generated by 185 nm UV-lamp, ozone can be controlled between 0-1,000 pphm for model QT-0500 or 200-30,000 pphm for model QT-0500AC. Temperature can be controlled between 68-194°F, and set values are maintained by PLC control system.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Jun 05, 2009 Designed for modal analysis applications, 3273AT series features robust, laser welded titanium design that includes ceramic sensing elements coupled to ultra low noise JFET electronics. It has low end frequency response of -10% down to 0.31 Hz and is available in sensitivities of 10, 50, and 100 mV/g. Featuring hermetic seal, adhesive mount, and single 4-pin connector, this triaxial IEPE accelerometer weighs only 2.7 grams.

Aalborg Instruments    Orangeburg, NY 10962
Jun 05, 2009 Capable of measuring flow rates of argon, carbon dioxide, helium, nitrogen, and oxygen, Model xV multi-gas glass tube flow meter is available as vertical in-line or panel mount models. It comes with 3/8 in. NPT female in-line or rear connections as well as 316 SS floats. Readable direct reading gradations showing dual SCFM and L/min markings reflect both metric and English systems. Standard seals are Viton® with optional Buna-N®, PTFE/Kalrez® and EPR seals available.

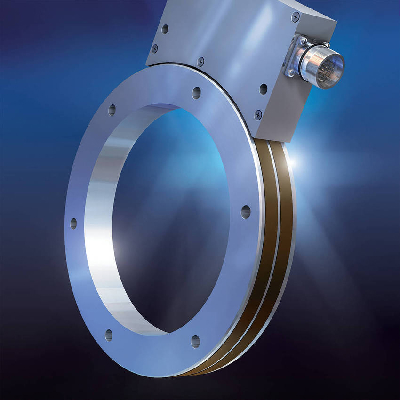

Baumer Ltd.    Southington, CT 06489 1534
Jun 04, 2009 Featuring hollow shaft design that accepts bore diameters from 20-740 mm, MHXX Series provides measurement of position, speed, and velocity. Units contain no bearings, so measurement is contact-free and components do not wear. IP67-rated housing and fully encapsulated read head electronics enable encoders to withstand vibration to 30 g and shock to 300 g. All models are available with incremental or sine-cosine outputs. Some additionally offer absolute output track up to 17 bits.

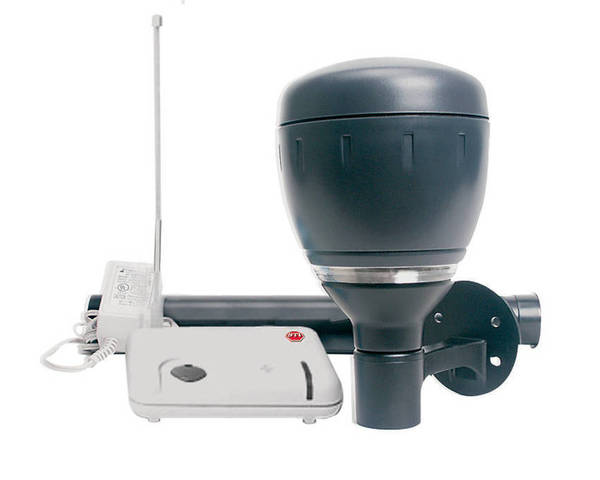

Safety Technology International    Waterford, MI 48327
Jun 04, 2009 Utilizing patented magnetometer sensor system, Wireless Battery Driveway Monitor STI-30150 detects and alerts when vehicle enters or leaves protected driveway. Movement of any large metallic (iron or steel) object close to driveway sensor will transmit signal from transmitter to indoor receiver, causing receiver to chime and flash. People, animals, and shadows will not trigger driveway sensor, which can be placed as far as 1,000 ft (line of sight) away from receiver.

Festo Corp.    Hauppauge, NY 11788
Jun 03, 2009 Suited for use in medical and semiconductor applications, Compact Pressure Sensor SPAB offers pressure measuring range of 0-10 bar or -1 to +1 bar. At 30 x 30 mm, unit includes 2-part, 3-color display and also displays switching status. Data can be transferred to other SPAB pressure sensors. Unit is available with NPN or PNP switching outputs, digital or analog outputs, M8 or cable electrical connection, and NPT, G, or R thread fittings.

NAPCO Security Systems, Inc.    Amityville, NY 11701-2800
Jun 03, 2009 Able to scan and monitor area of 50 x 50 ft in both commercial and residential settings, C100STEAM auto-adjusts to its environment 24/7 to counteract false alarms. It automatically changes its sensitivity modes to widen gap between detected signal and its alarm threshold. Built-in anti-mask/block supervision detects intentional or accidental masks or blocks and sends trouble signal, while look down feature prevents people from crawling under sensor unnoticed.

DPS Telecom    Fresno, CA 93727
Jun 03, 2009 Designed to protect access to alarms, NetGuardian 832A/864A G5 includes RADIUS Remote Authentication Dial In User Service, which provides authentication for government, military, and large private firms. Every time device receives login attempt, it requests authentication from central RADIUS server. Since all authentication requests are handled by central server and not devices, updating user profiles and access permissions is done in one place.

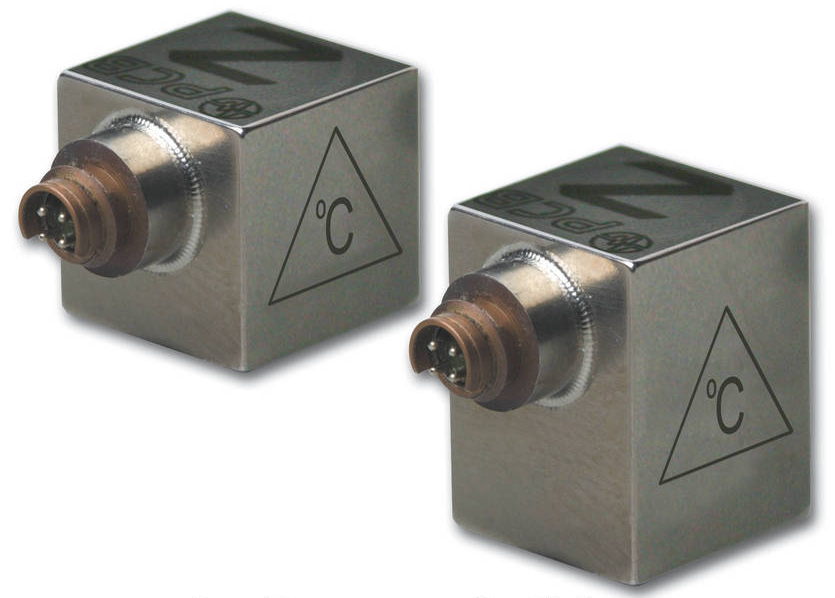

PCB Piezotronics Inc.    Depew, NY 14043 2495
Jun 02, 2009 With operating temperature range from -54 to +163°C and temperature coefficient of less than 0.0125%/°F, Series 339A Triaxial ICP® accelerometers are suitable for powertrain testing, NVH, road load data acquisition, and durability testing in climatic chambers. They have built in low pass filter, and are available in stud and adhesive mounting configurations.

austriamicrosystems AG    Premstatten   Austria
Jun 02, 2009 Available in small TSSOP 14 package, AS5163 operates at 5 V supply voltage and offers up to 14-bit resolution on single-wire output. IC can be programmed to measure full rotational angle over 360° or user-defined fraction of it, while output can be configured either as 14-bit digital, 12-bit PWM, or analog. Suited for automotive applications such as throttle and flap systems or gas-pedal units, device incorporates +27 V overvoltage and -18 V reverse polarity protection at its output.

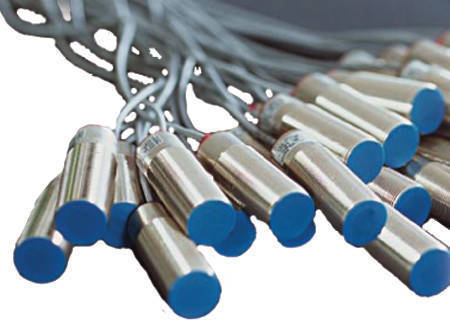

Automation Systems Interconnect Inc.    Mechanicsburg, PA 17055
Jun 02, 2009 Featuring sizes ranging from miniscule 4-30 mm, inductive sensors are available in short-housing models with option of square or rectangular shape. They offer choice of NAMUR, AC/DC, NPN or PNP output, NO or NC output, and programmable output, and come with 2, 3, or 4-wire, connector or cable, with 360° LED indicator. Choice between shielded or unshielded sensors is available for high-heat and standard applications.

Siemens Water Technologies    Warrendale, PA 15086
Jun 02, 2009 Designed for industrial equipment or processes, Link2Site Flex combines web-based user interface with coverage of cellular networks. Operators can view and monitor key process information contained within PLC from anywhere at any time, in real-time, using web browser and Internet connection. Operators can also change operating setpoints, be notified of out-of-bounds operation, view historical trends, and download process data for further analysis, all from Link2Site website.

Allegro MicroSystems Inc.    Worcester, MA 01615
Jun 02, 2009 Incorporating dual-element, Hall-effect sensor and signal processing that switches in response to differential magnetic signals created by ferrous target, ATS682LSH provides true zero-speed, digital gear-tooth sensing in two-wire applications. Running-mode calibration allows immunity to environmental effects such as micro-oscillations of sensed target at start-up or sudden air gap changes. Offered in SH magnetically integrated package, device can used with range of gear shapes and sizes.

New Scale Technologies    Victor, NY 14534
Jun 01, 2009 TRACKER(TM) position sensor is noncontact, magnetic unit suited for optical imaging stabilization and zoom in digital/phone cameras and binoculars. It does not require light source and is insensitive to external light. Operating from supply volage of 3-3.6 Vdc, on-chip encoder provides direct digital output using standard I2C protocol. It is offered in TSSOP or dice-on-foil versions as well as chip-on-board and miniature wafer-level chip scale packaging as small as 2.5 x 3.9 x 0.6 mm.

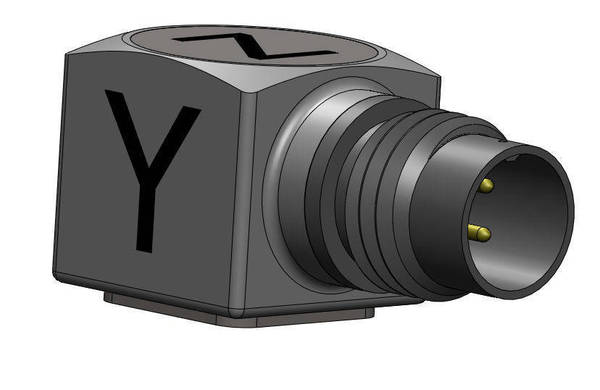

Dytran Instruments, Inc.    Chatsworth, CA 91311
Jun 01, 2009 Weighing only 3 gm, Model 3023M27 has footprint of 0.36 x 0.36 in., sensitivity of 10 mV/g, and features 4-pin radial connector. Labels of axes X, Y, and Z are laser marked in large font size on 3 orthogonal faces aiding user in orienting sensor. Adhesive mount unit is suited for use in modal analysis, noise vibration and harshness (NVH), Environmental Stress Screening (ESS), and general purpose triaxial vibration applications where space is at premium.

Strasbaugh    San Luis Obispo, CA 93401
May 29, 2009 Designed for IPEC 372 and 472 Chemical Mechanical Polishing systems, nVision II Optical Endpoint Detection Upgrade monitors optical, motor current, and pad temperature signals to determine precise endpoint for both metal and thin film CMP applications in semiconductor, data storage, and MEMS manufacturing markets. System includes intuitive software with full color GUI, endpoint recipe creation and implementation, and signal filtering flexibility.

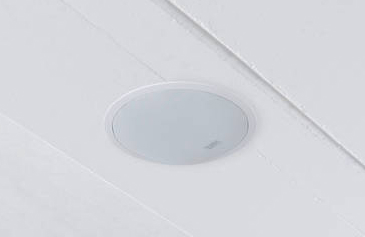

Bosch Security Systems    Fairport, NY 14450 9199
May 28, 2009 Premium-sound Ceiling Loudspeaker series meets music and speech reproduction requirements of public address systems. Equipped with waveguide-coupled, titanium-coated dome tweeter and housed in integrated, fully-ported enclosure, flush-mount and EVAC-compliant loudspeakers can accurately reproduce full audio spectrum. Choice of drivers includes full-range units in 4, 8 and 12 in. sizes with power ratings of 30 and 60 W. Optional 10 in., 60 W subwoofer is also available for extra bass.

SICK, Inc.    Minneapolis, MN 55438
May 28, 2009 Targeting quality control applications in automotive, robotics, and electronics/semiconductor markets, OD Value Series uses CMOS technology, which allows measurement of targets regardless of color or reflectivity. Stand-alone units include bar graph display for installation and maintenance. Variety of sensing ranges and 4 different output styles are available.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
May 28, 2009 Available with pushbutton configuration, inclination sensors are designed to detect and measure incline or tilt angle of machine elements or equipment platforms in single or dual axis applications, from 0° to 360° with accuracy of ±0.5°. They come with metal mounting brackets, outdoor IP68/69k rating and 4-20 mA or 0-5 Vdc analog outputs. Other features included are power supply range between 10-30 Vdc, 2 adjustable switching outputs and operating temperature ranging from -25°C to 85°C.

Renco Encoders, Inc.    Goleta, CA 93117
May 28, 2009 Designed for motion control industry, RE209 and RE210 kit encoders feature axial or radial orientated shrouded connector to protect contacts from inadvertent short circuiting. Including incremental channel resolutions from 100-5,000 ppr, units provide ABZ outputs and commutation signals for 2 or 3 phase motors.
