Emerson Process Management    Austin, TX 78754
Aug 25, 2009 Intended for SIL 2 safety instrumented systems, Rosemount® 5300 Guided Wave Radar (GWR) level transmitters come with required Failure Modes, Effects, and Diagnostic Analysis (FMEDA) report. Latter shows Safe Failure Fraction (SFF) over 90% and SIL 2 suitability. Two-wire GWR technology meets challenging level and interface measurements on liquids, slurries, and solids, while additional features facilitate integration into new/existing control systems.

Detroit Precision Hommel    Rochester Hills, MI 48309
Aug 25, 2009 Featuring dual-tip scanning system and ±1,500 µm measuring stroke, Hommel-Etamic Roundscan permits automatic measurement of form and roughness in one pass. System can handle parts up to 540 mm dia, 900 mm in height, and up to 100 kg. Positioning probe tip anywhere on workpiece, CNC-controlled rotation and tilt module guarantees measurements can be made automatically at any measurement position. Low friction guides on measuring axes also enable profile and waviness parameters to be evaluated.

Control Co.    Houston, TX 77258 8307
Aug 25, 2009 Available in 3 different units, Traceable® vane anemometer pens provide for airflow, temperature, humidity, dew point, and barometric pressure. Units come with o-ring seal and membrane keypad to keep out dust and dirt, and HOLD button to freeze reading on display. Available in rugged ABS plastic case measuring 1½ x 8¼ x 1½ in. and weighing 6 oz, they can recall minimum/ maximum readings. Applications include laboratories, manufacturing, petroleum, and pharmaceutical industry.

Analog Devices, Inc.    Norwood, MA 02062-9106
Aug 25, 2009 Operating with input frequencies from 50 kHz to 80 MHz, AD9552 Oscillator Frequency Upconverter provides ultra-low jitter of under 0.5 ps. Fractional-N PLL-based unit can generate almost any output frequency up to 900 MHz for applications such as HDTV, data acquisition, and wireless basestations. Featuring loop-filter bandwidths as narrow as 1 mHz, AD9547 Clock Synchronizer generates output clock that synchronizes to 1 of 2 differential or 4 single-ended external input references.

American Aerospace Controls, Inc. (AAC)    Farmingdale, NY 11735
Aug 25, 2009 Available for differential and ground fault current monitoring, space flight Series S 767 and military grade Series 913 B provide isolated analog output directly proportional to input magnetically. Featuring ½ in. aperture, Series S 767 operates on 22-36 Vdc power with response time of 50 ms. Series 913 B, designed with ¾ in. aperture, operates from 24-32 Vdc power with response time of 1 ms. Both chassis-mount series feature 0 to +5 V output and accuracy of 1% FS.

Clark Solutions    Hudson, MA 01749
Aug 24, 2009 Equflow Sensors are available in 2 models with flow ranges of 0.03-2.0 and 0.3-20 Lpm, with accuracy of 1% of reading and 0.15% repeatability. Designed for monitoring and controlling fluid flows in medical and pharmaceutical applications, sensors feature ultra lightweight rotor that generates high resolution IR reflected digital output signal. Disposable units can be sterilized to 140°C and are gamma radiation resistant up to 50 kGy. Wetted materials are PVDF with ruby bearing.

Johnson Controls GmbH    Burscheid 51399  Germany
Aug 24, 2009 Using one directly integrated antenna, direct-measuring TPMS will detect and report any tire pressure loss as small as 70 mbar within 10 sec during journey or as soon car is started after being parked. Automatic localization of tire pressure sensors enables drivers to change wheels containing TPMS technology. Adaptive auto-learn capability detects wheels' sensor positions and eliminates need for manual learning procedure. New set of tires can be localized within 2-3 min.

GAO Instruments Inc.,    Toronto   Canada
Aug 24, 2009 Utilizing Time Domain Reflection technology along with analysis software, Model A0500007 tests underground cables to discover impedance break points in HFC systems and then locate/reveal cable damages, tie-in dampness, and terminal impedance failure. It can accurately test 25, 50, 75, and 100 W impedance cables at lengths of up to 2 km. Electronic map relevant to time domain picture aids in easy detection of faults and LCD screen displays time domain reflection.

Norbar Torque Tools, Inc.    Willoughby, OH 44094
Aug 21, 2009 Powered by Torque Data Management System (TDMS) software, T-Box incorporates torque measurement, calibration, data archiving, and management capabilities. It analyzes torque tool performance/joint characteristics and supports connection of up to 4 SMART transducers. Set-up is accomplished through touch-screen prompts, and software can prompt return of tools at required re-calibration interval. Connectivity is fostered via 2 USB ports, one RS232 serial port, and ancillary connection.

DEK    Rolling Meadows, IL 60006
Aug 21, 2009 Paste Roll Height Monitor features lasers to detect presence of solder paste and Instinctiv® V9 user interface to simplify setup. Unit includes 2 sensors that sit on either side of squeegee blade framework support. Light curtain detects solder paste presence or absence and device sends signal to printer, which reads conditions as normal when paste breaks light beam. Automatic paste dispenser option is available for high-volume applications.

Crossbow Technology Inc.    San Jose, CA 95134
Aug 21, 2009 Interfacing with eKo Node via one port, ES2000 Weather Sensor Suite provides growers with access to vital information regarding conditions affecting their environment. Users can monitor real-time conditions as well as predict weather patterns that may affect their crops. Solar powered solution combines functionality of rain collector, temperature/humidity sensors, and anemometer (wind speed/direction) while also detecting solar radiation and barometric pressure.

Crossbow Technology Inc.    San Jose, CA 95134
Aug 21, 2009 Environmental Sensor Bus (ESB®) development platforms employ plug-and-play architecture that lets users add range of sensors to eKo system in order to customize system functionality. Miniaturized and solar-powered, eKo outdoor wireless monitoring system enables users to set up wireless communication infrastructure that can be customized to meet specific application deployment needs by integrating smart and custom sensors for unique requirements.

Huntingdon Fusion Techniques-USA Inc.    Melbourne, FL 32936-1175
Aug 20, 2009 Argweld® Weld Purge Monitor, MKV version, provides welders and QC personnel with information about Oxygen content in vicinity of weld joints. This allows optimization of welding conditions while minimizing rejects as well as gas and time consumption. Each monitor comes with stainless steel sampling probe, 2 m length of rubber hose, vacuum sampling hand pump, and carrying strap. It can be used to continuously monitor oxygen level and check purge gas quality at frequent intervals.

GAO Instruments Inc.,    Toronto   Canada
Aug 20, 2009 Featuring output power of 1.8 mW, 650 Nm visible laser source model A0680001 detects breaks and micro-bends for jacketed fibers, and locates faults at distance of up to 5 km from source. It has FC adapter compatible with SC and ST connectors, works continuously for 25 hr on single charge, and has auto-off timer. Handheld device is suited for testing fiber optic, telecom and CATV networks, and for fiber identification in ribbon or bundled fiber optic pigtails during installation.

Turck USA    Minneapolis, MN 55441

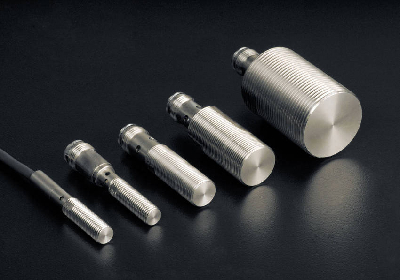

Aug 19, 2009 Available in 8, 12, 18, and 30 mm barrel diameters, ArmorGuard(TM)+ Sensors come in 2- and 3-wire DC models with stainless steel front face and achievable sensing distances from 1.5-10 mm. Select sensors are available with WeldGuard(TM) protective sensing face material, which resists weld slag build-up and abrasion found in robotic welding applications. Featuring one-piece construction, sensors come equipped with M12 quick disconnect or potted-in 2 m cable.

City Technology Ltd    Portsmouth PO6 1SZ  United Kingdom

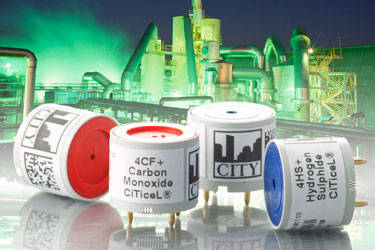

Aug 19, 2009 Designed for detecting carbon monoxide and hydrogen sulfide, respectively, 4CF+ and 4HS+ are suited for use in single and multi-gas detection instruments for life safety applications. Gold plated pins reduce contact resistance with socket, ensuring performance in applications involving shock or vibration.

CO2Meter    Flint, MI 48503-3258

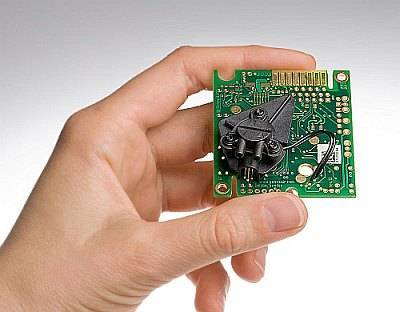

Aug 19, 2009 K-33 indoor/outdoor, low-power sensor can store up to 5,400 data points in on-board memory for later download and analysis. With sleep mode enabled, sensor can be powered by 4 AA batteries and remotely record atmospheric conditions for weeks or months. For rapid application prototyping or scientific experiments, SDK enables I2C, UART, analog, and digital outputs via USB connection. Software also allows user to read sensor data log and program parameters for custom applications.

Honeywell    Golden Valley, MN 55422 3935
Aug 19, 2009 Capable of capturing wide range of tank measurements, FlexLine Wireless Radar Gauge transmits collected data via OneWireless(TM) network to control rooms, helping process manufacturers to monitor tank levels and prevent hazardous incidents in their plants and terminals. Gage can also track temperature, pressure, water, and overfill, eliminating need for multiple gauges and transmitters. Product meets accuracy and security standards of Dutch Weight and Measurement (W&M) authority.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Aug 18, 2009 Featuring sensing elements housed within rugged, lightweight, aluminum and weighing 1.4 g, Model 7264G features full bridge with 2 fixed resistors to facilitate shunt calibration. In-built sensor delivers shock resistance of up to 10,000 G in any direction, with range of +2,000 G full scale. Full scale output is 400 mV with 10 Vdc excitation. With frequency response extending down to DC and integral mechanical overrange stops, device is suited for any crash or shock application.

ifm efector, Inc.    Exton, PA 19341
Aug 18, 2009 Available with transmitter and receiver in single housing, optical fork and angle sensors suit packaging and material handling applications. Fork housings are available with slot widths ranging from 10-120 mm, and angle widths in 60 and 100 mm. Visible red light beam across slot width helps in setup, and potentiometer aids adjustment of sensitivity. Light-on/dark-on mode is selectable via rotary switch for application, while integrated thru holes enable quick mounting without brackets.
