PCT International Inc.    Gilbert, AZ 85233
Nov 05, 2009 Battery Testing and Charging System helps cable system operators test, re-charge, and redeploy batteries from EMTA deployments. Comprised of servers, testing software, and tester/charger, system can be stacked to service up to 192 batteries in one 19 in. rack. It provides complete testing and battery charging linearity test for 2-, 3- and 4-cell battery packs. System can also plot minute by minute charging reports; provide current and voltage curves; and test power drain linearity.

Invensys Systems, Inc.    Foxboro, MA 02035
Nov 05, 2009 Foxboro® PH12 Series high-performance, disposable pH sensors feature PEEK material body that optimizes durability. Electrochemical sensors include Nafion ion barrier to protect reference junction and nonmetallic solution ground which enables addition of efficient sensor diagnostics. Temperature performance range is from -15 to +125°C and rugged units are also chemical-resistant. Sensors are available with flat, ruggedized glass pH electrode or domed pH electrode.

Bosch Sensortec    Reutlinge 72770  Germany
Nov 04, 2009 Utilizing 14-bit measurement dynamic, triaxial BMA180 acceleration sensor can sense accelerations of 0.00025 G and tilt changes in field of gravity of 0.25º. Technical characteristics are programmable, including measuring range from 1-16 G in 7 steps, sensitivity, offset, TCO, and TSO, even during operation. Automatic zero balancing functions offer residual zero-G offset at below 5 mG, while offset temperature drift is 0.25 mG/K. Unit is contained in 3 x 3 x 0.9 mm LGA housing.

Casella USA    Amherst, NH 03031
Nov 04, 2009 Dust Detective is optional environmental enclosure kit that, with Casella Apex Lite sampling pump, allows Microdust(TM) Pro real-time dust monitor to run for up to 19 hr continuously in field. Kit can be used in site surveys, providing both gravimetric and real-time dust data for accurate safety evaluation and reporting purposes. It is available separately and as complete kit with dust monitor, pump, and carrying case.

E Instruments International LLC    Langhorne, PA 19047

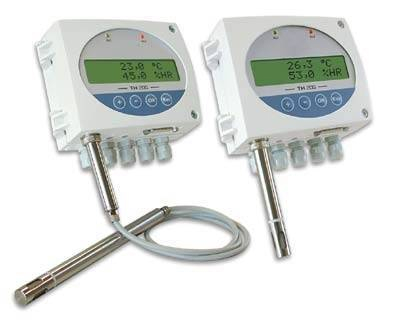

Nov 04, 2009 Suited for pharmaceutical and industrial applications, Model TH200 includes functions for relative and absolute humidity, dew point, wet and dry temperature, and enthalpy. Unit offers measuring ranges of 0-100% RH and -40 to +356°F with accuracy as tight as ±1.5% RH and ±0.3% Rdg ±0.45°F with resolution of 0.1% RH and 0.1°F/°C. Enclosed in IP65 ABS housing with or without 2-line backlit display, it provides simultaneous display of 2 parameters and includes visual and audible alarms.

AVL North America, Inc.    Plymouth, MI 48170
Nov 04, 2009 Consisting of partial-flow dilution system that measures particulate pollution, Smart Sampler 478 offers global tool for certification of diesel engines. Dual-cabinet design can be split in 2 sections, permitting user to keep one section close to engine and another in remote location. CFR1065 compliant for steady state and transient tests, portable Smart Sampler 478 provides continuous monitoring of progress throughout test and notifies user of potential problems.

Arch Rock Corporation    San Francisco, CA 94105-4120
Nov 04, 2009 Utilizing PhyNet(TM) non-disruptive IP-based wireless sensor network technology, Arch Rock Energy Optimizer-Data Center Edition measures both power and cooling system efficiency in data centers. Managers can baseline data center against ASHRAE benchmarks; identify factors that cause energy waste, hot spots, or other harmful conditions; and optimize available capacity for new servers based on actual electrical/cooling consumption of equipment.

E Instruments International LLC    Langhorne, PA 19047
Nov 04, 2009 Portable AMI300 supports various interchangeable probes and modules to accommodate any indoor air quality (IAQ) application. In addition to CO/temp and CO2/temp probes with 1 ppm resolution and respective ranges of 0-1,000 and 0-5,000 ppm, multifunctional unit operates with probes for CO2/temp/humidity, air flow (vane and hot wire), and air velocity. Current/voltage and thermocouple modules are also included, along with tachometer, LCD, and IP54-rated ABS shock-proof housing.

austriamicrosystems AG    Premstatten   Austria
Nov 03, 2009 Operating from 3.3 or 5 V supply up to 150°C, dual die AS5245 targets safety-critical automotive applications such as pedals, transmission, and steering wheels. Fail-safe magnetic rotary encoder IC delivers on-chip diagnostics and phase matching capabilities. Digital angle data is provided as serial interface or PWM signal, and incremental quadrature output mode with interpolation algorithm can be enabled and permanently programmed with 10- or 12-bit resolution.

Advantech Automation Corp.    Cincinnati, OH 45240
Nov 03, 2009 Supplied in fanless, rack-mount, 2U chassis, ITA-2000 is designed for centralized management and remote monitoring of rail transport systems. This 1.6 GHz Intel® Atom(TM) N270 CPU-based system, featuring various I/O connectors and all-in-one motherboard, supports various embedded and real-time operating systems. Designed to resist vibration, solution also supports 100-240 Vac, 47-63 Hz or 110-220 Vdc input as well as 3.5 or 2.5 in. SATA HDD data storage options.

E Instruments International LLC    Langhorne, PA 19047
Nov 03, 2009 Featuring ABS shock-proof housing with IP54 dust protection, Model AQ200 includes CO2 sensor measuring 0-5,000 ppm and CO sensor measuring 0-1,000 ppm. Multifunctional unit also measures temperature, atmospheric air pressure, and humidity. Equipped with 2-line ICE BLUE LCD display, tester provides Min/Max/Hold/Unit Selection, 8,000 memory points, and wireless communication.

Paine Electronics, LLC    East Wenatchee, WA 98802
Nov 03, 2009 Suited for extreme downhole oilfield applications and specifically designed for high cycle and high pressure applications requiring accuracy, stability, and long term performance, 212-40-010 Series pressure and temperature transducers are offered in pressure ranges from 0-5,000 to 0-30,000 psia and operate at temperatures from -40°F to +400°F. They can be provided with alternate pressure port fittings and electrical connections.

Paine Electronics, LLC    East Wenatchee, WA 98802
Nov 03, 2009 Temperature compensated bi-directional full-line differential pressure transducers in 210-60-200 Series operate at temperatures from -65 to +250°F in pressure ranges of 0-15 to 0-250 psid and have thermal zero shift of ± 0.02% of full scale output per °F. Units are suited for variety of fluids and gases typically found in flow, filter and pump head monitoring as well as liquid level measurement in process control equipment.

Paine Electronics, LLC    East Wenatchee, WA 98802
Nov 03, 2009 Designed for direct media stream immersion, 311-38-540 pressure and temperature combination series comes in pressure ranges from 0-5,000 to 0-30,000 psia, operates at temperatures from -40°F to +425°F and is available with Vdc output and accurate to 0.02% F.S. Product can be offered with alternate port fittings and electrical connections.

Calex Electronics Limited    Bedfordshire   United Kingdom
Nov 03, 2009 PyroBus series of infra-red pyrometers measure temperature of inaccessible or moving objects and materials, from -20°C to 500°C, accurately, with response time of 240 msec. Built-in RS485 Modbus RTU interface provides maximum, minimum, average and instantaneous temperature of material or process being monitored. Units measure 18 mm in dia and 103 mm long and are made of polished stainless steel, sealed to IP65. They come equipped with precision Germanium lenses for accurate optics.

ROHM Semiconductor USA LLC    San Diego, CA 92121
Nov 03, 2009 Responding to demand for accelerated internal transmission speeds in mobile phones, BH1780GLI digital brightness sensor IC supports the I²C bus Hs (High-speed) mode for optimized internal signal transfer rate of 3.4 Mbps. Integral ADC offers 0-65,535 lux output range (1 lux increments) for measuring ambient light, and spectral sensitivity characteristics are similar to human eye. Other features include 50/60 Hz optical noise elimination function and ±20% sensitivity variation.

ROHM Semiconductor USA LLC    San Diego, CA 92121
Nov 03, 2009 Integrating photodiode for detecting visible light with photodiode for IR light detection, Model BH1771GLC enables proximity sensing from 1-10 cm and brightness from 0-65,000 lux. Monolithic optical sensor includes touchless motion detection function, whereby up to 3 IR LEDs are driven and phase difference of reflected light from each LED is detected to determine direction of movement of reflecting object, making it possible to operate display panel without touching it.

AEMC Instruments    Foxborough, MA 02035
Nov 02, 2009 Composed of flexible sensor and electronic module, MiniFlex(TM) MF 300-6-2-10 and MF 3000-10-2-1 have mV output proportional to current measured for direct readings on DMMs, data loggers, oscilloscopes, and power or harmonic meters. Units are insensitive to DC currents and only AC component of signal is measured. Available in 6 and 10 in. lengths, sensors are insulated for 1,000 V CAT III; 600 V CAT IV. Electronic module provides Off-Low Range-High Range selections with measurements from 0.5-3,000 A.

Dwyer Instruments, Inc.    Michigan City, IN 46361

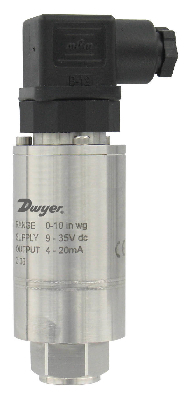

Nov 02, 2009 Using capacitance technology, Series 672 is designed to measure pressures from 10-400 in. wc. Single-connection pressure transducer also features 0.25% FS accuracy in either 4-20 mA or 0-5 Vdc outputs. Supplied in stainless steel housing for use in general-purpose applications, unit is specified over -40 to +212°F range and designed for long-term service and stable operation in demanding applications. Response time is 5 ms.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317
Oct 30, 2009 Able to measure 3 variables as well as provide mass and energy flow output, Rosemount® 3051S Multivariable(TM) transmitter provides full compensation of over 25 different parameters. Engineering Assistant(TM) software facilitates setup, and flow measurement is updated 22 times/sec so users can track production, demand, and total usage for process gas, steam, and natural gas. Rosemount primary element (3051SF), single pipe penetration, compact orifice, and integral orifice versions are available.
