Ophir-Spiricon Inc.    Logan, UT 84321
Feb 02, 2010 Available in 4 models, PD300-R Circular Photodiode Sensors feature round geometry and SM-1 threads for mounting/centering on collinear optical bench systems. They include filter that minimizes light level on detector and allows for measurements up to 30 mW without saturation, while second, removable filter allows measurements up to 3 W. Low-noise energy detectors measure wavelengths up to 1,800 nm and work with all Ophir smart meters and PC interfaces.

Integrated Device Technology, Inc.    Santa Clara, CA 95054
Feb 02, 2010 Targeting DDR2/DDR3 memory modules, as well as SSDs and computing motherboards, TS3000B3 and TSE2002B3, with integrated 256-byte EEPROM array, measure local temperature of various subsystems in computing systems. Products enable system controllers to respond if temperature rises above pre-determined levels by adjusting system bandwidth, memory refresh rates, or fan speeds. Sensing accuracy is ±1°C over -20 to +125°C range, and full support is provided for SMBus and I²C interfaces.

HD Electric Co.    Waukegan, IL 60085
Feb 01, 2010 Designed to read voltage on conductor from 0.1-500 kV line-to-ground, direct contact DVI-500 displays voltage on large 3-digit ultra-bright LED display. Compact unit provides audible indication when voltage is detected, allowing user to distinguish between nominal and induced voltages. Display is easy to read on end of long hotstick and can be used on overhead lines or in underground applications.

Control Co.    Houston, TX 77258 8307
Feb 01, 2010 Facilitating unattended filling of any container, Liquid Alarm detects when containers are close to overfilling, and sounds high-decibel alarm and flashes red LED light until liquid no longer touches sensor. It can also be placed on floor to detect spills and can be used with aqueous solutions and liquids that don't attack plastic. Measuring 1 13/16 x 3 x ¾ in. and weighing 2½ oz, battery operated unit can alarm constantly for 30 hr and comes with 10 ft long cable and 9 V battery.

Sherborne Sensors Limited    Hampshire RG21 6YH  United Kingdom

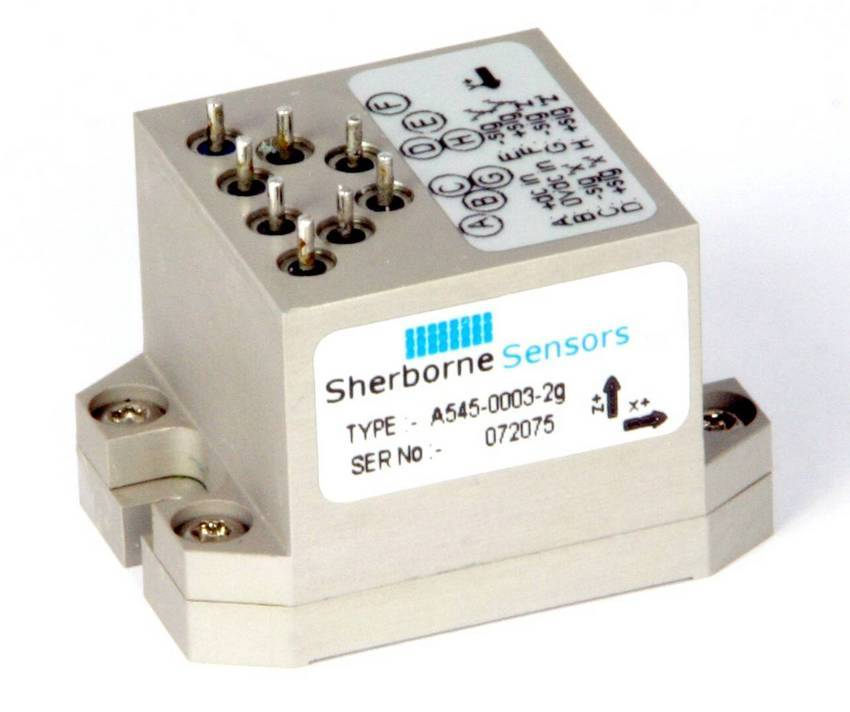

Feb 01, 2010 Available with single, biaxial, and triaxial measurement capabilities, A545 series solid state accelerometers feature advanced MEMS sensor, incorporating air damping. They feature lightweight alloy package with solder pin connectors and provide shock resistance and over-ranging protection. Designed to operate from unregulated DC power source, units have usable frequency responses from DC to several kHz. Applications include DAQ systems, crash testing, and structural surveying.

E+E Elektronik GmbH    Engerwitzdorf A-4209  Austria

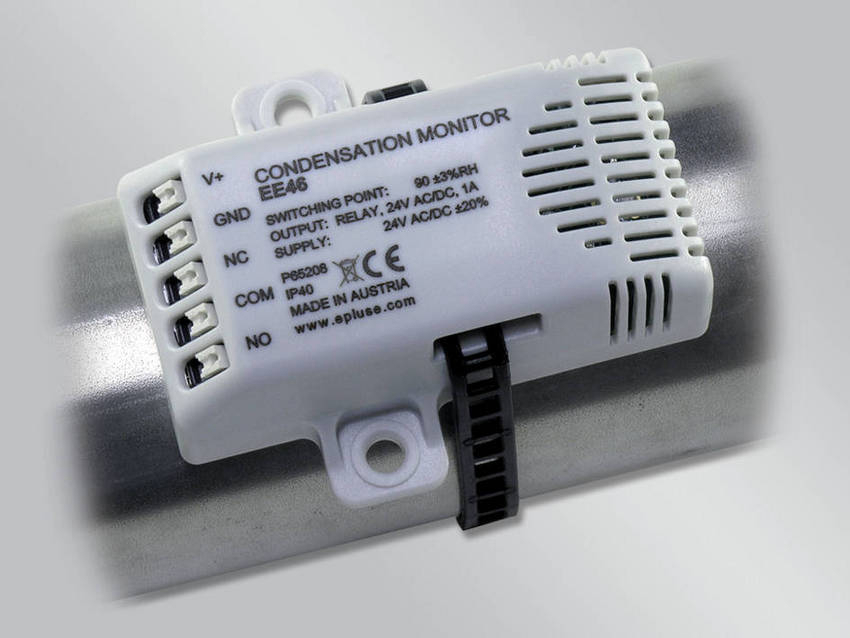

Feb 01, 2010 EE46 serves as early alarm system against forming of moisture in HVAC and technical installations that operate close to dewpoint temperature. Able to be installed on pipelines, walls, and ceilings, sensor is exposed to temperature of surface of unit via thermal conducting foil; if 90% RH is exceeded, EE46 provides both signal and LED indication to alert users of situation. Device is powered by 24 Vac/dc .

Omron Scientific Technologies Inc.    Fremont, CA 94555
Feb 01, 2010 Sensorless G9SX-SM monitors standstill status for machines with varied hazardous part stop times. Device detects back electromagnetic force generated when motor rotates to determine whether motor is rotating or in standstill condition. System operates on 24 Vdc, but can monitor motors up to 480 Vac. Available with spring-cage or screw terminal blocks, it provides 3 safety standstill detection outputs and 2 auxiliary outputs. Detailed LED indicators enable fault diagnosis.

QuadTech, Inc.    Maynard, MA 01754
Feb 01, 2010 With Hybrid 2000 4-Wire, companies can test multiple components and automate sub-testing. DCR Balance feature compares resistance within test and compares each point to one another. If failure occurs during multi-point test, Hybrid 2000 uses sub-step feature to automatically re-test each point individually and determine where failure is. Optional temperature compensation eliminates manual recording and testing of multiple limits due to temperature dependency.

Dytran Instruments, Inc.    Chatsworth, CA 91311
Jan 29, 2010 Model 3092C piezoelectric charge output accelerometer is designed for use in vibration studies in high-temperature environments. Operating in temperatures from -60 to +900°F, unit has nominal sensitivity of 5 pC/g and upper frequency range of 5,000 Hz. It features 10-32 radial connector, 10-32 mounting hole, stainless steel construction, and hermetic seal and mates with Model 6894AXX hardline cable assembly.

ifm efector, Inc.    Exton, PA 19341
Jan 29, 2010 Housed in cube-shaped, 32 x 30 x 42 mm package, Model PQ7809 offers measuring range of -14.5 to 14.5 psi, while Model PQ7834 measures from -14.5 to 145 psi. Units feature 2 programmable switching outputs or 1 switching output and 1 diagnostic output. Based on piezo-resistive technology, silicon measuring cell is insensitive to liquids and deposits and provides accuracy of ±0.5%. Sensor can be connected to air lines through G-1/8 port using 6 or 8 mm tubing adapter or 1/8 in. NPT adapter.

Valco Instrument Co., Inc.    Houston, TX 77255

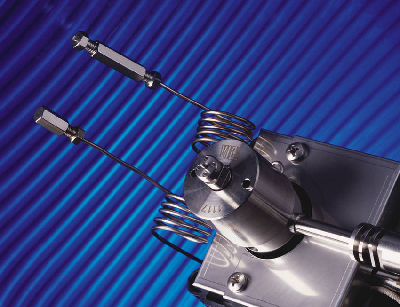

Jan 28, 2010 Designed for plug-and-play installation on Agilent 6890 and 7890 GCs, Model D-3 is optimized for trace level work in helium photoionization mode, and utilizes electronics and power supply of host GC. System includes detector cell, pulser, and FID board, plus standard and mini helium purifiers for optimal sensitivity. Suitable for use with columns from 50 micron capillaries to 1/8 in. packed, Model D-3 is non-radioactive and non-destructive.

Baumer Ltd.    Southington, CT 06489 1534

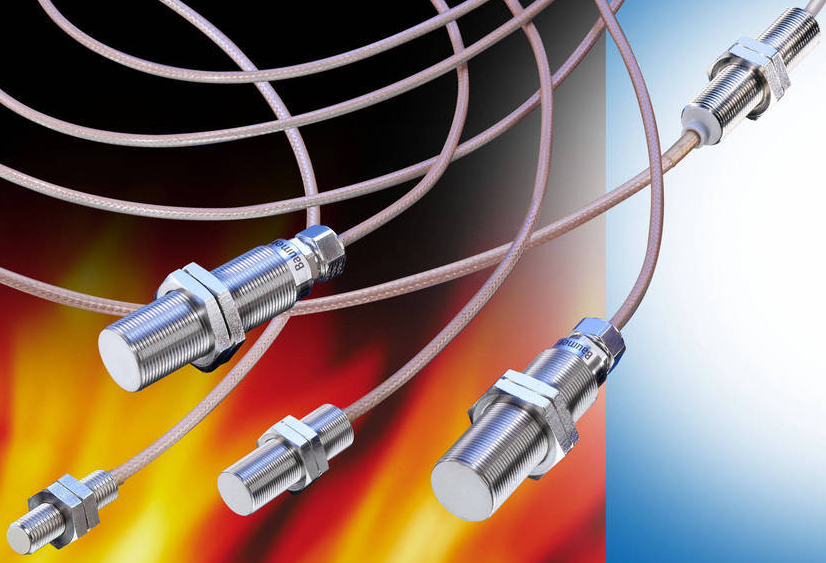

Jan 28, 2010 Intended for flush-face installation, IP67-rated IFRH Series consists of 2-part proximity switches available in M8, M12, and M18 designs with chromium nickel steel housings. Overall length is 30 mm, and nominal switching distance ranges from 1.5-5 mm depending on housing size. Used in process and OEM applications, inductive high temperature sensors survive -25 to +180°C conditions and feature FEP jacketed cable that connects temperature-sensitive processing electronics to sensor head.

Seiffert Industrial    Richardson, TX 75081
Jan 28, 2010 With Trummeter Pro, users can measure belt tension of pulley-driven transmissions and adjust it accordingly. Device displays tension reading and also indicates if tension is too high or too low. When user induces slight vibration on drive belt, meter will detect vibration and estimate natural frequency of belt assembly. Together with belt mass and length of free belt strand, true force is calculated. Optional evaluation software lets user store and report measured values.

Masoneilan Division, Dresser Flow Solutions    Avon, MA 02322
Jan 28, 2010 Integrating level transmitter, controller, and switch functions in single device, 12400 Series provides process control for refining, petrochemical, and energy industries. Unit includes smart filtering, HART® communication protocol compatibility, optional 4-20 mA analog output, and ability to record and store recent data continuously in non-volatile memory. Controller meets SIL2 compliance and is certified in full hazardous areas, including ATEX, IECEx, FM, and FMc/CSA.

RAE Systems    San Jose, CA 95134
Jan 28, 2010 MeshGuard system, suitable for gas detection in stationary applications, is designed for use in hazardous industrial locations. Wireless system is available as system component or as preconfigured Rapid Deployment Kit. Kit includes FMC 2000 wireless controller, which supports up to 24 sensors and includes wireless modem that communicates with each. It also integrates routers, battery-powered monitor, and accessories such as FA-200 Alarm Bar and rechargeable RAE Power Pak.

Pepperl + Fuchs, Inc.    Twinsburg, OH 44087 2245
Jan 27, 2010 With sensing range of 600 mm, DK50-UV Luminescence Sensors provide means of error checking, sorting, measuring, and positioning materials that blend into background or are invisible. Small focal point of light spot means that even small parts such as O-rings and pin-point leaks can be detected down to 2.2 mm diameter targets. Offering 4 automatic teach modes, sensors include output mode toggle, integral timer, and 8-segment LED display that indicates luminescent signal strength.

Green Edge Systems, Inc    Woodland Hills, CA 91364
Jan 26, 2010 Intended for use by school food services, Freshloc HACCP Wireless Temperature Monitoring Systems reads temperatures every minute, up to 1,440 readings daily, to keep schools fully compliant with USDA guidelines. Dashboard allows monitoring of entire district, organized by location, type of equipment, or both, from one screen. With one click, users can review any alert and its actual status, reconfigure any sensor or group of sensors, generate report, and more.

Stellar Technology, Inc.    Amherst, NY 14228
Jan 26, 2010 Constructed of stainless steel, Model LPS60X AC/AC LVDT is designed for precision displacement and position measurement for quality assurance applications in industrial environments. Unit measures displacement from ±0.02-±0.2 in., with 0.25% linearity, and infinite resolution. Model features 6 ft integral polyurethane insulated cable, resistant to oils and chemicals. Mounting brackets, alternative electrical connectors and variety of probe tips are optionally available.

Setra Systems, Inc.    Boxborough, MA 01719
Jan 26, 2010 With compensated temperature range between -20 and 65°C and operating temperature range from -40 to 75°C, model 470T digital pressure transducer suits weather observation applications in extreme environmental conditions. Utilizing Setra's Setraceram (TM) sensor, and advanced digital electronic circuitry, microprocessor based instrument achieves system accuracy of better than +0.02% full scale, in pressure ranges from 0 to 10, 20, 50, and 100 psia; 600-1,100 or 800-1,100 mbar.

Axiomatic Technologies Corp.    Mississauga, ON L4Z1Z8  Canada
Jan 25, 2010 Providing output via CAN bus, RS232 port, or as three 0-5 V signals, IP67 rated AX06025X series measures inclination angle in 2 orthogonal sensing directions in range up to ±90º, or in one direction ±180º when installed vertically. Series also supports SAE J1939 CAN interface (AX0602XX), which is configurable using Axiomatic Electronic Assistant® programming tool. All units are packaged with M12x2 5-pin connectors or M12 x1 5-pin. Mating plug with CAN termination resistor is available.
