Honeywell International, Inc.    Morristown, NJ 07960
Feb 16, 2010 Model HPW7000 High-Purity Water Measurement System also features oxidation reduction potential (ORP) measurement, which is key parameter for minimizing corrosion in power plant equipment such as turbines and piping. With ORP electrode, plant chemists, managers, and engineers can accurately see oxidation levels in systems where conductivity of water samples is less than 10 microsiemens/cm. System's flow chamber and electrode mounting simplifies installation and calibration.

Piher International Corp.    Libertyville, IL 60048
Feb 16, 2010 Operating from -40 to +150°C, non-contact Model PSC-360's switching point can be programmed at any angle and can also be used as indicator for multi-turn applications. Hall Effect magnetic sensor incorporates on and off positions that provide secondary position verification for optimal safety. With fully sealed magnet and electronics encapsulated in molded plastic, IP67-rated unit is impervious to humidity. Sensor provides 0.5% accuracy over 360° and ±1% absolute linearity.

Motor Protection Electronics, Inc.    Apopka, FL 32703

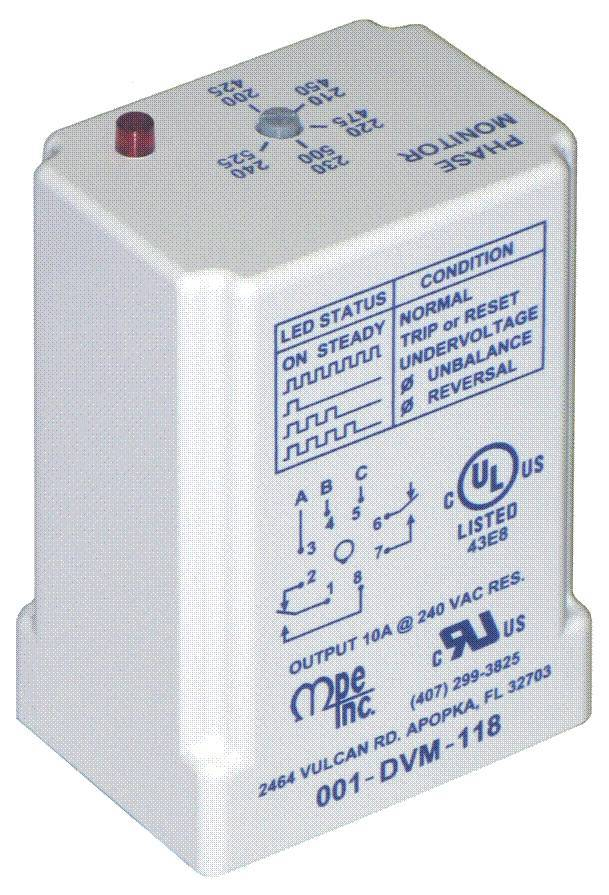

Feb 15, 2010 Dual Voltage Phase Monitors, available in 2 plug-in styles, are auto-ranging units that protect against under voltage, phase reversal, phase loss, and phase imbalance. Options include over voltage protection and 5 Delay on Operate time delays. Acting as diagnostic tool, 8-pin 001-DVM-118 and 12-pin 001-DVM-1212 use LED to provide series of pulses that indicate which fault is present. Eight-pin version offers additional SPST contact on previously unused pins 6 and 7.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675

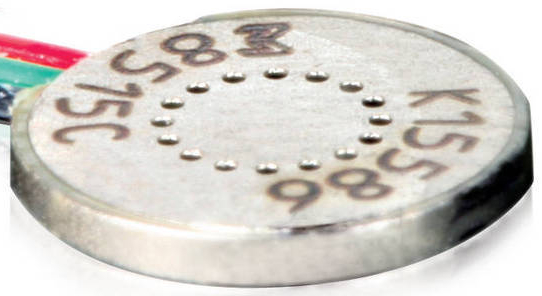

Feb 12, 2010 Designed for surface air flow and other aerodynamic measurements, Endevco® model 8515C miniature piezoresistive pressure transducer has overall thickness of 0.030 in. and diameter of 0.250 in. Units are available in ranges of 15 and 50 psia, with 200 mV FS output and respective frequency responses of 180 and 320 kHz. Transducer offers stable performance over -65 to +250°F range, with combined non-linearity, non-repeatability, and pressure hysteresis error of less than 0.50% FSO.

Transducers Direct    Miamiville, OH 45147

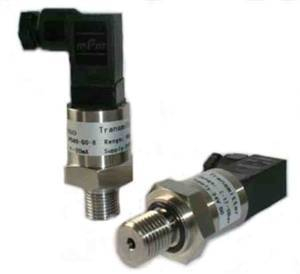

Feb 12, 2010 Constructed from 316 stainless steel for corrosion resistance, TDH30 Series features vacuum range to 10,000 psi. Transducers include industry standard pressure and electrical connections and have compact design for use in tight areas. Units are suited for food and beverage applications such as soda machine dispensers and for mobile hydraulics found in construction and agricultural equipment.

Sherborne Sensors Limited    Hampshire RG21 6YH  United Kingdom
Feb 12, 2010 Incorporating flexure-supported torque balancing system, LSI series precision measurement inclinometers withstand shock and vibration inputs of 1,500 G. They are available in ranges of ±14.5°, ±30°, and ±90°, and offer high-level 5 V analog DC-output signal, proportional to sine of angle of tilt. Self contained units are able to connect to DC power source and readout or control device, forming complete operating system. Applications include pipeline leveling and structural monitoring.

Tovatech, LLC    South Orange, NJ 07079
Feb 12, 2010 Featuring single chip microcontroller, FlowCal 5000 measures liquid from 50 µl/min to 25 ml/min and displays flow rate on 4-digit backlit LCD. RS232 output allows flowmeter to send data to any device fitted with RS232 serial interface such as printer, terminal, or PC. Housed in brushed aluminum case, FlowCal 5000 includes PEEK valve fitted with soft elastomer seal and Teflon® diaphragm, and user-replaceable inlet pipe made with 1/16 in. diameter PEEK tube.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Feb 12, 2010 Suited for high-level mechanical impact testing applications, Endevco® model 7255A incorporates built-in mechanical filter, which blocks high-frequency energy associated with near-field high shock, and protects sensing element from overstress. It features internal sensor assembly strain isolation and internal electronic filter that prevents saturation. Rugged, miniature unit comes with 2 small gauge, lightweight hook-up wires, for use with 2 solder-pin terminal interface.

All Sensors Corp.    Morgan Hill, CA 95037

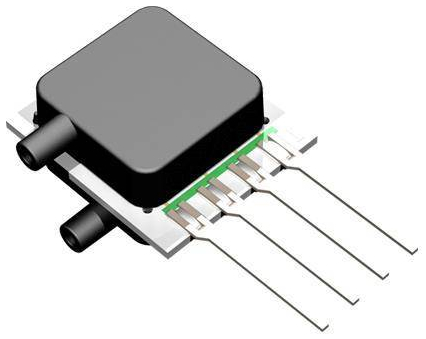

Feb 11, 2010 Basic Low Voltage (BLV) and Basic Low Voltage Reference (BLVR) Series are based on CoBeam2(TM) Technology, which helps reduce package stress and improve position sensitivity. BLV utilizes single die technology, while BLVR utilizes dual die reference technology to reduce output offset or common mode errors. BLV and BLVR Series provide basic, uncompensated mV output and are respectively specified at 1.8 and 3.3 V excitation with 1 and 7 mW power consumption. Presure ranges span 1-30 in. H2O.

Stellar Technology, Inc.    Amherst, NY 14228

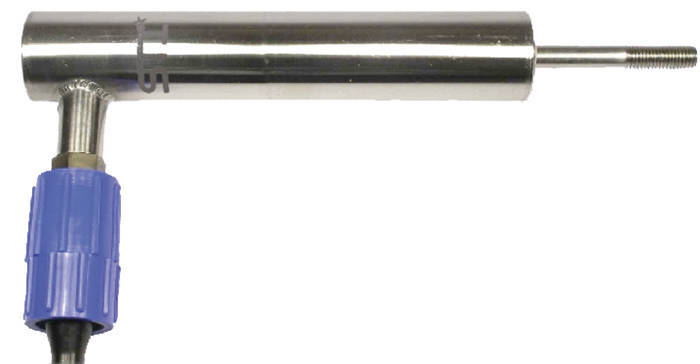

Feb 11, 2010 Designed for use in seawater and other submersible environments, including many corrosive liquids, LWU series transducers are available with stroke lengths from 0.5-4 in., linearity of ±1%, and operating temperature of -40 to 140°F. AC/AC unit LWU60X offers V/V output, while DC/DC models LWU61X and LWU65X provide outputs from ±5 or 0-10 Vdc and 4-20 mA, respectively. Made of 316 stainless steel, fully welded units with thru-hole design can endure 10 yr of submersion in seawater.

Thermo Fisher Scientific    Waltham, MA 02454
Feb 11, 2010 Utilizing non-dispersive infrared optical filter technology, iMEGA CEMS Model 60i measures 5 gases in addition to oxygen via electro-chemical cell or paramagnetic cell. Unit also automatically and continuously measures water. Designed with iterative computation algorithms, iMEGA automatically corrects for fractional effects of interfering gases. It additionally provides direct NO2 measurement in place of calculated NO2 method common with most other analyzers.

SICK, Inc.    Minneapolis, MN 55438
Feb 10, 2010 Enclosed in thin, compact housing, BCG EcoLine Wire Draw Encoders provide scalable analog output from 4-20 mA, for interfacing with control systems. Pushbutton teach feature allows users to configure unit for different lengths. Offered in 2 versions of standalone MRA-F wire draw mechanisms, BCG units are suited for variety of markets, including mobile vehicle, automotive, medical, ASRS, and general manufacturing.

TURCK, Inc.    Plymouth, MN 55441

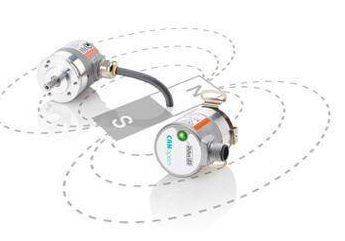

Feb 09, 2010 Designed for extreme outdoor applications, Sendix M3658 shaft and M3678 hollow shaft encoders feature Sensor Protect(TM) technology, which incorporates fully encapsulated electronics and separate mechanical bearing assembly, providing IP69K rating for housing and flange. Interlocking bearing design utilizes Safety-Lockplus(TM) technology that mechanically protects shaft seal. With resolution up to 14 bits, magnetic single-turn encoders offer non-contact, wear-resistant measuring system.

Cirrus Research plc    North Yorkshire YO14 0PH  United Kingdom
Feb 09, 2010 Class 1 MK:427 Noise Sensor can be integrated to existing PLC data acquisition/control systems, such as SCADA, found at industrial sites. In addition to built-in auto-calibration system for compliance with international noise measurement standards, unit offers standard 30-100 dB(A) range that can also be adjusted for specific applications. Design fosters integration into existing infrastructure, eliminating need for third party software.

Agilent Technologies, Inc.    Santa Clara, CA 95051
Feb 08, 2010 Designed to connect to PC or laptop using standard PC I/O, 3-slot LXI Model 34972A connects, configures, and acquires data at bench, on network, or in remote application. Class-C compliant unit includes built-in 6½ digit DMM, 8 optional plug-in modules, 1 Gb LAN, and USB 2.0 ports. Accepting 11 different input signals, system incorporates per-channel measurement configuration, data logging, and data monitoring, all controlled by web-enabled GUI.

Bosch Security Systems    Fairport, NY 14450 9199

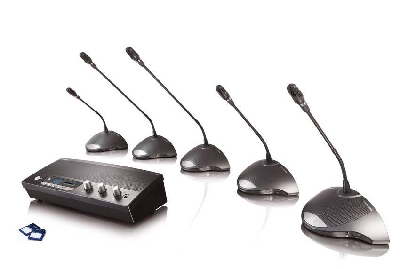

Feb 08, 2010 Suitable for town halls, local business centers, and courtrooms, CCS 900 Ultro Discussion System includes Digital Acoustic Feedback Suppressor technology to assure speech intelligibility and Possible-to-Speak function, which gives visual indication when microphone is available. Control Unit can record and play back up to 64 hr of discussion using 2 GB SD card. Expanding to up to 150 units, system enables 1-4 microphones to be active simultaneously, with chairman always having speaker priority.

Contrinex AG    Old Saybrook, CT 06475

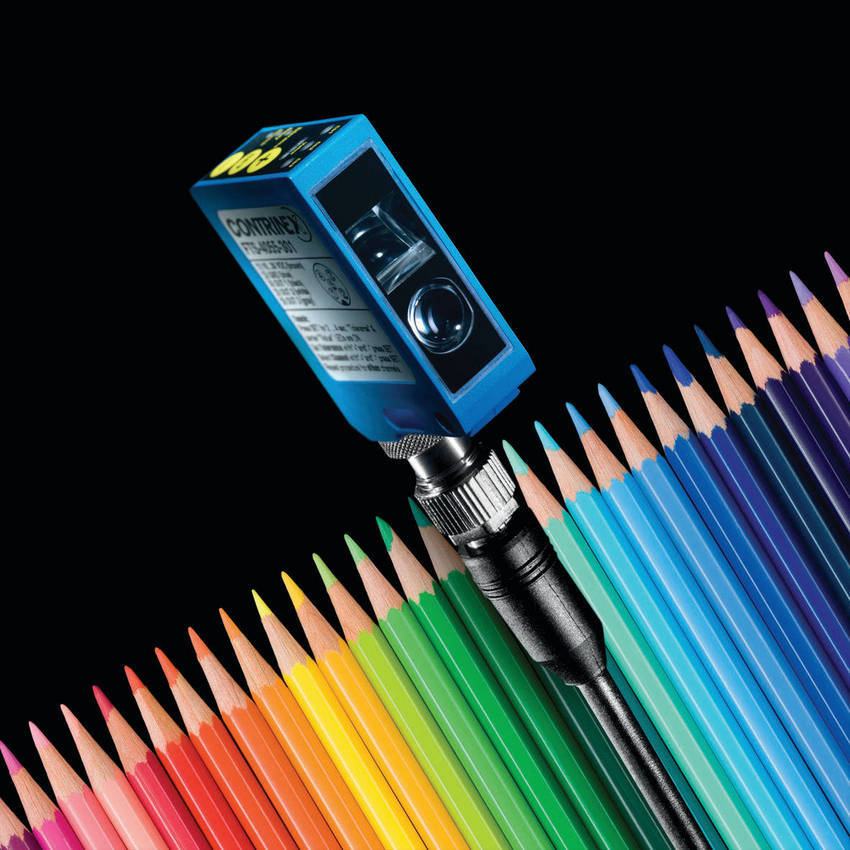

Feb 08, 2010 Providing color detection independent of target distance within operating range of 30-40 mm, Series 4055 features 3 teachable color channels with independent 200 mA outputs, which allow for 3 color tones to be programmed. Sensor provides 5 switching tolerance levels to recognize/ignore various, even minimal, color differences. Switching frequency is up to
4 kHz. Available in NPN and PNP versions, product comes in 40 x 50 x 15 mm housing with adjustable connector.

Bosch Sensortec    Reutlinge 72770  Germany
Feb 04, 2010 Packaged in 2 x 2 x 0.98 mm LGA housing, Model BMA220 provides 4 programmable measuring range from ±2 to ±16 g. Integrated evaluation electronics recognize specific motion patterns, eliminating need for external microcontroller. Algorithms for motion recognition run internally on ASIC; therefore, sensor can autonomously and automatically distinguish between random movement, change in spatial position, single tap, double taps, and between slow and fast changes in movement.

Epcos, Inc.    Iselin, NJ 08830
Feb 04, 2010 Used for limit temperature measurement, SMD PTC thermistors are automotive-qualified and employ homogeneous ceramic material. Series B59721A, supplied in 0805 case size, offers response temperatures from 70 to 130°C in steps of 10 K and rated resistance of 680 X. Supplied in 0603 and 0402 case sizes, B59641A and B59421A, respectively, feature 75 to 145°C and 75 to 135°C response temperatures in steps of 10 K and rated resistance is 470 X. Max operating voltage for all types is 32 Vdc.

eV Products    Saxonburg, PA 16056
Feb 03, 2010 Based on Cadmium Zinc Telluride detector technology, eValuator(TM)-1000 Solid State X-ray and Gamma-ray detector features energy range of 20-130 keV and operates in temperatures from 5-50°C. Measuring 2.5 x 1.25 x 3.25 in., unit includes high-voltage power supply and power/count/error LED indicator. CdZnTe detectors offer power input of 5-15 V and positive TTL pulse analog bipolar signal of ±4 V max. Vertically or horizontally mounted, it is suitable for various gauging and inspection applications.
