LCM Systems Ltd.    Isle of Wight PO30 5GY  United Kingdom
Feb 24, 2010 Used for lifting and weighing applications, Self Indicating Link Load Cell (SILL) and Radio Telemetry Wireless Link Load Cell (RILL) are manufactured from aluminum and feature steel brushed shackle holes. SILL has 2.5-200 ton range and integral display that shows applied weight/force in selectable engineering units. Also, built-in alarm warns operator when applied level is met. RILL uses 2.4 GHz radio and is supplied with battery-powered handheld indicator that displays load in tons.

Lock Inspection Systems, Inc.    Fitchburg, MA 01420 6094
Feb 24, 2010 Designed to occupy minimal footprint, INSIGHT PH features integrated digital head with OPTIX detector management software and offers sensitivity to all types of metal. Plug-and-play architecture offers various communications options - USB, SCADA, wireless, and standard Ethernet - to accommodate installer and user needs. Other features include stability to vibration and complex product signals as well as keypad with DDS (Direct Digital Signal) viewer.

Keithley Instruments, Inc.    Cleveland, OH 44139 1891
Feb 24, 2010 Model 4225-PMU Ultra Fast I-V Module integrates voltage waveform generation and current/voltage measurement at acquisition rates of up to 200 MS/sec. It provides 2 channels of integrated sourcing and measurement, each combining high-speed voltage outputs (pulse widths ranging from 60 ns to DC) with simultaneous current/voltage measurements. Linear Sweep, pulsed, arbitrary waveform, and segment ARB sweeps can be generated. Unit also offers 2 voltage source ranges and 4 current measurement ranges.

Scott Safety    Monroe, NC 28111
Feb 24, 2010 Freedom(TM) Direct gas detector senses combustible gases and CO₂ using IR or catalytic bead sensor technologies. Providing way to add points of detection to remote locations or areas where local display is not required, unit delivers information on gas concentrations to Scott controller without need for transmitter. Rugged SS housing protects unit from harsh environments. When combined with 5.5 V catalytic bead sensor, detector can operate in temperatures up to 392°F.

ASCO (Automatic Switch Co., Valve Div.)    Florham Park, NJ 07932
Feb 23, 2010 While 8214(200) Series 2-way NC solenoid valves can be used for fuel gases up to 5 psi, V710(B)/AH(E) Series 2-way NC electro-hydraulic actuated valves can be used with fuel gases up to 15 psi and is available with fast- and slow-opening constructions. Both series come in ¾-3 in. pipe sizes and have aluminum body construction with pressure taps up and downstream. Uses include boilers, furnaces, ovens, heating equipment, gas generators, and kilns.

Carlo GAVAZZI Automation Components    Buffalo Grove, IL 60089

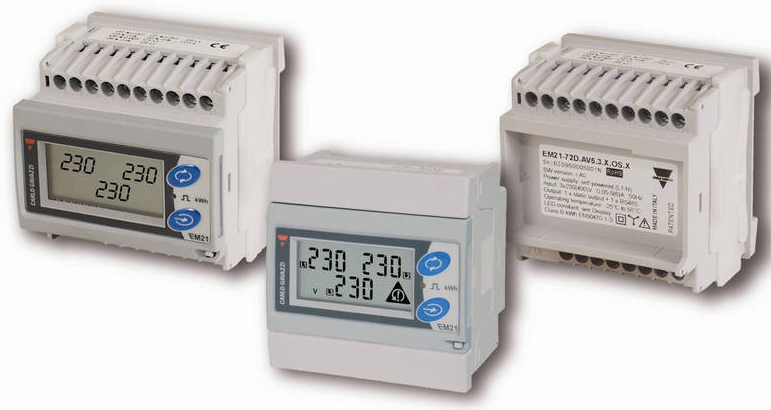

Feb 23, 2010 General-purpose EM21 Series features detachable, connector-less, and battery-less LCD that lets user configure instrument for panel or DIN-rail mounting as energy meter or transducer. It is suitable for active and reactive energy metering for cost allocation as well as main electrical parameter measurement and retransmission. Solution supports single-phase (2-wire), 2-phase (3-wire), 3-phase (3-, 4-wire, balanced, unbalanced) systems for up to 400 VLL.

Renishaw, Inc.    Hoffman Estates, IL 60192
Feb 22, 2010 TONiC(TM) incremental optical encoders are available with DSi (Dual Signal interface), which promotes rotary axis accuracy and gives users selectable reference mark position via propoZ(TM) technology. Using 2 readheads on angle encoder improves accuracy and repeatability of motion system by eliminating eccentricity, bearing wander, and all odd error harmonics. When used with REXM ring encoders, total installed accuracy of better than ±1 arc sec is achieved.

General Monitors    Lake Forest, CA 92630
Feb 22, 2010 Combining multi-spectrum infrared sensor array with neural network technology processing, FL4000H delivers reliable flame monitoring with detection range of 230 ft and field of view of 100° @ 100 ft. Design accelerates insertion of cable into base of unit, permitting placement of detector in tight areas. MSIR sensor array and NNT function together as adaptive and intuitive decision-making mechanism, promoting reliable discrimination between actual flames and false alarms.

Intellisenc    Greer, SC 29650

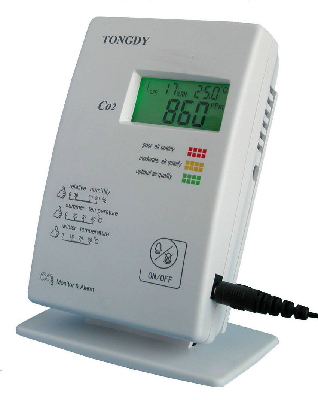

Feb 22, 2010 Designed to indicate CO2, Humidity, and Temperature, G01-CO2 Series includes alarm buzzer and color backlit display that changes as CO2 goes up. Communication is through RS-485 and hand-held remote control. Available in wall-mounted or desktop configuration, unit includes self-calibrating NDIR CO2 sensor with dry contact and analog signal outputs.

Process Technologies Group, Inc. (Production Monitoring Division)    Addison, IL 60101
Feb 22, 2010 With wireless adapters, IMPAX TSS monitors can track and display machine efficiency and shop floor status information wirelessly. Adapters allow data to be collected where it would be difficult to run Ethernet cables. Systems are compatible with universal Wireless-G standard and also support Wireless-N standard. Each TSS monitor can act as independent wireless node, or wireless bridge can be used to give network access to existing group of connected monitors.

Eriez Magnetics    Erie, PA 16506

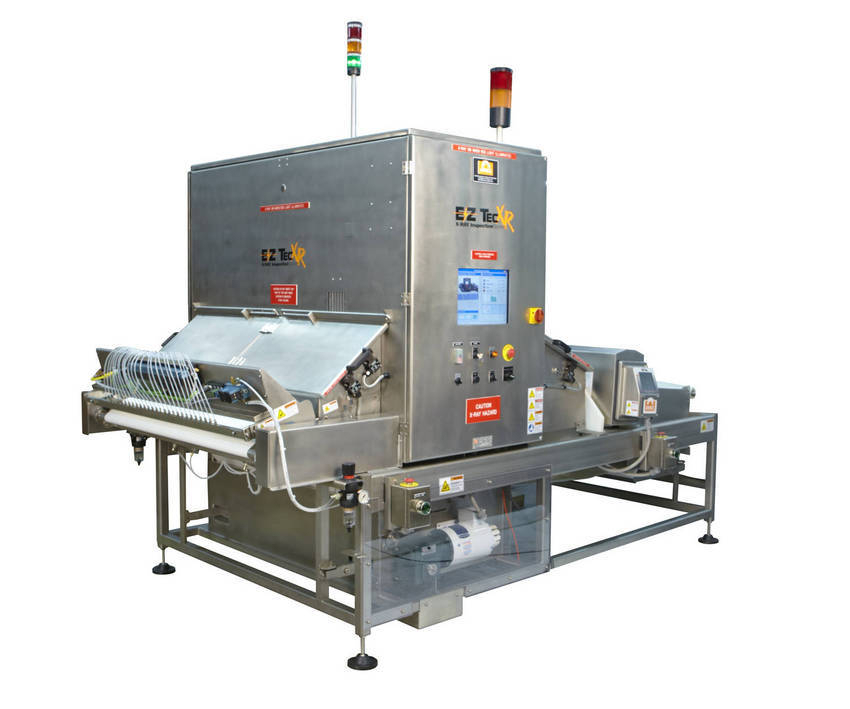

Feb 22, 2010 E-Z Tec® Dual-Beam Multi-Zone X-Ray and Metal Detector System precisely detects any foreign object, including ferrous, nonferrous, stainless steel, and non-metallics such as stone, glass, bone, and some plastics, as well as aluminium objects in package and raw product. Zone detection capability of X-Ray System allows for rejecting single product with foreign object rather than entire row of product, while dual beam technology provides coverage for conveyor belt more than 40 in. wide.

Madison Company    Branford, CT 06405

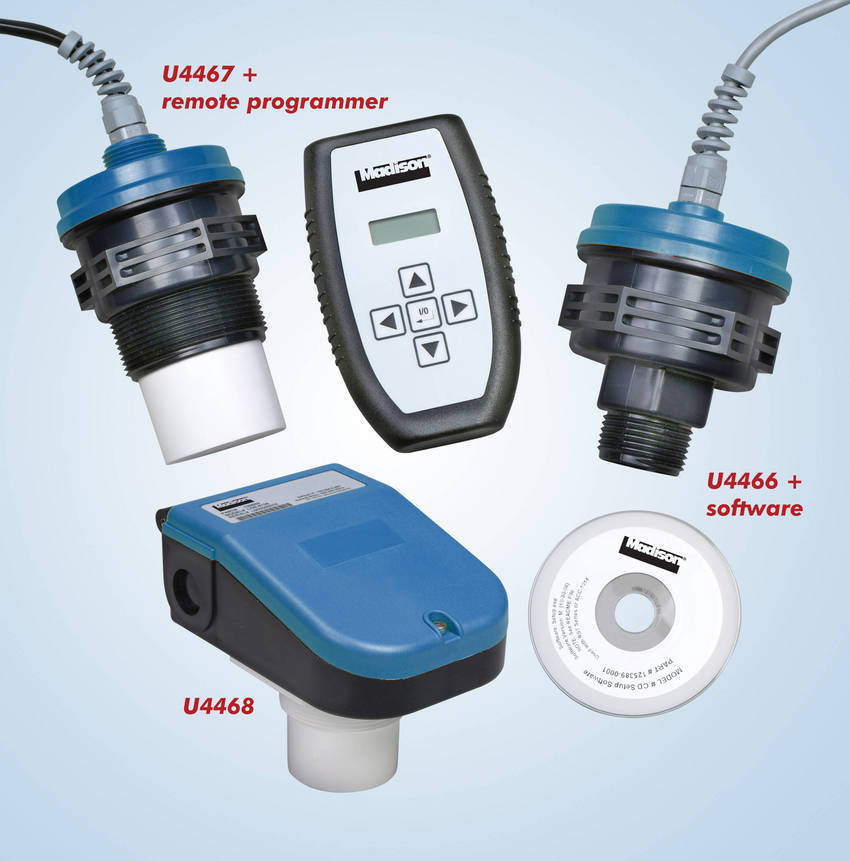

Feb 22, 2010 Designed for non-contact level, presence/absence, volume, proximity, and distance measurements, microprocessor-based U44xx family can be programmed via USB or RS-232 interface software. Self-contained U4466 series comes with set-up software and user-selectable options, while loop-powered U4467 series measures volume and open-channel flow of liquids and suits hazardous locations. Web enabled U4468 series is suited for monitoring, and control of local and remote tank conditions.

Okazaki Manufacturing Company    Rhondda Cynon Taff CF15 7AF  United Kingdom

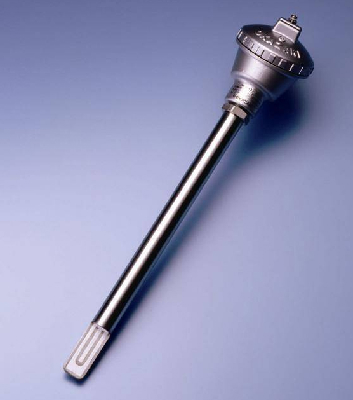

Feb 19, 2010 Offering resistance to temperature, vibration, impact, corrosion, and abrasion, AEROPAK GREAT Thick Wall Mineral Insulated Thermocouple Cable is available in cable lengths up to 10 m. Gap between element and thick wall sheath is densely filled with high-purity magnesium oxide, which prevents residual air from penetrating sheath. Available with sheath ODs up to 22 mm, thermocouple is suited for incinerators, heat treatment furnaces, and industrial ovens.

Marktech Optoelectronics    Latham, NY 12110
Feb 19, 2010 Available with water clear glass or plastic lens and range of power output options, LED Photo Sensors are offered in various standard configurations as well as custom designs. Other options include 3 and 5 mm metal can and ceramic packages as well as red (660 nm), amber (590 nm), green (520 nm), blue (465 nm), and white (x=0.31, y=0.32) visible emitters.

HBM, Inc.    Marlborough, MA 01752 3014

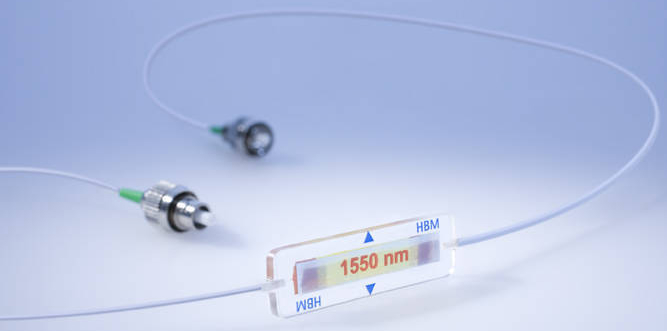

Feb 19, 2010 Based on fiber Bragg gratings, K-OP type optical strain gage (SG) suit material tests of new fiber composites. Tests with up to 10 million load cycles with alternating strain of ±5.000 µm/m are possible. As no electric signal is required, utilization in environments with explosive atmospheres, EMI, or high voltage is possible without difficulties. Several optical SGs can be attached to fiber, enabling implementation of parallel measurements.

BlueLevel Technologies, Inc.    Rock Falls, IL 61071

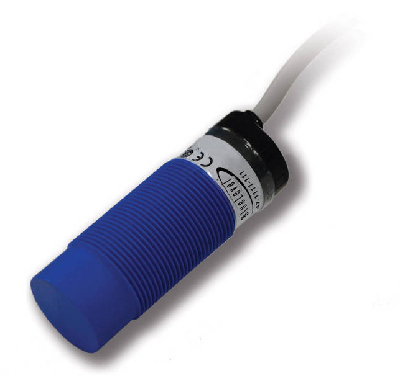

Feb 19, 2010 Measuring 30 mm dia x 80 mm deep, Model CHP is suited for clean liquids and dry bulk materials. Two-wire AC unit operates from 20-250 Vac and switches loads as high as 30 mA. Switch comes with built-in ESD protection and operates over temperature range of -25 to +70°C. Capable of switching 10-30 Vdc, 4-wire model interfaces with variety of PLCs and comes in either NPN or PNP style with both NO and NC wiring connectivity.

Columbia Research Labs., Inc.    Woodlyn, PA 19094

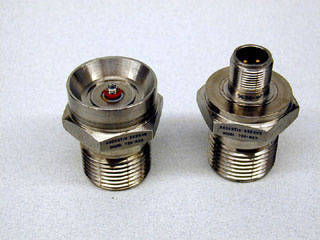

Feb 19, 2010 Suited for use in corrosive environments, Models 765M25/27 High Intensity Acoustic Sensors are constructed of Type 316 stainless steel, offer sensitivity of 1,200 pC/psi, and operate in -10 to 500°F temperatures. Electrically isolated microphones have sensing elements of piezoceramic material in balanced and floating configuration. Model 765M25 incorporates a miniature 10-32 fused-glass coaxial connector while 765M27 provides 2-pin connector interface.

STMicroelectronics    Lexington, MA 02421
Feb 19, 2010 Employing single sensing structure for motion measurement along all 3 orthogonal axes, L3G4200D MEMS Digital Gyroscope offers wide set of user-programmable full-scale ranges from ±250 to ±2,000 dps. Low values enable slow-motion sensing, while high range detects and measures fast gestures. With sensor and ASIC interface housed in 4 x 4 x 1 mm package, device addresses size constraints of motion-controlled consumer applications, including mobile phones and gaming consoles.

Murata Power Solutions, Inc.    Mansfield, MA 02048
Feb 19, 2010 Available in sizes down to 0201 with constant temperature coefficient for all packages, NCP Series offers ±0.5% tolerance versions with consumer, industrial, and automotive temperature ranges. Units offer alternative to IC-based sensing solutions when high sensing accuracy is required. Thermistors are suited for air conditioning systems, power supply cooling/thermal management systems, and automotive temperature sensing applications.

Honeywell International, Inc.    Morristown, NJ 07960

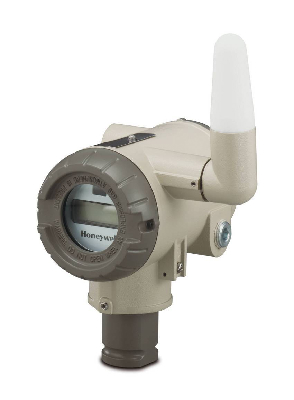

Feb 18, 2010 Designed to monitor various plant points, OneWireless(TM) XYR(TM) 6000 Series transmits signals from up to 3 different types of inputs, including measurement devices with analog, temperature, millivolt, or contact-closure switch input. Units carry intrinsically safe approvals from FM Global and Canadian Standards Association for use in hazardous areas. XYR(TM) 6000 transmitters are suitable for wirelessly monitoring level switches, pump status, and system alarms.
