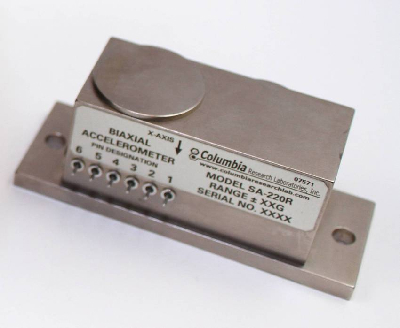

Columbia Research Labs., Inc.    Woodlyn, PA 19094
Mar 08, 2011 Suited for downhole well service applications, SA-220RHT and SA-225RHT Force Balance Accelerometers are completely self-contained and provide high level, low impedance output, eliminating need for high-temperature signal conditioning. Model SA-220RHT operates from +15 Vdc at temperatures up to 200°C, while Model SA-225RHT requires +5 Vdc and operates to 190°C. Weighing 3.34 oz, biaxial accelerometers are packaged in nickel-plated aluminum cases measuring 1.13 in.² x 2.285 in. H.

Enmet Corp.    Ann Arbor, MI 48106
Mar 08, 2011 With internal sample draw pump and gas sensors, microprocessor-based GSM-60 is designed for industrial process, aerospace, pharmaceutical, and semiconductor applications. It can be custom configured for monitoring combination of gas parameters, including VOCs, dew point, oxygen, and CO, or other target gases, such as O3, HF, HCl, Cl2, etc. Optionally, instrument may be connected to range of remote 4-20 mA toxic or combustible gas sensors/transmitters.

Applied Measurements Limited    Aldermaston, Berkshire RG7 8PN  United Kingdom
Mar 07, 2011 Based on battery-powered, 2.4 GHz wireless telemetry data acquisition and transmission system, Model DTDR-F is intended for rotating applications up to 6,500 rpm where direct, in-line torque measurement is desired. System has pair of balanced Delrin housings, one containing telemetry module and another containing 3.6 V Li-Ion battery that is recharged in-situ. With 120 m range, T24-SA telemetry module achieves 650 hr/27 day battery life based on continuous use at transmission rate of 1/sec.

Energy Optimizers Limited    Grimsby DN31 2TB  United Kingdom
Mar 07, 2011 Operating with single phase, split 2-phase, and balanced 3-phase loads, Plogg Meters provide load analysis in commercial buildings with 230 Vac appliances. Plug-in format facilitates installation and connection to mains socket-powered appliances, while Internet connection permits remote access and data retrieval. With Plogg Manager PC interface, user can define 13 different logging parameters for time and electrical performance and set logging interval from 1 min to 1 month.

Pepperl + Fuchs, Inc.    Twinsburg,, OH 44087 2245
Mar 04, 2011 Model VAA-2E-IER2-S-1M-V1 switches measure 36 x 13 x 26.2 mm while VAA-2E1A-IER1-S-1M-V1 units have 87.5 x 13 x 25 mm housing with LED status indicators. Suited for safeguarding small doors and coverings, CAT4 magnetic safety switches feature coded magnet system with fixed cable and M12 connector. They mount in any position and include encapsulated electronics for IP67/IP69K protection. Offering 108 switching cycle lifespan, switches operate in temperatures from -4 to +140°F.

Sensorex    Garden Grove, CA 92841
Mar 03, 2011 Suited for use in municipal and industrial water and wastewater treatment, S600 Series has flat surface measuring glass design. Submersible Electrode S651CD integrates pH glass protection and acrylamide reference gel. Featuring standard HT gels and reduced breakage potential, S656CD Insertion Mounted Electrode allows pH measurements in pressurized tanks and main lines without shutting down system for electrode maintenance. Measurement range for both is 0-14 pH at ±2,000 mV for ORP.

HaydonKerk Motion Solutions    Waterbury, CT 06705
Mar 03, 2011 Available on 1 in. Series 25000 linear actuators, 64-line Incremental Magnetic Encoder utilizes solid state technology and includes both analog detection circuitry and full signal processing on single chip. Quadrature encoder system utilizes high-energy neodymium magnet and provides 8-bit digital resolution resulting in total of 256 output pulses/revolution. When combined with can stack linear actuator, position feedback can be obtained for use in critical applications.

L.S. Starrett Company    Athol,, MA 01331
Mar 03, 2011 Featuring 2-piece design, Model SR100 measures roughness of large components with gauge range of 0.008 in. and accuracy of 5% of reading plus 4 µin. Bottom half of unit travels across measurement surface and sends electrical signal to handheld upper half, which digitizes signal from sensor and sends it to microprocessor where it calculates parameters using standardized algorithms. In addition to measuring Ra and Rz, portable tester also measures advanced Rp, Rv, and Rt parameters.

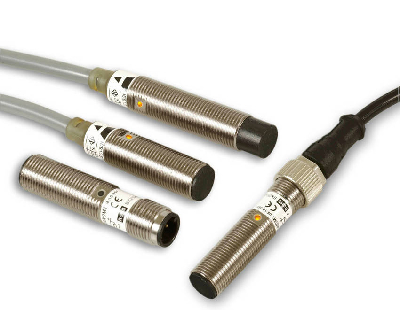

Carlo Gavazzi AG      Switzerland
Mar 02, 2011 Available in M12 diameter, ICB Series features potting material made from recycled corn by-product, which helps resist mechanical stress. Air-core sensing coil, replacing traditional ferrites and coils, offers immunity to magnetic fields and enables sensors to withstand vibration and impacts. Designed with nickel brass housings in long and short barrel lengths, 3-wire sensors come in standard and double distance sensing ranges, and provide normally open or closed NPN or PNP outputs.

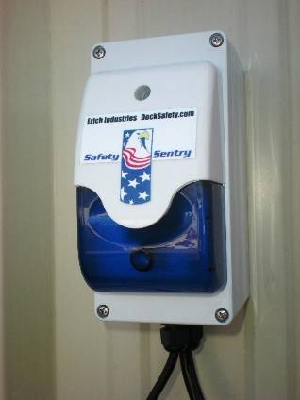

Erich Industries, Inc.    Verona, WI 53593
Mar 02, 2011 Utilizing 105 dB siren and strobe light combination system in synch with industrial motion sensing technology, Safety Sentry(TM) Warning Signal Alarm provides loading dock safety by alerting anyone nearby of vehicle backing into dock position. System is rated NEMA 4 and constructed with UV-resistant polycarbonate using liquid-tight strain relief connections.

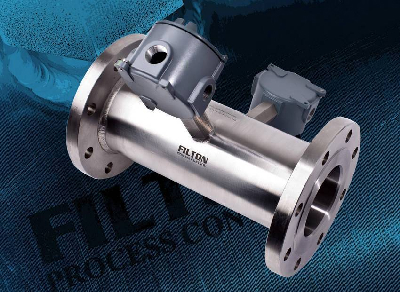

Filton Process Control Engineering    RH16 1BP   United Kingdom
Mar 02, 2011 Providing precise measurement over wide flow ranges, Liquid Turbine Flow Meters come in 2 designs for Industrial and Custody Transfer applications with ±0.5% and ±0.15% linearity, respectively. Industrial versions, offering flow rates from 30-4,500 lpm, range in size from 5-50 mm for threaded models and 5-150 mm for models with flanged process connections. Custody Transfer versions are available from 50-400 mm line size with flanged process connections and flow ranges up to 4,500 M³/hr.

Datapaq Inc.    Wilmington, MA 01887
Mar 02, 2011 To help optimize manufacture of electronic assemblies, Model PA2200A uses 2 sensors to monitor performance of pre-heat stage of process and 3 sensors to monitor dip soldering stage. Dip soldering thermocouples enable monitoring of solder temperature, as well as dwell time in solder, and can be set at different heights to allow for measurement of contact time at various depths. System also generates detailed reports on selective soldering operation.

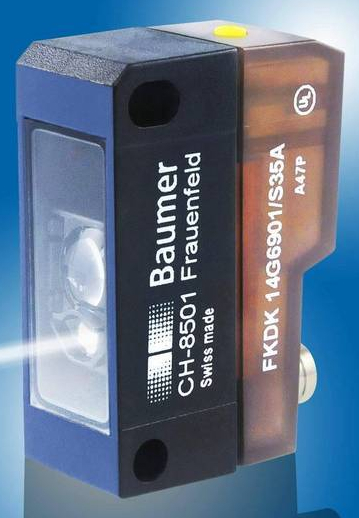

Baumer Ltd.    Southington, CT 06489 1534
Mar 01, 2011 Able to be integrated into any packaging and printing machine, FKDK 14 series utilizes white light as light source for precisely detecting print marks of all colors. Response time down to 50 µsec promotes throughput, and 2-point teach-in procedure can be conducted dynamically during process. Suited for applications in packaging and graphic machinery, sensor indicates switching status with LED that is visible through transparent housing base.

Macro Sensors    Pennsauken, NJ 08110 1334
Mar 01, 2011 Constructed of stainless steel, GPA Series Spring-Loaded Linear Position Sensors are available in ranges from ±0.050 to ±2.00 in. with maximum linearity error of ±0.25% FRO. They include ½-20 UNF 2A thread on housing, allowing OEM to install it into mating threaded part or use two hex nuts for bulkhead mounting. Electrical interface is via 3 ft long Teflon® insulated/shielded cable and units provide various analog or digital outputs when connected to any standard LVDT signal conditioner.

Meggitt Sensing Systems (Endevco Corp.)    San Juan Capistrano, CA 92675
Feb 25, 2011 Endevco® model 6233C piezoelectric charge output accelerometer is designed for continuous operation up to 900°F and requires no external power source. Available in standard ranges of 10, 50, and 100 pC/g, unit also offers balanced differential output. Product features 3-point ARINC mounting and rugged 2-pin 7/16-27 UNS 2A threaded receptacle, and provides vibration monitoring of jet and turboprop engines, helicopter and rotorcraft HUMS, gas turbines, and nuclear power plant systems.

Dwyer Instruments, Inc.    Michigan City, IN 46361
Feb 25, 2011 Featuring 6 user-selectable pressure units and 3-color LED display, Series MDPC provides pressure ranges from -100 to 100 kPa or -100 to 1,000 kPa with NPN, PNP, analog voltage, or current output control modes. Parameter copy function enables parameters to be copied to other MDPC pressure controllers, while key lock mode prevents unnecessary changes to parameters. Controller is suited for high-tech electronics, food packaging, and automatic assembly applications.

Brüel & Kjær    Norcross, GA 30071-1588
Feb 25, 2011 With DeltaTron® IEPE Accelerometers and waterproof cable assemblies, it is possible to make vibration measurements under water at temperatures up to 150°C. Type WL-3330 cable assembly can be used with any hermetically sealed titanium construction accelerometer, with either top or side 10-32 UNF connector.

Emerson Process Management, Rosemount Div.    Chanhassen, MN 55317
Feb 25, 2011 Suitable for short-duration, portable applications, CSI 2600 Machinery Health Expert continuously monitors, records, and analyzes machinery information for over 100 hours across all 24 channels without commitment of hardwired solution. Online monitoring of key machinery provides real-time information that enables users to track and diagnose issues and avoid unexpected downtime. With AMS Suite predictive maintenance software, users can perform advanced analysis of vibration diagnostics.

SilverSpore LLC    Hollis, NH 03049
Feb 24, 2011 Button Spore lets businesses of any size ensure availability of their technology infrastructure by monitoring ~200 servers and devices and ~800 services. Configured automatically in under 10 min, appliance pinpoints infrastructure problems and proactively send email alerts to reduce downtime. It can record up to one year's worth of performance data for services, providing graphs that enable evaluation of service providers and service availability at specific times.

Ekahau, West Coast    Saratoga, CA 95070
Feb 24, 2011 To prevent spread of infections and diseases, Wi-Fi Hand Hygiene Monitoring System tracks staff interactions with patients and measures hand hygiene activity down to individual caregiver. Solution combines location-enabled staff badges with beacons that are embedded into GOJO's SmartLink(TM) Dispensers located throughout hospital. Badges enable RTLS system to monitor when staff washes hands before and after interacting with patient to calculate compliance based on hospital policy.
