Rabbit Semiconductor    Davis, CA 95616
Feb 06, 2003 Rabbit 3000® 8-bit microprocessor, for embedded control, communications, and Ethernet connectivity, features 10 x 10 mm footprint, 1.2 mm thickness, and 0.8 mm pitch. It runs at speeds up to 54 MHz and offers direct software support for 1 MB of code/data space. Rabbit 3000 BGA operates at 3.3 V and has 6 serial ports with IrDA, 56+ digital I/O, quadrature decoder, PWM outputs, and pulse capture and measurement capabilities.

Fisnar Inc.    Wayne, NJ 07470

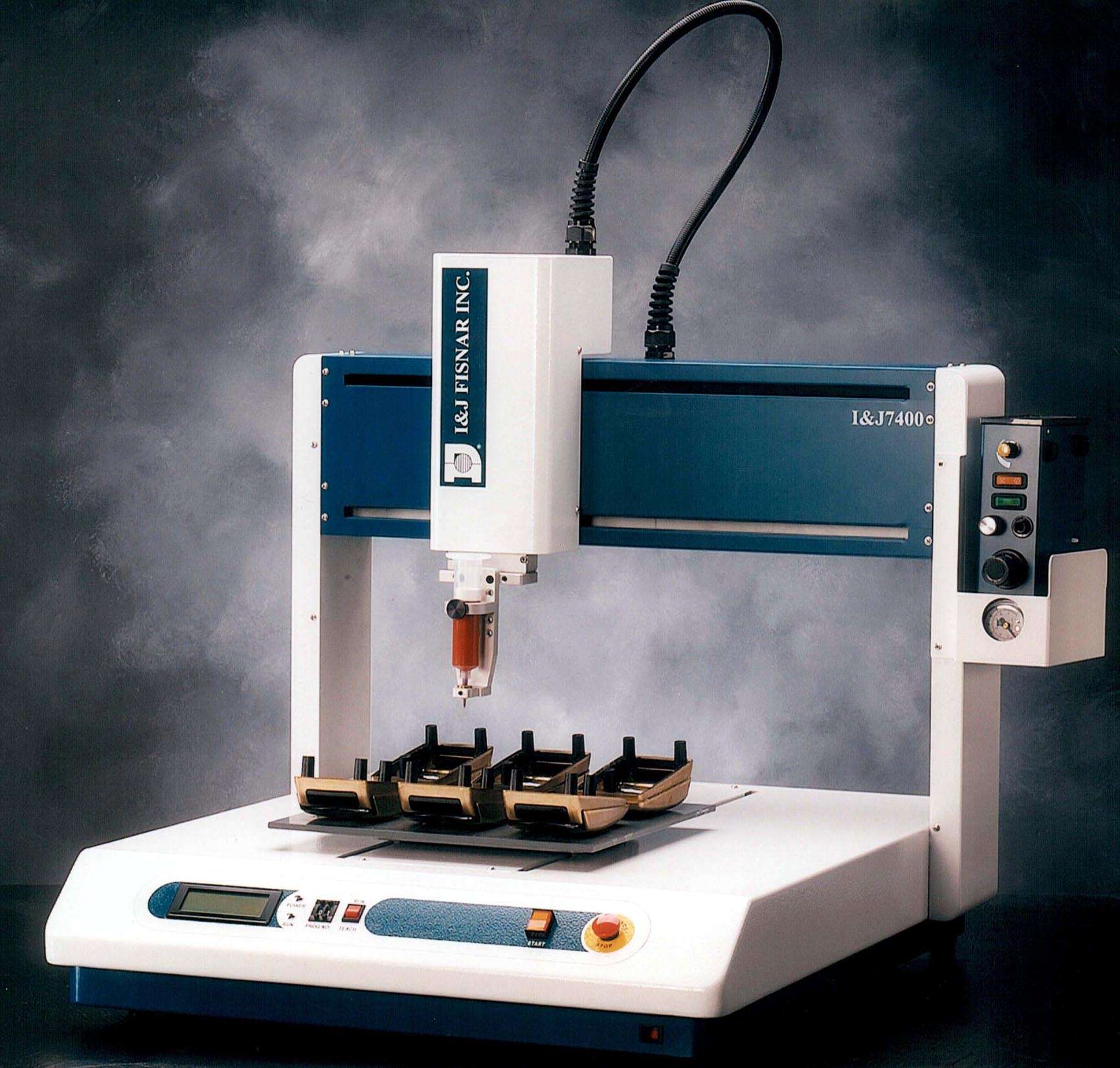

Feb 05, 2003 Benchtop Model 7000 Cartesian robot handles dispensing areas of 8 x 8 in. up to 16 x 16 in. Capable of storing 99 programs, with total point capacity of 99,000, 3-axis robot offers resolution of 0.01 mm. PC keyboard carries out point-to-point or continuous path programming as provided with step-by-step instructions. Robot has cast construction, vibration-free motor motion, and 8-channel I/O interface for communication with external apparatus.

RoboteQ    Phoenix, AZ 85022

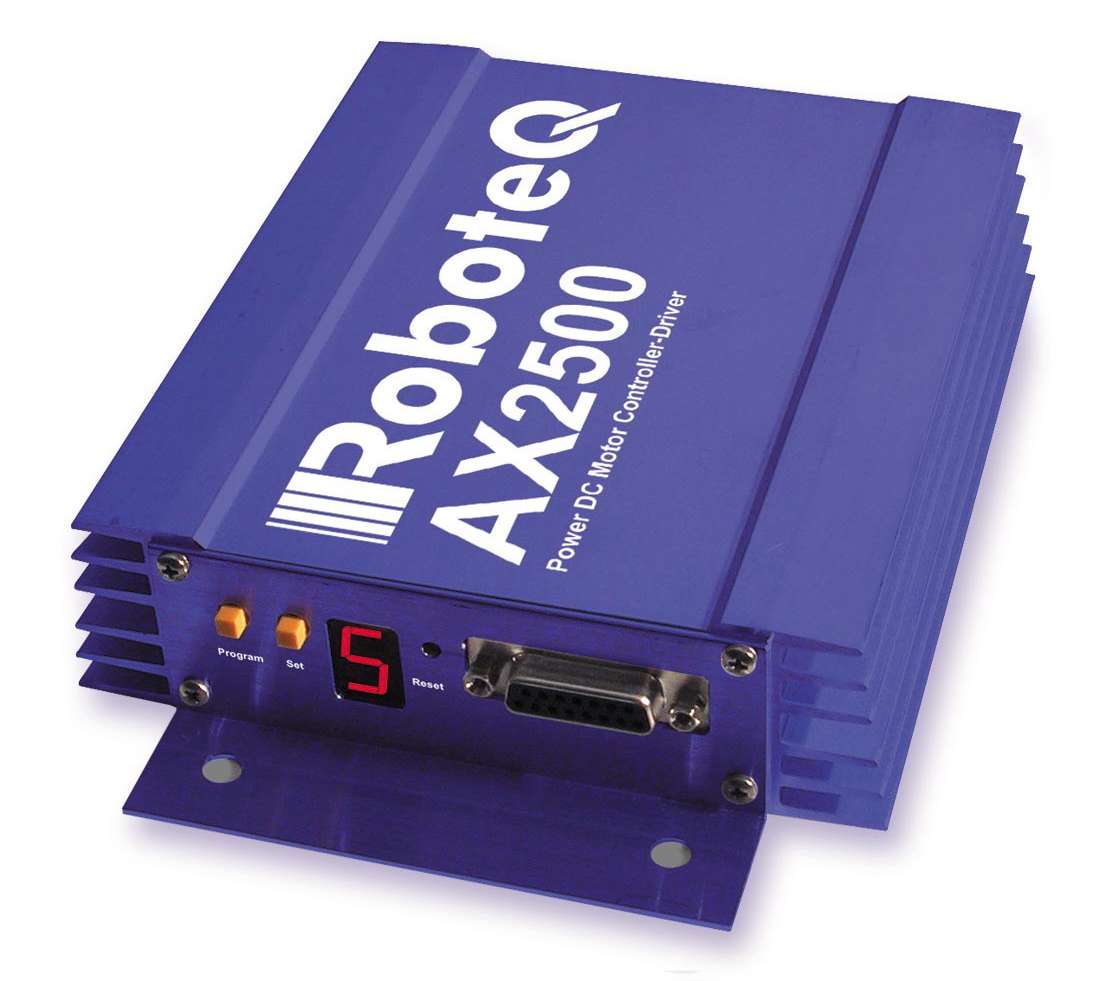

Jan 23, 2003 Microprocessor-based, dual-channel DC Model AX2500 directly drives up to 120 A on each channel at up to 40 V. Channels can be operated independently or combined. Controller accepts commands from R/C radio or serial port interface. Intelligent current sensing and controlling automatically limit each channel’s power output to 120 A for time typically required to accelerate or stop robot. Extruded aluminum case serves as heat sink for output power stage.

SK Daifuku    Salt Lake City, UT 84116
Jan 13, 2003 Piece-Picking System features high-speed box buffer, which handles up to 300 cases/hr, automatically replenishing flow rack. Piece Sorter has multiple chutes that can each handle many small orders or single large one. Order consolidation station allows accurate configuration of many small orders to multiple customer locations. Warehouse Rx® WMS controls system and uses operational data to allow assignment of resources where most needed.

Unex Manufacturing, Inc.    Jackson, NJ 08527
Jan 10, 2003 Add-On Pick Tray option for Span-Track models converts existing rack into split case picking system, and eliminates need for additional pallet rack or reworking components. Galvanized steel tray is 15 in. deep and sits on 30° pitch, which tips box toward picker, improving view and accessibility. Full width label holder provides product identification. Tray can be added to any pallet rack with carton flow and integrates with pick-to-light systems.

SAS Automation, Ltd.    Xenia, OH 45385
Dec 27, 2002 Products mount to articulating (5-axis) or cartesian (3-axis) robots to offer air and vacuum circuits to End-of-Arm Tooling. Equipped with universal mounting plate, Valve Boxes adapt to individual applications. Using 24 Vdc I/O's from robot, units are offered with 24 Vdc solenoid valves, vacuum ejectors and valves, and air regulators. Incorporated vacuum check valve keeps parts secured in case of temporary loss of power or air.

Sterltech Div., Sterling, Inc.    Milwaukee, WI 53223 0421

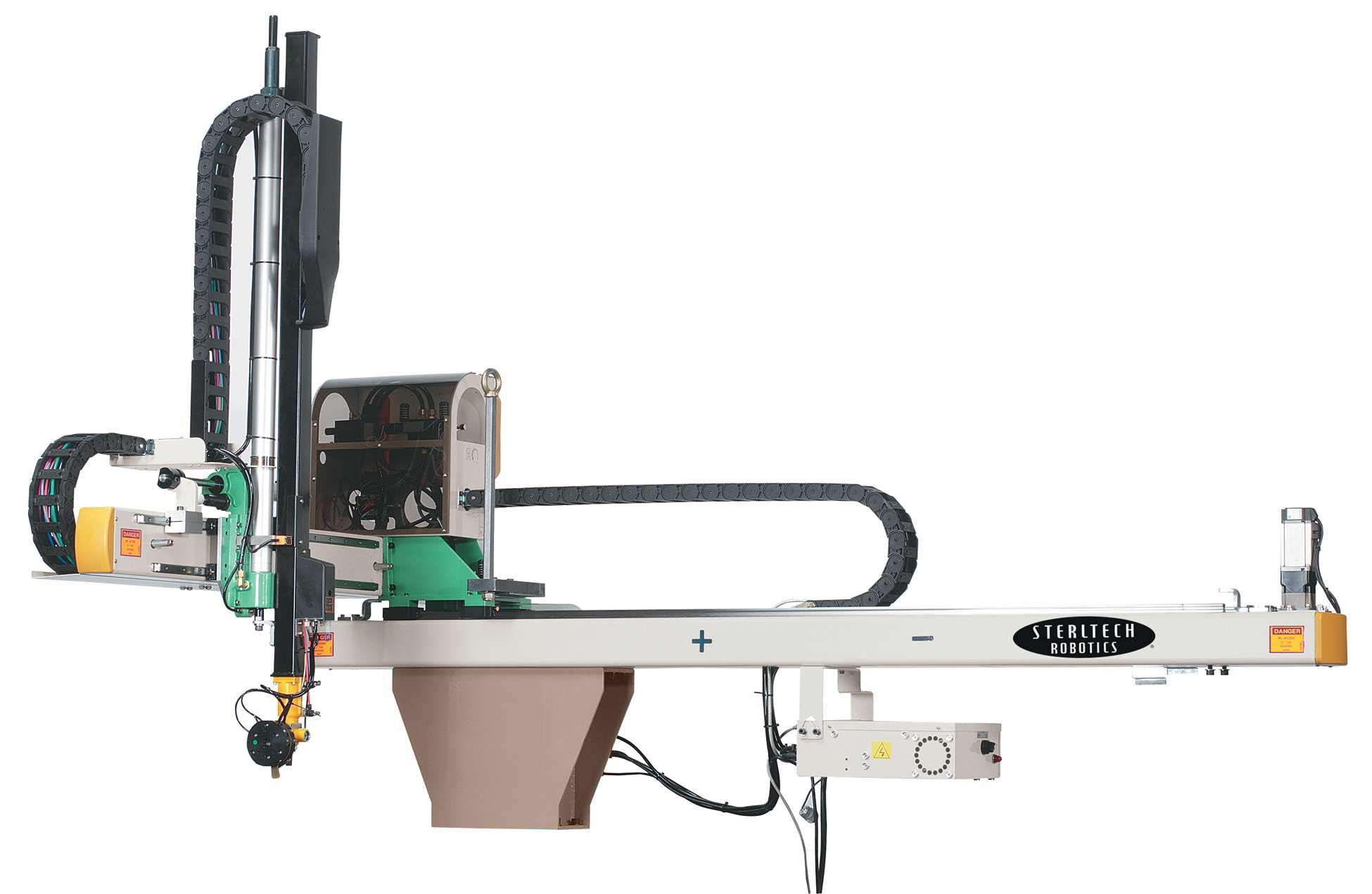

Dec 27, 2002 Series SRA robots incorporate single-axis servo driven motor, which provides smooth operation for customer while maintaining high-speed performance. They include wrist rotation device with air shut off pin.

SK Daifuku    Salt Lake City, UT 84116
Dec 20, 2002 Modular Storage System III automatically replenishes digital pick-to-light flow rack so order-pickers never run out of stock when filling orders. Items move from flow rack along conveyor to Piece Sorter where orders are sorted and readied for shipping. Multiple chutes can handle many small orders or can be dedicated to single large order. System is under control of Warehouse Rx® WMS that features Data Doctor data profiling system.

Rabbit Semiconductor    Davis, CA 95616
Dec 12, 2002 Powered by Rabbit 3000 microprocessor, Model RCM3400, 8-bit core module operates at 3.3 V while running at 29.4 MHz. It is available in models with 512 or 265 K Flash/SRAM. Unit is equipped with quadrature decoder, PWM outputs, and pulse capture capabilities. Its two, 34-pin connection headers provide 47 digital I/O shared with 5 serial ports. Measuring 1.37 x 1.16 x 0.31 in., product mounts directly on user-designed motherboard and interfaces with CMOS-compatible digital devices.

JLG Industries, Inc.    McConnellsburg, PA 17233 9533
Dec 11, 2002 Model 9MP offers 15 ft working height, 500 lb total platform capacity and maneuverability using four 6 in. swivel casters. Side entry platform includes self-closing entry gate. Picker comes with maintenance-free battery, automatic 5 hr battery charger, and aluminum mast sections with guide system. Safety features include lanyard attachment anchor, 2 emergency stop controls, amber warning beacon, and descent alarm. Machine is ANSI, OSHA, and CSA compliant.

Positech, A Div. Of Columbus McKinnon    Laurens, IA 50554-1299
Dec 11, 2002 Simple Air Manipulator Economy Series has lifting capacity of 725 lb and side-loading feature. End-of-arm rotating axis has 7,000 in.-lb of moment loading and can rotate 330° around arm. Unit has lubrication-free cylinders, drag brakes on three axes, leveling jacks and operates with 90 psi clean, dry air. Safety features include 3:1 design factor for all structural components and pilot operated lock valve on lift cylinder.

Big Joe Manufacturing Co.    Lincolnwood, IL 60646
Nov 20, 2002 Model SSCM Stock Selector allows user to lift, lower, forward, and reverse from stock picking level. All controls are located on elevating operator compartment and platform, allowing complete maneuverability. Maneuverable 32 in. wide unit is able to go into areas where only rolling ladders were previously used. Stock Selector is also suitable for overhead applications, such as changing lights and heater and sprinkler maintenance.

Durr Environmental, Inc.    Wixom, MI 48393
Nov 18, 2002 RoboLoop® gantry robot system transfers different parts among several robot carriers simultaneously at high speeds, allowing fully interlinked production between machining operations. It works overhead or at floor level using cantilever, single axis, 2-axis, or H-loader modules. RoboLoop® utilizes drip tray area as parts buffer area for storage of components, eliminating need for separate storage buffer located next to machines.

Applied Robotics, Inc.    Glenville, NY 12302
Nov 15, 2002 Sigma 3 and Sigma 5 feature modularity, data capabilities, and electric actuation. They allow interchangeability of interface modules, which are comprised of electrical connectors and utility packages used in manufacturing environments. Units handle variety of bus system requests, allowing user to route, connect, and disconnect electronic pathways to sensors monitoring manufacturing process. They are suitable for material handling and welding robots.

Techno Linear Motion Components    New Hyde Park, NY 11042
Nov 01, 2002 Cartesian Robots are configured using Blueline Series of Belt Driven Slides and LP Servo Control Package. They can be designed for up to 1550 x 2600 mm of travel and maximum speeds to 2.4 m/sec. Each axis is contained in aluminum housing with protective top cover. Three axes of simultaneous motion can be provided to perform difficult multi-axis motions. Applications include dispensing, soldering, inspection, automatic screw fastening, and pick and place operations.

Leoni Tailer-Made Cable    Troy, MI 48084
Oct 21, 2002 Fully-assembled Dress Packs, or umbilicals are protective polyurethane (PUR) jackets, which include components in any combination of hoses, control cables, and power cables. Hoses carry water, air, or oil. Electrical cables provide power to transformer/weld gun. Umbilicals allow user to protect entire cabling system from abrasion, weld sparks, and bending stress during robot operation. Posts, brackets, boots, and umbilical absorb kinetic energy generated by robot and welding operations.

Bosch/Rexroth Corporation    Hoffman Estates, IL 60192
Oct 11, 2002 The turboscaraâ„¢ SR4plus, SR6plus, and SR8plus include absolute measurement system, which ensures that robots always know work envelope position without reference homing cycle each time they are powered up. Robots can be pre-wired for plug-and-play attachment of end-of-arm tooling, speeding on-site installation. EVS201 power supply and safety module include 4 operating modes for automatic or manual operation. Control system includes robot-specific functions and internal PLC.

Adept Technology, Inc.    San Jose, CA 95134
Oct 10, 2002 Adept NanoModules, when used with company's motion controller, allows users to utilize integrated guidance vision, force sensing, and multiple mechanism control. Suited for assembly and test applications requiring nanometer level positioning, robots include over 20 different 2-, 3-, and 4-axis pre-engineered configurations. They suit electronics, life sciences, and semiconductor industries for high-precision assembly, test, and material handling applications.

FANUC Robotics America, Inc.    Rochester Hills, MI 48309 3253
Oct 09, 2002 Model R-2000iA/200T overhead, 6-axis robot, suited for material handling applications, offers 200 kg payload capacity and +2.0 m reach. Electric, servo-driven R-2000iA/200T has modular construction and is capable of servicing multiple machines, stations, or operations. Rail mount allows top, front, or side entry into machine. Robot is available in single- or dual-armed configuration and can be mounted underslung or sideslung on rails to provide 5.5 to 41.0 m working range.

Robotic Production Technology    Auburn Hills, MI 48326
Oct 09, 2002 Featuring software accuracy tools and memory necessary to perform high path accurate applications, Accu-Cut WJ-44 offers wrist payload of 44 pounds. It uses R-J3iB controller for processing speed, memory, I/O, and communication processing. Robot also supports i Pendant color graphic user interface device.
