Setra Systems Inc., Weighing Systems Div.    Boxborough, MA 01719
Mar 08, 2002 Compact Model 327 can be installed in-line between power supply and pressure transducer so it can convert transducer's 0-5 Vdc, 0-10 Vdc, or 4-20 mA output to 3-1/2 digit display. It has 360-deg rotatable housing for viewing in any of 4 orientations. Detents ensure proper positioning in each axis. Applications include use in high-density modular block gas sticks and panels required for 300mm tools.

CyberResearch, Inc.    Branford, CT 06405 2932

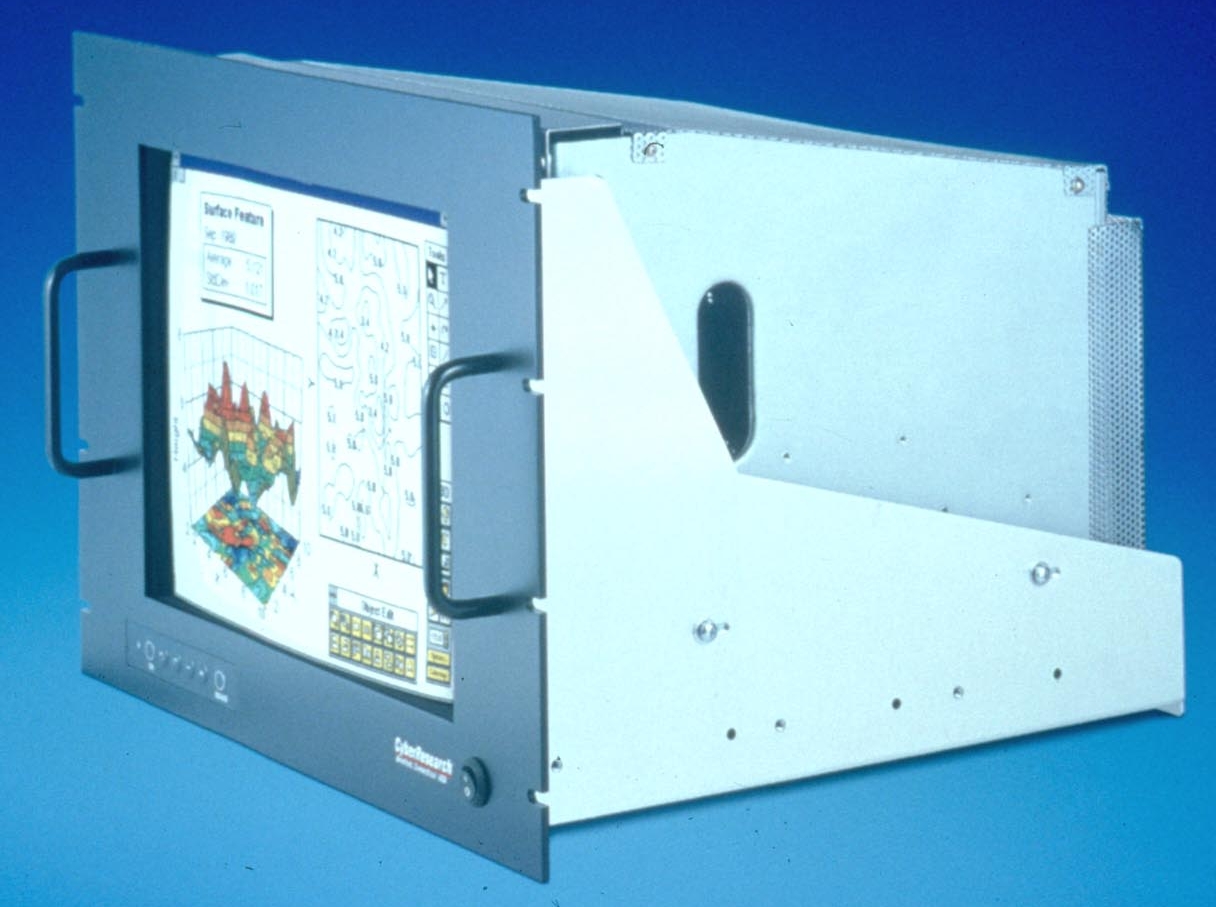

Feb 14, 2002 GRY series displays offer on-screen controls for geometry and color values, selectable in five languages. GRY 1017 (17 in.) is 8U (14 in.) high, and has dot pitch of 0.27mm. GRY 1015 (15 in.) is 7U (12.25 in.) high, and offers dot pitch of 0.28mm. Both displays offer resolutions of 1280 x 1024 pixels @ 60 Hz, and withstand ambient temperatures up to 131 deg F. Each operates on 90 to 246 VAC at 50 to 60 Hz, autoranging.

A-Z Displays, Inc.    Aliso Viejo, CA 92656 1498

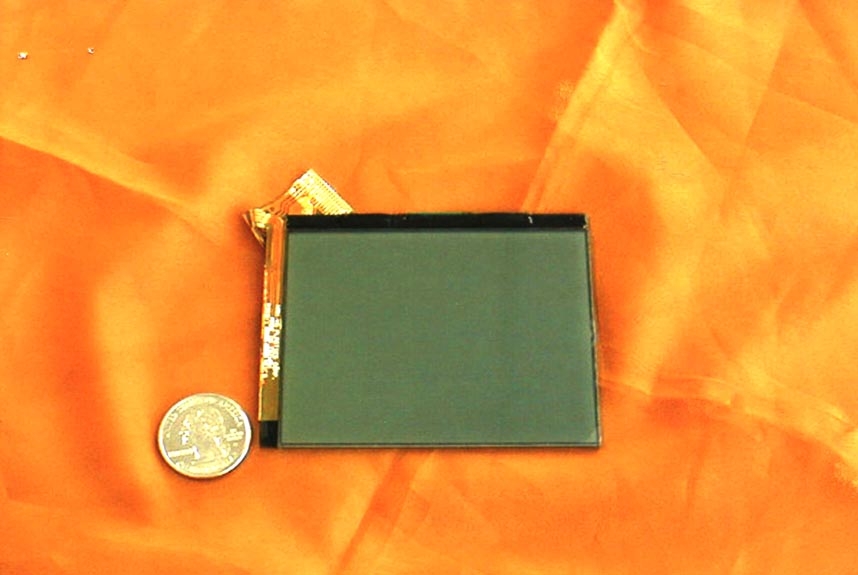

Feb 12, 2002 Model AGM3224K chip-on-glass (COG) module has 320 x 240 QVGA format display. With depth of only 2.2mm, it is suitable for portable applications such as PDAs and other handheld devices. Module is 88.3 x 69.1 x 2.2 mm, with dot size of 0.225 x 0.225 mm.

FastPic Systems    Westbrook, ME 04092

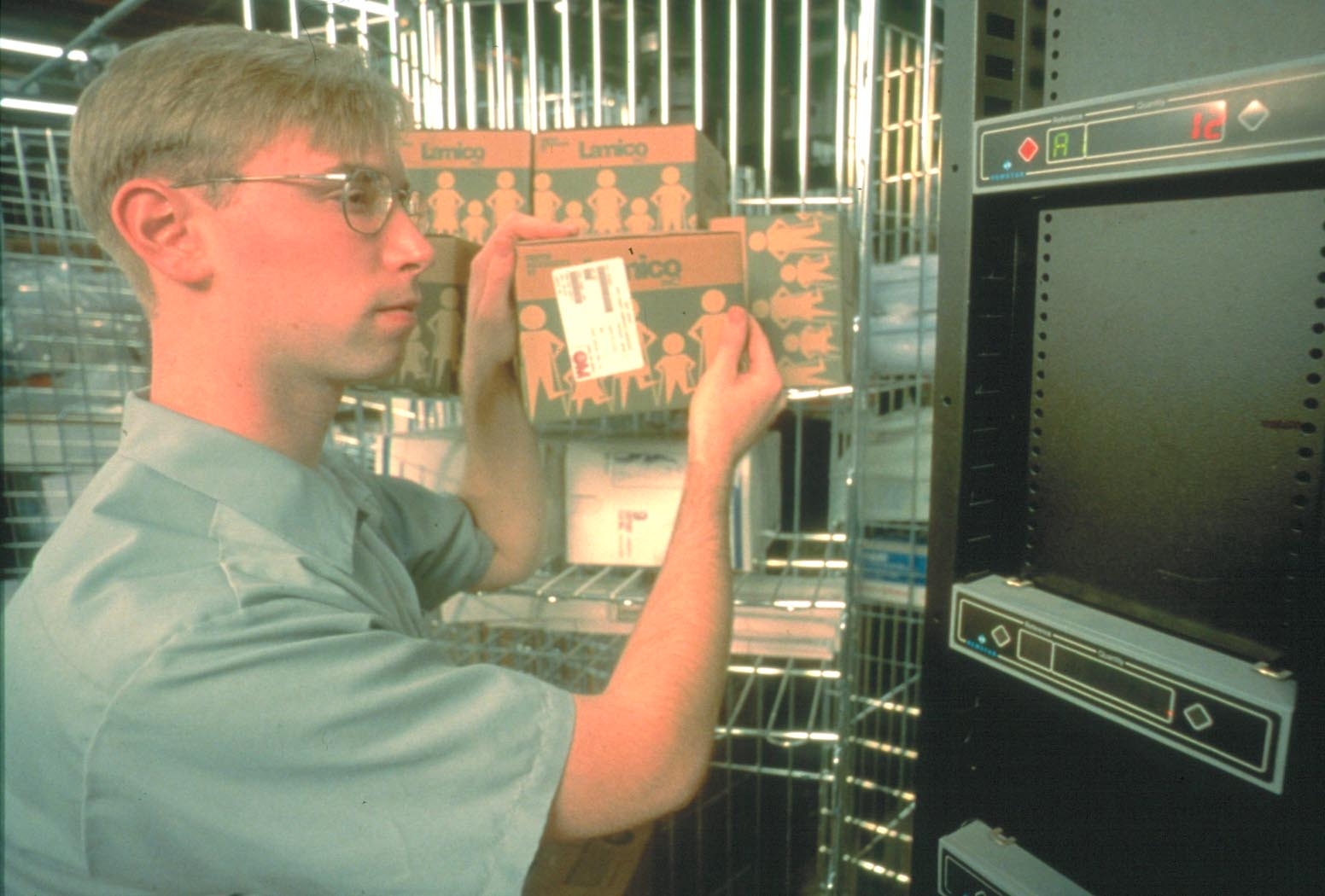

Jan 17, 2002 Pick-to-Light multi-color alphanumeric displays eliminate need for operators to travel aisles with paper pick list for selecting stored items from rack and shelf systems. Computer sends electronic pick list to modules, visually indicating pick location and quantity to be picked. Displays work with company’s FastPic4 software, which can batch multiple orders simultaneously and put picks in sequential order, requiring less time by operator.

GE Intelligent Platforms    Charlottesville, VA 22911

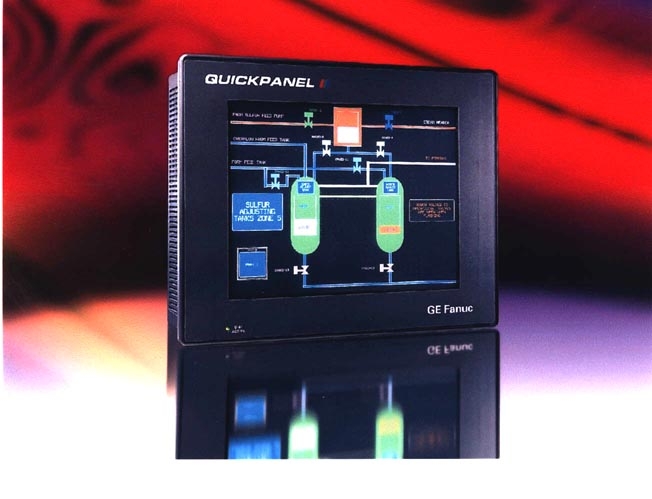

Jan 14, 2002 QuickPanel offers 4 MB flash EPROM and is available in 7.5, 10.5, and 12.1 in. sizes. Backlight burnout detection communicates fault to PLC and automatically disables touch screen, enabling immediate problem resolution and minimizing production downtime. Compact flash card allows applications and program changes to be transferred to and from operator interface. QuickPanel supports both static and dynamic bitmap graphics.

IDEC Corporation    Sunnyvale, CA 94089-2209
Nov 09, 2001 HG1X Series text message displays includes 2 models: HG1X-252 with 16-character, 2-line backlit LCD and 6 function keys; and HG1X-452 with 20-character, 4-line backlit LCD with 8 function keys and numeric keypad. Compatible with PLCs, they draw power from communications ports and have serial ports for printing screens and alarms. Each function key is user-definable; multiple actions can be assigned to 1 keystroke, and each key accommodates 3 actions.
