Walter USA, Inc.    Waukesha, WI 53188
Apr 25, 2012 Prototyp Protodyn® HSC thread former is solid carbide tool engineered to improve thread forming cutting speed, productivity, and tool life. It features micrograin carbide substrate that is mated with hard multi-layer TiCN coating that makes it suitable for use in all formable materials with an Si-content of less than 12%, such as steel, stainless steel, and aluminum. It possesses a shank tolerance h6 for use in shrink-fit chucks and its polygonal form reduces friction for increased tool life.

Makita USA, Inc.    Buford, GA 30518
Mar 30, 2012 Powered by 4.5 in.³ engine with 5.1 hp rating and no load speed of 9,350 rpm, 14 in. Model EK7301 features ignition coil with start-support function that stores electrical power with each pull. Carburetor includes deco-valve and metering spring for precise fuel regulation at start up, minimizing flooding. SLR muffler recycles unburned fuel vapor for efficient fuel consumption. For operator comfort, Model EK7301 includes cushion grips with 4 vibration absorption rubber buffers.

Makita USA, Inc.    Buford, GA 30518
Mar 28, 2012 Weighing 3.9 lb, RT0700C Compact Router offers variable speed control from 10,000-30,000 rpm, enabling user to match speed to application. Tool is double-insulated with heavy-duty aluminum motor housing, rack-and-pinion fine depth adjustment system, soft start feature, and electronic speed control that maintains constant speed under load. Router is also available in kit, Model RT0700CX3, which includes accessories as well as plunge, tilt, and offset base.

Walter USA, Inc.    Waukesha, WI 53188
Mar 05, 2012 Available for threads M3-M16, TMC Thread Milling Cutter is made of wear-resistant ultra-fine-grade carbide with multilayer TiCN coating. Tool features helix angle of 27° with shortened flute run-out and internal coolant supply from as low as thread size M4. Suitable for use on all materials up to hardness of 48 HRC, cutter is also available in uncoated version.

Hyde Industrial Blade Solutions    Southbridge, MA 01550
Mar 05, 2012 Ergonomically engineered for use by left- and right-handed workers, 6.5 in. long Hyde Loop Hoof Knife reduces stress, wear, and tear on wrists and fingers of farriers while effectively trimming frog and soles of hoofs. Blade utilizes .515 in. dia x 1.3 in. long, CNC-machine ground, high-carbon steel cutting edge that is sharpened on inside and mounted to HammerHead® molded handle. Latter features polypropylene core and thermoplastic elastomer soft grip covering to absorb shock.

Kennametal, Inc.    Latrobe, PA 15650-0231
Dec 06, 2011 Specifically engineered for machining carbon fiber reinforced polymer parts, Beyond(TM) KCN05(TM) Routers possess solid carbide substrate and HP diamond coating. Four models are available, including ball-nose router dedicated for pocketing and profiling, down-cut style with left-hand flutes that compress fibers as it cuts, compression-style router with left-hand flutes on shaft and right-hand flutes at bottom, and burr-style model with many thin flutes for optimized productivity.

Wilson Tool International Inc.    White Bear Lake, MN 55110
Nov 15, 2011 Offering standard holders with truly universal punches, EXP(TM) punch technology is designed to fit in all styles of A and B station thick turret assemblies. It is available for every major brand of thick turret tooling, and design enables use of same holder with multiple punches. Available in round or special shapes, products are manufactured with Ultima(TM) premium tool steel for utmost wear resistance and are fully compatible with all current guide assemblies.

Bosch Packaging Technology    New Richmond, WI 54017
Oct 13, 2011 Using ultrasonic technology, Model WRQ 0400 US cuts product arriving in mass ropes into individual bars and applies minimum pressure while cutting to preserve product quality. Knife ensures that product does not stick to surface of blades, making system suitable for cutting sensitive, sticky, laminated, or layered products. Capable of producing 80 cuts/min, Model WRQ 0400 US has max cutting height of 30 mm and can be adjusted to handle cutting lengths from 20-200 mm.

Vezzani, S.p.A.    Ovada   Italy

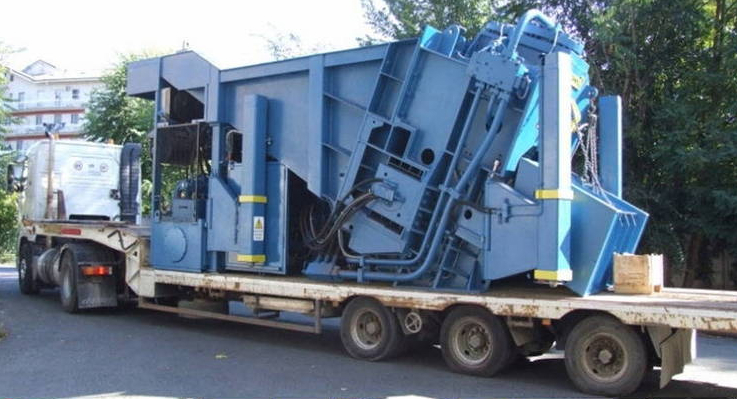

Sep 29, 2011 Designed for productivity and durability, VS Series pre-compression shear is offered as mobile system in 600-700 ton range that utilizes inclined-plane gravity feed system. Single operator can load feed box, which is inclined to 30° angle, and operate shear via remote control system from cab of any standard loader. Operator never has to stop loading to process batch, because material automatically advances into side compression chamber.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Sep 27, 2011 End mills, each with 2 cutting edges, extend depth of cut for CoroMill 316 exchangeable head milling system to 0.8 x Dc. Ballnose option, suited for profile milling, aluminum machining, and finishing, also has cutting edge for profile roughing. Able to accommodate chip evacuation problems when slot milling, corner radius option suits slot/shoulder/plunge/face milling, ramping, and pocketing. Chamfer, available for chamfer milling of different angles, is optimized for spot drilling.

Walter USA, Inc.    Waukesha, WI 53188
Sep 20, 2011 Prototyp ConeFit(TM) solid carbide milling system is available with spade-type compression molded, changeable cutting heads suited for copy and plunge milling, chamfering, centering, and spot-facing holes. For graphite machining, PCD coated N50 variants are available as 4-flute cutters with corner radius and as double-edged, ball-nose end mills. Protoomax(TM)ST end mill provides maximum metal removal during roughing and finishing of steel, including stainless, and four-flute variant is also offered.

RIDGID    Elyria, OH 44035
Jun 10, 2011 Featuring capacity up to 1 5/8 in. OD, Model TC-40 cuts polyethylene, polypropylene, PEX, rubber hose, PVC, and CPVC. Unit features 75 W motor that drives pointed X-CEL® blade to provide square, precise cut in 4 seconds. Repeat cuts can quickly follow with use of push-button blade release. Forward and reverse blade operation is possible via single trigger on front of tool. Powered by detachable 12 V Li-ion battery, TC-40 can make up to 250 cuts/charge.

Hyde Industrial Blade Solutions    Southbridge, MA 01550
May 16, 2011 Designed for electric, cable, and telephone line cutting and splicing, Lineman's Knives are made via proprietary blanking, laser cutting, heat treating, grinding, and polishing processes that optimize cutting performance and helps knives maintain sharp edge. Available blade types include skinning, with or without notches or serrations; splicer; long round and short round; square point; and long mill. Handle options include standard wood or ergonomic SoftGrip plastic.

CS Unitec, Inc.    Norwalk, CT 06850
May 04, 2011 Designed with 6.5 hp gear motor and pistol grip, Model ACH000-16 has 16 in. cutting bar for wood pilings and trimming tree limbs. Unit can operate on open center with portable hydraulic power unit or on closed center hydraulic system powered from bucket lift on utility truck. Open/closed hydraulic system has oil flow of 3-8 gpm at 2,000 psi. For safety, saw includes chain brake, safety trigger lock, and insulated handle for use near utility power lines.

Opex Corp.    Moorestown, NJ 08057-4215
Apr 27, 2011 Operating at speeds up to 40,000 envelopes/hr, Model 306 Envelopener uses milling cutter with 8 cut-depth positions to remove chips as small as 0.01 in. from envelope edge. Model 306s, with sorting capabilities, enables output to 2 locations based on programmable criteria such as thickness, length, and height. Sorting options make Model 306s suited for applications that require verification of contents before or after extraction such as claims processing, remittance, and vote-by-mail.

Parker Hannifin Corp., IPD Instrumentation Group    Huntsville, AL 35805
Mar 22, 2011 Suited for CPI(TM) and A-LOK® tube fittings, hand-operated tools include tube benders with indexing handle for ¼, 3/8, and ½ in. tubing sizes and calibration markings for left-hand, right-hand, and offset bends. Tube cutter for 1/8 and 1 1/8 in. stainless steel, steel, soft, copper, and aluminum tubing is also included, along with deburring tool for 3/16-1½ in. OD tubing. Inspection gauge and sawing vice, with hacksaw guide accommodating 3/16-2 in. OD tube, pipe, and hose, are also integrated.

Hyde Industrial Blade Solutions    Southbridge, MA 01550
Mar 11, 2011 Made of M2 high-speed steel, Hose Hog(TM) Hose and Tube Cut-Off Blades slice materials such as wire-reinforced hydraulic hose in automated manufacturing operations with little to no post-cut cleanup. Hose Hog Hand Knives can hack, pry, cut, shear, trim, slit, or slice materials, including hydraulic hose. They are precision ground for max cutting leverage and reduced binding through cut. Line consists of 10 machine blades and 3 hand knives in variety of standard shapes and sizes.

Reed Manufacturing Co.    Erie, PA 16512
Dec 15, 2010 Saw It® models SAWITSD and SAWITD feature immediate shutdown when throttle is released and immediate start upon throttle squeeze. On SAWITSD, trigger lock prevents accidental activation if trigger is unintentionally bumped/pressed. These tools can cut plastic, steel, and stainless steel, with 6 in. min clearance beyond pipe to accommodate blade movement. Products cut up to 20 in. dia pipe with single setup or larger pipe with optional chain extensions and several clampings.

Dapra Corporation    Bloomfield, CT 06002
Dec 01, 2010 Suitable for 1¼ in. dia and above, RHINO-CARB(TM) HFDEH inserts fit current Toroid cutter bodies, are CNC-pressed, and enable aggressive metal cutting. Thickness lends to strength, while design maximizes metal removal rates and heat-absorption. High-positive cutting edge suits stainless steels, high-temperature alloys, and gummy materials, and stronger edge optimizes chiploads, shock absorption, and tool life. Also, positive top rake reduces cutting forces and torque.

Seco Tools AB, Carbology, Inc.    Warren, MI 48089
Nov 11, 2010 Covering variety of materials and operations, Jabro routers include 5 solid carbide styles featuring DURA CVD diamond coating that provides thermal and abrasive barrier. Specific models include JC840 Left-Right Helix Router, JC850 Light Helix Ballnose Router, JC860 Honeycomb Router, JC870 Diamond Cut Router, and JC880 Light Helix Router. Depending on specific style, cylindrical shank diameters range from 3.0-20.0 mm.
