Xuron Corp.    Saco, ME 04072 1840
May 23, 2013 Designed for beading and jewelry making, Xuron® 4-in-1 Crimper features 3 folding stations precisely milled to accept 1, 2, and 3 mm tubes, as well as chain nose plier for squeezing and bending operations. Made from steel with non-glare finish, crimper has soft Xuro-Rubber™ handles and built-in return spring. To operate, user places crimp in crimping station and squeezes firmly, turns crimp on side and places it in appropriate folding station, then uses chain nose tip for additional shaping.

RIDGID    Elyria, OH 44035
Feb 12, 2013 Available in ½ and ¾ in. sizes, Close Quarters ASTM F1807 PEX Crimp Tools are suited for making connections in potable water and radiant heating applications. Size of handle openings lends to maneuverability in tight spaces, while glass-filled polycarbonate E3™ handles promote user comfort. Made for use with ASTM F1807 copper crimp ring PEX tubing connections, tools feature built-in Go/No-Go Gauge that folds into handle and adjustable lock screw for calibration.

Phoenix Contact    Harrisburg, PA 17111 0100
Nov 16, 2012 Inserted in handle of tool, Crimpfox-WF die provides stripping capability from 20-10 AWG and cutting capabilities from 24-10 AWG, in addition to crimping. Tool features easy follow through ratchet release and releasable pressure lock mechanisms. Crimpfox-N provides optimum transfer of force, requiring minimal manual impact.

Ideal Industries, Inc.    Sycamore, IL 60178
Aug 20, 2012 Combining variety of tools in heavy-duty zipper mechanics bag, Coax Video Pro-Tool Maintenance Kit is intended for installation and repair of coaxial cable systems used in broadcast and CCTV video surveillance. Three die sets and OmniSeal(TM) Pro XL compression tool cover all BNC and F applications. In addition, kit includes ratchet crimp tool, 2- and 3-step coax strippers with extra 3-step replacement blade, IDEAL Data T cable cutter, and 50 RG6 compression F connectors.

Platinum Tools    Camarillo, CA 93012

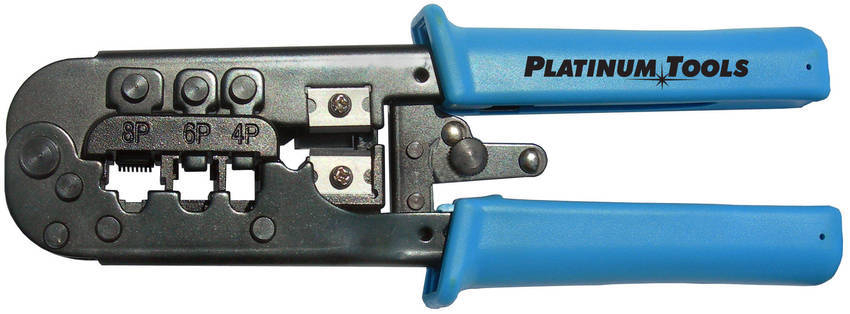

Oct 24, 2011 To ensure precision, Tele-Titan(TM) (P/N 12507) delivers straight action termination for even pressure on each of modular plug's pins. Crimping capabilities cover RJ45 (8 x 8), RJ12 (6 x 6), and RJ11 (6 x 4) standard style modular plugs, solid or stranded. Featuring gun safety lock-style design, balanced tool precisely seats all pins to industry specified crimp heights. Built-in cable cutter and strippers accommodate round and flat cables.

Platinum Tools    Camarillo, CA 93012

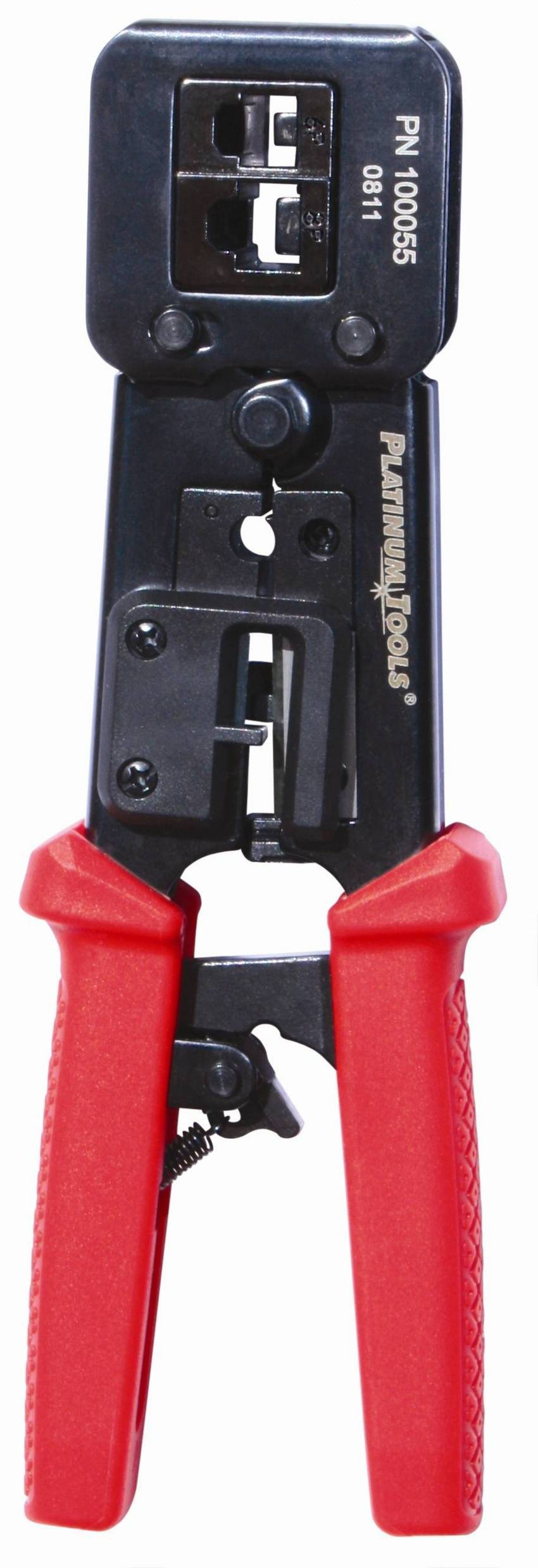

Jul 26, 2011 Used to crimp/terminate AMP-style RJ45, RJ11, and RJ12 modular plugs, PROAMP crimp tool also cuts and strips Cat5e, Cat5, and Cat6 cables. Design ensures consistent, repeatable terminations, and zero flex frame prevents torque loss during crimp cycle. Every termination will meet FCC requirements, and built-in cutter and cable jacket strippers handle round and flat cables. Also, integrated die head assembly provides 360° connector support during crimp cycle.

Thomas & Betts Corp.    Memphis, TN 38125
Jul 21, 2011 Featuring balanced, ergonomic, in-line design, T&B® 6-Ton Battery-Powered Crimping Tool can be operated with one hand while yielding 6 tons of output force. This 6.4 lb tool is suited for crimping service entry connectors and lugs as well as splicing up to 300 kcmil copper or 4/0 AWG aluminum wire. Tool head includes fixed 5/8 in. BG and D crimp grooves as well as O-die insert and is compatible with all W-style dies. Jaws automatically return to open position after completing crimp.

Thermo Fisher Scientific    Waltham, MA 02454
Oct 06, 2010 La-Pha-Pack Stainless Steel Crimping Tools, available for vials from 11-20 mm in size, withstand dry heat sterilization or autoclaving in chromatography cleanroom applications. Corrosion- and heat-resistant mechanism of tools maximizes durability and lifespan. Featuring adjustable pressure and height, units enable optimal torque to be applied to wide variety of vial styles.

Thomas & Betts Corp.    Memphis, TN 38125
Sep 13, 2010 While engineered to minimize handle force required to complete crimp, Sta-Kon® Comfort Crimp® Compression Tool also employs Shure-Stake® mechanism that ensures complete crimp cycle is made before tool will release to open position. Over-molded handles naturally place operator's hands in safe, strain-reducing position and also create soft cushion for fingers and palms. Also included, Crimp-Assist® foot stabilizes tool when user needs to place it on work surface for additional leverage.

Parker Hannifin Corp., Hose Products Division    Wickliffe, OH 44092 1797
Aug 23, 2010 Able to crimp straight or bent-stem fittings from ¼-2 in. in diameter, Karrykrimp® 82C-CHD and Karrykrimp®2 85C-CHD can serve as bench-mounted machines with addition of Power Unit or as mobile crimpers by adding portable stand. Both Parkrimp-style units include Parkalign(TM) system, which positions fitting in die for correct crimp every time. Bottom-loading design helps operators manage long hose assemblies, while linked dies prevent segments from being misplaced or mismatched.

Icc    La Mirada, CA 90638
Jul 26, 2010 JackEasy(TM) tool terminates all 4-pairs with even balanced blade that seats, terminates, and simultaneously cuts off excess wires in one squeeze. Manufactured with 16 ga steel framework, tool features handle, that is ergonomically designed with polypropylene to allow comfortable grip, as well as 2 blades to terminate both easy and slim body style jacks. Unit's surface base allows tool to rest on table or floor for support during termination.

Greenlee Textron, Inc.    Rockford, IL 61109
Dec 16, 2009 Offering optimal balance and over-molded tacky grip, Crimping Tools include IntelliCRIMP(TM) pressure sensor, which notifies users with visual and audible alert if crimping force is below specifications for successful crimp. Most models also include Automatic Retraction Stop, which automatically retracts ram just enough to get ready for next cycle. In addition to providing battery charge and tool maintenance status, LED light facilitates working at night or in dark spaces.

FKN Systek, Inc.    Framingham, MA 01702
Oct 02, 2009 Able to accommodate dies from various manufacturers, C200 table-top crimp tool is operated using standard factory air (5 bar min) and offers max pressing capacity of 1,200 kp. Portable, bench top unit facilitates change of tools and setup for different crimp contacts. In addition to crimping bare and insulated crimp terminals, uses include assembling IDC connectors to ribbon cable, splitting ribbon cable, cutting wire, stamping small components, and other tasks.

RF Industries    San Diego, CA 92126 4202
Jul 10, 2009 Used for crimping N-type connectors onto LMR-400® or equivalent cables, RFA-4511 series installation kit includes cable cutter, one-step cable stripper, Cable Devil® preparation tool, professional grade crimp tool and die, and 25 N male connectors. Kit comes with rugged, foam lined case with installation instructions.

Platinum Tools    Camarillo, CA 93012
Apr 29, 2009 Featuring rugged design and terminating all popular plug configurations used in voice, data, and A/V installations, All-In-One Modular Plug Crimp Tool (P/N: 12503) is suited for telecom and network, security, residential structured wiring, and professional and commercial A/V applications. Steel framed with PVC handles and rust resistant black oxide finish, tool weighs only 12 oz and terminates RJ45, RJ11/12, and RJ22 (handset) plugs to solid or stranded cable from most manufacturers.

Greenlee Textron, Inc.    Rockford, IL 61109
Apr 29, 2009 With ability to splice terminals from 10-22 AWG, KP1022 can be used by electricians, telco installers, and security and alarm installers. It comes in either double-cushioned handle grips (KP1022) or standard handle grips (KP1022D). Tool provides precision cutting of small wires and for crimping terminals onto same wires. It has one crimping die position for crimping insulated terminals and splices and another for crimping uninsulated terminals and splices.

Weidmuller, Inc.    Richmond, VA 23236

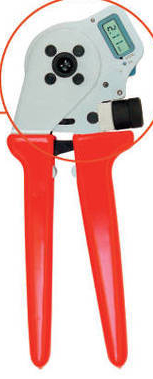

Mar 24, 2009 Models CTIN CM 1.6/2.5 and CTIN CM 3.6 are designed to crimp 6 types of turned/machined contacts, including HD, HE, HX, M3, M5, and M10. Along with ergonomic design, tools feature built-in stop for exact positioning of contacts as well as digital crimp setting that provides accuracy to within 0.1 mm. While CTIN CM 1.6/2.5 crimps contacts for wire sizes from 26-9 AWG, CTIN CM 3.6 does the same for wire sizes from 16-7 AWG.

Gates Corporation    Denver, CO 80202

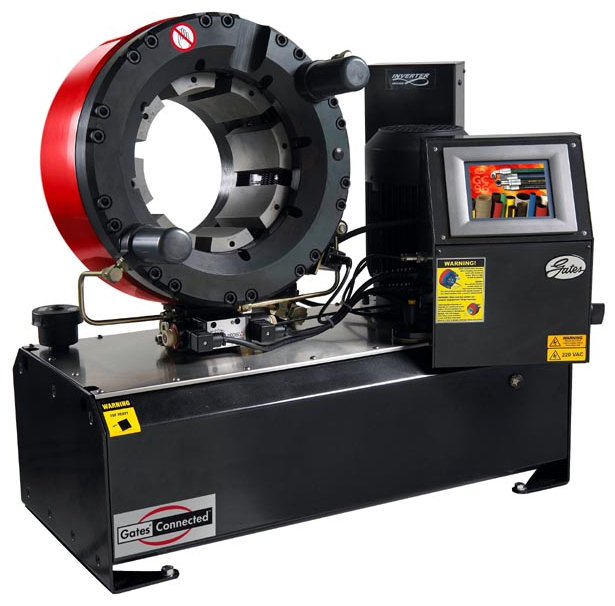

Nov 03, 2008 Featuring 2-stage crimping process, foot pedal crimping control, and touchpad, GC96(TM) can crimp up to 6 in. industrial hose or 2 in. hydraulic hose assemblies. Head allows hose assemblies to be made with various terminations using crimpable ferrules and sleeves. For universal applicability, tool automatically converts any local electrical input (208-264 V, 3-phase) into compatible power source. Crimper also features self-diagnostic indicator lights and modular, plug-and-play design.

Ideal Industries, Inc.    Sycamore, IL 60178
Sep 05, 2008 Allowing installers to terminate dozens of types of wires and cables, Crimpmaster features Santoprene® textured handle that helps reduce risk of repetitive strains/injuries and extends tool service life by resisting damaging oils, fluids, perspiration, and abrasions. Twenty-one interchangeable modular plug die sets are available for Crimpmaster, including dies for co-ax, fiber optic, and AWG connectors. Dies can be changed on the fly using only screwdriver.

Aven, Inc.    Ann Arbor, MI 48108
Apr 28, 2008 Targeting telecom and electronics technicians, Model 10140 Crimping Tool for Micro Connections is capable of crimping 1.25-2.5 mm narrow pitch connector pin wires, and handles D-Sub connector contacts from variety of manufacturers. Pliers are made of S55C with Teflon® coating, and feature oil-resistant elastomer handles, locking latch, and coiled spring. Measuring 6.8 in. long, tool allows for fatigue-free work.
