Drum-Mates, Inc.    Lumberton, NJ 08048
May 02, 2008 Available in plated steel and 316 stainless steel, 2 in. NPT thread ThreadGuard(TM) DM-55BTG prevents plastic thread stripping, thread wear, and other damage. Tightening in drums, totes, tanks, and other containers is permitted with Wide-Hex grip mounting feature. Operator and environmental exposure to noxious, toxic, or dangerous fumes are limited by quick mounting. Stainless steel model enables use with most plastic equipment applications covering wide chemical compatibility range.

Maxpro Technologies    Fairview, PA 16415
Apr 29, 2008 Offered in versions specified for working with medium-pressure tubing, high-pressure tubing, and both, Coning and Threading Tool Kit contains manual coning and threading tools designed to thread up to 9/16 in. OD tubing. One size coning and threading tool, with interchangeable bushings and thread dies, eliminates need for multiple tool inventories. Also included, coning blades cut both angle and straight areas of tube to ensure concentricity between sealing surfaces.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Mar 26, 2008 Engineered with 36V NANO(TM) Phosphate Lithium Ion battery to accommodate up to 2,000 recharges, 36 V DC901KL employs 3-speed transmission that optimizes speed applied to each application. Mode section lets users transition among drilling, screwdriving, and hammerdrilling functions, and all-metal ½ in. self-tightening chuck continually tightens during operation for optimized bit retention. Weighing 6.75 lb, tool has anti-slip comfort grip for ergonomic handling.

Sandvik Coromant Co.    Fair Lawn, NJ 07410
Mar 25, 2008 CoroThread 266 threading tool is suited for oil, gas, and mechanical engineering industries. It features iLock insert locking system that simplifies tool set-ups, eliminates potential insert movement during machining, provides repeatability, and disperses cutting forces with no pressure points, reducing strain on both tool and insert. Capable of minimizing machining vibration, threading tool comes with E-tolerance of 0.0004 in. axially and 0.02 in. radially.

Hitachi Power Tools    Norcross, GA 30093
Feb 26, 2008 Micro driver drill, Model DB10DL, measures less than 6 in. long and weighs 1.8 lb. With 88 lb-in. of turning torque and 21+1 stage clutch, drill can drive 130 three in. screws into wood during single battery charge. Features include battery charger that prevents overheating or power loss, ¼ in. hex chuck that allows for simple bit replacements, and optimized handle dimensions that create ergonomic grip span for comfortable hand control.

Metabo Corp.    West Chester, PA 19380 4243
Feb 26, 2008 Weighing 4.4 lb, 18 V lithium-ion Model SBZ18 features torque adjusting sleeve with 5 torque settings, forward and reverse acting motor, and all-metal 1/16-½ in. keyless chuck. In first gear, drill operates at 0-400 rpm, and in second gear, tool offers speeds from 0-1,450 rpm. Model SBZ18 features drilling capacity of 1 3/16 in. in soft wood, ½ in. in steel, and 3/8 in. in concrete, with screwdriving capacity up to 5/16 in. in soft wood.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Jan 29, 2008 Available with mid-handle grip or traditional pistol grip, 3/8 in. Corded Drills enable professional contractors to complete heavy-duty applications. Model DWD115K features 8.0 A of power, while Models DWD110K and DWD112 offer 7.0 A. All-metal keyless ratcheting chuck on Models DWD115K and DWD112 optimize bit retention. All models weigh 4.1 lb and come with anti-slip comfort grip.

Kennametal, Inc.    Latrobe, PA 15650-0231
Jan 17, 2008 Constructed with PVD coating, KC7542(TM) and KC7512(TM) have fully cylindrical shank and can be used in CNC rigid or synchronous tapping. Design lends to predictable thread gaging, reducing part scrap and rework for oversized/undersized tapped holes. While KC7512 is suited for tapping aluminum and other non-ferrous materials, KC7542 is used for tapping steels and irons and can prevents chipping in steel up to 32 HRC.

Metabo Corp.    West Chester, PA 19380 4243
Jan 16, 2008 Used for drilling holes and driving screws into wood or sheet metal, ¾ in. BE4010 has no-load speed of 2,850 rpm and employs 3.5 A motor that offers max tightening torque of 53 lb-in. Drilling capacity is 7/8 in. in soft wood with use of self-feed bits and 3/8 in. in mild steel. While 3/8 in. keyless chuck facilitates bit changing, 2.64 lb ergonomic design minimizes fatigue during extended use. This 400 W drill also includes variable speed electronic switch.

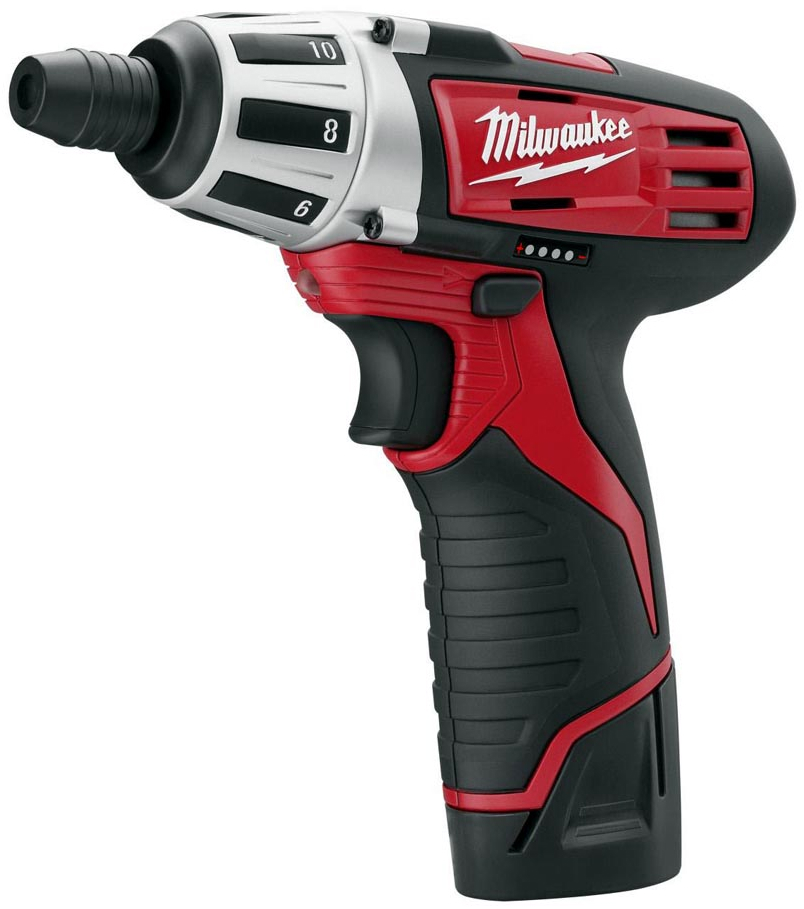

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Oct 12, 2007 Able to drive 130, 3 in. screws on single charge, 2401-22 is powered via 1.4 Ah battery and leverages fade-free lithium-ion technology. One-handed chuck facilitates bit changing, and variable-speed (0-500 rpm) trigger provides control when working in small spaces or at awkward angles. Delivering 100 lb-in. of torque in 2 lb package, professional-grade 12 V tool is designed for ergonomic balance and incorporates LED work light and battery fuel gauge.

Milwaukee Electric Tool Corp.    Brookfield, WI 53005-2550
Sep 28, 2007 Delivering 400 lb-in. torque with 1/16-½ in. capacity, model 2601-22 is designed for electrical work, light assembly, installation, and finish carpentry. It features 2-speed magnesium gearbox, 22-position clutch setting, and ratcheting chuck, as well as built-in LED light and battery fuel gauge. At 4.0 lb, it includes 18 V 1.4 Ah Li-Ion manganese battery, 30 min charger, on-board bit storage, belt hook, and screwdriver bits.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Sep 14, 2007 Measuring .75 in. long to fit in tight areas and overhead applications, heavy-duty impact drivers and wrenches include 18 V (DC825KA/DC820KA), 14.4 V (DC835KA/DC830KA), 12 V (DC845KA/DC840KA, DC841), and 9.6 V (DC855KA). All utilize frameless motor with replaceable brushes and feature variable speed reversing switch, and LED work light. Additionally, tools incorporate OEM accessory recess provides compatibility with aftermarket components.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Aug 29, 2007 Respectively equipped with 3/8, ½, and ½ in. single sleeve ratcheting chucks, DC742KA/VA (12 V), DC730KA (14.4 V), DC720KA (18 V) drill/drivers, as well as DC725KA (18 V) hammer drill with ½ in. single sleeve ratcheting all metal chuck, are ergonomically designed for balance, comfort, and control. Products range in length from 7.8-8.7 in., weigh 3.8-4.9 lb., and come with LED work light to promote visibility in tight spaces. Each tool has 17 clutch settings and dual-speed operation.

Hougen Mfg. Inc.    Flint, MI 48501 2005
Aug 17, 2007 Measuring 16 3/8 x 7 3/16 x 8 ¼ in., Model HMD904S features drill body-to-magnetic base coupling that provides pivot axis for up to 1 3/8 in. arc of side to side motion, and straightline axis that permits up to 1 3/8 in. of front to back movement. After magnetic base has been engaged, added axes allows operators to fine tune drill position and precisely locate hole center points. Equipped with 7.2 A/450 rpm motor, drill offers capacities from 7/16-1 ½ in. dia and 2 in. depth of cut.

Datum Point Tool, Inc    Troy, MI 48098
Jul 19, 2007 Carbide inserted 82º included angle countersinking tool features 4 in. long and 1 in. diameter holder that accepts single 1 in. wide insert with 2 flutes. Insert will countersink any hole from 3/16-1 in. diameter. Inserts can be ordered with or without TiALN coating.

CS Unitec, Inc.    Norwalk, CT 06850
Jul 16, 2007 END 712 P Mini diamond drill is used for drilling dowel, anchor, and thru holes in tile, hard ceramic gres tiles, natural stone, granite, and concrete. Offering variable speed of 0-8,000 rpm, it drills without shock/hammering, eliminating cracks and blow-out. Features include 5 lb weight, 6.3 A motor with GFCI, built-in water swivel with hose connection and valve, keyless chuck, and depth gauge. Drill is suited for gravestones, countertops, plumbing, and other masonry applications.

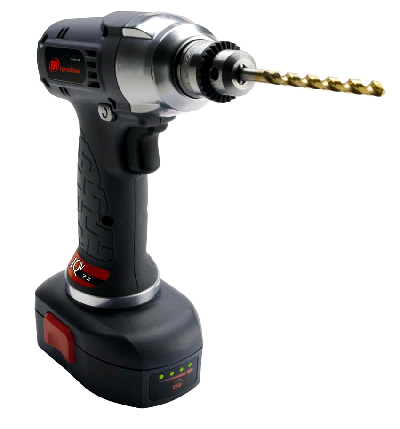

Ingersoll-Rand Co.    Annandale, NJ 08801
Jun 13, 2007 Developed for automotive and industrial professionals, 7.2 V IQV Series D040 features ¼ in. keyed chuck and is optimized for drilling applications in sheet metal and other tough materials. Drop-resistant structural housing protects tool against breakage and harsh fluids, while all-metal gear case protects internal components. Battery features twist-to-lock design and onboard electronics that allow operator to choose between Li-Ion and Ni-Cad.

Metabo Corp.    West Chester, PA 19380 4243
Apr 16, 2007 Providing up to 549 lb-in. torque, BSZ 18 Drill/Driver can drill up to ½ in. holes in mild steel and 1 3/16 in. holes in soft wood. No-load speed is from 0-450 and 0-1,450 rpm. Able to bevel cut up to 47°, 6½ in. KSAP 18 Circular Saw cuts up to 2 1/8 in. deep at 90° and 1 5/8 in. at 45°. ASE 18 Reciprocating Saw delivers 0-2,700 strokes/min and has Quick blade-changing system. Kit also includes flashlight, AC30 Plus charger, two 18 V 2.2 Ah Li-Power 20 batteries, and carrying case.

BIG Kaiser Precision Tooling, Inc.    Hoffman Estates, IL 60192
Apr 11, 2007 With KAB connection featuring high clamping force, indexable insert drill is suited for drilling in inclined entry or exit surfaces. Available in 16-30 mm and 3 x D and 4 x D with KA6 connection, product includes straight flutes that ensure short distance for chip evacuation and high radial/torsional rigidity. Inserts are available for all kinds of workpiece materials with 4 cutting edges, while adjustable drill holder allows drills to cut fractional sizes.

DeWalt Industrial Tool Co.    Hampstead, MD 21074
Jan 30, 2007 Featuring 8.2 A motor, 5.3 lb DW520K ½ in. hammerdrill offers 0-1,000/3,000 rpm and 0-19,000/0-46,000 bpm. Tool features dual drilling modes, and has 5/8 in. capacity in masonry, ½ in. in steel, and 1½ in. in wood. Unit includes 2-speed gear box for adjustment to high-speed or high-torque applications, soft grip handle, and 360° side handle with depth rod for control and accuracy when gauging depth.
