Eubanks Engineering Co.    Monrovia, CA 91016
May 22, 2003 Microprocessor-controlled Model 4600-03 automatically cuts flat cable, plastic tubing, wire, tape, and other linear material to preset lengths. Quick-release wire-loading mechanism reduces set-up time. User can program cut length and batch quantities by keyboard input. Cutting lengths can be set from .020–999.99 in. with batch capacity from 1–99,999 pieces. Unit converts from 110 to 230 V operation and from inch to metric measurement.

Ideal Industries, Inc.    Sycamore, IL 60178
May 22, 2003 Model 45-349, capable of removing jacket from simplex and duplex 3 mm zip cord cables, incorporates precise knife-type, form-ground blades that cleanly penetrate outer jackets. Underlying Kevlar strength member and fiber are left undamaged to ensure optimal connections. Contoured, comfort-grip handles reduce operator fatigue.

Eubanks Engineering Co.    Monrovia, CA 91016
Mar 31, 2003 AirStrip 2940 automatic wire stripper cuts and strips single- and multi-conductor cable up to .625 in. thick at rates to 1,300 pieces/hr. Capable of unattended operation, product employs cutterhead, strip assembly designs, and embedded software that enable it to handle most materials between .190–.625 in. thick.

Klein Tools, Inc.    Lincolnshire, IL 60069
Mar 19, 2003 Klein-Kurve(TM) Model K1412 has 14- and 12-gauge stripping slots for removal of outer jacket of 14/2 and 12/2 Romex Type NM-B non-metallic-sheathed cable. It strips, cuts and loops 12 and 14 AWG solid wire. Model K1210 has 12- and 10-gauge stripping slots for 12/2 and 10/2 Romex cable, as well as 12 and 10 AWG solid wire. Both have holes to shear 6-32 and 8-32 screws. Hardened steel tools feature serrated nose jaws, closure lock, and spring-loaded, self-opening action.

Schleuniger, Inc.    Manchester, NH 03103
Mar 07, 2003 UniStrip 2600 fully electric machine handles discrete wire, power cords, multi-conductor cables, flat cables, and sensor cables. It is programmable in AWG and mm² and includes menu-guided software and graphical display, which allows user to view schematic diagram of cable end, complete with programmed dimensions. Stripper handles max wire OD of 0.35 in. and max width for flat cable of 0.43 in. Strip length is 3.15 in. and strip cycle is 0.6 sec.

Panduit Corp.    Tinley Park, IL 60477 3091
Feb 05, 2003 GTH installation tool, for standard to heavy cable ties, controls tension and cutoff of cable tie during installation. Product provides consistent use over many cycles with tension adjustment for changing and confirming settings. Narrow nose allows for access within space-restricted areas.

Panduit Corp.    Tinley Park, IL 60477 3091
Feb 04, 2003 PTS installation tool, for subminiature through standard cross section cable ties, utilizes pneumatic operation to automatically tension and cut off cable ties in less than 1 sec. Ergonomic design incorporates cushioned, non-slip handle and controlled tip ejection that retains cut-off tip. Tension-adjustment knob and fine-adjustment dial confirm and change tension settings. Narrow nose provides visibility and access to bundles in confined areas.

RF Industries    San Diego, CA 92126 4202

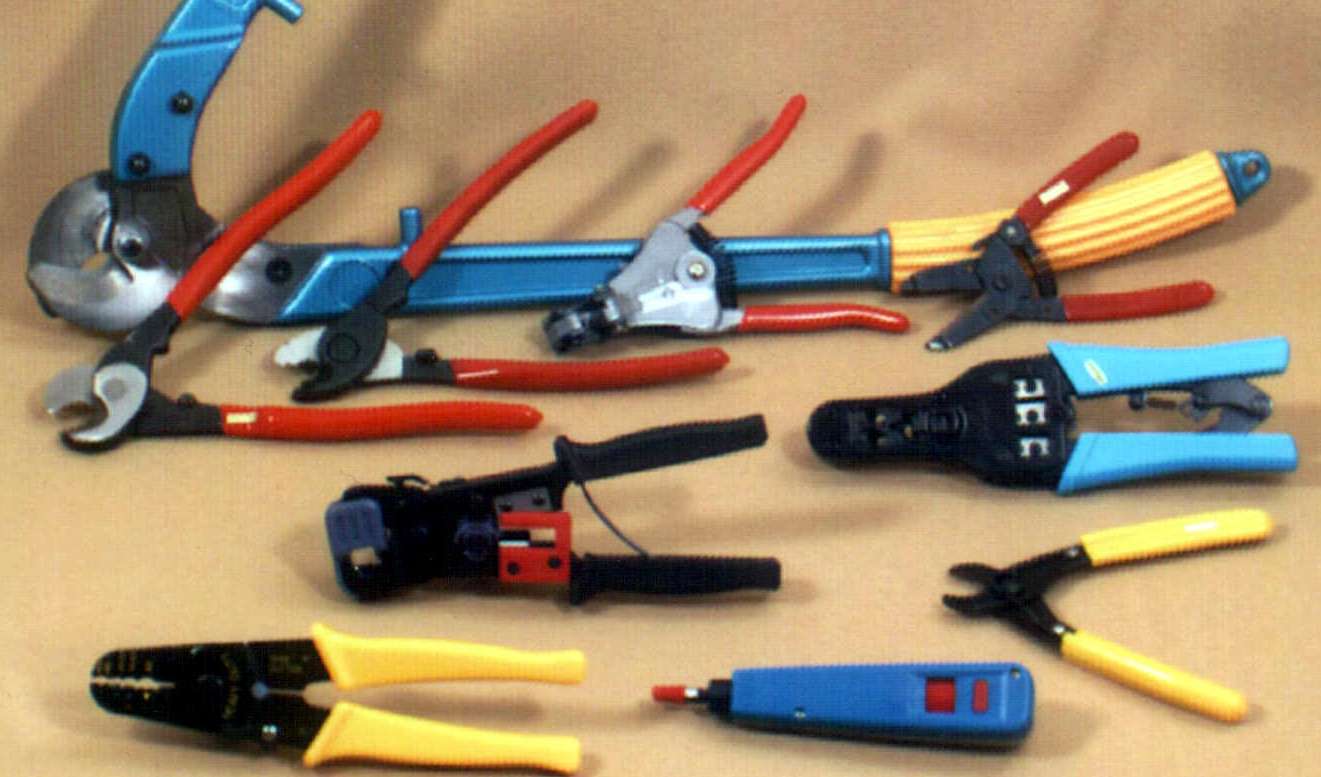

Jan 24, 2003 Cutters, strippers, and crimpers are available for wire and cable and some have multiple functions. Cutters are designed for small wire and coax, and aluminum and copper cable from 2 AWG to 250 mm². Strippers are designed for wire from 30–10 AWG, coaxial cables up to .600 in. dia, multi-conductor cables, and CAT 5 & 6 wires and cables. Crimpers are designed for insulated and non-insulated terminals to 4, 6, and 8 conductor modular plugs.

PlugGrip Products    Lindsay, CA 93247-1807
Jan 24, 2003 SwitchGrip® aids users in fixing/removing electrical 15 A, 120 Vac light switches by holding on to single pole or 3-way switch with magnet, giving user control and stability. During installation of light switches user has control over stiff wires, and tool increases safety by keeping users' hands away from live wires and metal. Product is small enough to use with power or manual screwdrivers and incorporates wire stripper and bender into handle.

RF Connector Operations    Danbury, CT 06810
Jan 23, 2003 Cutters, able to cut small wire and coax through aluminum and copper cable, handle wire sizes from 2 AWG to 250 mm². Strippers handle wire as small as 30 AWG and as large as 10 AWG, coaxial cables to .600 in. dia, multi-conductor cables, and various CAT 5 and 6 wires and cables. Crimpers handle insulated and non-insulated terminals to 4, 6, and 8 conductor modular plugs such as RJ11, RJ12, and RJ45 voice/data connectors.

General Machine Products Co.    Trevose, PA 19053
Nov 13, 2002 Duct Rodders, constructed of fiberglass strands impregnated with thermosetting gel and strengthening agents, are mounted on tubular-steel carriers. UV-stabilized, safety-yellow polypropylene coating will neither soften in hot weather nor become brittle in cold. Rodders have male-threaded fitting on outboard end and female-threaded fitting on back end. They are offered in nominal diameters of 1/4, 3/8 and 1/2 in., in continuous lengths from 100 to 1,000 ft.

Klein Tools, Inc.    Lincolnshire, IL 60069
Nov 13, 2002 Model 63030 cuts up to 1 in. dia aluminum and copper coaxial cable with one-hand shearing action. Cutting tool has curved jaws that grasp coaxial cable and shear blades that cut cable without compression or frayed ends. Additional offerings include hot-riveted joint, plastic-coated handles, and lightweight design. Overall tool length is 8¼ in.

Eraser Co., Inc., The    Syracuse, NY 13221
Nov 01, 2002 Series D Magnet Wire Strippers, with FybRglass® stripping wheels, include Models D1, DV1, and D9. All units strip round magnet wire from 35 to 16 AWG; square magnet wire up to 1/4 in. and rectangular wire up to 1/4 x 1 in. Models D1 and DV1 have strip lengths from 3/8 to 2 1/2 in. Model D9, with offset stripping head, allows unlimited strip lengths and window stripping. Integral dust collection on Model DV1 traps insulation residue.

Eraser Co., Inc., The    Syracuse, NY 13221

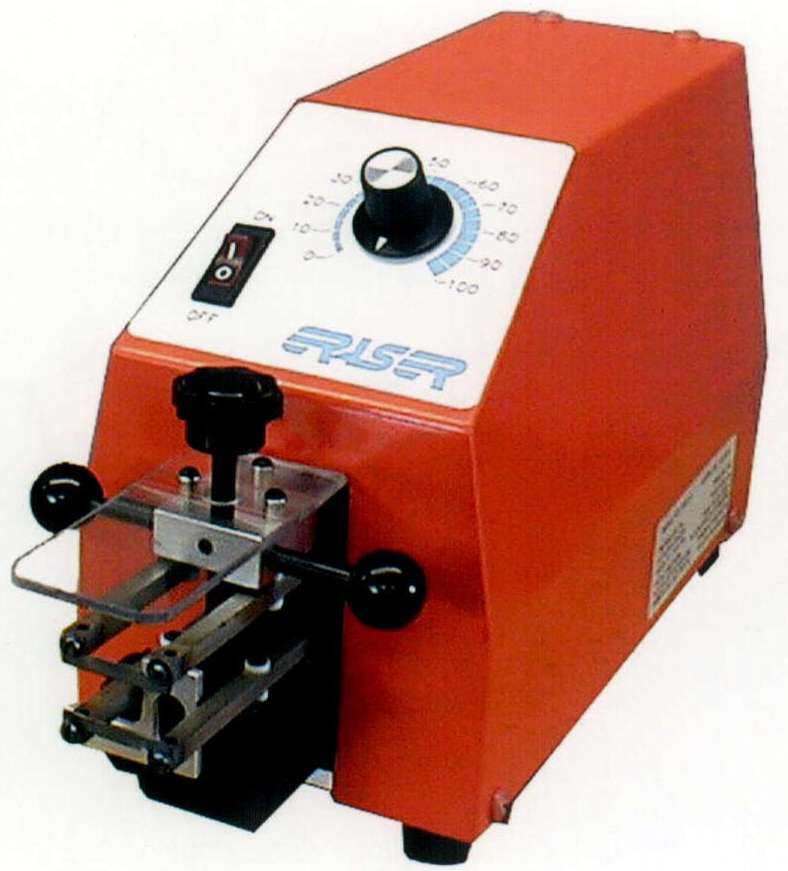

Oct 09, 2002 Model BTS-1 strips thermoplastic insulations such as nylon, rubber, Teflon, and vinyl from solid and stranded wires with thicknesses between 1/2 in. and 36 AWG. Elements are actuated by hand or optional electrical foot pedal. It strips lengths up to 1-1/2 in.; right angle adapter kit is available for infinite strip lengths. Adjustable element depth can be locked into position. Wire Stripper also offers self-contained fume extraction system.

Klein Tools, Inc.    Lincolnshire, IL 60069

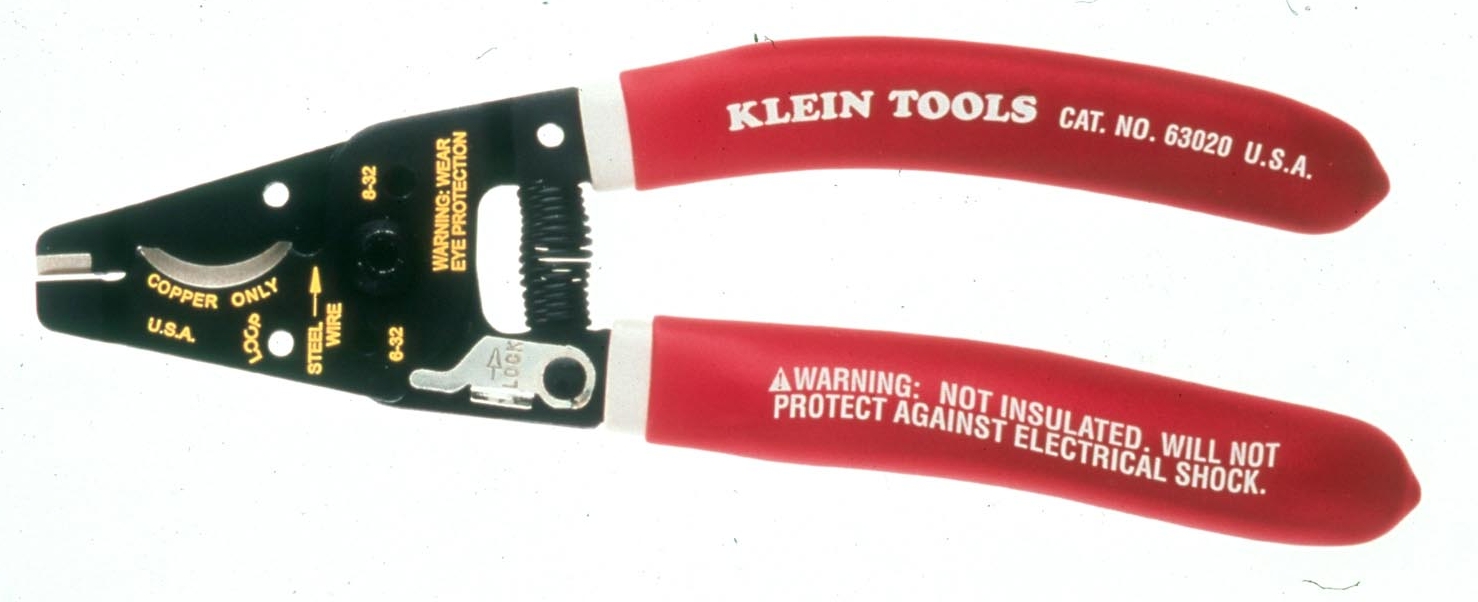

Sep 17, 2002 KLEIN-KURVE(TM) can cut solid, stranded, and multi-pair cables. Curved blade cuts round copper cable without compression or frayed ends. Steel cutter is for mild conductors, and anvil cutter on tool's tip cuts copper and stainless steel. Tool is 7 in. long with 4 in. handles for firm grip and leverage when reaching into confined spaces. It includes coil spring for fast self-action, and holes for clean shearing of 6-32 and 8-32 screws.

Eraser Co., Inc., The    Syracuse, NY 13221

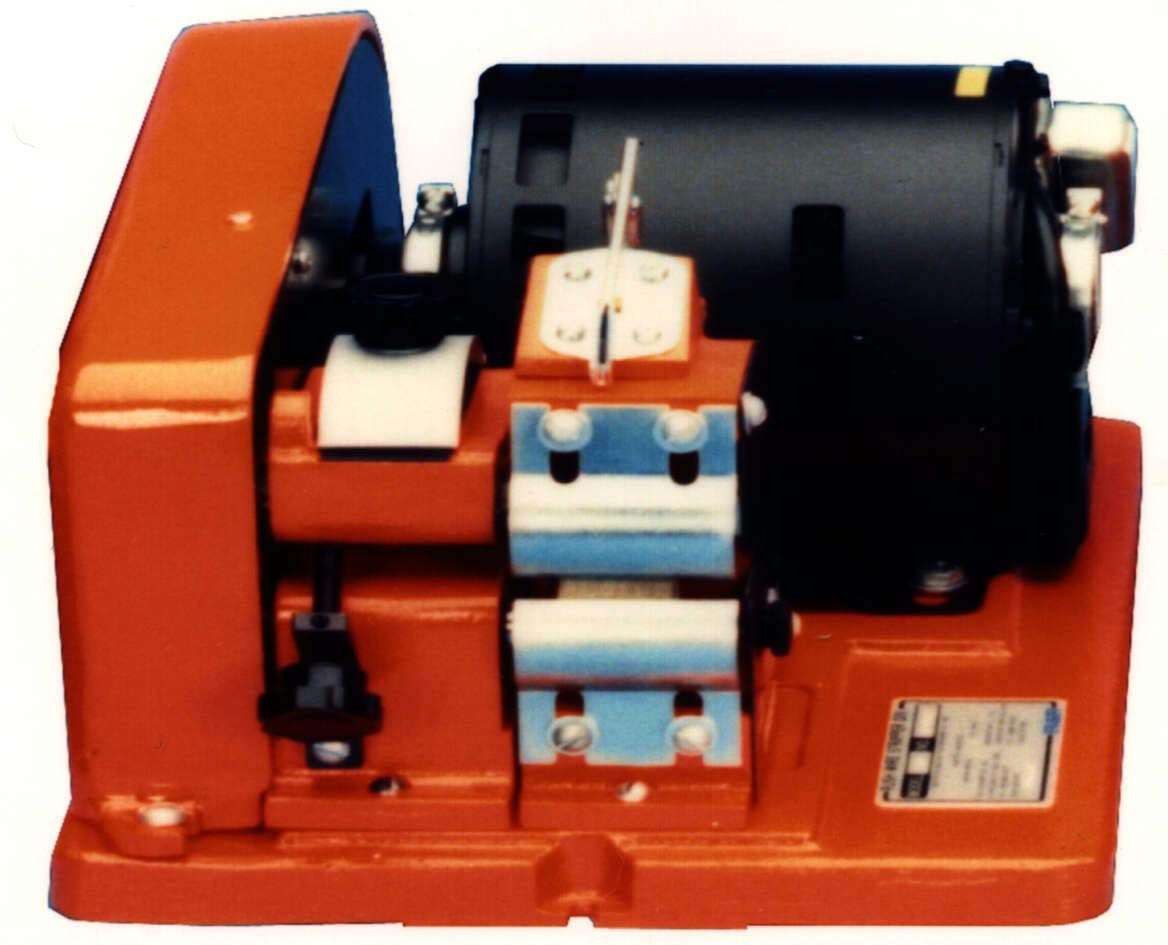

Sep 06, 2002 Models E200/E300 will strip most types of film insulation including varnish, enamel, polyester, glass, and resin from round wires between 1 and 20 AWG, square wire up to 1/4 in., or rectangular wire up to 1/4 x 2 in. Wire brush wheels can strip multiple wires at same time. Adjustable length stop can be set for strip lengths from 1/2 to 3-1/2 in. Dust take off port is included for connection to dust removal system.

Ideal Industries, Inc.    Sycamore, IL 60178
Sep 05, 2002 Model 45-344 cuts Kevlar strength member found in simplex and duplex fiber cable. Blades are finely serrated and ground at aggressive angle to slice cleanly through Kevlar. To lessen dulling of blades, cutter has rugged breaker notch that cleanly shears jacket and breaks glass fiber, so technician only uses serrated blades for cutting and trimming Kevlar member. Cuter has textured, cushioned grip handle for comfortable hold with less stress on wrist and hand.

Ideal Industries, Inc.    Sycamore, IL 60178

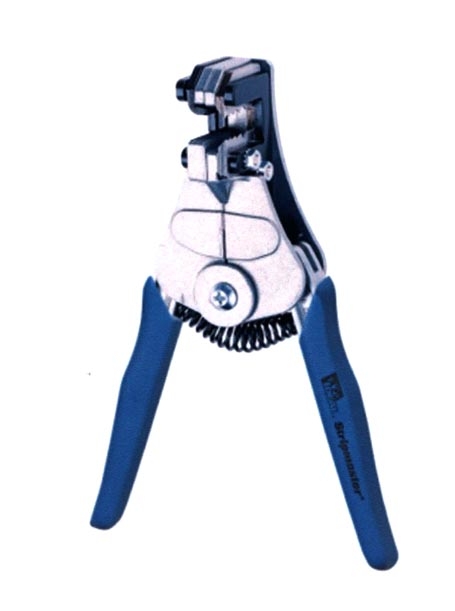

Aug 14, 2002 Stripmaster removes jacket from Corning Plenum, Riser Ribbon Fiber, and Fanout ribbon cables without damage to Kevlar strength member. Knife type, form ground blades penetrate outer jacket accurately and nick-free. Blades are pre-sized to fit specific Corning fiber, eliminating need for tool adjusting. It has die-cast frame for durability, and vinyl coated, cushioned handles that provide secure grip, and help reduce repetitive motion fatigue.

Eraser Co., Inc., The    Syracuse, NY 13221
Aug 12, 2002 Model C200 Rotary Blade Wire Stripper and Twister strips coaxial cables and stranded and solid wires between .028 and .265 in. Its stripping head cuts through insulation on wire, leaving inner conductors undamaged. When slug is removed, strands of wire are neatly twisted and ready for termination. If required, slug may remain on wire for removal later at termination. Adjustable length stop can be set for strip lengths from 1/32 to 2 1/2 in.

Wieland Electric Inc.    Burgaw, NC 28425

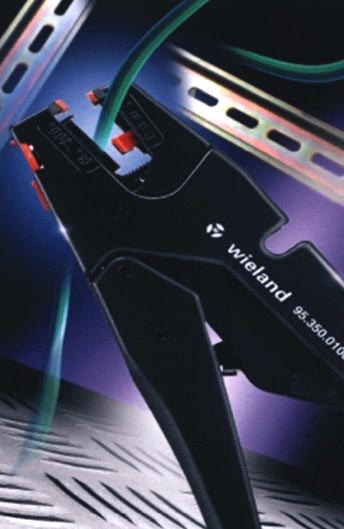

Jul 09, 2002 Wire Stripping Tool features adjustable insulation removal capabilities and acts as integrated wire cutter. It is manufactured of glass fiber reinforced Polyamide materials and strips both solid and stranded type wires.
