Eraser Co., Inc., The    Syracuse, NY 13221
Jul 01, 2002 MMC100 cuts round or flat material up to 3.94 in. wide and .63 in. thick. It is microprocessor-controlled and can be programmed to cut any length with 1% or better tolerance. Programmable for up to 10 batches and 3 fixed feed rates, MMC100 is rated to cut up to 7,200, four in. pieces/hr. With max cutting force of 600 lbs, it can cut copper wire and cable, silver solder, power cords, cellophane, fiberglass sleeving, latex, fabrics, hosing, and tubing.

Ideal Industries, Inc.    Sycamore, IL 60178
May 03, 2002 Thumb Winder(TM) features 50 ft of Blued Steel fish tape for rust resistance. Tape is stored and protected in corrosion-resistant ABS case, which will not dent or break due to accidental drops. Its reel design with thumb knob allows users to wind reel in either direction when feeding or retracting. It also prevents tape from kinking or scrambling.

Ideal Industries, Inc.    Sycamore, IL 60178
May 01, 2002 Zoom(TM) has braided stainless steel core and translucent polyamide resin case that allows operator to see how much tape is in case without having to pay out full tape. It is optimized for use in conduit runs with difficult cable placement characteristics, such as multiple bends, elbows, and junction boxes. Omni-directional pushing lets it handle bends and changes in plane without hanging up or deforming within conduit. Tapes are available in 50 and 100 ft lengths.

FCI/Burndy Products    Manchester, NH 03108
Apr 10, 2002 Y500CTHS L'IL CRIMP(TM) Hydraulic crimp tool requires only 7 strokes to advance ram prior to crimping lug. It features wire range capacity of #8 AWG through 500 Kcmil copper, and permanent D3 die groove. BCT500HS BATOOL(TM) incorporates Makita tool base, motor with replaceable brushes, and 3-piston pump. Both crimp tools accommodate all W series dies and offer 180 deg rotating, stainless steel head that allows installers to work in tight areas.

EGS Electrical Group    Skokie, IL 60077
Apr 09, 2002 Tie-Max(R) cable ties are designed for mounting and non-mounting applications. Tensile strength ranges from 18 to 175 lb, with cable lengths of 3.78 in. to 30 in. Tensile strength of mounting cables is 18 to 50 lb, in lengths of 3.94 in. to 8.07 in. Weather-resistant Tie-Max ties have UV-resistant Carbonate A added. Pocket-sized hand tools and tie guns tighten and cut cable.

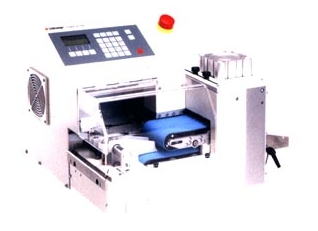

Schleuniger, Inc.    Manchester, NH 03103
Apr 01, 2002 PowerCut 3500 automatically cuts large round cables up to 1.0 in. dia and flat ribbon cables up to 3.9 in. wide. It features electronic control and variety of interfaces for accessories. Feed belts are driven by servo-motor that transports material in length increments of 0.004 in. while providing extra feeding power needed for heavier cables. Pneumatic cutting machine can be used alone or fully integrated into complete processing system.

Eraser Co., Inc., The    Syracuse, NY 13221
Mar 12, 2002 Cordless DCF strips magnet and enamel wires from 9-35 AWG, producing strip lengths from 3/32 to 2 1/2 in. It is quiet, lightweight and easy to set up and operate. Long-life battery is rechargeable in less than 90 min. CE certified stripper is available in several different models to strip round, flat, and rectangular magnet wire, and to twist wires. Models are available with ac power supply and integral dust collector.

Ideal Industries, Inc.    Sycamore, IL 60178
Mar 08, 2002 Zoom Fish Tape has stainless steel core and hard polyamide resin jacket that handles multiple bends and changes in plane without hanging up or deforming. It works in conduit runs with difficult cable placement characteristics such as multiple bends, elbows, and junction boxes. Translucent case allows operator to see how much tape is in case without having to pay out full length of tape. Tapes are available 50 and 100 ft lengths.

Ideal Industries, Inc.    Sycamore, IL 60178
Jan 29, 2002 Kinetic Super wire stripper offers Thumb-Valley Finger Guide and cushioned, textured grip, which cradles users' hands, helps to prevent Rivet Rash, and concentrates kinetic energy to push zone. Stripper also incorporates Pocket-Locket Locking Hasp for safe handling and storage. Wire stripper has steel blades, stripping holes, and handle shafts. Stripper's Shear-Cut bolt cutting capability will cut #6-32 or #8-32 bolts and re-thread cut end.

Cementex Products Inc.    Burlington, NJ 08016
Jan 22, 2002 MRO Super Kit Plus contains dielectric safety tools for work on energized circuits up to 1,000 Vac and 1,500 Vdc. All tools are double-insulated and manufactured to ASTM F-1505.94 standard. When outer orange insulation layer has worn, inner yellow layer shows through, serving as early warning to remove tool from service. Kit includes screwdrivers, pliers, nutdrivers, sockets, box end wrenches, torque wrench and gloves.

GB Gardner Bender    Milwaukee, WI 53209

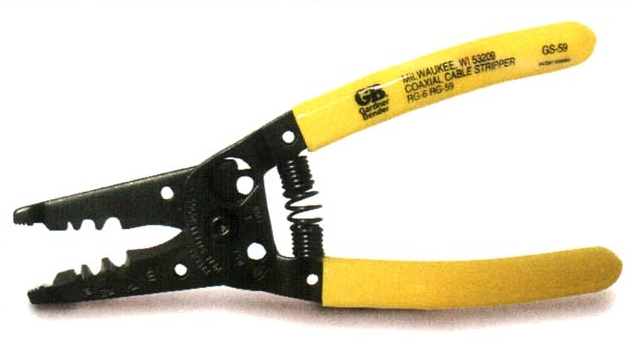

Jan 07, 2002 GS-59 cuts and strips RG-59 and RG-6 coaxial cable. Hexagon shaped stripping station strips outer jacket and 18-gauge stripping station strips center conductor. Hexagon shaped connector station helps push F connectors onto coaxial cable. Curved cutting blade ensures wire will not slip while cutting. Spring-return action reduces hand fatigue.

Ideal Industries, Inc.    Sycamore, IL 60178
Jan 07, 2002 Dual NM (non-metallic) T-Stripper is designed to cut and strip 12/2 and 14/2 NM cable. Based on IDEAL's Reflex design, it features textured grips, bolt cutting, locking hasp, and pliers nose. Job-specific NM strippers are available for 12/2, 14/2, 12, 14, and UF cable.

3M Electrical Specialties Div.    Austin, TX 78726
Dec 13, 2001 TR-680 and TR-690 aluminum ratchet crimp frame tools have ergonomic handle and quick-release jaw that allows quick change of numerous die sets. Cutters include TR-710 ratchet cable cutter, TR-720 for power cables and TR-730 for telco cables. TH-310 self-adjusting wire stripper can strip and cut round and flat wires and cables. TH-315 cable slitter allows easy removal of any jacket on coaxial, alarm, control and communications cables.

JDV Products, Inc.    Fair Lawn, NJ 07410
Dec 11, 2001 Manually operated by simply squeezing handle, lightweight Wire Wrapping Guns for regular and modified wraps have all-metal gear drive system for reliability and longevity. Tool is available in aluminum or Lexan housings and in chuck or clamp models for wrapping or unwrapping operations.

TE Connectivity Ltd.    Berwyn, PA 19312

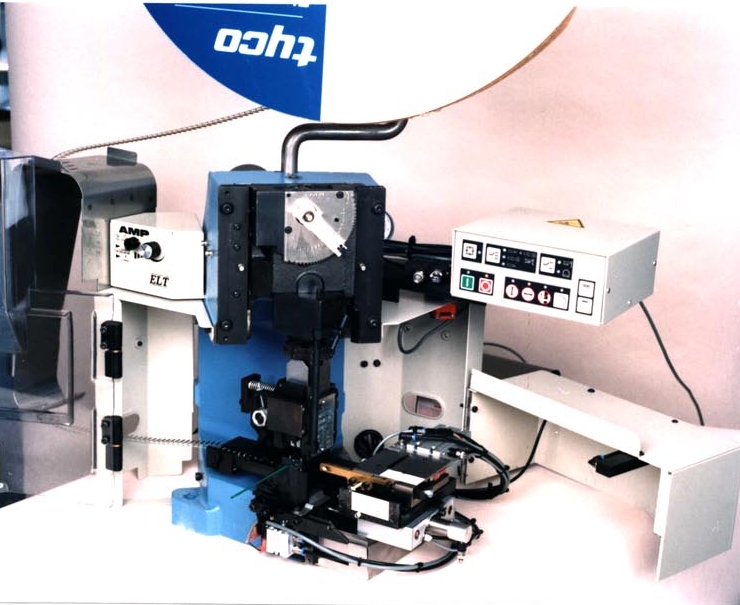

Nov 28, 2001 Wire stripping module, via microprocessor controller, can operate as stripping machine, crimping machine, or stripper-crimper. Stripper module works with end and side feed heavy-duty mini applicators suitable for 32 to 14 AWG wire. Stripping blades are titanium nitride coated, and wire slugs are air-ejected to collection trays. Strip length is adjustable from 0.100 in. to 0.400 in. Module operates off 100-240VAC, 50/60 Hz, single-phase current.

FCI/Burndy Products    Manchester, NH 03108
Nov 28, 2001 Y1MR Hytool has 4 color-coded die grooves and accommodates No. 8 to No. 1 copper lugs and splices as well as copper C-Tap connectors. In addition to standard red, blue and grey grooves, it has combination brown/green die groove, which can be used for standard brown applications and crimping green YAICL-type connector with No. 1 AWG or No. 2 Flex Cu conductor. Die will emboss connector with brown No. 10 and green No. 11 indexes for inspections.

GB Gardner Bender    Milwaukee, WI 53209

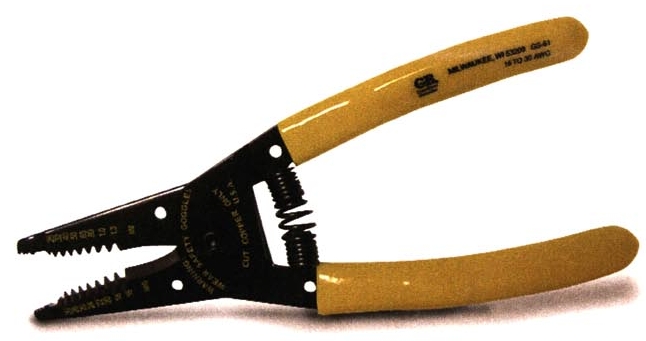

Nov 17, 2001 Small Gauge Wire Stripper is designed to cut and strip solid or stranded #16-30 AWG wire. 7 stripping stations perform clean strips without damaging conductors or tearing insulation. Its built-in looping hole is suitable for shaping wire to attach on screw terminals. Serrated pliers nose allows users to grip, pull and twist wire. Cushion grip handles are ergonomically designed for comfort, and spring return action aids in reducing hand fatigue.

Klein Tools, Inc.    Lincolnshire, IL 60069
Nov 08, 2001 With Klein-Kurve(TM) double-dipped handles, Model 11055 and 11057 are designed for stripping, cutting, looping, and gauging solid and stranded wire. Model 11055 is designed for 10 to 18 AWG solid and 12 to 20 AWG stranded wire; Model 11057 is designed for 20 to 30 AWG solid and 22 to 32 AWG stranded wire. Both cleanly shear 6-32 and 8-32 screws. Other features include serrated nose jaws and spring-loaded, self-opening action.
