Ceramic Coatings

Paints & Coatings

High-Temp Polymer Coatings protect fiber optics.

February 17, 2015

Providing high-temperature shield up to 300°C, Zeus NeoTem™ is chemically inert with resistance to CH4, O2, CO2, and water permeation. Also available, PEEK coating provides high temperature shield up to 260°C and is resistant to abrasion, chemicals, and radiation. Read More

Paints & Coatings

Black-Body Coating suits applications to 2,000°F.

January 28, 2015

Demonstrating emissivity greater than 0.90 at temperatures to 2,000°F, HiE-Coat™ 840-M has been formulated for metal surfaces such as stainless steel. Jet-black, water-dispersed, ceramic coating is used for gas-fired burners to optimize thermal efficiency of commercial and consumer appliances, industrial ovens, and furnaces. Applied by sponge brush, roller, or spray equipment, VOC-free coating provides coverage rate of approximately 360 ft²/gallon based on 2 ml dry film thickness. Read More

Adhesives & Sealants, Paints & Coatings, Chemical Processing & Waste Management, Materials & Material Processing, Services

Thermally Conductive Epoxy serves applications up to 572°F.

November 25, 2013

Used for bonding, potting, tooling, and molding, Aremco-Bond™ 805 adheres to high-temperature plastics, glass, ceramic, and high-expansion metals. This 2-component, 100% solids, aluminum-filled epoxy cures at room temperature in 24 hr with final cure at 200°F in 2 hr. Cured material exhibits thermal conductivity of 12.5 Btu-in/hr-ft²-°F and dielectric strength of 50 V/mil. Respective tensile shear and flexural strengths are 1,800 and 15,500 psi, and Shore D Hardness is 87. Read More

Paints & Coatings

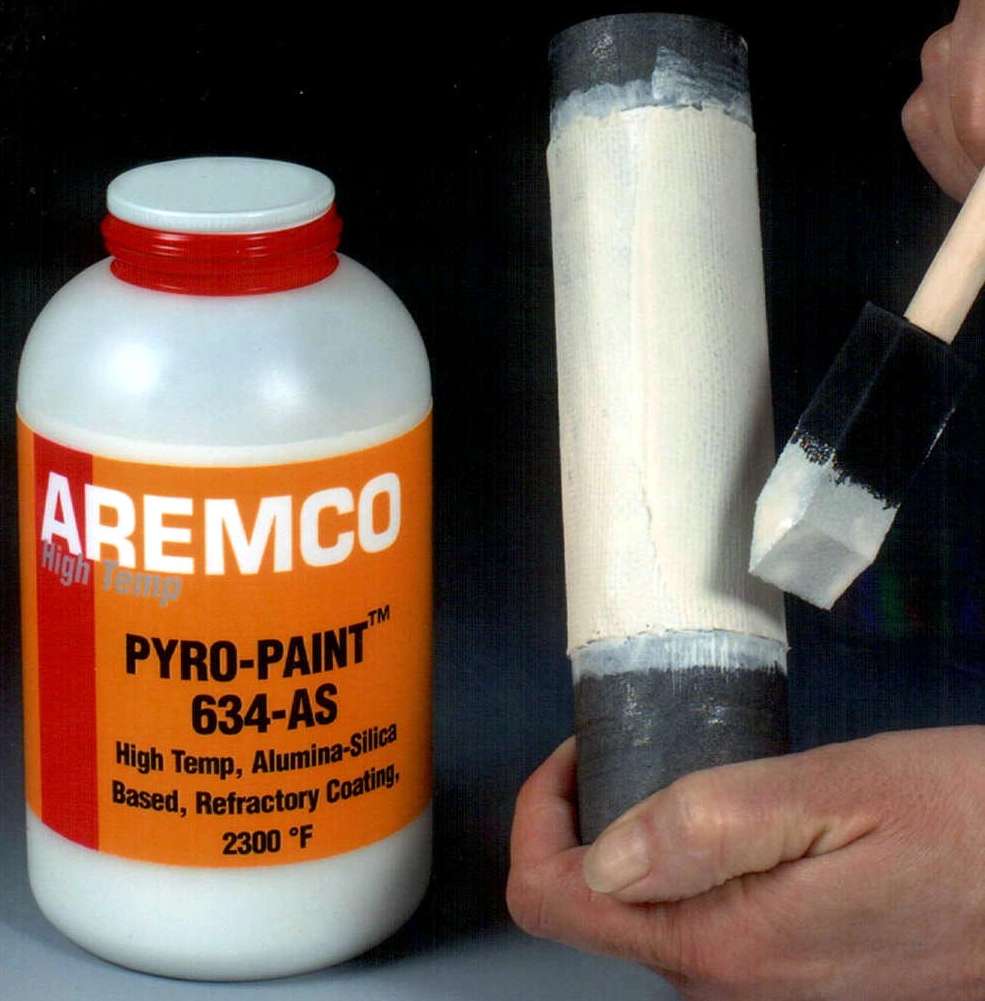

High Temp Refractory Coating increases substrate durability.

September 26, 2013

Adhering to graphite, ceramic cloth, and fiberboard, Pyro-Paint™ 634-AS is used to bond, coat, and seal graphite and refractory materials used in molten metal fluid handling components and structures in foundry applications to 2,300°F. Alumina-silica, fiber-reinforced, ceramic coating also prevents wear and oxidation of graphite impellers at melt line in handling of molten aluminum. Product is formulated with solids content of 61.2% by weight and 63.3% by volume to 400–700 cP viscosity range. Read More

Paints & Coatings, Green & Clean

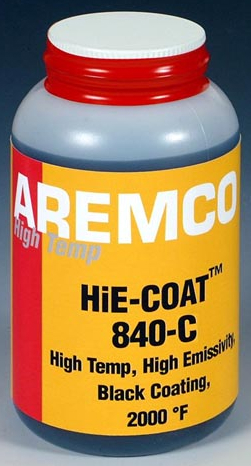

Black Body Coating supports applications to 2,500°F.

August 27, 2013

Demonstrating emissivity greater than 0.90 at temperatures to 2,500°F, HiE-Coat™ 840-C helps combustion chambers, ovens, and furnaces distribute heat uniformly. Jet-black, water-based ceramic coating is applied to ceramic and refractory surfaces using sponge brush, roller, or conventional spray equipment. Curing is accomplished in operation or by heating for 1–2 hours at 200°F. Odorless and water-soluble, HiE-Coat™ 840-C contains no VOCs and will not outgas upon curing or during operation. Read More

Paints & Coatings, Welding Equipment & Supplies

Sprayable Anti-Spatter Coating protects welding equipment.

August 28, 2012

Designed for use on manual and automatic MIG/MAG welding, laser/plasma cutting, and spot welding equipment, Loctite® SF7900(TM) Ceramic Shield prevents spatter adhesion for up to 8 hr with one application. Silicone-free coating dries in seconds, allowing continuous, uninterrupted welding throughout shift. By protecting shroud from spatter and allowing uninterrupted gas flow, coating helps optimize quality of weld seam. No chemical cleaners are required as weld spatter can be swept up with brush. Read More

Adhesives & Sealants, Paints & Coatings

Sprayable Ceramic Coating features reusable cartridge dispenser.

January 5, 2012

Packaged in 90 mL reusable dual-cartridge dispenser, Loctite® Nordbak® 7255(TM) protects metal surfaces on industrial equipment from wear, abrasion, and corrosion. Two-part, solvent-free, thixotropic epoxy creates smooth, low-friction surfaces and may be used in overhead applications. Suitable for large surfaces and complex or intricate areas, coating can protect tank linings, mixing vessels, pump housings, impellers, chutes, troughs, and centrifuge components. Read More

Paints & Coatings, Electrical Equipment & Systems

High Temperature Coating electrically insulates resistors.

December 9, 2011

Consisting of single part, water-based, inorganic-ceramic coating system, Cerama-Dip(TM) 538N electrically isolates high-power ceramic resistors for applications up to 2,600°F. Odorless, VOC-free formula features volume resistivity of 109 W-cm and dielectric strength of 225 V/mil at room temperature. Applied by dipping or brushing, Cerama-Dip 538N cures by air-drying at room temperature for 1-2 hr, then step curing for 1-2 hr at 200°F and 350°F, respectively. Read More

Paints & Coatings, Green & Clean

Black Body Ceramic Coating handles applications to 2,500°F.

June 8, 2010

Formulated for refractory and metal surfaces, jet-black, water-dispersed, HiE-Coat (TM)840-CM demonstrates emissivity greater than 0.90 at temperatures to 2,500°F. Coating is applied using sponge brush, roller, or conventional spray equipment, and offers coverage rate of 250 sq ft/gal with 2 mil dry film thickness. Curing is accomplished in operation or by heating for 1-2 hr at 200°F plus 1 hr at 500°F. Eco-friendly coating has no odor, cleans up with water, and contains no VOCs. Read More

Paints & Coatings

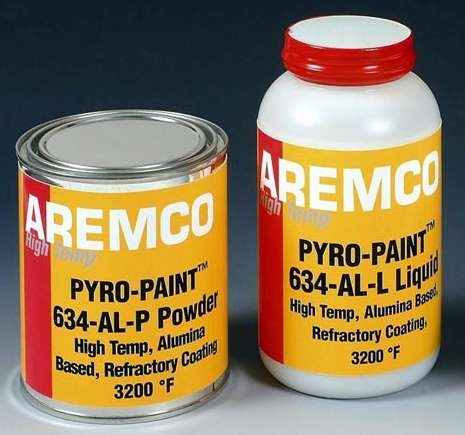

Refractory Coating handles high temperatures up to 3,200°F.

January 12, 2010

Single part, water-dispersible, phosphate-bonded, and alumina-filled system, Pyro-Paint(TM) 634-ALP ceramic-based sealant is used to fill micro-porosity in dense refractory brick used in high temperature kilns and furnaces. Coating is inert, chemically resistant, inorganic, and does not outgas or decompose in corrosive applications to 3,200ºF. Available in pint, quart, gallon, and 5 gal drums, coating can be applied by brush, dip, or pneumatic sprayers, and cures fully in 1-2 hr at 700°F. Read More

Paints & Coatings

Silver Coating is used to reduce glare in halogen lamps.

September 2, 2008

With low expansion, ceramic-metallic formulation that bonds well to glass and quartz halogen lamps, Quartz-Coat(TM) 845-Silver suits automotive, dental, aircraft, stadium, and fire safety industries. Product is water-based, odorless inorganic system that is silver in appearance and can absorb and evenly diffuse light at high temperatures of up to 2,000°F. It features viscosity range of 400-700 cps, solids content by volume of 42.0%, and dry film thickness of less than 1.0 mil. Read More

Material Handling & Storage, Paints & Coatings

Coating System suits high temperature headers.

August 7, 2007

Available in pint, quart, gal, and 5 gal pails, Corr-Paint(TM) CP3015-AL, ultra-high temperature coating is used to inhibit oxidation of carbon steel and cast iron exhaust headers used in automotive, truck, and industrial applications to 1400°F. It is formulated with advanced, waterborne silicate binder system filled with blend of aluminum and ceramic corrosion inhibiting pigments. Product is supplied in ready to use viscosity of 250-450 Cp and solids of 71.0% by weight. Read More

Paints & Coatings

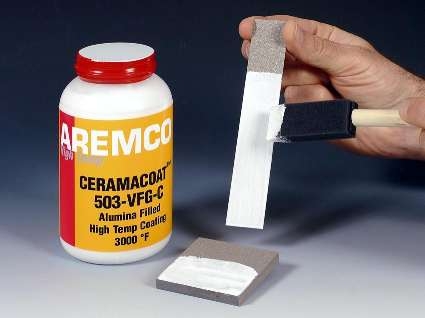

Ceramic-Based Coating seals thermal spray coatings.

March 14, 2005

Ceramacoat(TM) 503-VFG-C high-temperature sealant fills micro-porosity in corrosion protective, thermal spray coatings. It is formulated as single part, water-dispersible, alumina-filled system. Inert, chemically-resistant, inorganic material will not outgas or decompose in high-temperature, corrosive applications up to 3,200°F. Product is applied using sponge brush or pneumatic spray equipment. Full cure is achieved after exposure for 1-2 hr at 700°F. Read More

Adhesives & Sealants, Paints & Coatings

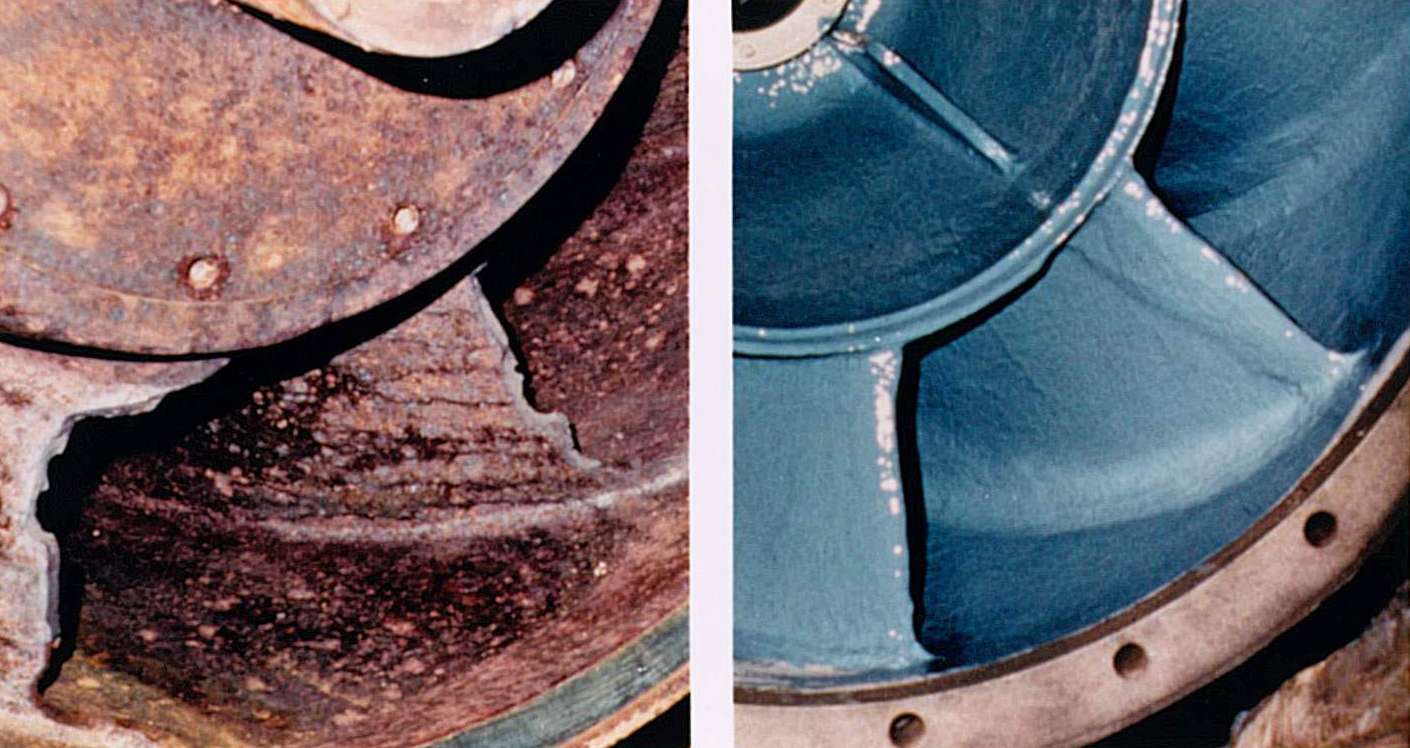

Ceramic-Filled Epoxy protects parts from corrosion/wear.

January 21, 2004

Ceramic Coat® epoxy system is formulated to repair, rebuild, and protect surfaces subject to corrosion or wear, negating need for replacement parts. After reframing, damaged blades can be rebuilt to original specifications with trowelable CT 3000® and then protected with brushable Ceramic Coat 4000®. Applications include pump casings, impeller blades, suction plates, gate and butterfly valves, water boxes, tube sheets, and heat exchangers. Read More

Paints & Coatings

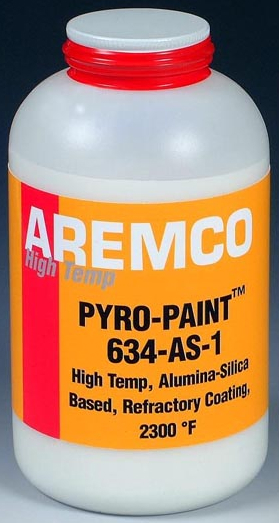

Refractory Coating withstands temperatures to 2,300°F.

November 26, 2003

Pyro-Paint(TM) 634-AS alumina-silica-filled, fiber-reinforced, ceramic coating bonds, coats, and seals graphite and refractory materials used in molten metal fluid handling components. It also coats and insulates graphite impellers, preventing oxidation and corrosion of graphite at melt line. With 400-700 cps viscosity range, it is resistant to wetting by non-ferrous molten metals, environmentally friendly, water-based, and contains no VOCs. Read More

Adhesives & Sealants, Paints & Coatings

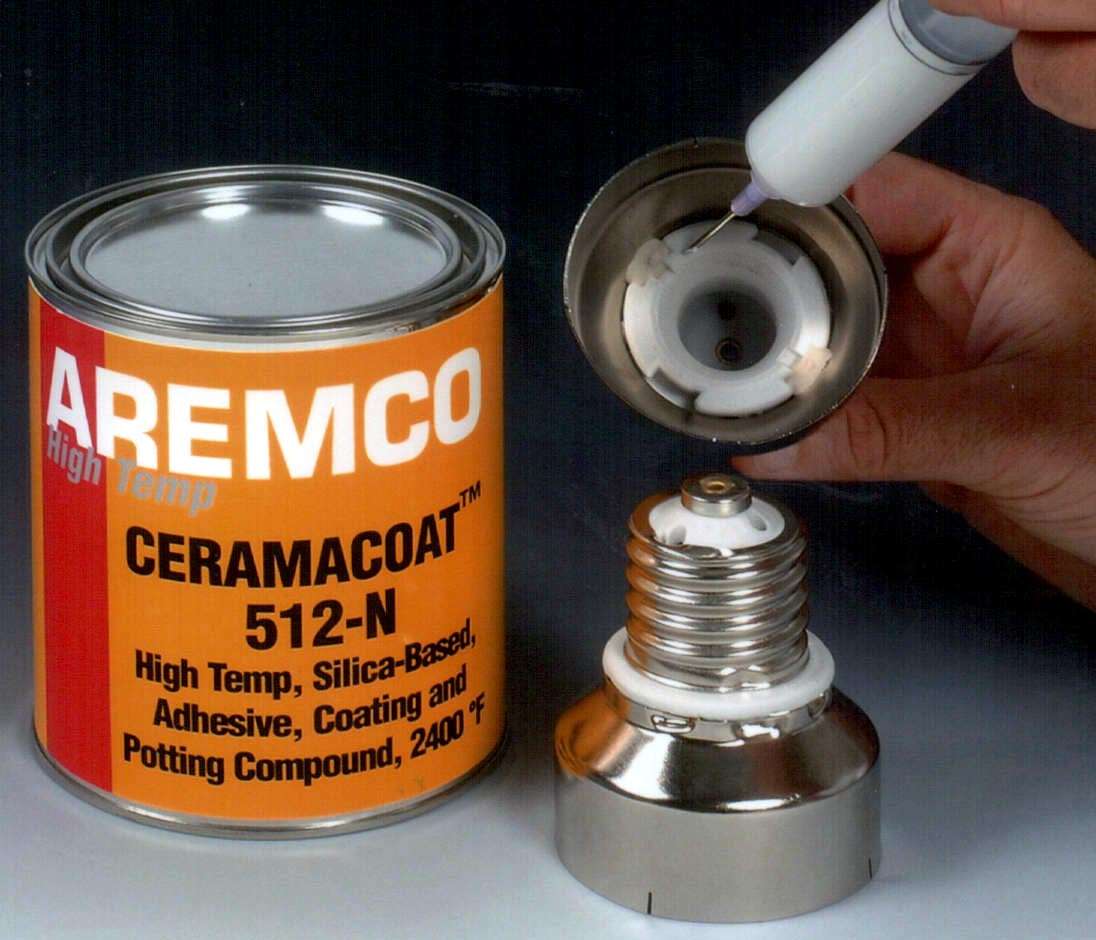

Adhesive and Coating withstands temperatures to 2,400°F.

October 3, 2003

Ceramacoat(TM) 512N high-temperature adhesive and ceramic coating system is used in assembly of ceramic, metal, and plastic electrical components and as coating of high temperature structures requiring corrosion protection. Single part, water-based, silica-filled system offers volume resistivity of 109 ohm-cm and dielectric strength of 250 V/mil at room temperature. Odorless product contains no VOCs, and no outgassing will occur upon cure or during operation. Read More

Paints & Coatings

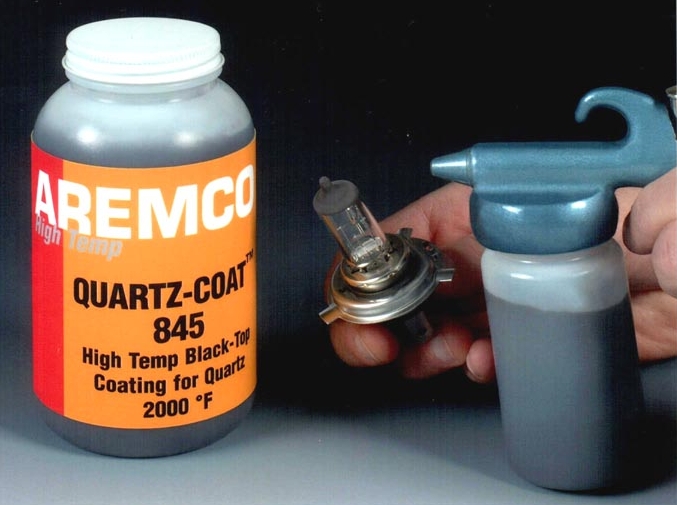

Blacktop Coating System absorbs halogen lamp intensity.

August 30, 2002

Quartz-Coat(TM) 845-S high temperature, sprayable, blacktop coating system has ceramic-metallic formulation that bonds to glass and quartz lighting fixtures. Single-component formulation is aqueous-based and inorganic, pigmented with deep black, temperature-stable filler. Stable in applications to 2000°F, Quartz-Coat 845-S offers viscosity range of 400-700 cps and has 42.0% solids content by volume. Post-cure coating is moisture resistant and non-outgassing. Read More

Adhesives & Sealants, Paints & Coatings

Ceramic Coating seals thermal spray coatings.

July 23, 2002

Ceramacoat(TM) 503-VFG-S ceramic-based sealant is formulated as single part, water-dispersible, alumina-filled system. Inert, chemically resistant, inorganic material does not outgas or decompose in high temperature corrosive applications to 3200°F. Applied using sponge brush or pneumatic spray equipment, full cure is achieved after exposure for 1-2 hours at 700°F. It sinters and strengthens as exposed to temperatures above 1000°F. Read More

Paints & Coatings

High-Temperature Paint provides corrosion protection.

May 7, 2002

Single-part, aluminum-rich Corr-Paint(TM) CP4010 ceramic-silicone based coating protects steel components and structures for applications to 1200 deg F. It is resistant to acids, bases, and solvents, and provides thermal-shock, salt-spray, and UV resistance. Water-dispersible coating dries at room temperature and cures fully during operation at temperatures above 450 deg F. Non-flammable, low VOC formulation has viscosity of 700 to 1400 cps. Read More

Paints & Coatings, Chemical Processing & Waste Management

Coatings protect metal and refractory surfaces.

January 11, 2002

Corr-Paint(TM) coatings are designed for use from 200° to 2500° F. CP20XX Series epoxy and urethane based coatings produce corrosion and wear resistant barriers to 500°F. CP30XX inorganic-ceramic, aqueous-based coatings resist thermal shock and oxidation to 1500°F. CP40XX silicone-based coatings are formulated using VOC-compliant, water-dispersible silicon resin. CP5000 2-part, water-based, inorganic, zinc-rich primer resists immersion, impact, and abrasion. Read More
