Steelnor Systems    Midland, ON L4R4K8
Apr 12, 2012 Suited for seal and trim applications in pet food industry, Model SS3525PTHD-SSC710HDRS offers standard seal width of 3/16 in. and variable speed to 600 ipm. System is constructed of stainless steel and anodized aluminum with illuminated on/off switch, sealed bearings, food-grade belting, and E-stop button. Sealing head height and conveyor height are adjustable. Operating from 4-wire single phase 230 V/60 Hz power, system comes equipped with tamperproof, laboratory-quality temperature controls.

Steelnor Systems    Midland, ON L4R4K8
Mar 28, 2012 Operating at speeds from 25-475 ipm, Model SS85 features stainless steel and anodized aluminum construction, digital temperature control, and electric components. Optional seal guides, available as factory installed or as retrofit, assist operator in locating seal on tear-off pouches. Sealer operates from 115 V, 50/60 Hz and is suitable for customers that want to upgrade from jaw type or Impulse bag sealers.

Steelnor Systems    Midland, ON L4R4K8
Mar 21, 2012 Constructed of aluminum and stainless steel, SS605S Series is suited for applications where quality seal lines must be produced at any position along film material, such as compartment bags, coupon bags, and courier packs. Pneumatic valve closes sealing jaws when running and opens to prevent scorching when idle. Operating from 115 V/60 Hz, sealers are equipped with solid-state temperature controls, fully adjustable sealing shoes, and adjustable floor pads that accommodate web path of any angle.

Steelnor Systems    Midland, ON L4R4K8
Mar 13, 2012 Featuring stainless steel and anodized aluminum construction, Model SS850 is equipped with variable speed drive motor, digital temperature control, and pinch roller system to ensure hermetic seals on specialty and side gusset bags or pouches. Various options are available, including support shelf, support belts that allow products weighing up to 2.5 lb to be carried through process unaided, hot stamp date coder, and SSC440 Conveyor for products in excess of 2.5 lb.

Steelnor Systems    Midland, ON L4R4K8
Mar 07, 2012 Featuring split design with upper and lower sealing modules, Model SS6012S-60 provides unobstructed film path. Machine has rigid steel frame with maintenance-free, precision polymer linear sliding elements; laboratory quality temperature control for each zone on upper and lower sealing modules; filter/regulator with shut off; and adjustable floor leveling pads. Available with variety of seal widths from 1/8-7/16 in., sealer is suited for compartment bags, coupon bags, and courier packs.

Steelnor Systems    Midland, ON L4R4K8
Mar 01, 2012 Used for producing header type seals, SS605 roller sealer has main chassis constructed of aluminum and stainless steel and employs pneumatic valve that closes sealing jaws when running and opens them to prevent scorching when idle. Solid-state temperature controls moderate upper/lower heating zones, while adjustable floor pads or mounting points can accommodate web path of any angle. Also, fully adjustable sealing shoes allow contact angle and pressure to be set to end-user requirements.

Steelnor Systems    Midland, ON L4R4K8
Feb 01, 2012 Available with several options, SS1500TL-SSC812L Sealer and Conveyor is equipped as standard with variable and tamperproof, laboratory-quality temperature controls; PTFE/fiberglass sealing bands; and trim scrap blower. Design can minimize air trapped in head space of bag when packaging fluidic or free flowing products, and speed is variable to 1,100 ipm. Constructed of stainless steel and anodized aluminum, system features standard seal width at 3/16 in.; options range from 1/8-7/16 in.

PDC International Corp.    South Norwalk, CT 06854

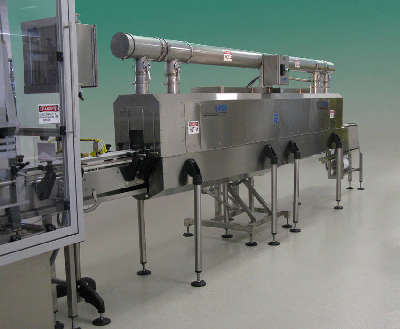

Jan 26, 2012 Featuring stainless dual wall construction, Model KST 80A-712 with Steam Venting Package is compatible with wide range of containers, including those that are challenging to shrink consistently. Dual-zone system has 5 rows of steam distribution tubes on each side, each externally adjustable for steam volume, flow, and rotary position. Monitoring tunnel temperatures in real-time, Electronic Regulator makes continuous adjustments in steam release to compensate for thermal loads of incoming product.

All Packaging Machinery Corp.    Ronkonkoma, NY 11779
Dec 09, 2011 Designed for sealing stand-up pouches with variable speeds up to 35 fpm, tabletop Model TCBSDM-3/8 includes synchronized lower support conveyor. Hermetic seals of 3/8 in. wide are achieved through use of wear-resistant laminated Teflon bands. Operating on 110 Vac/10 A with no compressed air required, system is suited for packaging food items, garments, plastic parts, pet products, and medical devices. Optional single line Embossing Coder for product marking is available.

James Dawson Enterprises (USA), Inc.    Plattsburgh, NY 12901
Nov 18, 2011 Utilizing 2-station rotating spindle to carry containers into sealing position at rate up to 25 cycles/min, SealMAX(TM) SC-1300 produces output of 1,500 pieces/hour in single head configuration. For smaller containers, dual head tooling can be designed so that with each machine cycle, 2 containers are sealed for output of 2,700 pieces/hr. Semi-automatic machine accommodates most standard tray sizes over wide range of depths, and can seal trays with multiple compartments.

James Dawson Enterprises (USA), Inc.    Plattsburgh, NY 12901
Nov 17, 2011 SealMAX CTS-168L is available with CTS-168L MAP (Modified Atmosphere Packaging) system. During sealing process, airtight chamber is formed. All ambient air is removed from chamber and package and replaced with desired gas mixture. Sealing in that environment, with residual oxygen level as low as 0.1%, disparages bacteria and mold growth which in turn promotes shelf life. System can seal trays with multiple compartments, and dual head tooling is also available for smaller containers.

James Dawson Enterprises (USA), Inc.    Plattsburgh, NY 12901
Nov 17, 2011 With machine dimensions of 11.8 x 16.2 x 23.5 in., SealMAX CTS-528XL handles deli containers from variety of manufacturers, including circular containers up to 4.75 x 6 in. and rectangular containers up to 4.75 x 4.75 x 6 in. Machine operates on 110 Vac and provides max production rate of 700 pieces/hr. In addition to deli items, SealMAX CTS-528XL delivers airtight seal for containers of salad, snacks, soups, fruit, and sauces.

Romaco Inc.    Lincoln Park, NJ 07035
Sep 22, 2011 Integrating robotic transfer station, heat sealing machine, and intermittent motion cartoner, Siebler HM 1E/240 Line has working height of 90 cm, enabling continuous eye-level monitoring. Four-lane line achieves maximum packaging speed of 1,500 products/min, and uses intelligent separating system to position products accurately in sealing station. When processed horizontally, effervescent products are not exposed to heat and vapors emitted by sealing station, minimizing waste.

Axon Corp.    Raleigh, NC 27603
Sep 16, 2011 ThermoJet heat-shrink tunnel features heat zone where 2 steam manifolds and multi-position mandrels direct steam for shrinking labels, sleeves, or tamper bands. For flexibility, cantilevered stand facilitates mobility between packaging lines. Components can be added as necessary to accommodate application requirements. Measuring 60 in. long and 30 in. wide, tunnel is fabricated from 304 stainless steel and accommodates 1-7.75 in. dia containers with 12 in. max height.

FasTest, Inc.    Roseville, MN 55113-1317
Aug 05, 2011 Employing 24 Vdc drive system, Electronic Tooling System (ETS) allows for inside- or outside-part testing of leak sealing integrity. Modular electronic sealing device can operate as stand-alone sealing system or be controlled via I/O or connected via serial, Ethernet, or DeviceNet. By varying target current, device is scalable and provides repeatable sealing force. Sealing tool locks onto media, even under power loss, increasing test safety and reliability.

A-B-C Packaging Machine Corp.    Tarpon Springs, FL 34689
Apr 25, 2011 With energy-efficient adhesive system and drive motor, Model 436G provides non-stop case sealing at 10-75 cases/minute. Pacer belt infeed automatically spaces cases for precision sealing, while rotary tucker, contoured flap folders, and flap alignment bar ensure square cases. Flexible rollers compress case flaps securely after adhesive application, yet accommodate case height variations, for secure sealing of every case.

Multivac, Inc.    Kansas City, MO 64153
Apr 06, 2011 Semi-automatic T260, available with validation packages compliant with ISO 11607 and FDA 21 CFR Part 11, is designed for cleanroom compatibility and has enclosed cooling water circuit that permits tooling changes without water disconnection. While IPC 06 control system for electronic validation of parameters is standard, optional RFID technology facilitates tracking of machine operator control changes. Barcode scanner may also be integrated for tracking batch production processes.

All Packaging Machinery Corp.    Ronkonkoma, NY 11779
Feb 02, 2011 Incorporating speed control and digital temperature controls, USDA-approved HCBS rotary band sealer offers odorless and smokeless sealing with ¼ in. secure final seal and trim. Dual heating sections and dual cooling sections ensure secure seal, while trim after seal system and vacuum trim accumulation system ensure clean, straight trim directly at seal edge. Heavy-duty, chrome-plated sealing assemblies handle PE, PP, Polyolefin, and PVC shrink films.

Bosch Packaging Technology    New Richmond, WI 54017
Nov 03, 2010 Available in vertical and horizontal formats and in 2 feed directions, Doboy B-550 Series utilizes fiberglass sealing bands that can be changed without tools. Heat sealing systems feature variable frequency speed control and max production speed of 1,000 ipm. Full length 12 mm urethane timing belts grip bag top and provide positive timing and speed control throughout length of sealer. For gusseted and difficult-to-seal films, all machines come equipped with compression wheels.

PAC Machinery Group    San Rafael, CA 94901
Oct 05, 2010 Used for packing, sealing, and shrink wrapping products, DEM-4/-6 shrink systems combine heavy-duty L-bar sealer and shrink tunnel with temperature and speed controls that are compatibile with range of films. Seal system minimizes maintenance and eliminates need for hot knife seal bar, while microprocessor controls promote consistent seals and shrink. Single adjustable height control is also included for product take away and tunnel conveyors, providing smooth product transfer.
