Orbimatic GmbH    Peterborough PE7 3FT  United Kingdom
Nov 03, 2004 OrbiIMAGE allows still and video images to be captured and stored on standard memory card. Images can be stored with file name matching data log file number, facilitating cross reference for validation purposes. System is supplied with 8 mm diameter probe and 90° adaptor. For smaller diameter tubes, 5 mm probe can be provided.

Everest VIT, Inc.    Flanders, NJ 07836 4500
Jun 04, 2004 VideoProbe® XL PROâ„¢ Plus video borescope can record and playback 2+ hours of DVD format MPEG2 video and features USB streaming digital video port. Product can also record digital still images and MPEG1 video on internal 32 MB flash memory or on any storage capacity size Type I CompactFlash® card up to 4 Gb capacity. Equipped with color LCD screen, it allows one-handed operation of joystick for All-Way® camera articulation and menu control.

Moritex U.S.A., Inc.    San Jose, CA 95119
Apr 27, 2004 Furnished with portable, 12 V battery pack, rigid and flexible borescopes and endoscopes employ halogen bulb in probe tip that provides illumination for conducting visual inspections in small, dark cavities. Products are available in 5, 6, or 8 mm dia and 170, 230, and 350 mm lengths, providing 70° viewing direction with 90° field of view. Waterproof scopes are constructed of stainless steel with optics that provide clear, focused image with true color rendition.

Everest VIT, Inc.    Flanders, NJ 07836 4500
Oct 28, 2003 VideoProbe® 300 consists of hand-held controller with video monitor; 0.20, 0.24, or 0.33 in. diameter insertion tube with All-Wayâ„¢ tip articulation; 24 W light source; and storage case. Insertion tube and tip are waterproof to 30 ft. Accessories include external retrieval tools, PowerBarâ„¢ battery pack for portable operation, rigidizers, and tube grippers.

Lenox Instrument Co.    Trevose, PA 19053 3427
Oct 03, 2003 AUTOSCOPEâ„¢, suited for inspection of reciprocating engines on fixed-wing aircraft, gives mechanics bright, clear, magnified image of existing or potential problems. Handheld optical diagnostic tool provides probe diameter of 6 or 8 mm, field of view of 70°, focus from ¼ in. to infinity, and working lengths of 9–15 in. Complete visual diagnostic kit includes eyepiece and probe with internal lens and light system, battery pack, and extension cord.

Lenox Instrument Co.    Trevose, PA 19053 3427

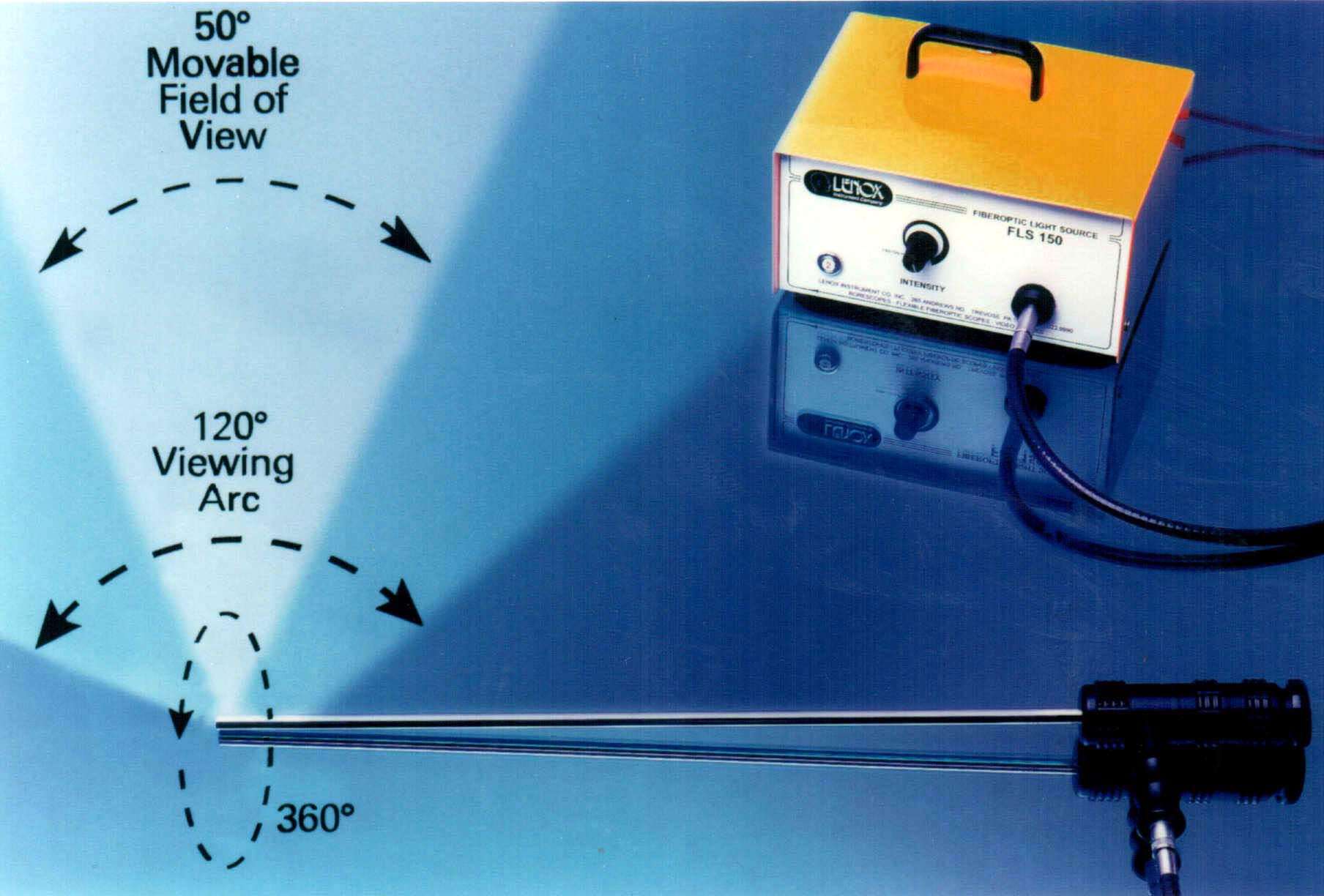

Feb 07, 2003 Swing Prism Adjustable Borescope features rotating lens that offers 50° field of view, which scans through full 360° orbital scan. Control handle allows user to adjust prism on front of scope to inspect right angle, forward oblique, or retrospective viewing angles. Scope is offered in outer diameters of 6 and 8 mm and in working lengths from 28.89–65.18 cm. Objects being inspected can be viewed through standard eyepiece or optional video monitor.

Lenox Instrument Co.    Trevose, PA 19053 3427

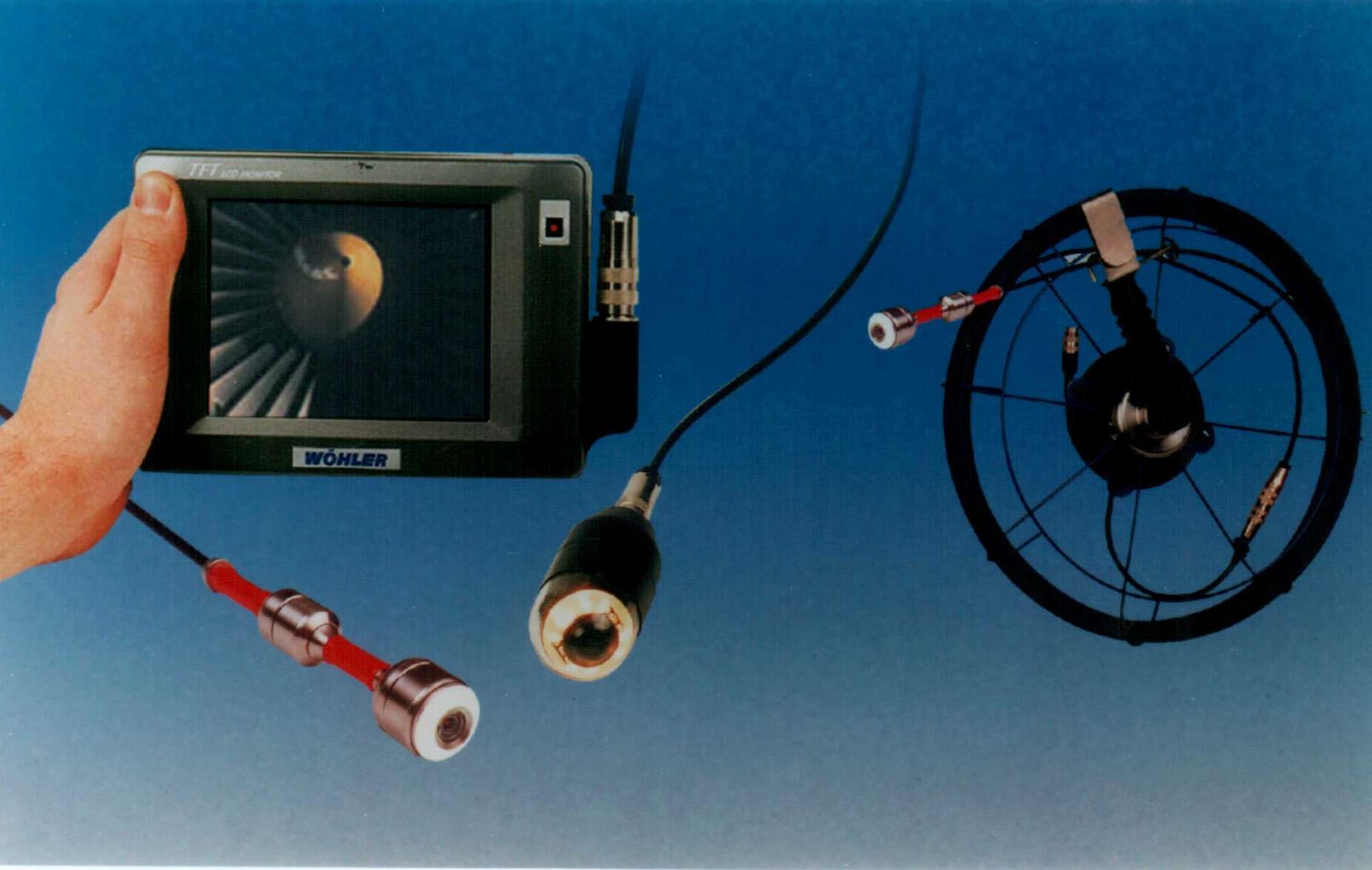

Nov 06, 2002 Self-contained device allows inspection for erosion, corrosion, weld quality, surface wear, and security. Operator views area using handheld, color LCD display. Videoscope includes 1 in. CCD camera, with light source, attached to 60 ft cable. Standard, fully submersible head can be interchanged with optional, splash-proof, pan/tilt 2 in. diameter camera, with built-in lighting and full hemispherical scan.

Everest VIT, Inc.    Flanders, NJ 07836 4500
Oct 10, 2002 XL PROâ„¢ 3.9 mm diameter probe, with measurement capability, provides fully articulated views of spaces where maneuverability is limited. Imaging is accomplished via iViewâ„¢ system for image manipulation, measurement, saving, and annotation. Probe offers All-Wayâ„¢ articulation and forward and side-view optical tips, allowing for inspection in all directions. Camera head tip provides 160° bend angle for full directional viewing.
