L.J. Star, Inc.    Twinsburg, OH 44087
Feb 24, 2006 Suited for new or existing applications, rigid Lumi-View 35(TM) projects as much as 50 W of illumination into process vessels with sight windows of 2 in. or more without obscuring view. It occupies ¾ in. of window's viewing area and has 316 stainless steel light housing rated NEMA 4X and IP65. Power is provided through internal transformer, and user can choose 4 power options: 12, 24, 120, or 230 V. Temperature limit switch is standard, and IR filter is available.

Corning Cable Systems    Hickory, NC 28603-0489
Feb 20, 2006 Series OTS-400 handheld test equipment consists of optical meters, light sources, and testers that offers simultaneous testing and storage of dual-wavelength attenuation measurements. Products store up to 1,000 measurements, feature auto testing function, and offer USB data transfer to Windows-based PC software. Used during installation, system qualification, and maintenance, units include source wavelength configurations such as dual-, triple-, and quad-wavelength sources.

Orled    Portland, OR 97223
Feb 07, 2006 Suited for inspection microscopes, Model RL-9 uses LED lamps and heat sink to prevent heating of illuminated subjects. Lens design directs light from individual sources to centerline of ringlight and blends it into even luminescent spot. Brightness control allows light output to be dialed to suit operator's exact need, from full to zero output. Featuring 4.0 in. OD housing and clear ID of 2.0 in, ringlight includes current-controlled power supply.

Novalux, Inc    Sunnyvale, CA 94085
Nov 14, 2005 Suited for microdisplay-based devices such as home theater front projectors and rear-projection TVs, NECSEL-460-500 (Novalux Extended Cavity Surface Emitting Laser) solid-state light source emits over 500 mW @ 460 nm for true blue display performance. Wavelength-selectable unit produces color-saturated, speckle-free output and features instant-on capabilities.

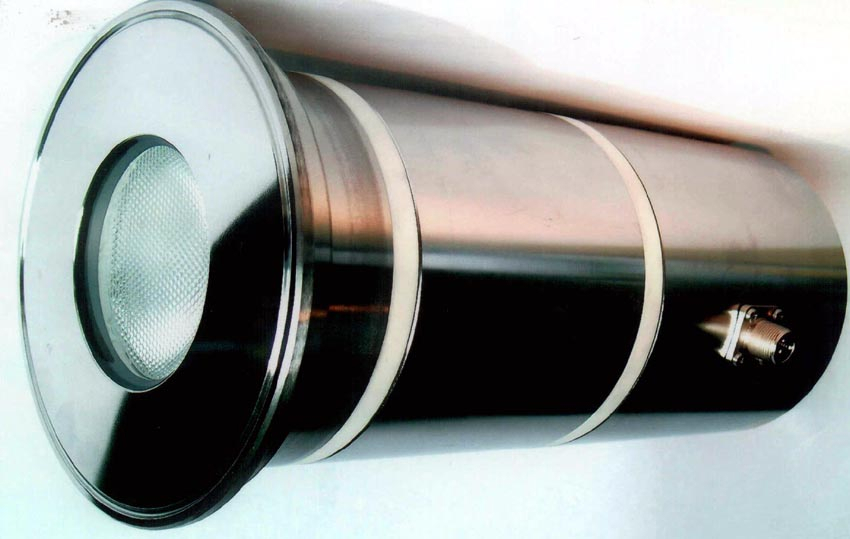

L.J. Star, Inc.    Twinsburg, OH 44087
Oct 06, 2005 Designed for continuous use, MetaClamp® ESL39 lasts up to 10,000 hr on one HID bulb and provides 300 W of light through Metaglas® safety glass lens. Unit has sanitary mounting system and is available with 40° beam angle for illumination of specific areas or 90° angle for uniform illumination of entire vessel. Usable on 6 in. and greater sanitary ferrules, luminaire mounts directly onto any vessel. Overall dimensions are 12 1/8 in. long x 5¼ in. dia.

Para Light Corp.    Walnut, CA 91789
Aug 10, 2005 Available with single yellow, green, red, or blue E-power LED, LS0615 series has suggested operating current of 150 mA and power consumption of 0.6 W. For extra brightness, 350 mA version with 1 W power consumption is also available. Modules may also be custom-designed for electrical operation. Applications include track-, task-, emergency-, security-, and garden-lighting, as well as flashlights and full-color signage.

Dazor Mfg. Corp.    St. Louis, MO 63146
Jul 07, 2005 Multi-directional HIGHLIGHTER uses mouse to control direction of lights, as well as intensity and number of LEDs illuminated. Unit works on all makes of microscopes, allowing inspection and quality control workers to view surface defects. Left mouse click activates automatic continuous rotation of 1-39 LEDs so operator can compare and contrast image under different lighting. Right click alters light intensity to meet optical instrument and individual requirements.

Ocean Optics, Inc.    Dunedin, FL 34698
Jun 24, 2005 SeaChanger Color Engine uses dichroic filter technology to create palette of stable, reproducible colors that do not shift or fade. Utilizing cyan, yellow, magenta, and neutral density patterned filters, users can control color, intensity, and saturation of up to 4 billion color combinations. Self-contained with internal power supply, unit features 6-channel DMX controller and can be programmed for stand-alone operation. Engine measures 18 x 29 cm and weighs less than 5.5 kg.

NP Photonics, Inc.    Tucson, AZ 85747
May 31, 2005 Maintaining spectral and power stability, Scorpionâ„¢ ASE sources are offered in C-band (1525–1570 nm) and C- and L-band (1525–1610 nm) versions that deliver up to 100 mW output power. They can be supplied with monitoring and control electronics, software, standard pin functions, and MSA-compliant footprint. They are also available as completely enclosed, turn-key, CDRH-compliant benchtop unit or mounted on Windows®-compatible PCI card or 3U Compact PCI card.

American Bright Optoelectronics Corp.    Chino, CA 91710
May 03, 2005 RoHS-complaint NovaBriteâ„¢ BWL 3 Series is offered as 13.50 x 13.50 mm self-contained Light Engine, PCB-mounted Light Module unit, or discrete LED Emitter. Capable of displaying 6,500 K with input power of 3.0 W, products feature viewing angle of 120° and typ output of 60 lm. Emitted color can be red, green, blue, amber, and white, and 2 dome lens styles are available to create 30° and 60° viewing angles.

Ocean Optics, Inc.    Dunedin, FL 34698
Mar 10, 2005 Measuring 125.7 x 70 x 25.8 mm, HG-1 enables users to perform wavelength calibrations of diode-array spectrophotometers and post-dispersive monochromators. Handheld unit produces fixed, low-pressure mercury and argon atomic emission lines from 253–1,700 nm (mercury less than 600 nm and argon greater than 600 nm). It has 3,500 hr lifetime bulb and produces stable intensity in ~1 min. Source comes with 12 Vdc power supply and can operate with 9 Vdc battery.

Gamma Scientific    San Diego, CA 92123 1876
Mar 04, 2005 Self-calibrating Model RS-5B features 16-bit color-tunable output that can be set to cover all or any portion of UV/visible/near-IR region. It offers adjustable light-level setting to 1 part in 65,535 in absolute, NIST-traceable, radiometric, and photometric units. Near-perfect linearity and uniformity are less than 0.1% rms over 0–65,535 intensity range, and light-illuminance settling time is less than 0.1 sec.

NP Photonics, Inc.    Tucson, AZ 85747
Jan 20, 2005 Powered by telecommunication-grade pump lasers, Scorpion 1–5 m ASE broadband incoherent light source is based on active fiber technology consisting of energized rare-earth-doped, single-mode optical fiber. It delivers more than 25 mW with bandwidth greater than 65 nm, centered at 1,030 nm. ASE output beam emanates from single-mode fiber with 0.14 numerical aperture and exhibits single-mode transverse beam profile suitable for delivery to high-resolution imaging systems.

Applied Analytics, Inc.    Concord, MA 01742
Oct 07, 2004 Controlled via remote computer, palm pilot, or membrane keypad and LCD display on front panel, D2W-100 is combined flux of D2 and tungsten optically coupled to fiber optics. Light source is focused onto tip of fiber optics via collection optics and not direct couple. Tungsten source intensity can be controlled manually or automatically from external computer, and unit features filter wheel with 4 different filters. Source output can be compensated or uncompensated.

Ocean Optics, Inc.    Dunedin, FL 34698
Aug 12, 2004 Deuterium Tungsten Halogen Light Source, DH-2000-BAL uses system of internal mirrors and filters to eliminate D-alpha, D-beta, and Fulcher lines in deuterium source. Unit is available with integrated shutter, operable via switch or TTL signal, or filter holder, designed for filters up to 4 mm thick. SMA 905 connector couples unit to spectrometers and accessories. Potentiometer allows users to adjust intensity of tungsten halogen output from 10%-100%.

My-tronic GmbH    Morbach 54497  Germany
Jul 07, 2004 Utilizing various LED types, intelligent, controllable LED light sources are multi-function RGB LED products. Single color LED light sources can be round LED boards (LED spots) without housing, LED spots in weather- and water-proof housing, LED spots for under-water use, LED spots for indoor use, LED stripes, and LED light tubes. RGB LEDs come in same shapes and allow users to control colors, brightness, and light effects.

Spectra-Physics, Inc.    Mountain View, CA 94043
May 04, 2004 Oriel Uniform Illumination Source consists of arc lamp system that delivers 1.0 in. dia collimated beam, uniform to ±5%, with beam divergence of ±1.5°. Dichroic filters are available to shape spectral output in UV and VIS, and different irradiance levels are made possible by interchanging lamps. Applications include adhesives curing, materials characterization, and photo-degradation studies.

Labsphere, Inc.    North Sutton, NH 03260 0070
Apr 15, 2004 With 0.0001–100 cd/m² luminance range, USS-1200V-LL Starlight Uniform Source System suits calibration of low-light level imaging devices and systems. Satellite sphere illuminator, with external halogen light source and motorized variable attenuator, controls illumination levels. System includes 12 in. dia integrating sphere with 4 in. dia exit port and 2-part filter system comprised of bandpass filter-wheel and neutral-density filter. It may be directly or remotely controlled.

Gilway Technical Lamp    Woburn, MA 01801 1005
Feb 18, 2004 Xenon Excimer UVA Light Sources consist of aperture lamp and 24 Vdc inverter that provides irradiance of 6 mW/cm² typical at distance of 10 mm from aperture. Featuring instant light within a few milliseconds and instant restrike, units have no electrodes and are rated for more than 10,000 hr of lamp life. Operating from –30 to +85°C, regardless of ambient, lamps produce 365 nm max with minimal heat, and come in lengths from 120–350 mm.

Schott-Fostec, LLC    Auburn, NY 13021 3120
Feb 10, 2004 Suited for microscopy applications, LCR-100 compact, white LED ringlight employs thumbscrew mounting system for precise positioning and low- and high-intensity settings that allow user to adjust illumination with one touch. With working distance from 2.25–6 inches, product fits microscope and camera objectives without adapters from 2–2.63 in. Unit is available with 120 or 240 V input voltage and provides 20,000+ hr lifetime.
