Pinpoint Laser Systems    Peabody, MA 01960
Jun 22, 2009 Capable of measuring 2 linear axes X and Y and their 2 angular components yaw and pitch, 4 axis Microgage Receiver operates over distances of 100 ft or more and delivers measuring precision of 0.0005 in. and 0.005°. Digital display in unit provides precise linear and angular readings. Laser beam provides measuring reference line and unit measures where laser line lands on internal detector and determines position of machine or sub-assembly relative to this laser reference beam.

Photonic Products, Ltd.    Huntington Beach, CA 92647

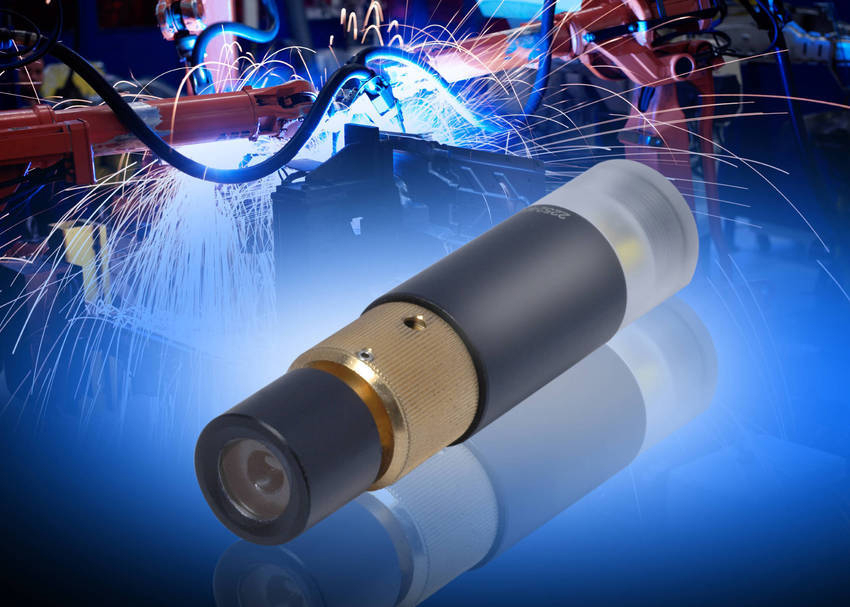

Jun 19, 2009 Variable focus industrial laser module is available in 635-830 nm wavelengths with optical output power from 0.97-27.50 mW, with standard elliptical output beam or line generating optics that generate 45°, 60°, or 90° full fan angle line. Beam is aligned to less than 0.25° to mechanical axis of laser, providing boresight accuracy. Operating voltage is 5 Vdc regulated ±10%, they operate in -10 to +50°C, and electrical connections are made via industrial screw-on connector or 2.5 mm jack.

IPG Photonics Corp.    Oxford, MA 01540
Jun 17, 2009 Able to produce 9.6 kW of single-mode power through one fiber at total efficiency exceeding 23%, YLS-10000-SM commercial solid-state production laser is suited for use in remote cutting/welding and directed energy applications. Its optical scheme consists of fully-integrated MOPA (master oscillator power amplifier), with output delivery fiber 4 m long directly spliced into power amp. Brightness is enhanced by output power and Gaussian beam quality at 1,070 nm emission wavelength.

Newport Corp.    Irvine, CA 92606

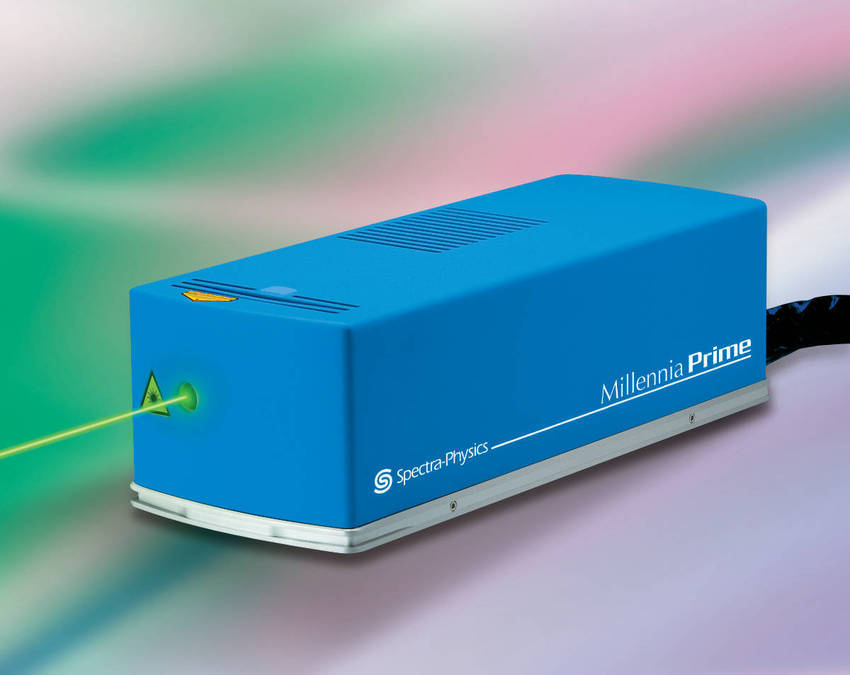

Jun 11, 2009 Millennia Prime Series of 532 nm green diode pumped solid state (DPSS) lasers are suited for 24/7 applications where uptime is critical, including photovoltaic solar cell manufacturing, hard disk texturing, and semiconductor inspection. They feature low noise less than 0.04% rms, pointing stability less than 2 µrad/°C, and are available in 6, 10, and 15 W versions. Compact lasers can be integrated into industrial machine tools or used where space is critical.

Newport Corp.    Irvine, CA 92606

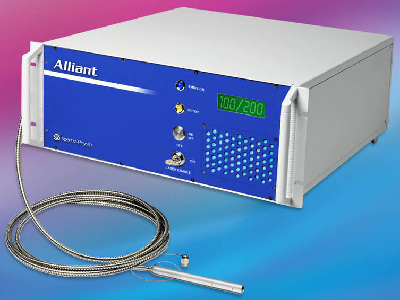

Jun 10, 2009 Featuring flexible power control for continuous wave (CW) to modulated operating mode, Alliant(TM) 100 W IR laser exhibits single-mode beam quality and wall-plug efficiency that deliver maximum power at smallest focused spot. Brightness is suited for industrial machining applications such as precision cutting, spot and seam welding, and metal sintering. Tested for 24/7 operation, laser is based on ProLite® Xt high brightness laser diodes and supplied in rack-mount enclosure.

Newport Corp.    Irvine, CA 92606

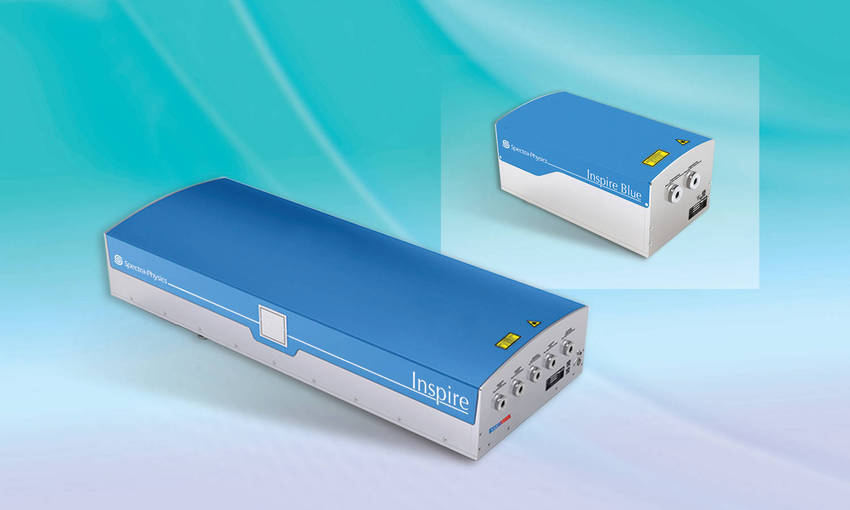

Jun 09, 2009 Optimized for use with Mai Tai® HP ultrafast laser, Inspire(TM) Optical Parametric Oscillator is suited for advanced imaging and spectroscopy applications. Fully automated for computer-controlled tuning, it delivers greater than 1 W average power from 345-520 nm and more than 400 mW from 490-750 nm. Providomg gap-free adjustable pulse widths from 80-350 fs, tunable ultrafast laser source is insensitive to ambient temperature changes.

InnoLas Systems GmbH    Krailling   Germany

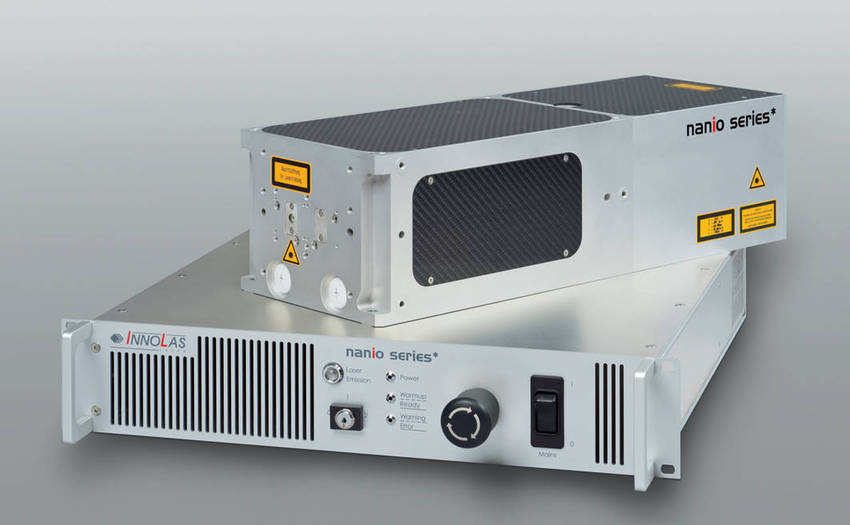

Jun 05, 2009 With performance up to 25 W, InnoLas NANIO industrial DPSS lasers operate in wavelength of 1064 and 532, and have pulse repetition rate of 500 kHz with single shot. Tube and cable length between laser head and supply unit and/or cooling unit can range from 1-20 m. Units can be used in working processes of marking and structuring of semiconductors, metals, plastics and ceramics. Lasers are suited for manufacturing of solar cells, for micro material processing and scientific applications.

Laser Design, Inc. (LDI)    Minneapolis, MN 55431
May 28, 2009 Along with laser line length of 50 mm and accuracy of up to 20 µ, Surveyor Laser Probe model SLP-500 features dual CMOS receptors that capture up to 75,000 points/sec. It gathers data with high density, offering resolution to 750 points along laser line, and is primarily used for mid- to large-sized objects such as molds, stampings, and sheet metal. Electronics and optics architecture lend to delivery of virtually noise-free scan data.

IRIDEX    Mountain View, CA 94043
May 15, 2009 Designed to treat sight-threatening eye diseases such as diabetic retinopathy, age-related macular degeneration, and glaucoma, IQ 577(TM) True Yellow 577 nm Laser System includes wireless foot pedal control with power adjust capability and audible confirmation of adjustments. System utilizes MicroPulse(TM) technology, which electronically chops each laser pulse into microsecond bursts, optimizing physician's control over energy delivered to tissue.

Newport Corp.    Irvine, CA 92606

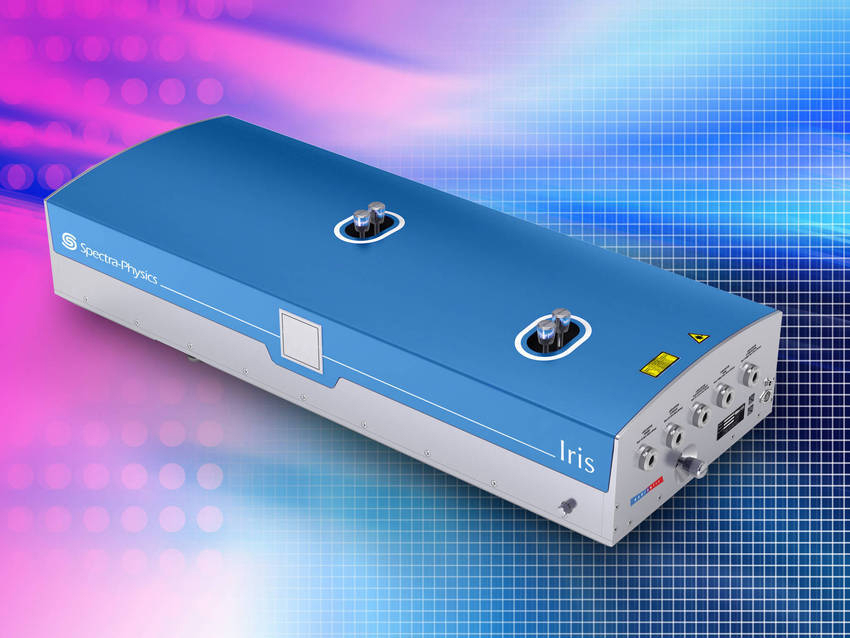

Apr 14, 2009 Targeted at advanced imaging and spectroscopy applications, Iris(TM) delivers greater than 1 W of average power from 340-520 nm and greater than 400 mW from 490-750 nm. Device features full automation for computer-controlled tuning across range without adjustment or change of optics. It provides adjustable pulse widths from 80-350 fs. Multiple output ports for simultaneous UV, visible and infrared output makes unit suitable for applications requiring multiple wavelengths.

TRUMPF Power Tools    Farmington, CT 06032

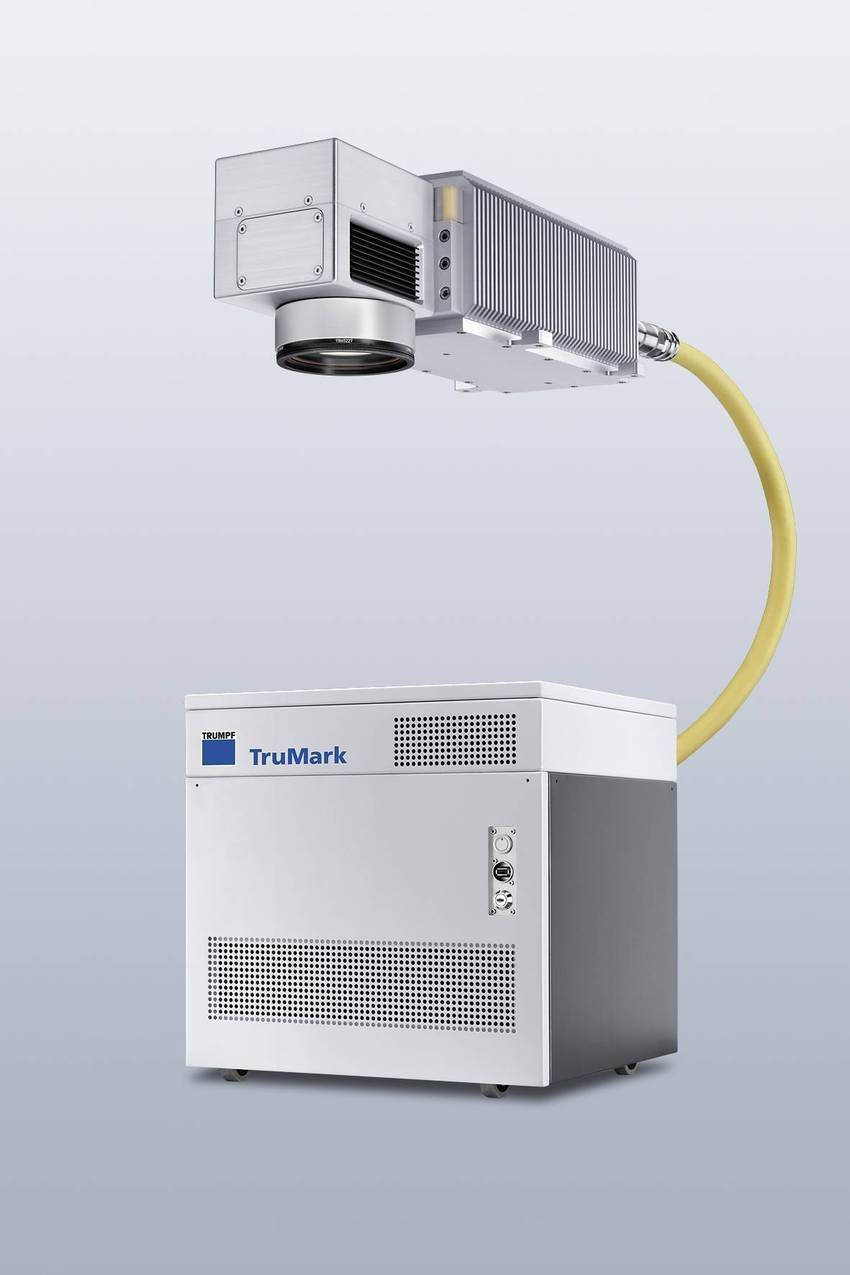

Apr 13, 2009 TruMark 3010 is diode-pumped, solid-state laser with wavelength of 1,064 nm. Modular, compact unit includes convection-cooled laser head and power supply connected via hybrid cable for integration into existing production systems. Incorporated NAVIGATOR software provides users with menus for selecting materials and desired marking process.

Hilti Inc.    Tulsa, OK 74121
Apr 08, 2009 Featuring green laser technology for optimal visibility in indoor applications, Hilti PR 26 Rotating Laser has range up to 650 ft with laser receiver. Built-in line function allows user's hands to remain free for other tasks once laser is set to correct height. Equipped rechargeable battery pack and charger, tool provides 22 hr of continuous working time/full charge. Built-in shock warning system minimizes potential for off level measurements should laser get knocked off level.

Raymond Corporation, The    Greene, NY 13778 0130
Apr 07, 2009 Available for both new and existing Raymond® Reach-Fork trucks, Fork-Tip Lasers assist operators in accurately placing forks when storing and retrieving pallets in racks. Lasers come in green for heights up to 442 in. and red for heights up to 300 in. Powered by lift truck's battery, lasers are suited for applications with tall racks, warehouses without optimum lighting, and freezer applications.

Servo-Robot Corp.    Bruno, QC J3V6E1  Canada
Apr 03, 2009 Robo-Find laser-based sensing system is designed to locate, detect, and measure weld joints without making contact with part. Sensing part position and dimensional variations, it signals robot and adjusts torch trajectory in less than 1 sec. System includes either Sense-i/D or SF/D laser cameras as well as miniature video camera for remote programming and viewing of welding process. Setup is accomplished via laptop interface.

Bookham, Inc.    San Jose, CA 95134
Mar 30, 2009 Cooled, wavelength locked, single mode Mini-DIL pump laser module delivers all performance and functionality of 14-pin butterfly pump in small form factor (SFF) package. Able to deliver over 600 mW of power, product operates over -20 to +75° range and is Telcordia- as well as RoHS-compliant. It enables amplifier designers to reduce size of low-noise EDFAs, DWDM amplifiers, amplifier modules, and CaTV amplifiers.

Bookham, Inc.    San Jose, CA 95134
Mar 26, 2009 Available as chip-on-submount or chip-on-C-Mount, 808 nm single emitter module suits solid-state and direct diode laser systems in Nd:YAG pumping and medical, analytical and printing applications. Hermetically sealed RoHS compliant module features floating anode and cathode, and multimode laser diode chip with E2 front mirror passivation to prevent Catastrophic Optical Damage to laser diode facet.

IPG Photonics Corp.    Oxford, MA 01540
Mar 23, 2009 Featuring 850 x 800 mm footprint, Model YLS-5000-SM delivers virtually perfect Gaussian beam quality and 22% AC wall-plug efficiency. Continuous wave, solid state laser is suited for assist-free remote cutting as well as remote welding in automotive, aerospace, and shipbuilding industries. It also offers solution for many tactical directed energy applications.

NanoInk, Inc.    Chicago, IL 60607
Mar 18, 2009 Model NLP 2000 enables patterns of nano- to micro-sized features to be created using various materials, from metal nanoparticles to biomolecules. Capabilities enable researchers to design and create custom-engineered and functionalized surfaces using Dip Pen Nanolithography® technique to transfer nanoliter or smaller amounts over environmentally controlled area as large as 40 x 40 mm. Pens deliver spot size over range of 50 nm up to tens of microns.

Newport Corp.    Irvine, CA 92606

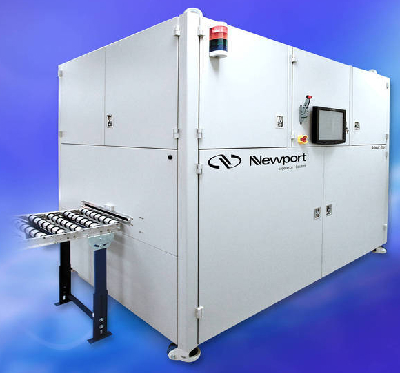

Mar 17, 2009 SolaryX(TM) Edge uses pulsed lasers to remove all coatings - amorphous silicon (a-Si), cadmium-telluride (CdTe), copper-indium-diselenide (CIS), copper-indium-gallium-diselenide (CIGS) - around perimeter of thin-film solar panels. Featuring optical design, edge laser processing system is designed for fast takt times and reliability in 24/7 industrial thin-film solar panel manufacturing environments.

Es Technology Ltd    Miami, FL 33155

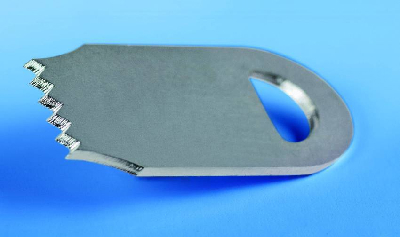

Mar 03, 2009 Capable of cutting material up to 5.0 mm thick, ES-CUT150 150 W Pulsed YAG Laser can be configured to produce kerf width of 18 µm, enabling high precision cutting and profiling with minimal burr formation. Material to be processed is manipulated under fixed laser optics by Baldor brushless, servo-driven X-Y table, which has 400 x 400 mm work envelope. Offering accuracy of ±10 µm and speeds up to 35.0 mm/sec, system can be set up by importing CAD data of part to be produced.
