LIMO    Dortmund   Germany

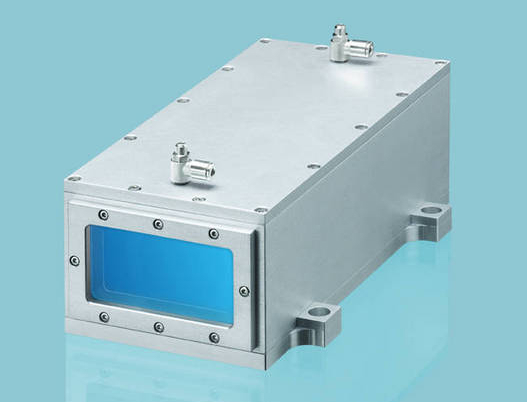

Jul 02, 2010 Combined with IOS00019x-series processing head, LIMO120-F400-SL808-103 generates photoluminescence and thermographic signals, and asymmetric homogeneously illuminated field under 35° angle of incident that fits to solar cell sizes up to 210 x 210 mm. Center wavelength of 7908-808 nm is essential for separation of excitation source and signal light, while small bandwidth versions of less than 1 nm are also available as option.

Pinpoint Laser Systems    Peabody, MA 01960

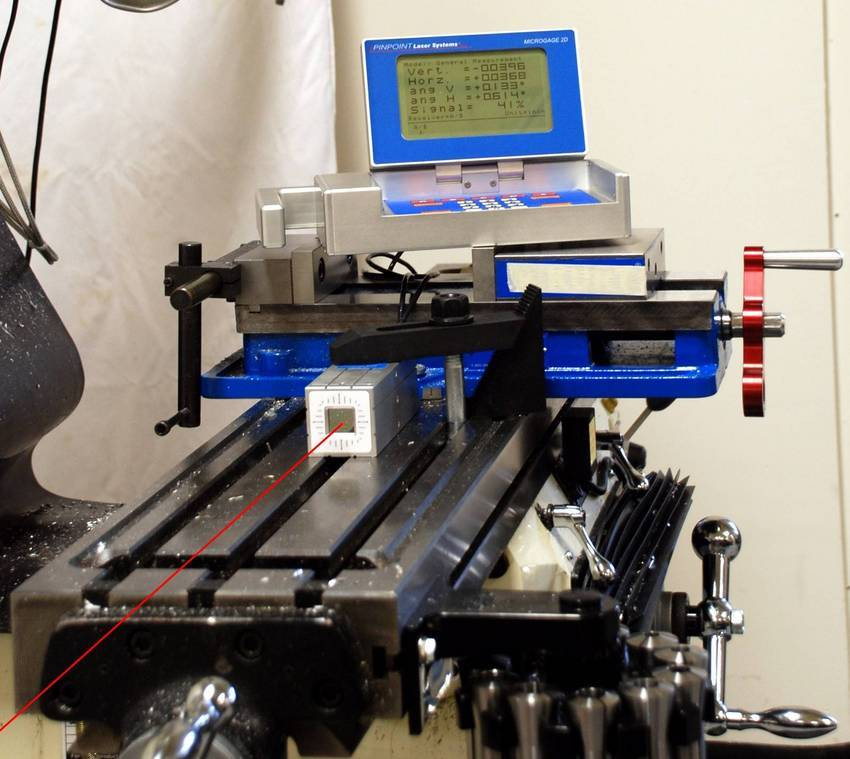

Jul 01, 2010 Providing useful alignment information for evaluating and correcting machinery alignment problems, 4-axis Microgage Receiver measures two linear axes X and Y and their two angular components yaw and pitch. It delivers measuring precision of 0.0005 in. and 0.005° and features compact, digital display for precise linear and angular readings. Unit is suited for aligning lathes, turning centers, spindles, moving linear slides, rams and pistons, and injection molding machinery.

Vista-CCTV    Wokingham RG41 5TS  United Kingdom
Jul 01, 2010 Offered with vari-focal lens for precise scene adjustment, VBC440/460 true day/night cameras provide covert operation for up to 60 m in any light condition and 560TVL resolution ensures consistently high picture quality. Split glass design prevents internal reflection of IR illumination, while external adjustment rings simplify lens adjustment. Supplied remote set-up tool provides access to camera's on-screen display menu for accurate set up of 3DNR and DWDR functions.

Optical Gaging Products, Inc.    Rochester, NY 14621 4839

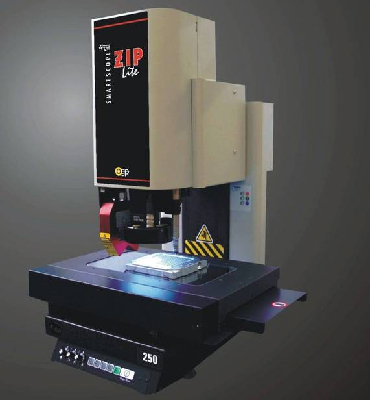

Jun 30, 2010 Offering automated video-based inspection and measurement, SmartScope ZIP® Lite 250 and 300 feature XYZ measurement ranges of 250 x 250 x 150 mm and 300 x 300 x 150 mm, respectively. Systems include joystick-controlled, mechanical bearing, motorized XYZ stages with 0.5 µm linear scales mounted to granite base and column. Designed to automatically calibrate itself with each magnification change, AccuCentric® 7:1 motorized zoom lens keeps images in focus and on-axis throughout zoom range.

Micro-Epsilon UK Ltd    Cheshire   United Kingdom

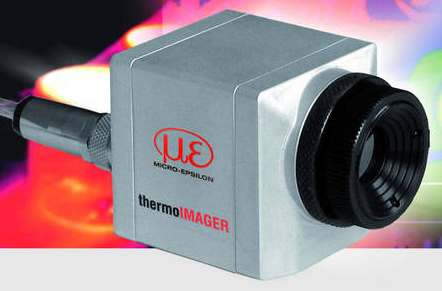

Jun 29, 2010 Powered and operated via USB 2.0 interface, thermoIMAGER TIM160 provides temperature images and profiles of target area. Plug-and-play unit comes with software for configuring all parameters as well as real-time capture, at 100 Hz full frame rate, and storage of images or video. Supplied in protective 45 x 45 x 62 mm enclosure that allows operation in temperatures to 200°C, camera supports use of up to 3 interchangeable lenses with 9°, 31°, and 64° FOV for temperature monitoring tasks.

Lanner Electronics Inc.    Sijhih City Taipei 221  Taiwan

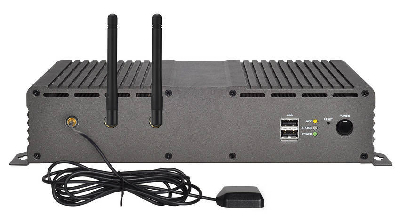

Jun 29, 2010 Based on 1.6 GHz Intel Atom N270 CPU, in-vehicle Model LEC-5520 offers WiFi, 3G, and GPS communications as well as 4-channel real-time H.264 video capture and hardware compression. Video is captured through 4 BNC analog inputs, allowing use of analog video cameras. With input power of 10-36 V, system provides 12 Vdc/1 A out to power peripherals such as cameras and sensors. It includes 2.5 in. hard drive bay, CF socket, 4 USB 2.0 ports, and 1 GB DDR2 onboard memory IC.

Lenox Instrument Co.    Trevose, PA 19053 3427

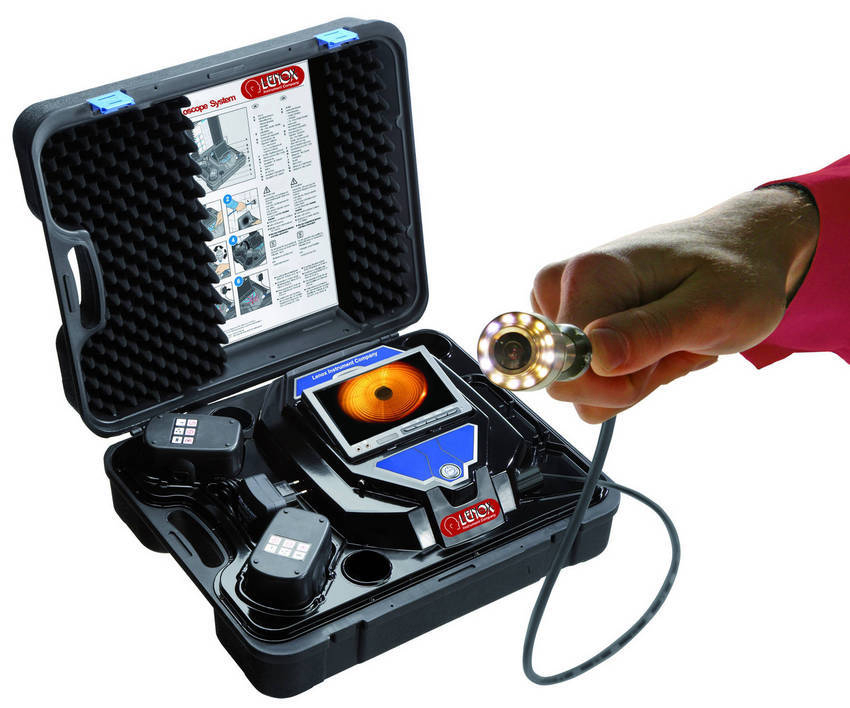

Jun 25, 2010 Portable Videoscope System offers miniature, 1 in. dia, 120° FOV, color CCD camera head or 1.5 in. dia, 360° pan and 180° tiltable, color CCD camera head. Mounted to end of flexible, retractable push rod, waterproof camera includes LED lighting and is able to negotiate 90° bends. Features include high-resolution, 7 in. wide TFT monitor; 4 GB memory card with mini USB port for video transfer; and RCA video output. Two NIMH rechargeable batteries and power supply/charger are included.

Avago Technologies    San Jose, CA 95131
Jun 25, 2010 Intended for power supply and motor control applications, single-channel ACNV2601 provides 10 MBd data rates as well as 7,500 Vrms/1 min isolation voltage, 1,768 Vpeak continuous working insulation voltage, and 12,000 Vpeak transient over voltage. Internal shield between AlGaAs LED and photo-detector ensures 20,000 V/µs common-mode transient immunity with common-mode voltage of 1,500 V. Operating from 5 V supply, product also provides reliable logic interfacing and I/O buffering.

LEVITON    Melville, NY 11747
Jun 25, 2010 Compatible with LC duplex or quad adapters, Secure Keyed LC Fiber System prevents unauthorized and inadvertent changes in government data centers, telecommunications rooms, workstation areas, and secure IT networks. Once connected to port, locking design of connectors prevents removal by hand, and connector can only be removed with keyed color extraction tool. System also has port protection plugs that lock unused ports from unauthorized insertion of cable assembly or connector.

GAO Tek Inc.    Toronto M1B2K4  Canada
Jun 25, 2010 Operating over wavelength of 1,510-1,610 nm with 20 nm channel spacing, Coarse Wavelength Division Multiplexer maximizes existing fiber optic infrastructure by transmitting multiple wavelength signals through same fiber optic cable. Unit enables dual fiber strand to support multiple network topologies and data rates. Encapsulated within non-flux metal bonding micro optic packaging, CWDM has epoxy-free optical path and offers stable performance in demanding environments.

Vista-CCTV    Wokingham RG41 5TS  United Kingdom
Jun 24, 2010 With integrated IR illumination that enables covert operation of up to 20 m, VBC400 540TVL camera offers high quality color images during day and monochrome images during darkness. IP67 rating and integrated bracket allow camera to be mounted anywhere, internally or externally, including secure walls, ceilings and soffits. Split glass design prevents any internal reflection of IR illumination to ensure sharp images are received.

Waldmann Lighting Co.    Wheeling, IL 60090-6051
Jun 24, 2010 Equipped with 6 LEDs and integrated optics that focus light on work surfaces, RING LED is suited for examination of parts in numerous fields of application, including mechanical engineering and research and development. Unit features ½ in. thick luminaire head, integrated soft-touch sensor, and adaptive pivot that allows countless individual connecting options. For durability, luminaire head, tubular section, and flexible arm are made of metal.

Saelig Co., Inc.    Pittsford, NY 14534
Jun 21, 2010 Powered from PC's USB port, Model PS4227 includes integrated spectrum analyzer, function generator, and arbitrary waveform generator. Unit has 32 Megasample buffer memory, which can hold up to 10,000 waveforms, viewable in pop-up navigator window. USB 2.0 port allows high-speed data to be delivered to host PC. With two 12-bit input channels and bandwidth of 100 MHz, detailed waveforms can be captured for production testing, scientific analysis, electronic design and debug tasks.

Ophir-Spiricon Inc.    Logan, UT 84321
Jun 21, 2010 Comprised of modular, slide-in, neutral density attenuators and C-mount holder, UV ND Filter system attenuates UV laser beams so they are at proper intensity for CCD or Pyroelectric cameras. Filters work on lasers in 190-380 nm range and are made from Fused Silica with Inconel coating on one surface to effect attenuation of incident light. They are also tilted to eliminate any parallel, reflecting surfaces that can cause interference effects.

Biochrom Ltd.    Cambridge CB4 0FJ  United Kingdom

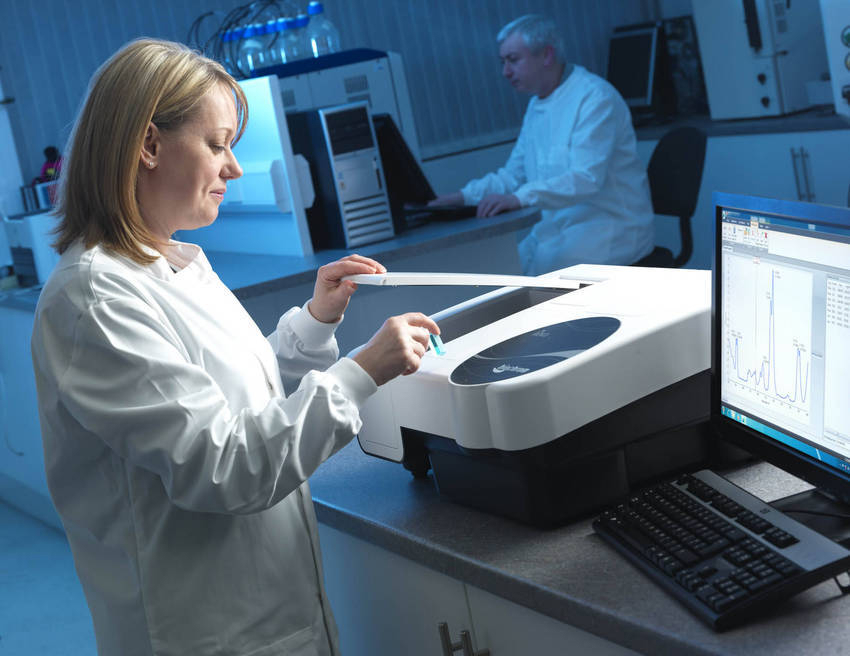

Jun 18, 2010 Featuring color touchscreens and USB data ports, Biochrom Libra instruments, offered in 4 versions, can be tailored to meet specific requirements of wide range of academic, research, or industry applications. Offered in standalone and PC controlled variations, devices offer optional integrated Bluetooth for data transfer and optional built in printer. Range of optional accessories completes application-specific flexibility of this range.

Vista-CCTV    Wokingham RG41 5TS  United Kingdom
Jun 17, 2010 IP68 rated VBC300 and VBC301 day/night cameras can be mounted internally or externally, including on secure walls, ceilings, and soffits. Fixed lens provides coverage over wide area, while integrated IR LED technology delivers illumination up to 10 m, allowing for covert operation in any light condition. All-in-one solutions consist of camera, lens, housing, bracket, and IR illumination, and twin front glass reduces reflectance back into lens, ensuring clear, high quality pictures.

M2 Optics, Inc.    Holly Springs, NC 27540
Jun 15, 2010 Fiber Monitor identifies common issues including broken fibers, degraded connections, and data theft/tapping attempts. It utilizes correlation optical time delay reflectometry technology to optimize sensitivity and precision, and pinpoints issues to within few meters along fiber span. Product can monitor up to 16 active or dark fiber lines simultaneously, with maximum distances up to 60 miles long. Built-in web-based monitoring software provides analysis of network activity from anywhere.

Keytroller Inc.    Tampa, FL 33614

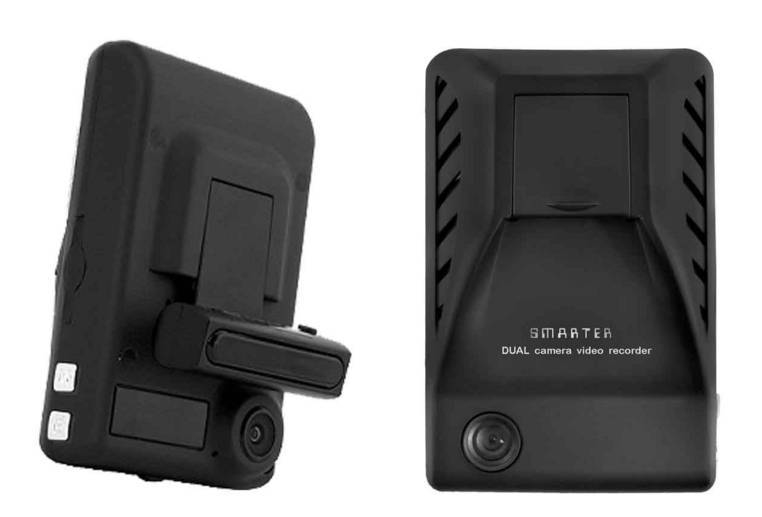

Jun 14, 2010 SMARTER dual video drive recorder with GPS is forward- and rearward-looking video recorder that provides inside and outside views of vehicle, matched with GPS route, speed, and location. Device records digital video whenever ignition is on, and individual, time/date stamped video events are triggered by impact and fast acceleration or deceleration. Recording between 1-3 min before and 1-3 min after event is triggered, unit also includes IR illuminator and audio recorder.

Dicon Fiberoptics Inc.    Richmond, CA 94804
Jun 09, 2010 Tunable optical filter module, used with GP750 fiber optic test system, utilizes MEMS technology for precise wavelength tuning and is suitable for test applications in optical channel performance monitoring, ROADM systems, noise suppression, or signal tracking. Available in either 50 or 100 GHz channel spacing and designed for use in either C or L band, between 1 and 4 tunable bandpass optical filters can be integrated into each module.

Schweitzer Engineering Laboratories Inc.    Pullman, WA 99163
Jun 09, 2010 Able to operate as OC-48 SONET multiplexer and/or GbE switch, SEL ICON (Integrated Communications Optical Network) features precise time distribution accurate to 1 µs over WAN. It also offers real-time latency monitor for each channel and support for SONET, Ethernet, and DS0 interfaces such as C37.94 and EIA 232. Product can be managed from one or several locations and is available in 19 in., shelf-mount package and 8 in. DIN-rail or panel-mount package.
