Goodrich Corp.    Charlotte, NC 28217
Aug 30, 2010 With total volume of less than 4.9 in.³ and weight of less than 4.5 oz, small SWaP (size, weight, and power) shortwave infrared (SWIR) camera enables 24 hr imaging capabilities for unmanned vehicles. InGaAs technology enables camera to see light wavelengths from 0.7-1.7 µm, while additional capabilities let user detect and track range of military lasers, day or night, with optimal clarity. Product can fit most unmanned aerial or ground vehicles.

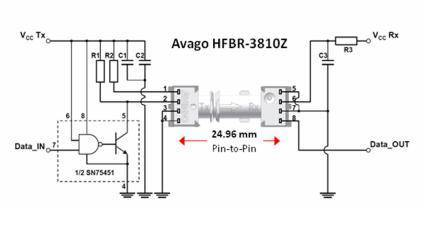

Avago Technologies    San Jose, CA 95131
Aug 27, 2010 Occupying 13 x 33.56 mm footprint, 10 MBd HFBR-3810Z is suited for isolating frequency inverter and power converter applications in renewable energy installations. Fiber Optic (FO) short link technology pin-to-pin distance of 24.96 mm provides transient voltage suppression of 12 kV according IEC 60664-1. It also allows galvanic isolation on one PCB, promoting compact designs. DC coupled data link does not require data encoding or digitizing circuitry, and receiver has CMOS/TTL output.

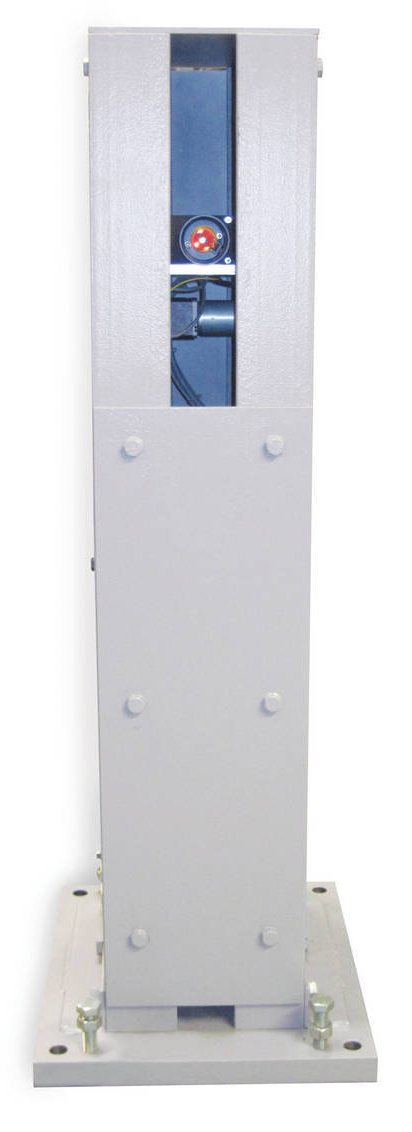

Behringer Saws, Inc.    Morgantown, PA 19543
Aug 27, 2010 Designed to be used on Behringer sawing systems which have handling components to move materials into work area, Laser Length Measuring System helps conserve time and eliminate waste by confirming material dimensions. Mounted laser unit automatically detects material and sends overall dimensions to control panel. Once reset to zero, readout on operator's control will measure length of part being moved forward toward laser via powered roller conveyors or other conveyance system.

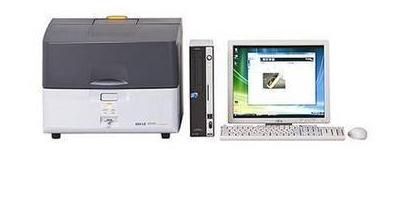

Shimadzu Scientific    Columbia, MD 21046
Aug 24, 2010 Designed for RoHS/ELV screening inspections, EDX-LE Energy Dispersive X-Ray Fluorescence Spectrometer utilizes electronic cooling detector that does not require liquid nitrogen. Collimator lets user select analysis regions for trace samples, while large rectangular sample chamber accommodates various sample shapes and sizes. Screening software enables evaluation of materials contained in sample, selection of optimum analysis conditions, and screening judgment to be performed automatically.

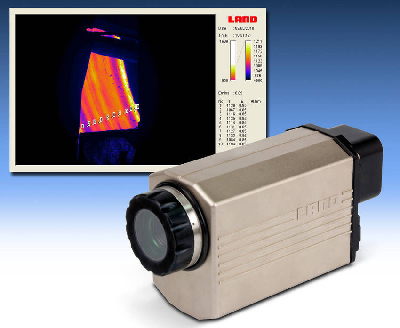

AMETEK Solidstate Controls    Columbus, OH 43085
Aug 24, 2010 Operating at 1 µm, fixed Model FTI-E 1000 combines thermal imaging with temperature measurement from 1,100-5,400°F, over range of 4 models. High-resolution detector array coupled with precision optics enables targets as small as 0.013 mm² to be resolved. Enabling live images and video to be captured, dedicated software provides timed acquisition, full range of temperature measurements, and various alarm functions. Applications include boilers, cement kilns, pipe welding, and glass furnaces.

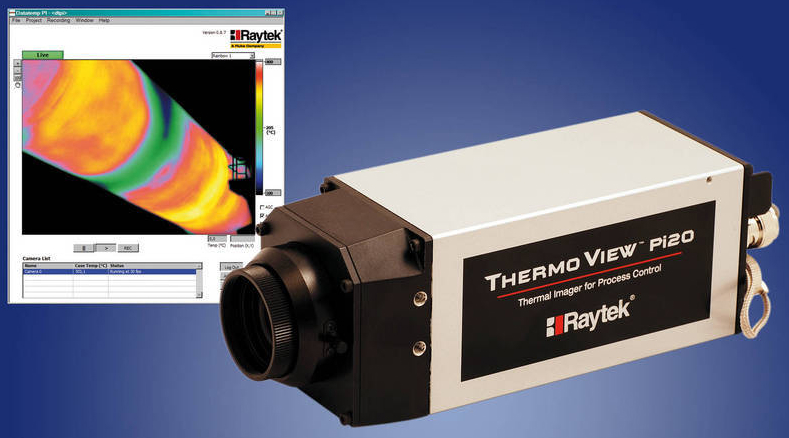

Raytek Corporation    Santa Cruz, CA 95061 1820
Aug 24, 2010 Designed for automated monitoring and control of continuous or stationary targets, ThermoView(TM) Pi20 delivers real-time process view of thermal images. IP54-rated camera is paired with DataTemp® Pi software, offering multi-point control corresponding to areas of interest on product, with independent alarm settings. Available temperature ranges are -40 to +932°F and 392 to 3,632°F, and 2 lens options are available: 21.7° x 16° or 30° x 22°.

Medit, Inc.    Winnipeg, MB R3C2B3  Canada
Aug 23, 2010 Orion Videoscopes have 0.16 in. insertion probe with integrated CMOS Video Camera chip to provide exact view of inspection area. While 4 LED lights deliver even illumination, light intensity is controlled by dial on monitor which lets user see every detail. All live images are displayed in color on integrated LCD screen, built with oil- and scratch-resistant tempered glass. Other features include digital zoom and ability to rotate/flip image.

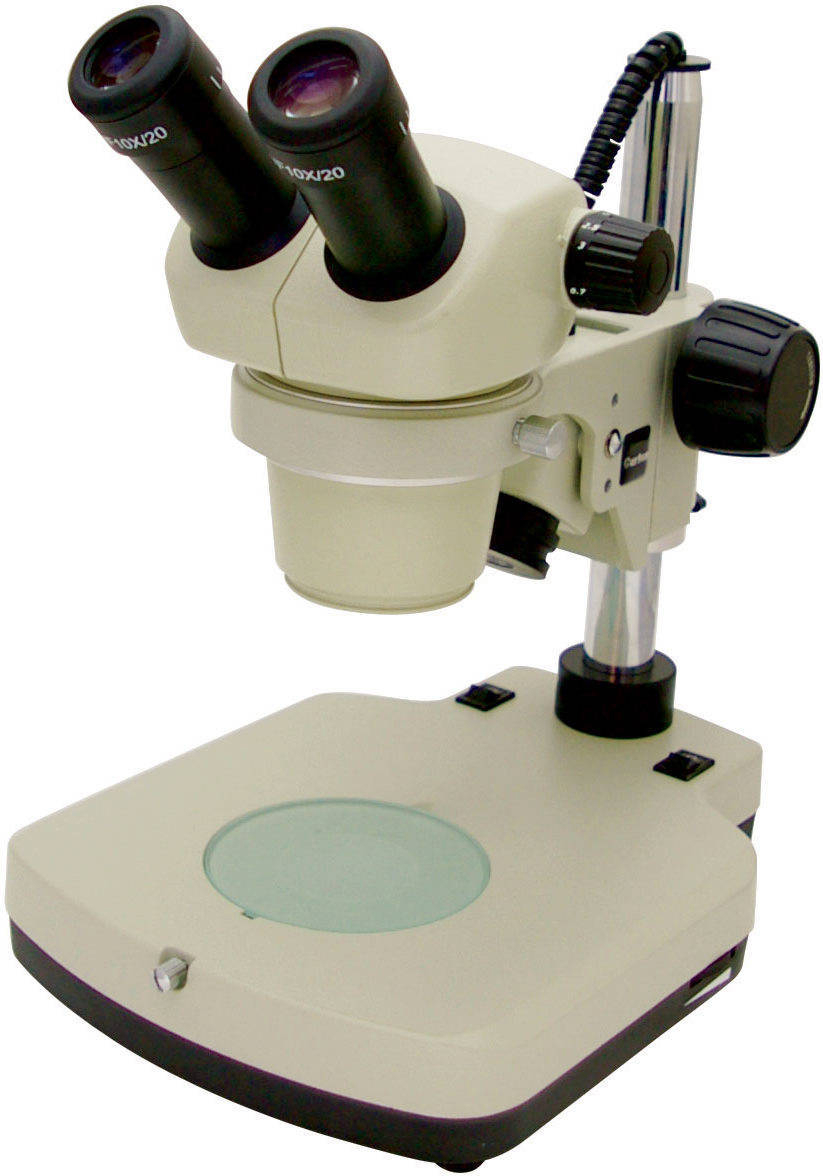

Aven, Inc.    Ann Arbor, MI 48108
Aug 23, 2010 Available with pole, column, or boom stand, binocular SSZ-30 models magnify from 7x-30x and employ wide-field eyepieces that magnify intermediate image by 10x. One pole stand model comes without illumination, while others feature dimmable, long-life, white LED lighting. Field of view ranges from 6.7-28.6 mm depending on magnification, and lenses have zoom range of 0.7x-3x. Additionally, 15x or 20x magnification eyepieces and 0.5x, 0.63x, 0.75x, and 2x lens options are available.

Electro Standards Laboratories    Cranston, RI 02921 3403
Aug 19, 2010 Rackmount QuickSwitch® Model 6297 Optical Multimode 3 LC Duplex A/OFFLINE/B switch with serial remote utilizes MEMS-based mirror/prism technology that supports Gigabit data rates, and allows access from single computer to any 1 of 2 separate fiber optic networks. Unit features local pushbutton control, and rear-panel DB9 female connector in switch accepts ASCII RS232 serial data commands for remote control and monitoring. Device turns to OFFLINE position before switching to A or B.

American Laser Enterprises, Inc    Novi, MI 48376
Aug 19, 2010 With A-Las(TM) System, users can align complex laser beam delivery systems in seconds from any location worldwide for numerous machines. System eliminates trial and error troubleshooting, minimizes parts consumption, and maximizes machine uptime while enabling one person to diagnose and correct multiple machines.

Edmund Optics    Barrington, NJ 08007
Aug 18, 2010 Offering solution for most multi-wavelength applications, Ultra Broadband Wire Grid Polarizers consist of thin layer of aluminum MicroWires(TM) sandwiched between 2 fused silica glass windows. Wires are attached to first window and then thin cover glass is used to protect wires from damage. When incident light strikes wire grid, P-Polarized light contacts dielectric and is transmitted, while S-Polarized light contacts mirror and is reflected.

CaseCruzer    Montclair, CA 91763
Aug 18, 2010 Intended for professional photographers, ATA-approved PSC200 includes customized polyethylene foam cut-out in lid for 15 and 17 in. Apple Mac Book laptops, as well as 11-compartment black padded divider system that can store cameras, lenses, and accessories. Exterior is injection-molded with ultra high-strength polypropylene copolymer resin. Measuring 21.75 x 13.75 x 8.99 in., IP67-rated waterproof case is dust tight, submersible, and resistant to corrosion and severe impact.

Medit, Inc.    Winnipeg, MB R3C2B3  Canada
Aug 18, 2010 ImagePro USB video camera captures images viewed through eyepiece of borescopes and also saves them to PC hard drives via integrated viewing software. Unit features universal, F=28 focusable eyepiece coupler for streaming live color images. Digital output from ¼ in. CCD image sensor, with over 470 TV lines of resolution, is fed to PC or laptop with included cable.

Edmund Optics    Barrington, NJ 08007
Aug 17, 2010 Used for wavelength-separation applications, Infrared Equilateral Prisms with Calcium Fluoride substrate feature 1.434 index and transmission properties from 350 nm to 7 µm. Germanium versions are suitable for applications in 3-12 µm region where optical path length needs to be maximized. With transmission from 1-16 µm, prisms with Zinc Selenide substrate are commonly used with CO2 laser applications. Total beam deviation and wavelength separation is dependent on refractive index.

Edmund Optics    Barrington, NJ 08007
Aug 17, 2010 Useful for FTIR spectroscopy and thermal imaging applications, Infrared Longpass Filters provide sharp cut-off below particular wavelength and are often used for order sorting. Units simultaneously provide high transmission of desired energy and deep rejection of unwanted energy. Constructed with hard first-surface dielectric coatings on optical-quality IR-transmitting substrates including sapphire, silicon, and germanium, filters withstand normal cleaning and handling.

Edmund Optics    Barrington, NJ 08007
Aug 17, 2010 By adjusting angle of incidence, Tunable Bandpass Filters offer tunability over broad wavelength range with essentially no change in spectral performance. Tuning range is greater than 12% of normal-incidence wavelength. Filters are suited for applications ranging from fluorescence imaging and measurements to hyperspectral imaging and high-throughput spectroscopy. With polarization insensitivity and high damage threshold, units are also suitable for laser applications.

Bel Fuse, Inc.    Jersey City, NJ 07302 4419
Aug 16, 2010 Supporting 10/100/1,000 Mbps data rate over 325+ ft reach, SFP-1GBT-03 supports copper networks with integrated SerDes PHY interface that can connect directly to fiber-optic module. It operates at 610 mW typ in 1000BASE-T applications and 320 mW typ in 10/100Base-T applications and mates via RJ45 interface. In addition to full- and half-duplex communication, product supports auto-negotiation features, Baseline Wander correction, and automatic medium-dependent interface crossover.

Renishaw, Inc.    Hoffman Estates, IL 60192
Aug 13, 2010 Providing true absolute positioning in linear/rotary models, RESOLUTE(TM) has single-track optical scale that eliminates misalignment and allows wide setup tolerances. Resolution of 1 nm at up to 100 m/s accommodates linear and angle encoding applications, and absolute position is acquired immediately upon switch-on and without battery backup. Product reads fine-pitch, 30 µm scale, resulting in noise levels with jitter less than 10 nm RMS. Sub-divisional error is ±40 nm.

AMETEK Solidstate Controls    Columbus, OH 43085
Aug 13, 2010 Designed to measure temperatures from -4 to 2,912°F with ±1% accuracy, FTi-E Fixed Thermal Imaging System provides complete thermal view of process with display that responds immediately to changes, which can then be used to trigger alarms, automatically control process, or provide quality control information. Thermal imager, housed in NEMA 4, RF-shielded enclosure, can operate continuously without user intervention and can be controlled remotely via local touchscreen interface or PC.

GAO Comm    Toronto M1B 2K4  Canada
Aug 12, 2010 Suited for simulating various conditions in manufacture, evaluation, and maintenance of passive optical components, model 3E conducts tests based on automatic power control (APC) and automatic temperature control (ATC) techniques. FC/ST/SC adapters are available, and stable output power is rated at ±0.03 dB/15 min and ±0.05 dB/8 hr. Unit also offers switchable working wavelengths from 1,310-1,550 nm (±20 nm) and optional modulation frequencies, including CW, 270 Hz, 1 kHz, and 2 kHz.
