Clearfield, Inc.    Plymouth, MN 55442
Jan 17, 2011 FieldSmart Small Count Delivery (SCD) Wall Box xWB2 offers 3 footprint designs to deliver 36-144 ports of fiber management. Device can be integrated with up to 2 Clearview Cassettes to aid in small port count fiber terminations and optical components. Suitable applications include business class demarcations, MDU distribution points and IDF locations in enterprise networks as well as pole-mount applications in outside plant environments.

GAO FiberOptics Inc.    Toronto   Canada
Jan 14, 2011 Offering stable output power, model 5203 provides wavelengths of 1,310 and 1,550 nm and uses FP-LD emitter. Max spectral width is 10 nm, and light source operates continuously for 40+ hr using three 1.5 V alkaline batteries. Paired together with GAO5301 mini optical power meter, unit forms optical loss test kit and solution for fiber optic network field work. Applications include telecommunications, CATV maintenance, and fiber optic lab testing.

GAO RFID Inc.    Toronto   Canada
Jan 14, 2011 Used to test fiber optic cables and equipment, model 5602 integrates independently operable intelligent optical power meter module and stable light source module. Power meter is calibrated at multiple wavelengths, including 850, 980, 1,300, 1,310, 1,490, and 1,550 nm, while light source operates at 1,310 and 1,550 nm. Interchangeable FC, SC, and ST connectors are available for selection, and various configurations of light source options and power meter options are also available.

Energetiq Technology    Woburn, MA 01801
Jan 14, 2011 Model EQ-99FC Laser-Driven Light Source utilizes ellipsoidal collector to deliver bright UV-VIS-NIR light to standard SMA fiber coupling. High-efficiency collection optic ensures brightness and power stability are maintained across broad spectrum and efficiently coupled into small diameter optical fibers. Electrodeless operation provides ultra-long lamp life.

Konica Minolta Sensing Americas, Inc.    Ramsey, NJ 07446
Jan 14, 2011 Weighing just less than 1 lb with target mask attached, handheld FD-Series measures density and color while taking into account fluorescence of paper substrate. Integral VFS (Virtual Fluorescence Standard) technology enables color evaluation under Illuminant D50, and automatic wavelength compensation calibrates in wavelength direction when white calibration is performed. Product corresponds to ISO 13655 M1 standard for fluorescence and color measurement.

Edmund Optics    Barrington, NJ 08007
Jan 13, 2011 Electrically Focus-Tunable Lenses, with aperture of 10 mm, provide single-lens solution for focus and zoom objectives. When voltage is applied, each compact, plano-convex lens changes effective focal length anywhere from +15 to +100 mm. With aperture diameter of 20 mm, Manually Focus-Tunable Lenses use rotating outer ring to manipulate focus length from -40 mm to infinity to +40 mm and change shape from convex to concave. High refractive or low dispersion options are available.

Crestron Electronics, Inc.    Rockleigh, NJ 07647
Jan 12, 2011 As standalone system or part of control system, HD-EXT fosters HDMI-based, long-distance signal transmission and distribution throughout classrooms, boardrooms, and commercial buildings with zero signal degradation. Model HD-EXT1-C includes HD transmitter and receiver that carry HD digital A/V as well as 2-way RS-232 and IR control signals over single DM 8G STP (shielded twisted pair) cable, while HD-EXT2-C substitutes RS-232 and IR control with stereo analog audio support.

faceVsion Technology USA    Fremont, CA 94538
Jan 11, 2011 Equipped with wide-angle lens, TouchCam V1 includes built-in hardware H.264 video encoding that delivers 720p video over Internet connection with as little as 1.2 Mbps bandwidth. When used with Skype 5.0 for Windows®, 3 or more users can hold group video conference calls from anywhere. TouchCam V1 also delivers optimal video quality for businesses using Cisco® WebEx, GoToMeeting.com, and other online collaborative meeting applications.

Pinpoint Laser Systems    Peabody, MA 01960
Jan 10, 2011 Designed for Laser Microgage measuring and alignment system, Capture Software allows operators to grab measurement readings from 4 remote laser receivers to analyze alignment and performance of production machinery and industrial equipment. Windows-based application records incoming readings, displays results, and interfaces with spreadsheets and statistical analysis packages. Together, Laser Microgage and Capture deliver precision of 0.0001 in. over working range of 180 ft.

Samsung Techwin America    Carson, CA 90746
Jan 10, 2011 Available with 4, 8, or 16 channels, DIY Security Systems include DVR with storage capacities from 500 GB to 1 TB. OmniView software enables SMB owners to manage infinite number of systems at multiple locations simultaneously from single user interface. QuickConnect feature configures system with wireless network to enable remote viewing via PC or Smartphone. Featuring weatherproof design, cameras come in box and dome models with night vision capability up to 40 ft.

Anritsu Co.    Morgan Hill, CA 95046
Jan 10, 2011 Covering 500 kHz to 1.6 GHz frequency range, S412E LMR Master aids installation, verification, and service of P25/NXDN and LTE public safety, utility, and private mobile communications systems. Unit combines P25/NXDN radio test set with cable and antenna analyzer, 2-port network analyzer, spectrum analyzer, interference analyzer, and power meter, plus LTE transmitter measurement capability. Coverage mapping feature allows up to 8 hr of BER and RSSI testing to be associated with GPS location.

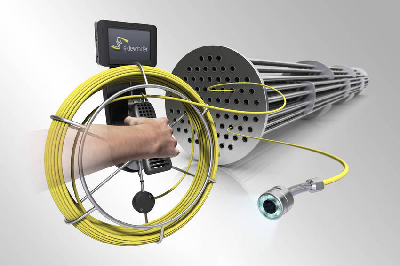

Peerless Creations LLC(TM)    Landing, NJ 07850
Jan 07, 2011 Weighing 5 lb, Sidewinder Push Camera inspects process piping, heat exchanger tubes, exhaust stacks, and other confined spaces. Submersible, stainless steel unit extends 100 ft into openings as narrow as 7/8 in. dia, using LEDs and high-sensitivity imager to capture inspection footage, which is displayed on detachable wireless LCD monitor. Composed of electrical conductors within fiberglass core, all sheathed in PVC jacket, push rod measures 3/16 in. dia.

Anritsu Co.    Morgan Hill, CA 95046
Jan 07, 2011 Used with MT822xB BTS Master(TM) and MS272xC Spectrum Master(TM) handheld analyzers, TD-LTE RF Measurement Suite measures RF, modulation, and over-the-air parameters of TD-LTE eNodeB radio transmitters. Suite enables users involved in deployment of LTE networks to test, verify, and report on base station transmitter quality and coverage. With measurement option installed, analyzers can measure channel spectrum, power vs. time, adjacent channel leakage ratio, and spectral emission mask.

Pathway Innovations and Technologies, Inc    San Diego, CA 92121
Jan 07, 2011 Featuring slender vertical configuration, HoverCam® captures entire page of document in single snapshot action with aerial-positioned high-resolution lens. Unit also serves as HD web cam, displaying and recording 1080p real-time video of document and presenter simultaneously. Camera can be used as video capturing device for Skype, Webex, or GoToMeeting, or be combined with HoverCam Flex software for web shared whiteboard and picture-in-picture conferencing.

Laser Research Optics    Providence, RI 02904
Jan 06, 2011 LRO Cavity/Resonator and External Beam Delivery Optics for Trumpf® lasers feature plane-parallel configurations and include zero phase-, phase lock-, rear mirrors, output couplers, and phase retarders in 38-68 mm sizes. Made from mirror-grade single crystal silicon, mirrors have silver coat for 99.6% min reflectance @ 10.6 µm. Products meet ISO-10110 specifications for optical elements and have 1/40th wave max flatness and typ 20-10 scratch-dig surface quality.

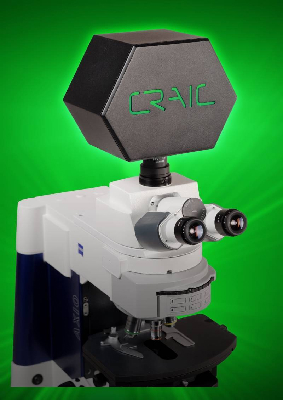

CRAIC Technologies Inc.    San Dimas, CA 91773
Jan 04, 2011 Designed to optically analyze vitrinite and other macerals, CoalPro II(TM) determines thermal maturity and energy content of coal, kerogens, and petroleum source rock. System measures amount of light reflected from samples from coal blend at hundreds of points after which statistical analysis is done by software. Results of statistical analysis are used to determine amount of vitrinite in sample, sample's thermal maturity, and therefore its energy content.

GAO FiberOptics Inc.    Toronto   Canada
Jan 04, 2011 Powered by rechargeable battery or power supply adapter, Model 5201 operates with Model 5302 optical power meter for measuring optical loss on fiber cables. Equipped with FP-LD emitter, unit provides 1,310/1,550 nm wavelengths for single mode fiber and 850/1,300 nm wavelengths for multimode fiber, together with switchable modulation frequencies, including CW, 270 Hz, 1 kHz, and 2 kHz. Light source delivers stable output power of -7 to -6 dBm at ±0.05 dB/15 min at ±0.1 dB/8 hr.

GAO FiberOptics Inc.    Toronto   Canada
Dec 29, 2010 Used in telecommunication and CATV maintenance as well as fiber optic lab testing, model 5601 lets technical support personnel test various instruments with one meter. It performs closed-loop tests by using both integrated optical power meter and optical light source modules, but each module may also function individually. Laser source operates at 1,310 and 1,550 nm, while optical power meter module operates over 850, 980, 1,310, and 1,550 nm.

TT electronics IRC Wirewound and Film Technologies Division    Boone, NC 28607
Dec 22, 2010 Featuring 20 KV isolation and 2 Mbps data transmission rates, IP65-rated OPI1268S Series complies with ATEX and ICEex certifications for electrical equipment used in hazardous areas. Explosion-proof unit comprises GaAIAs LED with peak wavelength of 850 nm, optically coupled to photodiode that detects incoming modulated light and converts it to proportionate current. Measuring 27.94 x 6.35 x 8.89 mm, device operates from 7 V supply with 40 mW power dissipation.

Antenna Technology Communication, Inc.    Chandler, AZ 85226
Dec 22, 2010 Compatible with analog, digital DVB satellite standard, Model TE-2000 HD provides field test instrument for both terrestrial and satellite covering North America and world standards. Advanced color TV/SAT meter features panoramic 6.5 in. display, which enables user to monitor decoded picture, as well as view several measurements simultaneously.
