Noraxon U.S.A. Inc.    Scottsdale, CA 85254
Mar 12, 2004 TeleMyo 2400T surface and fine-wire electromyography (EMG) transmitter unit sends real-time EMG and other analog signals via wireless transmission to computer or notebook. Flexible surface EMG system allows users the freedom of movement to acquire and analyze muscular performance of individuals during real-life and real-work settings. Use of product results in clean, reliable, and repeatable data for ergonomic research, product design, and workplace evaluations.

Ludeca Inc.    Miami, FL 33172
Mar 12, 2004 RollAlignâ„¢ visual laser tool facilitates field replacement of process rolls. Laser emitter unit, mounted on reference roll, projects two Class 2 fanned 635 nm laser lines onto reflector unit mounted on roll to be moved. This allows operator to view vertical angle (pitch) and horizontal angle (parallelity) as roll is adjusted into alignment. Product fits rolls of any diameter spaced between ½ in. to 10 ft apart. Crowned rolls can also be measured and aligned.

Nufern Inc.    East Granby, CT 06026
Mar 12, 2004 Panda-style, polarization maintaining (PM) Erbium-doped fiber enables development of next-generation PM amplifiers and short-pulse lasers. Dopant concentration allows short fiber lengths, beneficial for managing dispersion. Co-doped Erbium-Ytterbium (Er-Yb) double-clad fiber is suited for high-power amplifiers used in CATV and telecom applications. Polarization maintaining 1300 nm fiber is engineered for telecommunications market.

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112
Mar 11, 2004 Chameleon-XR produces femtosecond pulses with greater than 1 W average output power. Patented PowerPulseâ„¢ dispersion-balanced tuning mechanism optimizes output power and pulse width automatically. Miniature closed-loop air recirculator allows users to access wavelengths above 920 nm without requiring external purge. Its 720-980 nm tuning range makes it suitable for time-resolved photoluminescence, non-linear spectroscopy, fluorescence upconversion, and quantum chemistry.

Sipex Corp.    Miliptas, CA 95035-1701
Mar 11, 2004 Model SP8110 features 2 output channels, 400 MHz on-chip adjustable oscillator, and extended temperature range of -40 to +85°C. Output channels are individually programmable up to 130 mA. High-frequency current modulation is utilized to suppress noise of grounded laser diodes. Nominal 400 MHz modulation frequency is adjustable for both channels via external resistor RF tied to ground. Power saving mode, as well as error mode, enhance application performance.

Meller Optics, Inc.    Providence, RI 02940
Mar 10, 2004 Custom-manufactured Sapphire Waveplates are suited for any laser that transmits 2.8–4.7 mm. Offered in ½- and ¼-wave, in both multiple and zero order configurations, they can be thinner than quartz waveplates because of intrinsic Moh 9 hardness. Featuring 10-5 scratch-dig surface quality and less than or equal to 1 arc/sec parallelism, waveplates are offered in 10–30 mm dia sizes with V-coat or broadband A/R coatings at less than or equal to 0.25% R per surface.

Electrophysics Corp.    Fairfield, NJ 07004
Mar 09, 2004 EXTHERM PRO features intuitive user control, 180-image memory card, and IP54-rated housing. Flip-out 3.8 in. LCD display rotates to make viewing overhead and floor level apparatus comfortable. Incorporating 320 x 240 microbolometer focal plane array with less than 80 mK sensitivity, camera delivers high-resolution images. Optional lenses, Fire Wire real-time, digital, high-speed interface, and ReportIR software ensures that camera meets inspection requirements.

Intec Controls Inc.    La Jolla, CA 92039
Mar 09, 2004 Series AT-1110, 4–20 mA transmitters are enclosed in tamper-proof housing and have endured 12-month UL performance testing. They offer ±0.5 ppm accuracy, 5–7 year electrochemical sensor life expectancy, and 25 sec response time. Applications include garages, loading docks, warehouses, and tunnels.

Honeywell Sensing and Control    Golden Valley, MN 55422
Mar 05, 2004 With 2.2 x 1.65 in. cross section, compact FF-SYB Series meets requirements of Type 4 according to IEC/EN 61496-1/2 and is designed for point-of-operation, presence, and access detection. Features include configuration card system, diagnostic indicators, and integrated muting capability. Unit is available with 2, 3, or 4 beams with ranges from 0-98.4 ft and 6.6-262.5 ft., and protection heights are available from 12.6-69.3 in.

Flir Systems, Inc.    North Billerica, MA 01862
Mar 05, 2004 ThermaCAM® E4 allows image post-processing on camera or PC. It can store images as nonradiometric JPEG files or as radiometric JPEG files, which retain full thermographic functionality. Audible alarm sounds off when user-defined high, low, or differential threshold temperature is reached. Built-in Laser LocatIRâ„¢ helps user associate IR image displayed with actual physical target. Camera can measure temperatures from -20 to +900°C to within ±2°C or ±2%.

Flir Systems, Inc.    North Billerica, MA 01862
Mar 05, 2004 Professional-grade, ThermaCAM P60 records both infrared radiometric and visible digital images then enables user to link them to each other. LED accessory light plugs into camera's USB port and comes on when operator selects visible light photography. Multiple users can store configuration profiles on camera and access them with push of control button. Burst-mode sequences can be recorded in AVI format for playback in variety of media players.

Flir Systems, Inc.    North Billerica, MA 01862
Mar 05, 2004 Modular ThermoVision® A20 and A40 combine microbolometers, optics, electronics, and ambient temperature compensation with user-configurable logic, multiple I/O, 60 Hz color video output, and plug-n-play Ethernet or FireWire network connectivity. Suited for remote monitoring, process control, machine vision, and design verification, cameras provide temperature measurement and linked multiple digital and analog alarming.

Pinpoint Laser Systems    Peabody, MA 01960
Mar 04, 2004 Microgage Spindle and Shaft Alignment Kit consists of laser that is mounted to drive shaft, spindle, or gearbox flange, which projects precise reference beam along centerline. Digital target receiver catches laser beam and provides measurement reading to show if receiver is off-center. System measures misalignments as small as 0.0001 in. Angular errors can also be measured and eliminated. System can be attached to laptop or PC for printouts and record keeping.

Spectra-Physics, Inc.    Mountain View, CA 94043
Mar 03, 2004 Self-contained PulseScout™ measures laser pulse durations from 20 femtoseconds to picosecond regime, and can be configured for wavelengths from 420–1,600 nm. With 2 user-interchangeable detector modules, unit can measure pulse widths from low energy, high repetition rate oscillators and high energy, low repetition rate amplifiers. Microprocessor-driven control unit with onboard LCD operates autocorrelator head and optional spectrometer through on-screen menus.

Vexcel Corp.    Boulder, CO 80301

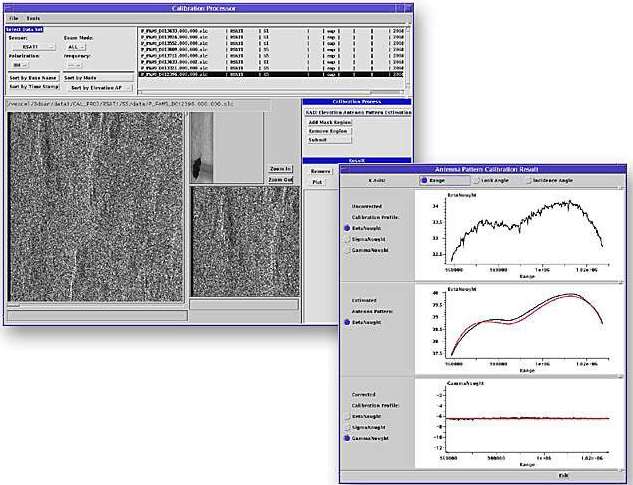

Mar 02, 2004 CALPROâ„¢ supports PALSAR, Radarsat, and Envisat-ASAR sensors. User-friendly GUI allows operator to import synthetic aperture radar imagery and perform geometric, radiometric, and polarimetric calibrations. Results are saved in corresponding sensor file format for use by SAR image formation processor.

Progressive Machine Co., Inc.    Ringwood, NJ 07456
Mar 02, 2004 Model 620 features oscillating spindle that allows material to remain in fixed position while spool moves back and forth. Accurate traverse and pitch control from 1/8 to 1½ in. minimizes camber and results in solid, damage-free wind build. System is suited for secondary operations such as single strand rewind lines or converting pancake coils into traverse wound stock, as well as level winding product downstream from intermittent operation.

J.S.T. Corporation    Waukegan, IL 60085

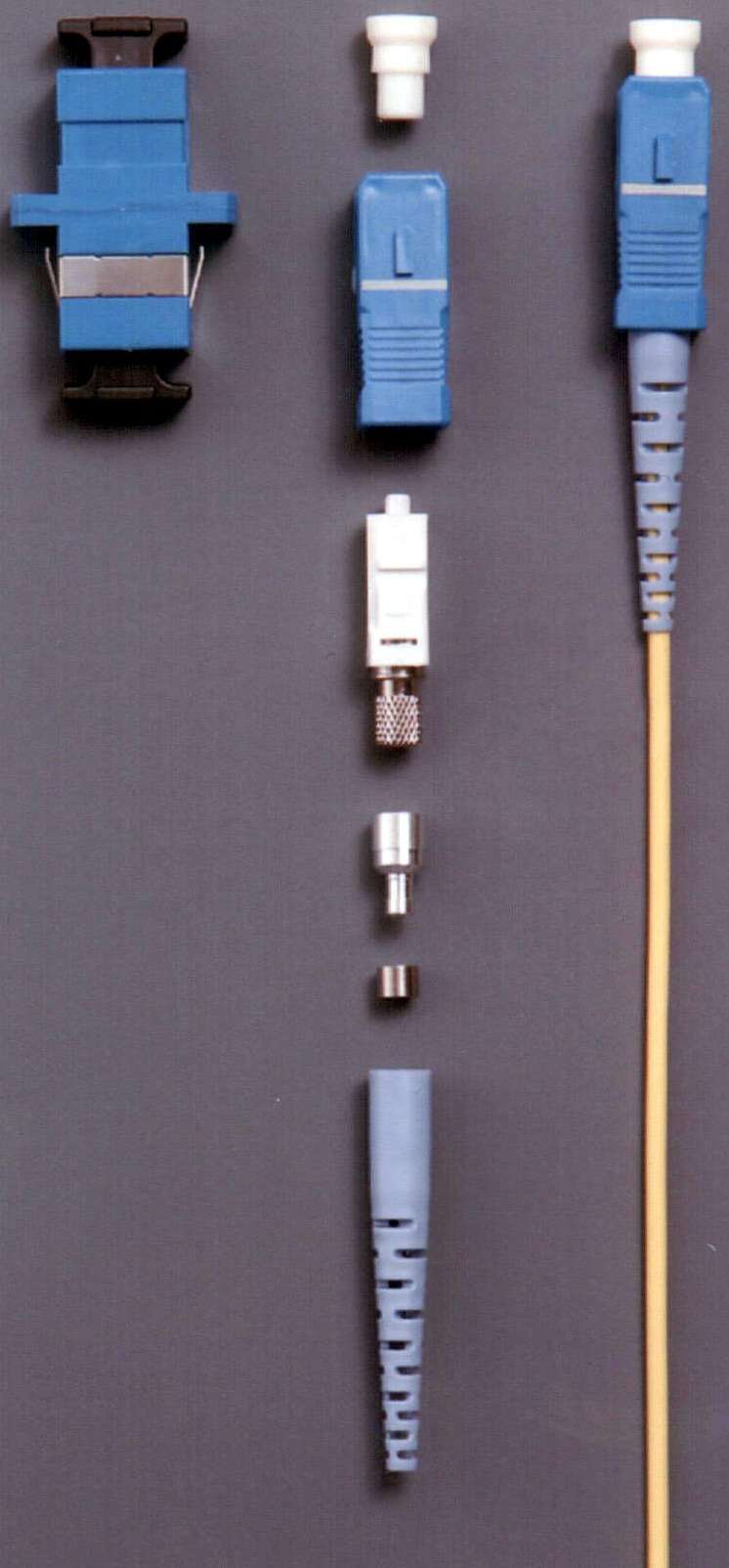

Mar 02, 2004 SC type optical fiber connector provides audible sound when properly mated and keying that prevents rotational misalignment. Product is offered pre-assembled, with 2.50 mm Zirconia ferrule, in singlemode or multimode versions. Max insertion loss ranges from 0.3–0.5 dB with respective min return loss of 22–40 dB. It supports 0.9, 2, and 3 mm cable types. Connectors conform to JISC5973 and IEC60874-14 standards.

TE Connectivity Ltd.    Berwyn, PA 19312
Mar 01, 2004 With average insertion losses of less than 0.05 dB, randomly mated, Ultra Low Loss Singlemode SC Cable Assemblies enable systems to accommodate multiple subscribers/connections, provide long distance interconnections without need of amplification, and increase stability.

TE Connectivity Ltd.    Berwyn, PA 19312

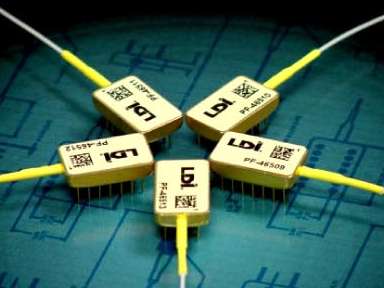

Mar 01, 2004 LDPF and LDPW series PINFET Optical Receivers integrate PIN photodiode and discrete transimpedance amplifier stage. Light is coupled into detector stage through multimode optical fiber pigtail that allows coupling with either single or multimode fiber systems. Sensitivity and dynamic range can be customized to meet user requirements. Equipped with automatic gain control, LDPW series provides dynamic range operation up to 0 dBm.

TE Connectivity Ltd.    Berwyn, PA 19312

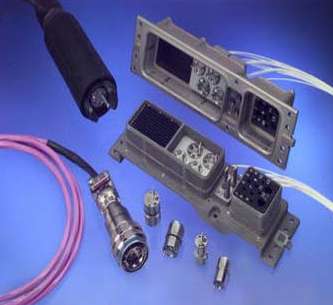

Mar 01, 2004 Offered in singlemode and multimode models, each circular Expanded Beam insert comes in 3 geometric shapes of large, medium, and miniature-sized interconnections containing 1, 2, or 4 fibers. Units provide precision coupling of fiber optic signal without making physical contact at fiber-to-fiber optical interfaces. They are suited for high vibration and thermal extremes encountered in avionics, field applications, and harsh environments.
