Progressive Machine Co., Inc.    Ringwood, NJ 07456
Oct 01, 2002 Model MS 103-LD PMC, with dual spindle design, winds continuous lengths of difficult profile products. Both spindles operate through common dancer system to minimize change-over from full to empty spool. Accu-Wind manages machine functions/winding patterns, insuring precise placement of successive layers while maintaining tension and pitch controls. Line speed is rated to 500 FPM, package width and winding diameter is up to 16 in., and package weight is up to 60 lbs.

DVS Digital Video Inc.    Burbank, CA 91502
Sep 24, 2002 Based on Incite Editor software and HDStationRGB, Incite Editor v3 supports HD formats plus 2K and 4K. With compatibility to HDreel and real-time disk array with network capabilities and fiber channel connectivity, HDStationRGB acts as central video hub for digital lab. It may be applied to both SDTV and HDTV broadcast markets, as well as for high-end feature film production.

Pinpoint Laser Systems    Peabody, MA 01960
Sep 20, 2002 Machined from solid aluminum and protected by hard, anodized coating, Azimuth Transit Plate for Laser Microgage measuring system provides precision measuring and alignment to 0.001 in. over distances of 50 ft. It mounts system's laser transmitter to project precise laser reference beam. Azimuth Transit Plate can be mounted on tripod or bolted to framework and machinery. Precision adjustment screws control azimuth, level, and swing position of the plate.

Paul N. Gardner Co., Inc.    Pompano Beach, FL 33060 6608
Sep 19, 2002 LICO 400's incorporated cuvette compartment provides automatic cuvette type detection and lockIN technology, which enables users to measure with open lid. Its external barcode reader enables sample identification, while integrated data memory enables users to save 1000+ reference values. Data logger records all information around measurements, and unit's D Floppy disk drive allows for software updates and data transfer. LICO 400 also includes illuminated graphical display.

Spectrolab Inc.    Sylmar, CA 91342
Sep 19, 2002 Rated at 2.5 and 10 Gigabit/sec, InAlAs/InGaAs avalanche photodiodes detect incoming laser light from transmitters, convert light into electrical signals, and amplify signal internally by process known as avalanching, thus enhancing receiver sensitivity. Applications include long-haul and metropolitan optical communications systems.

Thomson Micron, LLC    Ronkonkoma, NY 11779
Sep 17, 2002 Absolute encoders include 20 and 58 mm dia sizes, and generate 8 and 10 bit binary code output signals, respectively. Smaller size incorporates conductive composite housing, which provides EMI shielding and protection for assembly. Larger size, intended for industrial usage, incorporates larger radial bearings and 10mm OD input shaft for increased external load capacities. Both encoders satisfy moderate to high-end accuracy requirements.

Prima U.S., Inc.    Farmington Hills, MI 48335
Sep 17, 2002 Operating at speeds to 800 in./min in X, Y, Z axes, Model 790 BeamDirector® is accurate to ±0.0004 in. per 20 in. throughout its entire work envelope. Assembled atop granite base, it incorporates rigid X and Z axis assembly and sliding Y axis arm that eliminates droop. System utilizes DC brushless motors, digital motor amplifiers, and integrated Automatic Focus Controlâ„¢ (AFC). Its 2 in. clear aperture allows integration of C02, Nd:YAG, and CW:YAG lasers.

Ircon Inc.    Niles, IL 60714
Sep 17, 2002 Torpedo Car Inspection System uses single or dual Stinger thermal imaging cameras to inspect torpedo car for deteriorated refractory lining. Dual camera system inspects both sides of car as it passes on its way to pour area, and identifies hot spots on outside car wall. System includes PC, software, cameras, and rugged camera enclosures. Data can be viewed, saved, or sent to SQL database for historical information. Optional relay outputs are available.

NP Photonics, Inc.    Tucson, AZ 85747
Sep 17, 2002 Based on Erbium Micro Fiber technology, SMPF-2030 fixed wavelength fiber laser module is mode-hopping free, with side mode suppression ratio of greater than 50 dB. Telcordia-compliant module is available at ITU 50 GHz for entire C-band and offers wavelength accuracy of ±500 MHz. It includes embedded microprocessor control and 1 m long PM fiber pigtail connector with jacket diameter of 250 µm or 900 µm. Module offers 30 mW of output power.

AEI North America, Inc.    Marcellus, NY 13108
Sep 16, 2002 Econoflex2 Series is available in 2 versions: 10.6 mm dia configurable type and 5.8 mm dia flexible type, each is offered in standard (450 and 900 mm) and custom lengths. High resolution 6K pixel image bundle is coupled with illumination provided via built-in battery powered light source. Accessories include 90° mirror, magnet, retrieval tool, and CCD or digital camera adapters. Inspection applications include ductwork, drains, and sewer lines.

Opticis North America, Inc.    Richmond Hill, ON L4B 3B2
Sep 16, 2002 M3-250-PAT 850 nm multi-mode Small Form Factor Pluggable (SFP) LC optical transceiver is based on Vertical Cavity Surface Emitting Laser (VCSEL) technology. With IEEE Standard 802.3z compliance, 2.5 Gbps transceiver serves markets for InfiniBand, Fibre Channel, and Gigabit Ethernet. Mechanical packaging is designed for low RFI/EMI characteristics as well as to minimize ESD effects. Transceiver is certified to comply with FCC, CDRH, and UL standards.

Leica Microsystems, Inc.    Bannockburn, IL 60015
Sep 10, 2002 The MZ16 allows users to image 3D structures as small as 600 nm. It offers apochromatic correction for accurate color reproduction. Depth of field can be adjusted using built-in iris diaphragm for demanding specimens with minute height variations. MZ16 scans specimens from 7.1x up to 230x magnification with max resolution of 840 line pairs/mm. Rapid magnification changes using objective revolver reduce time spent on sorting, characterizing, and analyzing.

NP Photonics, Inc.    Tucson, AZ 85747
Sep 09, 2002 Scorpion Amplet MMP-HP7020 high-gain, low-noise amplifier module has 16 dB of total output power and provides up to 20 dB of gain across C-Band, while generating less than 5.5 dB of noise. Suitable for in-line metro and access applications, it offsets signal loss created by DWDM and optical conditioning devices. It has MSA-compliant footprint of 90 x 70 x 12 mm, and complies with Telcordia GR-1312.

Iconotech    Clinton, CT 06413
Sep 09, 2002 Thicker DCP-305 imaging film offers strength and durability, which renders long run capability. Its uniformity reduces wrinkling when wound onto print cylinder. In addition, ink lay-down is consistent, thus enhancing print clarity.

Leuze electronic, Inc.    New Hudson, MI 48165
Sep 06, 2002 Compact Plus light curtain can be equipped with various function packages for muting, blanking, or cyclical control. Output modules, such as semiconductor outputs, relay outputs, ProfiSafe and SafetyBUS p, allow curtain to be integrated into existing applications. IR-Diagnostics interface and teach-in function are included.

Sperry West Inc.    La Jolla, CA 92037
Sep 05, 2002 Spyder® CCTV Video Cameras feature invisible mounts and tough shell. They have no exterior movable parts, so camera angles and views remain consistent and safe from tampering. Cameras are small and fit against walls and ceilings, with largest model measuring 4 x 6 in. Seven-model line comes in 1-, 2-, or 3-view configurations for use in rooms, intersecting T corridors, hallways, and elevators.

Tra-Con, Inc.    Bedford, MA 01730
Sep 04, 2002 Suitable for optical bonding, TRA-BOND LX10085 one-part adhesive allows users to take as much time as necessary to make critical alignments, then sets in seconds when exposed to ultraviolet light. Solvent free system meets Federal Specification MIL-A-3920 for optical adhesives and provides optical bonding to glass surfaces, metals, fiberglass, and glass filled plastics. It is suited for military, aerospace, and commercial optics.

Renishaw, Inc.    Hoffman Estates, IL 60192

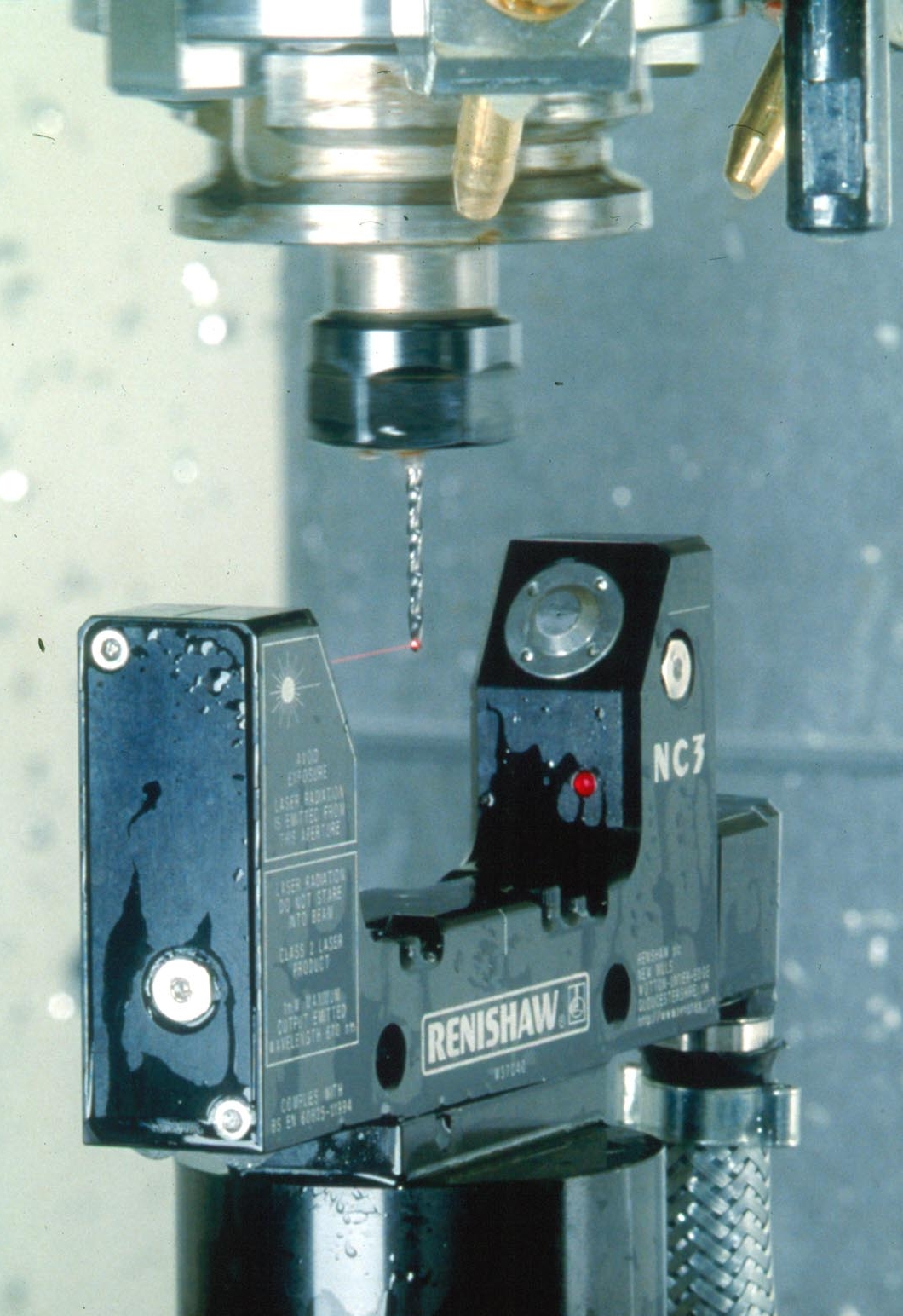

Aug 30, 2002 Non-contact NC3, for tool setting, measures tools as small as 0.2 mm diameter anywhere along laser beam. Drip rejection procedures offer protection from unwanted trigger signals. Continuous stream of air flows through Microhole(TM) apertures to protect system from all possible contaminants such as coolant, chips, and graphite. Protection is constant at any orientation and has no effect on ±0.1 µm repeatability. System measures only 135 x 26 x 77 mm.

Edmund Optics    Barrington, NJ 08007
Aug 29, 2002 Metric Goniometers feature dovetail design and Vernier scale for high resolution, repeatable motion. Thumbscrew locks goniometer stage securely in place. Models are made of black, anodized brass and have load capacity of 3.5 kg (40 x 40 mm stage) or 5.0 kg (60 x 60 mm stage). Radii from 47 to 95 mm are available, and resolutions from 0.1° to 0.2° are offered. Travel is either ±15° or ±20°.

Olympus America, Inc.    Center Valley, PA 18034
Aug 27, 2002 Real-time confocal unit, the U-CFU, features slit method scanning disk, which blocks defocused reflected light from sample and allows only focused light to go through. It generates clear images with 0.18 µ compatibility. Mercury lamp house is standard light source. U-CFU can be integrated into optical inspection systems that need improved resolving power.
