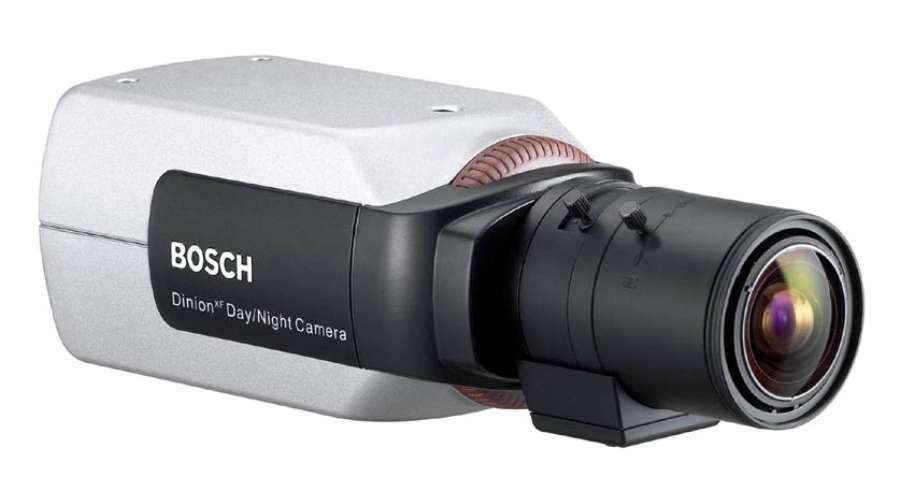

Bosch Security Systems    Fairport, NY 14450 9199
Feb 28, 2005 Dinion^XF Digital Day/Night cameras, offered in 1/3 in. model LTC 0495 and ½ inch model LTC 0620, include mechanically switching IR filter to work under poor lighting conditions. IR filter switches from color to monochrome by sensing illumination level or via alarm input. Bi-directional communication capability embedded in video signal enables technicians to check status, change camera settings, and update firmware from anywhere along video cable.

Wiremold/Legrand    West Hartford, CT 06110
Feb 23, 2005 Overhead Wireless Access Point Bracket attaches directly to wire-style cable trays and may also be hung from cable tray using threaded rod. If optimal access point location does not coincide with cable tray, bracket can be suspended from building structure with threaded rod. Support bars are punched to accommodate different rod sizes. Galvanized steel bracket includes mounting straps that allow wide variety of mounting configurations.

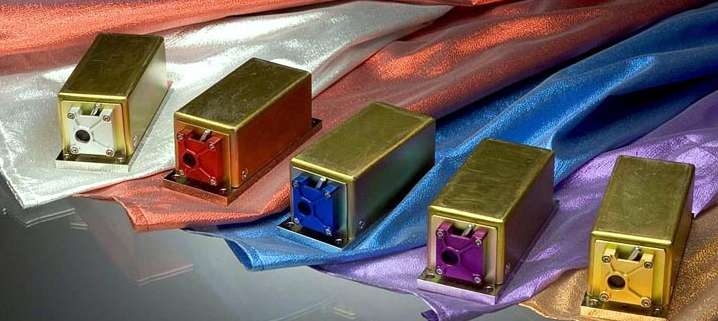

Coherent Inc., Laser Group    Santa Clara, CA 95054-1112
Feb 22, 2005 Compact CUBEâ„¢ series diode laser systems feature laser head and electronics integrated in 40 x 40 x 110 mm package. Available at wavelengths of 375, 405, 440, 635, and 785 nm, they offer output power up to 50 mW. CUBE lasers can be operated from CW up to pulse repetition rate of 150 MHz, with combination of analog, digital and computer control. Software provides virtual control panel for display and control of all laser parameters.

Honeywell Sensing and Control    Golden Valley, MN 55422
Feb 22, 2005 With cross-talk immunity up to 40 dB, HOD Series Duplexers provide 2-way data transfer over single fiber cable. WDM type provides full duplex over single fiber and is available with 850 nm emitter and 1,300 nm detector or 1,300 nm emitter and 850 nm detector. WD type consists of 2 signals sent simultaneously in same direction over single fiber and has 850 nm emitter and 1,300 nm detector. Active Coupler type is half duplex over single fiber with 850 nm emitter and detector.

Cynosure Inc.    Chelmsford, MA 01824
Feb 22, 2005 Cynergy III Aesthetic Workstation includes 2 lasers plus breakaway pulsed light system that can be used in workstation or can be unplugged for use at other locations. Baby-safe pulse dye laser technology is suited for treating vascular lesions and fine telangiectasias, while skin-safe Nd:YAG laser removes hair and treats larger veins on face and legs. Wavelengths from 500–950 nm treat red and brown colorations and provide overall facial treatments.

nLight Photonics    Vancouver, WA 98665
Feb 16, 2005 Fiber Bundled Arrayâ„¢ Diode Laser delivers high-power light via 1 m long, armor-jacketed, 800 micron diameter fiber bundle. Unit produces 30 W at wavelengths between 780–980 nm, and up to 10 W at wavelengths between 1,435–1,570 nm. It has typical numerical aperture specification of 0.12 and spectral width of less than 3 nm FWHM. Equipped with 10,000 ohm at 25°C thermistor, laser is housed in environmentally sealed, conduction-cooled package.

Lumex Inc.    Carol Stream, IL 60188
Feb 15, 2005 Designed with ray-trace software to ensure minimal light loss and consistent performance, Light Pipes carry light from board-mounted SMT or leaded LEDs to desired location. LED can be mounted according to dictates of circuit board layout, while light itself can appear in location, size, and/or shape that best suits design of product. Light Pipes include 50+ devices in 4 general categories: Light Bars, Vertical Arrays, Light Transporters, and Right Angle Light Pipes.

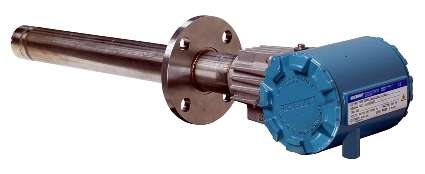

Emerson Process Management / Rosemount Div.    Chanhassen, MN 55317
Feb 09, 2005 Oxymitter(TM) can provide oxygen measurements during annealing of cold rolled metal products. By receiving accurate measurements, operators are able to maintain necessary preset oxygen levels to avoid oxidation. With transmitter inserted directly into furnace, there is no sampling system to maintain. Offering accuracy of ±0.05%, Oxymitter includes signal-conditioning electronics and HART® protocol, which allows remote calibrations and diagnostics.

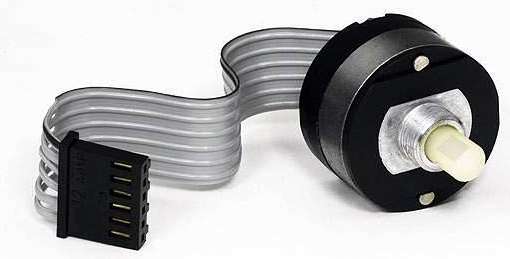

Grayhill, Inc.    La Grange, IL 60525 5914
Feb 08, 2005 Series 62M Magnetic Detent Optical Encoder is available in 16 and 24 positions. Additional choices include optional pushbutton and choice of cable lengths. Switch can be customized to user-specific requirements, including terminations, shaft and bushing configurations, and resolutions.

CorActive High Tech Inc.    Quebec City, QC G2C 1S9  Canada
Feb 04, 2005 Based on 125 µm fiber geometry, Er-25-05-PM Polarization Maintaining Erbium doped single clad fiber maximizes absorption while maintaining efficient energy transfer in order to enable optimized C and L band PM laser and EDFA applications. It features photosensitive Erbium core in panda-style polarization maintaining fiber. Power conversion efficiency is rated at 70%, 1480 nm pumped, and peak absorption is rated at 25 dB/m @ 1530 nm.

Midac Corp.    Irvine, CA 92614 6016
Feb 03, 2005 Illuminator M4500 is comprised of IR source and interferometer, which provide collimated output beam. It can be coupled with any sampling accessory equipped with its own IR detector to create dedicated analyzer. Internal IR source can be replaced with detector module for emissions work, or for use with external IR source. Data collection, post processing and report generation are provided by Grams/32-AI software or AutoQuant Pro(TM) package.

SICK, Inc.    Minneapolis, MN 55438
Feb 03, 2005 Configured for single or dual direction operation, Model C 4000 Palletizer safely transports pallets or palletized goods into hazardous area. Safety light curtain can be placed where material needs to enter machine and person needs to be detected. It can detect up to 5 small objects or 1 large object and can be positioned horizontally or at angle. Personnel access is prohibited due to self-learning technology or manually defined object size and tolerance.

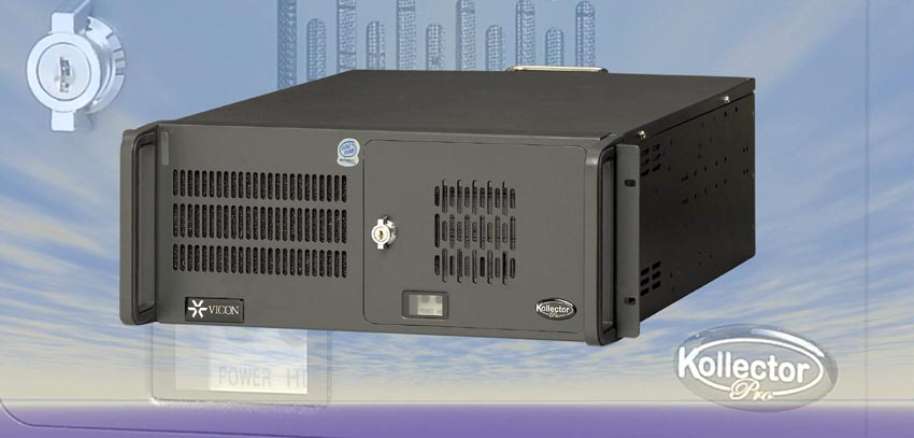

Vicon Industries Inc.    Hauppauge, NY 11788
Feb 02, 2005 Kollector Pro, V line, provides simultaneous recording of 4, 8, or 16 channels of audio. Data storage is 0.7 GB/12 hr day/microphone. ViconNet powers each system with ability to be remotely configured on network. Changes to camera titling, macro programming and scheduling, and frame rate manipulation are possible from recorders or workstations on system. It can simultaneously record, playback, and transmit video from 16 digital video channels at max recording rate of 120 fps.

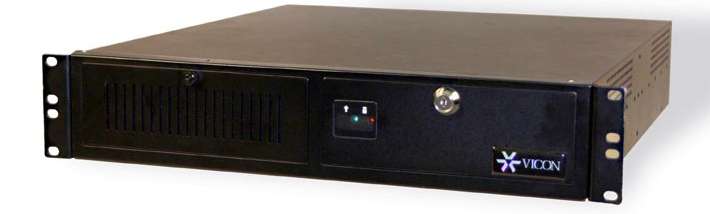

Vicon Industries Inc.    Hauppauge, NY 11788
Feb 02, 2005 Kollector Network Server (KNS) utilizes ViconNet to record and transmit video over network to ViconNet Video Management Workstations or Kollector Elite Digital Video Recorders. Each server can be remotely configured on network. Changes to camera titling, macro programming and scheduling,and frame rate manipulation are possible from recorders or workstations on system. Integrated GUI allows system configuration/playback/record on SVGA monitor.

JASCO, Inc.    Easton, MD 21601
Feb 01, 2005 Able to resolve peaks of less than 0.5 nm, UV-Vis-NIR Series V-7000 incorporates floating casting system that isolates optics from vibrational and atmospheric interferences. Units are capable of scan rates up to 2,000 nm/min with no wavelength shifts. Range of detectors and accessories are available, including absolute reflectance measurement system, which automates measurement of spectral properties, film thickness, and angle variation of solid samples.

Nufern    East Granby, CT 06026
Feb 01, 2005 Designed for integration into OEM laser applications for industrial and manufacturing environments, CW (continuous wave) fiber laser modules cover 3 power ranges with ~1 micron output: 2–15 W, 15–25 W, 25–50 W. They utilize optical fibers in compact, monolithic fiber design that is maintenance-free and eliminates need for optical or mechanical re-alignment. Plug-and-play modules are provided with any standard or custom-designed pump coupler or connector.

National Instruments Corp.    Austin, TX 78759-3504
Feb 01, 2005 PCI-based, 12-bit, 200 MS/s Model PCI-5124 delivers more than 75 dBc SFDR on 2 simultaneously sampled inputs with 150 MHz bandwidth. Based on Synchronization and Memory Core architecture, which features up to 512 MB onboard memory/channel, unit offers software-selectable 50 ohm and 1 Mohm input impedance and 5 trigger modes including video triggering. Measurement applications include consumer electronics, military, aerospace, semiconductor, and medical device test.

Nufern    East Granby, CT 06026
Jan 31, 2005 Thulium-doped double-clad fiber consists of 25 mm core diameter and 250 mm cladding diameter suited for operation around eye safe 2 mm wavelength. Aimed at industrial laser market, triple-clad Yb-doped fiber consists of 20 mm Yb-doped core with 300 mm inner glass cladding and 330 mm outer glass cladding, surrounded by low-index polymer coating.

Nufern    East Granby, CT 06026
Jan 31, 2005 PumpGuard fiber redistributes reverse-propagating, high-brightness light, a major cause of failure in multimode diodes used to pump fiber lasers and fiber amplifiers. It is offered in 105/125 microns and will be expanded to cover up to 400/480 microns, with numerical apertures from 0.12–0.22. PumpGuard is suited for pump legs on couplers and combiners, pump legs for double-clad fiber, multimode laser beam delivery fiber, and laser pump diode pigtails.

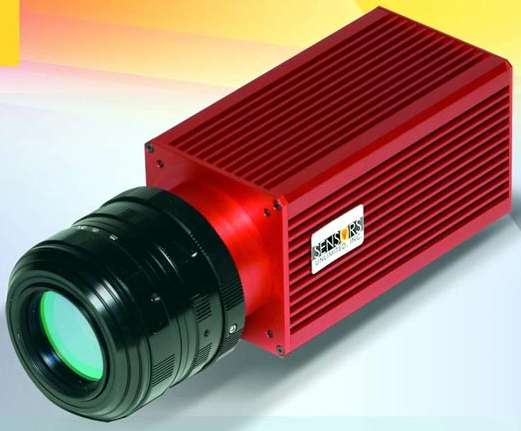

Sensors Unlimited, Inc. (SUI)    Princeton, NJ 08540
Jan 25, 2005 Solid state SU640SDV-1.7RT SWIR (shortwave infrared) Area Camera features 640 x 512 pixel resolution on 25 micron pitch with room temperature operation and built-in anti-blooming properties. Unit utilizes InGaAs detector and provides snapshot exposure as well as continuous or triggered scanning modes. Preset exposure times range from 250 µsec to 33.8 msec. Full resolution frame rate is 29+ fps with 100% optical fill factor.
