Automated Control Systems, Inc. (ACS)    New Haven, IN 46774 1362
Jul 21, 2005 To maximize unattended winding capacity, automatic Wyndamster 3210 incorporates 10-reel operation with side-by-side reel design. It coils any product strip up to 2.5 in. wide and accommodates reels up to 30 in. in dia. Operating at speeds up to 650 ipm, machine can function in overwind or underwind mode; complete conversion from one direction to other takes less than 1 min. Features include tangential feeder and paper interleaf with programmable tension control.

Highland Technology, Inc.    San Francisco, CA 94103
Jul 21, 2005 Electrical-to-Optical Converter, Model J720 and Optical-to-Electrical Converter, Model J730 convert logic levels to fiberoptic media for low-noise transport up to kilometers, with link jitter below 10 ps rms. Model J720 is powered by logic-level input, and Model J730 requires +12 V supply, user-furnished or from wall-plug power adapter. Model J730 provides digital logic output with risetime below 750 ps. Both use ST-connectorized 62/125 micron multimode fiber.

IMPCO Machine Tools    Lansing, MI 48901

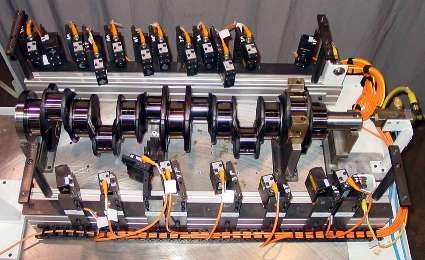

Jul 20, 2005 Class II, CE-certified OPTI-Scan can be configured to check any machined part surface and render go/no-go signal. It utilizes lasers arranged around part fixture, each aimed at machined surface of workpiece. System is first shown pre-finished master part and then properly finished master part. Quality of reflected light indicates whether surface has been correctly finished, and results are instantly displayed on control panel.

Cognex Corp.    Natick, MA 01760 2059
Jul 18, 2005 Featuring image formation technology and OCR, 2D matrix, and barcode recognition algorithms, In-Sight® 1721 delivers reliable reading performance on SEMI-standard scribes. It can read wafer marks that have been affected by CMP, edge beads, copper metallization, and blue or green nitride coating. GUI facilitates set up, and automatic tuning minimizes operator intervention. Built-in network and serial communications provide connectivity to other process tools and fab network.

Vishay Intertechnology, Inc.    Malvern, PA 19355 2143
Jul 17, 2005 Manufactured in 4.24 x 5.0 x 1.12 mm package, lead-free TEMD5xxx Family promotes response time and sensitivity through optional daylight filtering and choice of 2 radiant-sensitive areas measuring 7.5 and 5.7 mm². Models TEMD5010 and TEMD5020 provide visible-light sensitivity from 400–1,100 nm. With integrated daylight filters and peak sensitivity of 850 nm, TEMD5110 and TEMD5120 are suited for detecting IR light. All 4 devices feature 65° viewing angle.

Lenox Instrument Co.    Trevose, PA 19053 3427

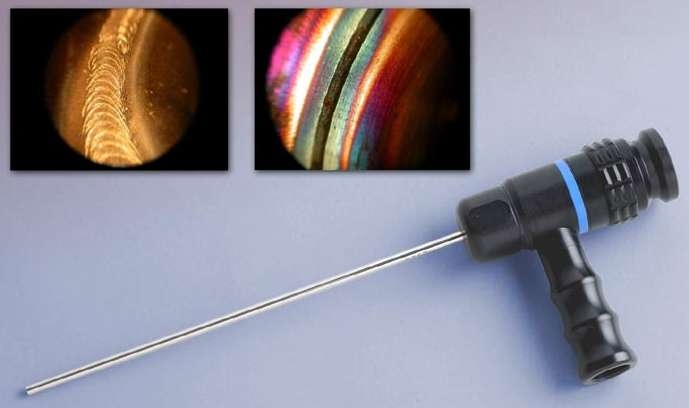

Jul 14, 2005 Featuring fiber optic illumination and various probes, Rigid Borescope enables users to identify details and flaws as small as 0.001 in. Several magnifications and fields of view are available to probe any type of cavity. Offered in diameters from 0.157–0.395 in. and lengths from 7–63 in., video and digital adaptable product is constructed of stainless steel. It produces near-100%-white light, and optics provide clear, true-color images.

Melles Griot Laser Group    Carlsbad, CA 92009

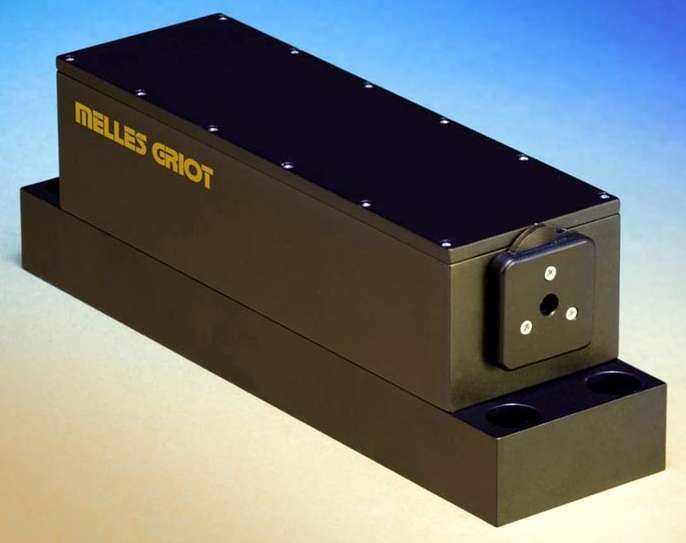

Jul 14, 2005 Operating at 561 nm, 85 YCA 020 diode-pumped solid-state (DPSS) laser produces nearly circular output beam with aspect ratio under 1.1:1. It is linearly polarized and operates in single longitudinal mode with M² factor of less than 1.2 and peak-to-peak noise of less than 3%. Compact, conduction-cooled laser head incorporates thermoelectric cooling and automatic power control for stable operation. Typical drift over 24 hr is less than 5%.

Universal Laser Systems, Inc.    Scottsdale, AZ 85260

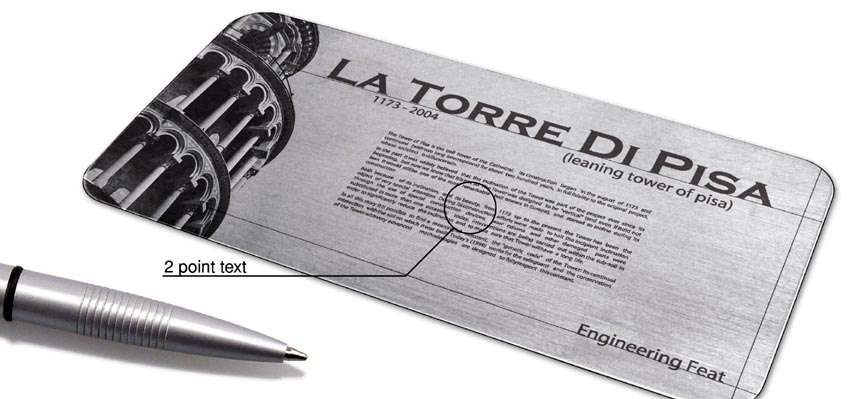

Jul 14, 2005 Multi-Material Peripheral(TM) VersaLaser(TM) is available with High Power Density Focusing Optics(TM) (HPDFO). For use in compact systems, HPDFO produces increased concentration of power without requiring larger beam path. Product can be used to create high-resolution marks, engrave text, produce graphics and photographs, and vector mark and cut thin lines. It can also scribe and/or etch directly on uncoated metals without use of marking compounds.

Banner Engineering Corp.    Minneapolis, MN 55441

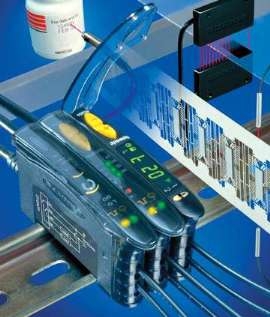

Jul 12, 2005 Offering 4-mode power and speed settings, D10 Expert(TM) with Numeric Display provides 2 discrete outputs in same sensor, or 1 discrete output and 4-20 mA current or 0-10 Vdc analog output in same sensor. D10 Expert(TM) with Bargraph Display features 8-segment display, while Discrete Output D10 model features 12-turn manual sensitivity adjustment and pulse rate LED for signal strength indication. Both offer bipolar discrete output with one current sourcing and one current sinking.

Computer Optical Products, Inc.    Chatsworth, CA 91311
Jul 08, 2005 Models CP850/950-HHC incremental rotary optical encoders, offered in shafted or blind-hollow shaft versions, have absolute accuracy of ±12 arcsec typ. Products are available in 35 resolutions from 25,000-1,250,000 full quadrature A and B cycles/rev if used with edge detection from 100,000-5,000,000 ppr, respectively. Model CP-850 comes with 3/8 in. shaft, and CP-950 is available for mounting on shafts with diameters to ½ in.

Vicon Industries Inc.    Hauppauge, NY 11788
Jul 07, 2005 Series VDR-204 is suited for CCTV users who require stand-alone, 4-channel DVR with remote PC access via network/Internet. Units accept up to 4 composite video inputs with 4-channel loop through to be recorded on local hard drive. They can display and record multiplexed image of 4 inputs on same screen at 30 fps. Resolution is 720 x 480 for full image and 360 x 240 in Quad view. Model VDR-204-12CD has 120 GB hard drive, while Model VDR-204-30CD provides 300 GB.

Carl Zeiss Microimaging, Inc.    Thornwood, NY 10594-1939
Jul 07, 2005 SteREO Discovery.V12 focuses in steps up to 350 nm over range of 340 nm. It includes 250 x 410 mm scratchproof stage plate, LED illumination, Ergo-phototube, specimen protection, and 3-position nosepiece. AxioVision 4.3 software turns unit into imaging system with integrated microscope control, image recording, processing, analysis, management, and archiving. Designed as computer mouse, SyCoP Control combines major control functions, such as zoom, focus, contrast, and illumination.

Dazor Mfg. Corp.    St. Louis, MO 63146
Jul 07, 2005 Multi-directional HIGHLIGHTER uses mouse to control direction of lights, as well as intensity and number of LEDs illuminated. Unit works on all makes of microscopes, allowing inspection and quality control workers to view surface defects. Left mouse click activates automatic continuous rotation of 1-39 LEDs so operator can compare and contrast image under different lighting. Right click alters light intensity to meet optical instrument and individual requirements.

Universal Laser Systems, Inc.    Scottsdale, AZ 85260
Jul 07, 2005 Designed for integration into all types of OEM system configurations, CO₂ lasers are available with air or water cooling options. Products include 75 W laser as well as Class IV versions, all with built-in RF power supplies and multiple mounting provisions. Manufactured with Free Space Gas Slab Laser Technologyâ„¢ for optimal beam quality in near and far fields, lasers fit into manufacturing lines, robotics systems, and CNC machines.

EEOS Inc.    Salt Lake City, UT 84115
Jul 06, 2005 Measuring 1.15 x 1.83 in., Model CLR01 is intended for use in poorly lit environments, hazardous areas, and areas where unobtrusive video devices are needed. Unit includes WiFi capabilities, video blanking, and telemetry. Cased with metal/plastic composition, camera is chemical, oil, water, and shock resistant. It mounts on any surface and has infinite focus with illumination sensitivity of 2 lux.

MARKEM Corp.    Keene, NH 03431-7100
Jul 01, 2005 Hand-held Graphic User Interface (GUI) for SmartLase® 100i Series supports complex graphic characters with WYSIWYG display and uses simple icons for operation and programming. Interface supports graphic character sets and meets coding needs of export manufacturers who require printed graphic characters. With flexibility of PC, GUI allows access to text files for display and printing.

Titan Tool Supply, Inc.    Buffalo, NY 14207 0569
Jun 30, 2005 V Series videoscope system, available in lengths from 5–49 ft, consists of video borescope and Titan VIH Pro video imaging hub. Available in 0.24 and 0.31 in. dia 2- and 4-way articulating and non-articulating models, borescope is designed for one-handed operation. Along with LCD monitor, products incorporate CCD, solid-state camera and metal-halide lamp. Compact Flash digital image storage card and USB port facilitate recording, transfer, and storage of images and audio.

Melles Griot Laser Group    Carlsbad, CA 92009
Jun 30, 2005 Series 56 ADX, 56 BDX, and 56 CDX are cylindrical with diameters of 9.5, 12.7, and 14.7 mm, respectively. All 3 series are available with output wavelengths ranging from 634–830 nm. Beam options include round, elliptical, or line output. In addition to standard cw operation, options are available that allow modulation with bandwidth up to 100 kHz. Modules are suited for patient-alignment, machine vision, and flowcytometry applications.

Pace Micro Technology    Saltaire, Shipley BD18 3LF  United Kingdom
Jun 30, 2005 All-digital Model DC551 PFD features high-definition multimedia interface to provide secure digital audio and video links. It also supports optional 1394 5C protected interface. Connectivity options include component video loop through, electrical and optical audio connectivity, and IR receiver port for remotely locating set-top box.

Melles Griot Laser Group    Carlsbad, CA 92009
Jun 29, 2005 Suited for biomedical and life science applications, modular Kymaâ„¢ 488 provides 10 and 20 mW output power at 488.0 nm, while consuming less than 15 W of wall power. Output beam is nearly circular and linearly polarized with M² factor of less than 1.2. Conduction-cooled laser head incorporates thermoelectric cooling and automatic power control for stable operation. Long-term power drift is less than 5% over 24 hours.
