SICK, Inc.    Minneapolis, MN 55438

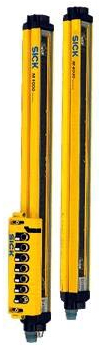

May 17, 2006 As safeguarding solution for point of entry applications, M4000 Advanced provides access protection to various machine applications. Product uses corner mirrors to protect up to 4-sided applications and does not require PC. When used with UE403 Muting Module, product offers solution for decentralized conventional muting applications involving automatic material transport. Integrated LED status indicator mounted on end cap is visible from any direction.

Schott North America, Inc. Fiber Optics    Auburn, NY 13021 3120
May 17, 2006 Offered in lengths of 100-2,000 mm for web scanning applications, LED Lightline is focusable with acrylic cylindrical lens to achieve working distances from 50-100 mm. Maytec(TM) profile grooves on sides of housing allow flexible mounting into manufacturing line. LED board can be custom tailored to application in regard to homogeneity, intensity, or mixed-color requirements. Intensity control can be performed by dimmable potentiometer via constant current or by PWM via 0-10 V analog input.

PerkinElmer, Inc., Optoelectronics Headquarters    Fremont, CA 94538-3180
May 17, 2006 Dual-output SmartBlue(TM) 2K pixel linear array camera incorporates digital interface and rugged industrial housing to meet needs of demanding imaging applications such as flat panel and web inspection. Pixel rate of 80 MHz yields line rates up to 37 Hz without compromising noise immunity, linearity, or charge transfer efficiency. Camera includes CameraLink(TM) digital communication interface, Reticon® photodiode arrays, and user-controllable internal image processing.

Technotrade International, Inc.    Manchester, NH 03103-3343
May 16, 2006 Offered in 16 concentrated aqueous formulations, Deconex® OP Series Agents are suited for organic, mineral, bifocal and flat glasses, prisms, and other precision optics. Products will not damage optics, leave no residue, and are packaged to match ultrasonic, spray, or other type of cleaning process. They are suitable for removing polymers, polishing pastes, putties, waxes, resins, protective lacquer, storage residues, cerium oxide, dust, and fingerprints.

Infrared Solutions, Inc.    Minneapolis, MN 55447

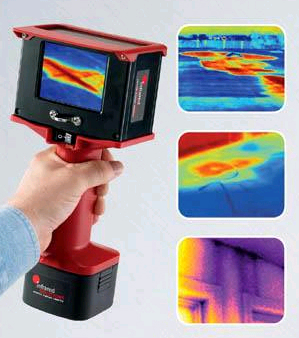

May 16, 2006 Suited for building diagnostics applications, IR-InSight® XS and XST can detect temperature variations and locate moisture and leaks at sources in walls, roofs, and flashing. XST model also offers on-screen center point radiometry. Providing 1-button point-and-shoot operation, handheld cameras include 3.5 in. LCD display and can capture and store up to 250 images. SightView(TM) Pro software enables one-touch reporting and image analysis.

Volpi Manufacturing USA    Auburn, NY 13021
May 16, 2006 High-intensity darkfield LED Ringlight features SMD LED illumination with working distance range of 0.8-2 in. and diameter of illuminated area ranging from 2.25-2.28, based on working distance. Homogeneous illumination makes defects appear bright while part surface remains dark. Ringlight is available with either red or white SMD LEDs.

Datastick Systems Inc.    Santa Clara, CA 95050
May 16, 2006 Designed for predictive and condition-based maintenance, PDA-based Model VSA-1212 uses Datastick® Spectrum v1.2 software, which provides max frequency of 10,000 Hz with FFT spectrum displays of 400, 800, and 1,600 lines. Data can be shown in terms of acceleration, velocity, or displacement. With Datastick Reporting System for VSA v1.2, users can magnify display of any time or frequency span, and can automatically detect spectrum peaks within selected span.

Gretag MacBeth Co.    New Windsor, NY 12553
May 15, 2006 Suited for textile and apparel, consumer electronics, car interiors, and furniture and appliances, Color i®7 fully automated spectrophotometer helps companies and supply chain partners manage and verify accurate product color. It features embedded profiling function and can be integrated with most digital workflow systems. For brand owners and retailers, Color i7 creates digital signature with every color measurement for added assurance of color accuracy.

Avanex Corp.    Fremont, CA 94538
May 15, 2006 Ultra-thin PureGain 400 erbium doped fiber amplifier module is designed to work within stringent space constraints found in transponder and line card applications. It can be used in pre-amp configuration, which enables high receiver sensitivity without trans-impedance amplifier, or booster configuration, which enables high launch power in advanced transmitter designs. Utilizing standard optical components, amplifier is compatible with Telcordia requirements.

Oculus Photonics LLP    Goleta, CA 93117
May 12, 2006 With portable UVCorder(TM), users can view scenes in near-UV waveband in real-time on 3.5 in. LCD display and acquire near-UV digital video and stills. Ultraviolet camera module features optimal response in 300-400 nm range, with peak response at 370 nm, and rejection of visible and infrared light. Suited for both indoor and outdoor situations, UVCorder can be used for forensics, building inspection, UV laser alignment, dermatology, dentistry, and biological research.

Optek Technology, Inc.    Carrollton, TX 75006-6905
May 11, 2006 Providing electrical isolation and data transfer, Series OPI1270 consists of visible LED emitter and phototransistor detector housed in separate opaque molded plastic housings and coupled by shrouded optical cable for noise immunity. LED emits red light with peak wavelength of 645 nm, while phototransistor exhibits max collector current of 50 mA. Offered in standard lengths of 32, 40, and 80 mm, RoHS-compliant units feature operating temperature of -20 to +85°C.

Scientific Technologies Inc.    Fremont, CA 94555
May 10, 2006 Available in sizes from 40-56 in., Light Duty Floor Stand offers mounting alternative for light curtains as well as their PA4600 Perimeter Access Guarding Device. Mounting brackets and concrete mounting bolts are included, and no additional accessories are required. Also offered in heavy-duty versions, product is suited for mounting bottom beam of light curtain or perimeter guard within 12 in. from floor to comply with ANSI/RIA R15.06 and other standards.

Edmund Optics    Barrington, NJ 08007
May 09, 2006 TECH SPEC(TM) High-Energy Polarizing Cube Beamsplitters handle laser-power densities up to 5 J/cm² and use multilayer dielectric film technology to minimize reflection and absorption losses. Units offer extinction ratio of > 500:1. Precision fused silica substrate and optical contact bonding prevents need for adhesive between prisms and improves parallelism of incoming and exiting beams. V-coat AR coating at design wavelength eliminates energy loss.

Phoenix Contact    Harrisburg, PA 17111 0100

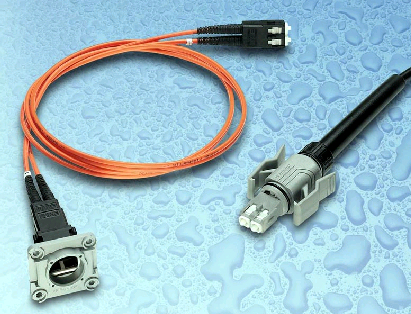

May 04, 2006 Designed in accordance with IEC 18801, VARIOSUB SC RF Fiber Optic Connectors are suited for gigabit Ethernet data transmissions over long distances or in high noise areas, where EMI is possible. USB Connectors are compatible with USB 2.0 specifications at transmission rate of 480 Mbps. Compatible to IEEE 1394, Firewire system allows connection of peripherals for industrial PCs when data transmission rates up to 400 Mbps are required in real-time.

Baumer Ltd.    Southington, CT 06489 1534

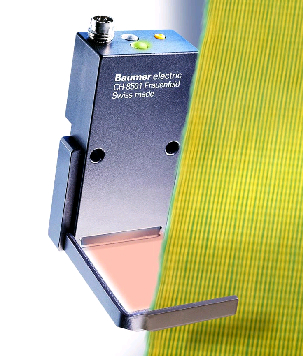

May 02, 2006 Projecting continuous 24 mm wide parallel beam to reflector, ParCon ZADM 034I analog optical line sensor permits edge and width detection to 1.0 mm. With measuring frequency greater than 1 kHz, unit measures metallic and non-metallic objects to resolution of 0.1 mm. User can program minimum object size using push button teach-in process. Housed in 67 x 34 x 16.6 mm package, sensor can control and sort by width/height, control and position sheet materials, and monitor parts for wear.

Videojet Technologies, Inc.    Wood Dale, IL 60191-1073
May 02, 2006 Videojet® 3320 integrates into applications that require permanent marking of variable data on glass, plastic, rubber, and cardboard substrates as well as labels. Capable of 0° (straight-out) or 90° laser output, it prints standard and 2D bar codes, expiration dates, batch and lot codes, serial numbers, symbols, and manufacturer names and logos at rates to 1,300 characters/sec for line speeds up to 15 product marks/sec. Job generation software is included.

FocalSpot, Inc.    San Diego, CA 92131
May 02, 2006 Set up with look-down macro zoom lens or look-under side viewing BGA lens, Optilia Flexia BGA/SMT Video Inspection Microscope provides inspection of solder joints on PCB components, solder/flux mixtures, bare circuit cards/pads, cables/connectors, wire bonds, and stencils. It can be connected to hand held monitor, PC, or laptop via high-speed USB 2.0 frame grabber. System is optimized for lead-free inspection and provides data management and documentation tools.

Directed Perception Inc.    Burlingame, CA 94010

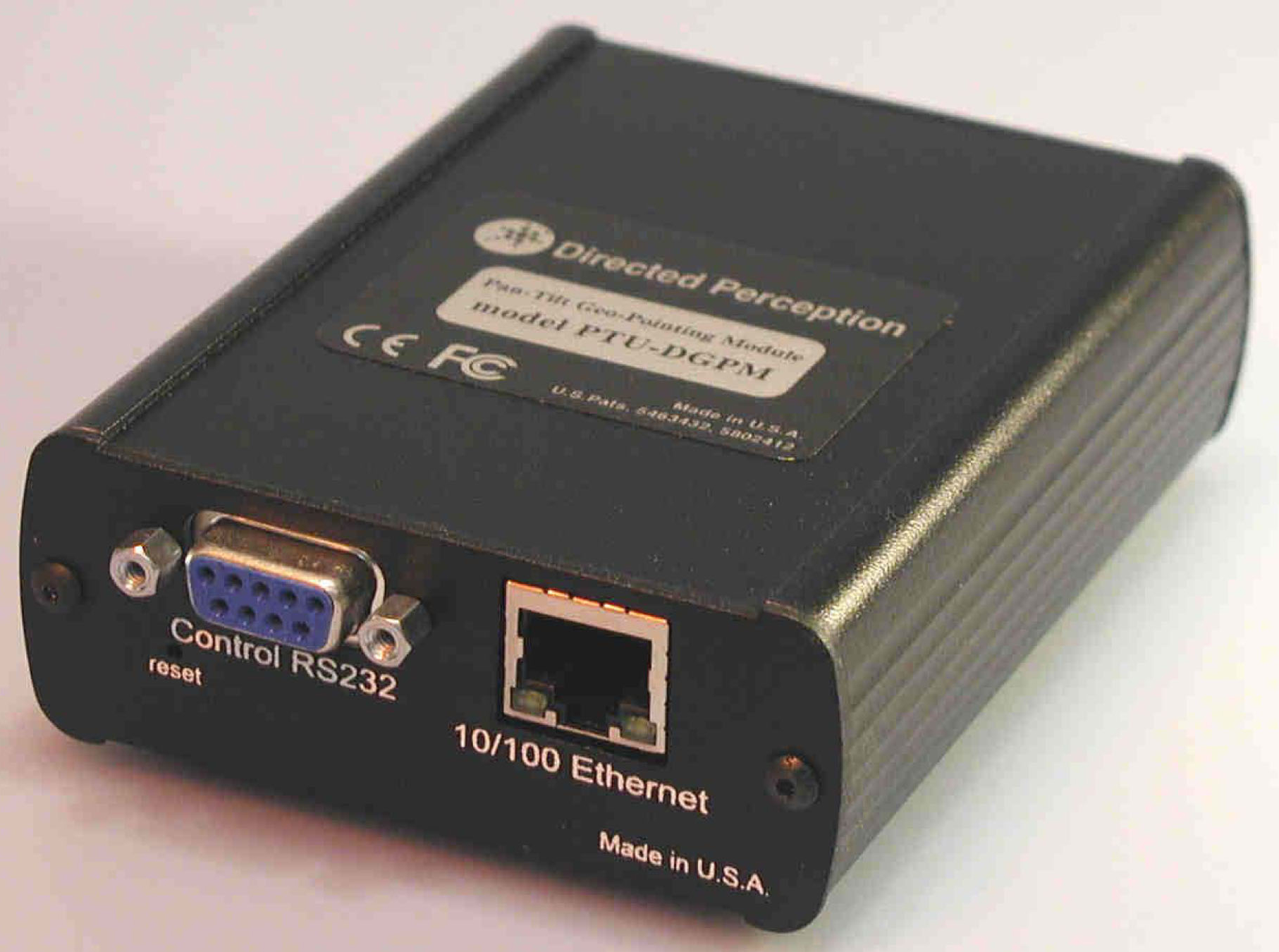

May 01, 2006 Calibrated using landmark process, PTU-DGPM controls attached pan-tilt camera, laser, or antenna using standard geo-coordinates (latitude, longitude, altitude). It includes built-in web interface for configuration and accepts commands over Ethernet/IP application interface. Capabilities include broadcasting to multiple units, tracking of moving target, and support for applications querying unit for latitude/longitude at which unit is currently pointing.

Avanex Corp.    Fremont, CA 94538
Apr 28, 2006 Suited for single-mode fiber and LEAF® transmission fibers, low-loss Dispersion Compensation Module (DCM®) maintains all critical optical specifications of standard dispersion management solutions while reducing optical power loss. Product also allows for broad hut-skipping deployment, which places DCMs in network at every other node instead of every node.

Ortega Infosystems    Fremont, CA 94539
Apr 28, 2006 Combining mapping and video management software with MPEG-4 IP video components, VideoSm@rt(TM) is suited for mission-critical security applications. It includes all necessary components to set up, access, and manage IP video anywhere from one Web browser. Fully configured system provides map-based GUI for control over video information in systems comprised of tens to thousands of geographically dispersed cameras. NVR component enables video data to be captured and recorded.
